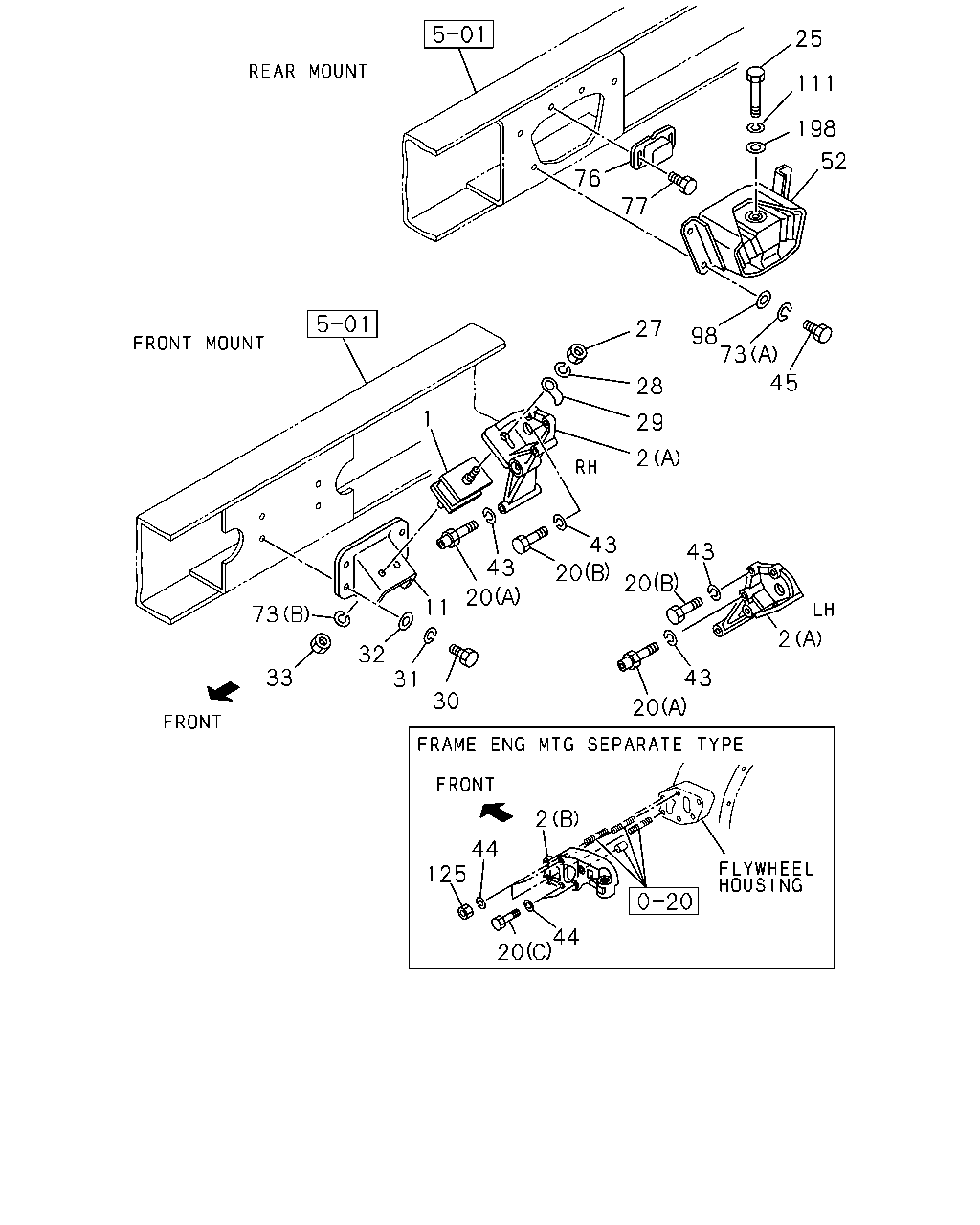

0-22B — ENGINE MOUNTING (#4228) — 69 parça

25 111 198 76 52 77 27 98 73 45 28 1 29 2 43 20 43 43 20 20 11 73 2 32 31 33 43 30 20 2 44 125 44 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	9603-9904	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	9905-	●	●	●	●
2	FOOT; ENG (A) FRONT	1-11771-218-1	01	1	9603-9904	●	●
2	FOOT; ENG (A) FRONT	1-11771-218-1	01	1	9905-	●	●	●	●
2	FOOT; ENG (A) FRONT	1-11771-217-1	01	1	9603-9904	●	●
2	FOOT; ENG (A) FRONT	1-11771-217-1	01	1	9905-	●	●	●	●
2	FOOT; ENG FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-11777-127-0	01	1	9603-9904	●	●
2	FOOT; ENG FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-11777-127-0	01	1	9905-	●
2	FOOT; ENG FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-11777-126-0	01	1	9603-9904	●	●
2	FOOT; ENG FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-11777-126-0	01	1	9905-	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-222-0	02	1	9603-9904	●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-222-0	02	1	9905-	●	●	●	●
20	BOLT; ENG FOOT (A) M14X110	1-09020-007-0	02	1	9603-9904	●	●
20	BOLT; ENG FOOT (A) M14X110	1-09020-007-0	02	1	9905-	●	●	●	●
20	BOLT; ENG FOOT (B) M14X45	9-92361-445-0	04	1	9603-9904	●	●
20	BOLT; ENG FOOT (B) M14X45	9-92361-445-0	04	1	9905-	●	●	●	●
20	BOLT; ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> (C) M18X80	1-09020-119-2	06	1	9603-9904	●	●
20	BOLT; ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> (C) M18X80	1-09020-119-2	06	1	9905-	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	9603-9603	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	9604-9904	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	9905-	●	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9803-9904	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9905-	●	●	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9603-9904	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9905-	●	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9603-9904	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9905-	●	●	●	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	9603-9904	●	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	9905-	●	●	●	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	9603-9904	●	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	9905-	●	●	●	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	9603-9904	●	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	9905-	●	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	9603-9904	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	9905-0006	●	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	0007-	●	●	●	●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	06	1	9603-9904	●	●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	06	1	9905-	●	●	●	●
44	WASHER; LK,ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> ID=18.2 OD=29	1-09503-032-0	12	1	9603-9904	●	●
44	WASHER; LK,ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> ID=18.2 OD=29	1-09503-032-0	12	1	9905-	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	08	1	9603-9904	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	08	1	9905-	●	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR FRAME ENG MTG SEPARATE TYPE<SGM>	1-53225-239-3	02	1	9603-	●	●
52	RUBBER; CUSHION,ENG MTG,RR EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-53225-236-3	02	1	9603-	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (B) ID=14.2	9-09150-514-0	04	1	9603-9904	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (B) ID=14.2	9-09150-514-0	04	1	9905-	●	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (A) ID=14.2	9-09150-814-0	08	1	9603-9904	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (A) ID=14.2	9-09150-814-0	08	1	9905-	●	●	●	●
76	STOPPER; ENG MTG RUBBER EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-53229-056-1	02	1	9603-9904	●	●
76	STOPPER; ENG MTG RUBBER EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-53229-056-1	02	1	9905-	●	●	●	●
76	STOPPER; ENG MTG RUBBER FRAME ENG MTG SEPARATE TYPE<SGM>	1-53229-046-1	02	1	9603-9904	●	●
76	STOPPER; ENG MTG RUBBER FRAME ENG MTG SEPARATE TYPE<SGM>	1-53229-046-1	02	1	9905-	●	●	●	●
77	BOLT; STOPPER M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●
77	BOLT; STOPPER M8X20 FLANGE	0-28680-820-0	04	1	9607-9711	●	●
77	BOLT; STOPPER M8X16 FLANGE	0-28080-816-0	04	1	9712-9904	●	●
77	BOLT; STOPPER M8X16 FLANGE	0-28080-816-0	04	1	9905-9908	●	●	●	●
77	BOLT; STOPPER M8X16 FLANGE	0-28080-816-0	04	1	9909-	●	●	●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	08	1	9603-9904	●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	08	1	9905-	●	●	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	9603-9603	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	9604-9904	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	9905-	●	●	●	●
125	NUT; ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> M18	9-99110-518-0	08	1	9603-9706	●	●
125	NUT; ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> M18	9-99110-518-0	08	1	9707-9904	●	●
125	NUT; ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> M18	9-99110-518-0	08	1	9905-0009	●
125	NUT; ENG FOOT FRAME ENG MTG SEPARATE TYPE<SGM> M18	9-99110-518-0	06	1	0010-	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	9603-9603	●	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	9604-9904	●	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	9905-	●	●	●	●
