4-10 — FRONT AXLE (#42278) — 119 parça

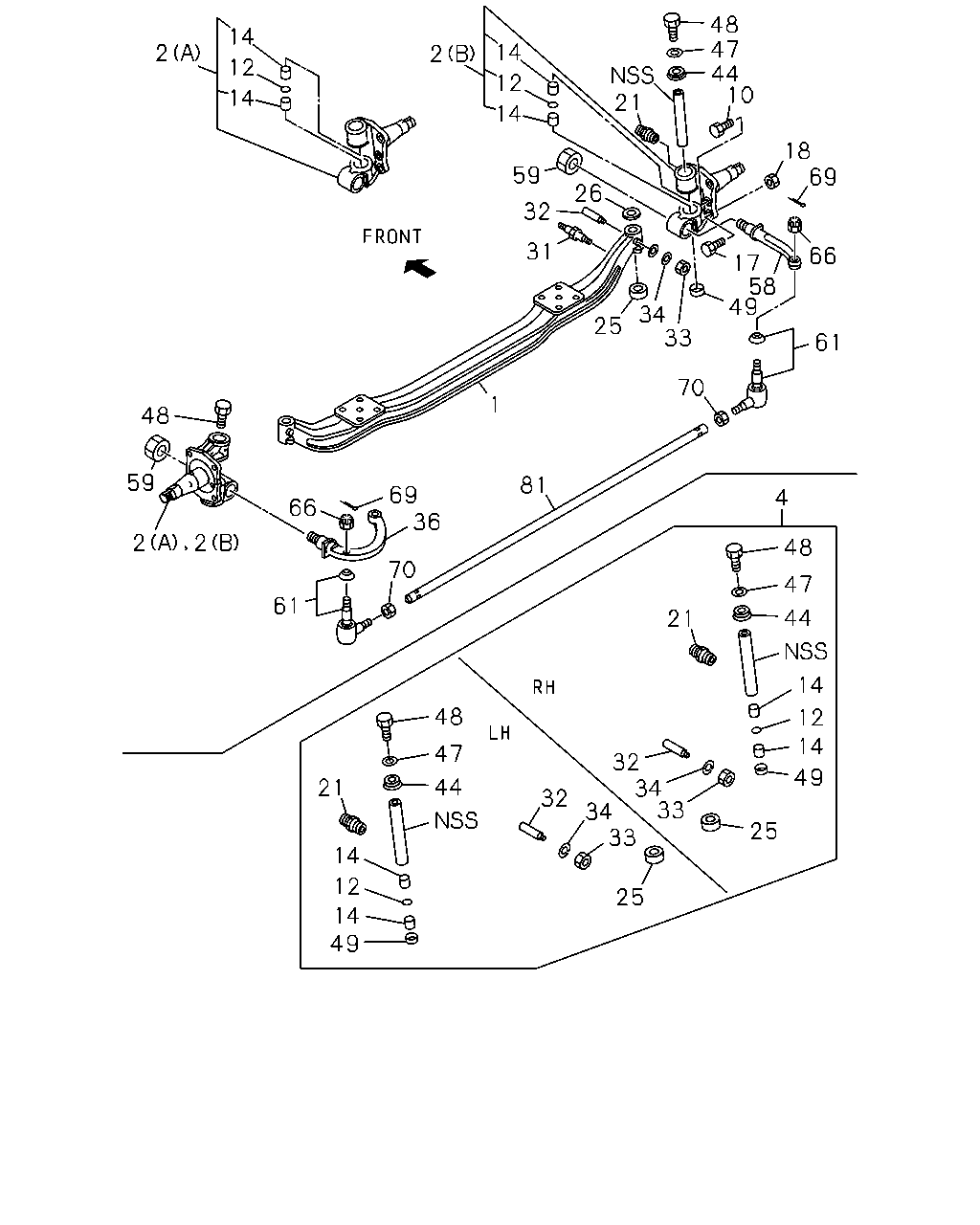

48 47 44 10 14 14 2 2 12 21 12 14 14 18 69 59 26 32 31 66 17 58 49 34 33 25 61 70 1 48 59 81 69 36 4 66 2 2 48 70 47 61 21 44 14 48 12 14 47 32 34 33 49 44 21 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.008 AXLE; FRT	8-94113-402-7	01	1	9811-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-94248-851-4	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-94248-851-4	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-94248-850-4	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-94248-850-4	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-676-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-676-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-538-0	01	1	0009-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-675-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-675-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-537-0	01	1	0009-	●	●	●	●	●	●
4	06.203 KING PIN KIT	5-87831-029-4	01	1	9811-	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9811-	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE	9-09561-225-0	02	1	9811-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN	8-94102-046-2	04	1	9811-	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE	8-97071-957-0	03	1	9811-	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9811-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 06.255 L=11.5	8-94150-094-0	02	1	9811-9905	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. AXLE ISUZU PRODUCTION<8BF> 06.255 L=11.5	8-94150-094-0	02	1	9906-9906	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9811-9905	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN AXLE ISUZU PRODUCTION<8BF> 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9906-9906	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9906-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. AXLE ISUZU PRODUCTION<8BF> 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9906-9906	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-94162-578-1	02	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.50	8-94162-570-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.55	8-94162-571-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.60	8-94162-572-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.65	8-94162-573-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.70	8-94174-347-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.80	8-94174-349-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.90	8-94174-351-0	AR	1	9811-	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-94249-010-1	02	1	9811-	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9811-	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9811-	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9811-	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE 02.525	8-97070-138-0	01	1	9811-	●	●			●
36	06.103 ARM; KNUCKLE	8-97070-139-0	01	1	9811-			●	●		●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	9811-	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9811-	●	●	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9811-	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9811-0008	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0009-	●	●	●	●	●	●
58	06.103 ARM; TIE ROD	8-97032-912-0	01	1	9811-	●	●			●
58	06.103 ARM; TIE ROD	8-97032-913-0	01	1	9811-			●	●		●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9811-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	9811-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	9811-	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9811-	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9811-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9811-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END RH THREAD M20	9-99111-420-0	01	1	9811-	●	●	●	●	●	●
81	06.230 ROD; TIE	8-97061-866-0	01	1	9811-	●	●	●	●	●	●

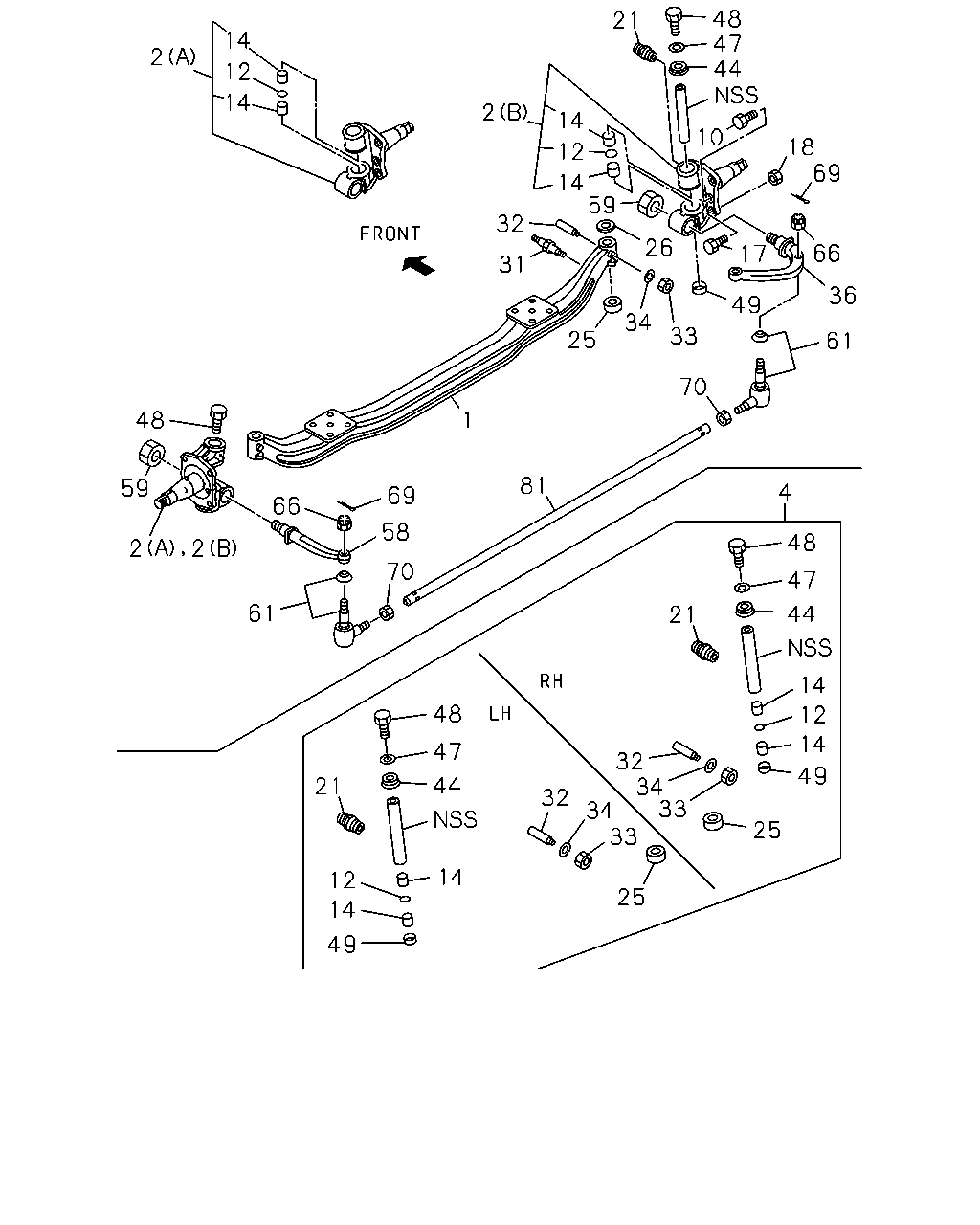

48 47 44 21 14 2 12 14 2 14 10 18 69 12 14 59 32 26 66 17 31 36 49 34 33 2 61 70 48 1 59 81 4 69 66 58 48 2 2 70 47 61 21 44 14 48 12 14 47 32 34 33 49 21 44 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.008 AXLE; FRT	8-94113-402-7	01	1	9811-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-94248-851-4	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-94248-851-4	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-94248-850-4	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-94248-850-4	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-676-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-676-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-538-0	01	1	0009-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-675-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-675-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-537-0	01	1	0009-	●	●	●	●	●	●
4	06.203 KING PIN KIT	5-87831-029-4	01	1	9811-	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9811-	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE	9-09561-225-0	02	1	9811-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN	8-94102-046-2	04	1	9811-	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE	8-97071-957-0	03	1	9811-	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9811-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 06.255 L=11.5	8-94150-094-0	02	1	9811-9905	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. AXLE ISUZU PRODUCTION<8BF> 06.255 L=11.5	8-94150-094-0	02	1	9906-9906	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9811-9905	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN AXLE ISUZU PRODUCTION<8BF> 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9906-9906	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9906-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. AXLE ISUZU PRODUCTION<8BF> 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9906-9906	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-94162-578-1	02	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.50	8-94162-570-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.55	8-94162-571-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.60	8-94162-572-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.65	8-94162-573-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.70	8-94174-347-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.80	8-94174-349-0	AR	1	9811-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.90	8-94174-351-0	AR	1	9811-	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-94249-010-1	02	1	9811-	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9811-	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9811-	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9811-	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE 02.525	8-97070-138-0	01	1	9811-	●	●			●
36	06.103 ARM; KNUCKLE	8-97070-139-0	01	1	9811-			●	●		●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	9811-	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9811-	●	●	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9811-	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9811-0008	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0009-	●	●	●	●	●	●
58	06.103 ARM; TIE ROD	8-97032-912-0	01	1	9811-	●	●			●
58	06.103 ARM; TIE ROD	8-97032-913-0	01	1	9811-			●	●		●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9811-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	9811-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	9811-	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9811-	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9811-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9811-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END RH THREAD M20	9-99111-420-0	01	1	9811-	●	●	●	●	●	●
81	06.230 ROD; TIE	8-97061-866-0	01	1	9811-	●	●	●	●	●	●

116 85 126 116 115 87 120 82 135 85 123 126 238 121 91 91 242 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97179-657-0	01	1	9811-	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9811-	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97179-659-0	02	1	9811-	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (A)	8-97179-764-0	02	1	9811-	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> (B)	8-97179-765-0	02	1	9811-	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9811-	●
115	07.242 WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245 ID=15.0 OD=32	9-51631-049-0	02	1	9811-	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9811-	●
120	06.308 NUT; STAB BAR BRKT FRONT STABILIZER SHAFT<F59> 09.011 M10	9-09110-410-0	02	1	9811-	●
121	07.242 PIPE; DIST,STAB BAR FRONT STABILIZER SHAFT<F59>	9-11219-315-0	02	1	9811-	●
123	07.347 WASHER; LK,STAB BAR BRKT FRONT STABILIZER SHAFT<F59> 00.002 ID=10.2	9-09150-510-0	02	1	9811-	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> 07.244	5-51631-017-0	04	1	9811-	●
135	07.240 BOLT; BRKT TO STAB FRONT STABILIZER SHAFT<F59> 00.724 M10X55	0-10811-055-0	02	1	9811-	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59> 07.242	8-97170-751-0	02	1	9811-	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97170-746-0	02	1	9811-	●
