Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#42276) — 178 parça

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
184	04.685 BRACKET; UNION FIX (B)	8-97035-967-3	01	1	9811-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-2	01	1	9811-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	9811-				●	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	9811-				●	●	●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	9811-				●	●	●
202	04.686 SEAL EXC. EXHAUST BRAKE<NF8> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9811-0105	●	●	●	●	●	●
202	04.686 SEAL EXC. EXHAUST BRAKE<NF8> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0106-				●	●	●

116 12 12 12 116 13 39 39 184 39 39 39 165 39 175 175 39 162 108 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	9811-	●	●	●	●	●	●
13	04.681 JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 04.686 3WAY	8-94441-184-0	01	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	03	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	9811-	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (C) ID=25.5	8-97077-492-0	01	1	9811-				●	●	●
108	04.931 GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	9811-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-1	01	1	9811-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-1	01	1	9811-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0005-				●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9811-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	9811-				●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9811-	●	●	●	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	9811-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-872-0	01	1	9811-				●	●	●
175	04.930 CLIP; BAND,VAC HOSE EXHAUST BRAKE<NF8> 02.559 L=219.5	1-09987-136-0	01	1	9811-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97035-967-3	01	1	9811-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-2	01	1	9811-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	9811-				●	●	●

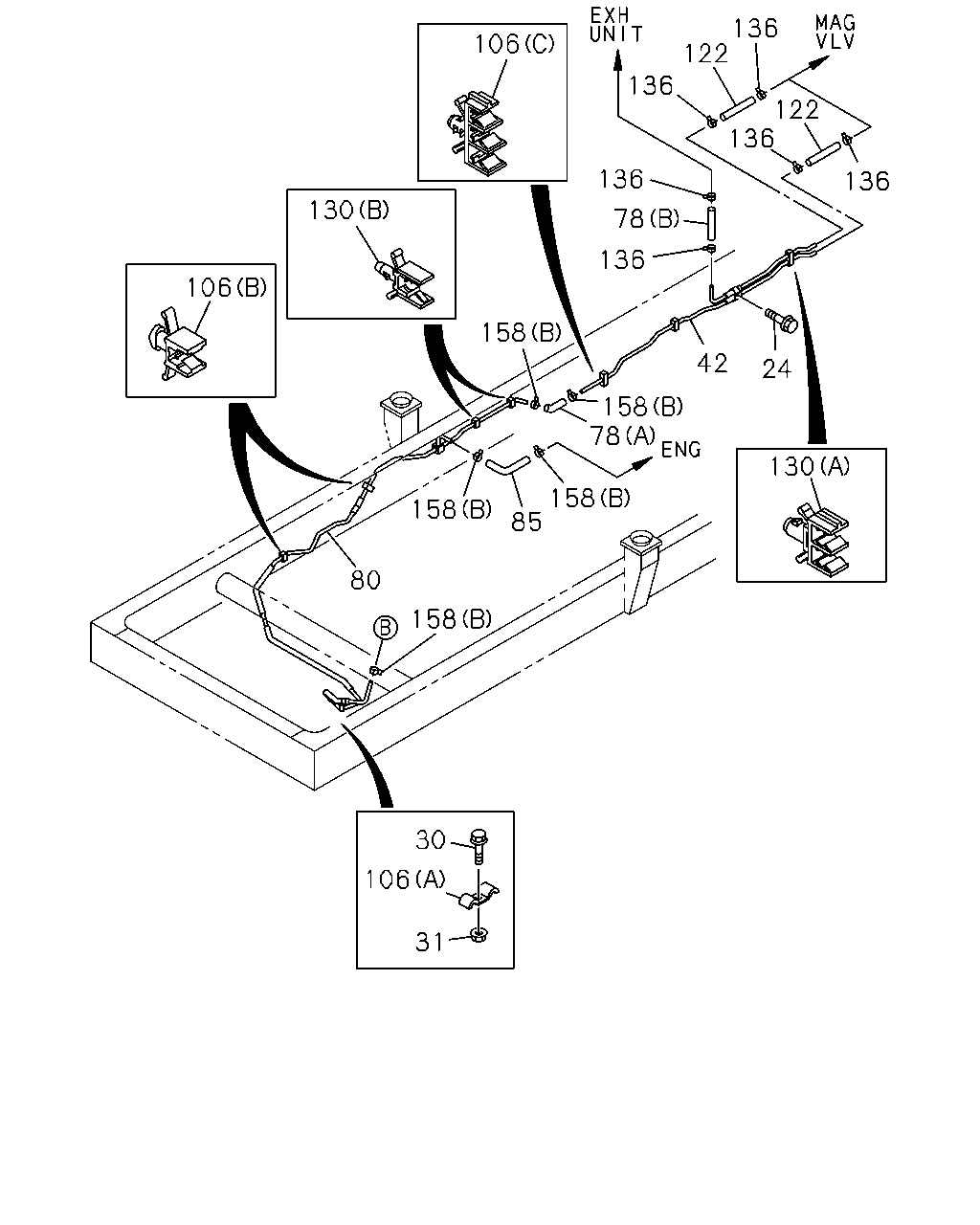

136 122 106 136 122 136 136 136 130 78 136 106 158 42 24 158 78 130 158 158 85 80 158 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0007-				●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-	●	●	●	●	●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 06.671	8-97258-369-0	01	1	0005-				●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0005-				●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0005-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	9811-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97258-371-0	01	1	0005-0006				●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97161-684-0	01	1	0007-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	9811-0004				●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97178-175-0	01	1	0005-				●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0005-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0005-					●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9811-0004	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0005-	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> L=130	8-94438-246-0	01	1	0005-				●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9811-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9811-	●	●	●	●	●	●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0005-0006				●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0005-				●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> (B) ID=10 H=40	8-94462-219-0	01	1	0005-				●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0005-				●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 04.930 ID=16	8-94238-568-0	06	1	0005-				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	9811-0004	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0005-	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0005-				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	9811-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	9811-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	01	1	9811-	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=16	8-94238-568-0	01	1	9811-				●

116 12 12 12 116 13 39 39 39 39 165 184 108 39 39 173 39 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	9811-	●	●	●	●	●	●
13	04.681 JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 04.686 3WAY	8-94441-184-0	01	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	03	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	9811-	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (C) ID=25.5	8-97077-492-0	01	1	9811-				●	●	●
108	04.931 GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	9811-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-1	01	1	9811-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-1	01	1	9811-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0005-				●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9811-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	9811-				●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9811-	●	●	●	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	9811-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-872-0	01	1	9811-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97035-967-3	01	1	9811-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-2	01	1	9811-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	9811-				●	●	●

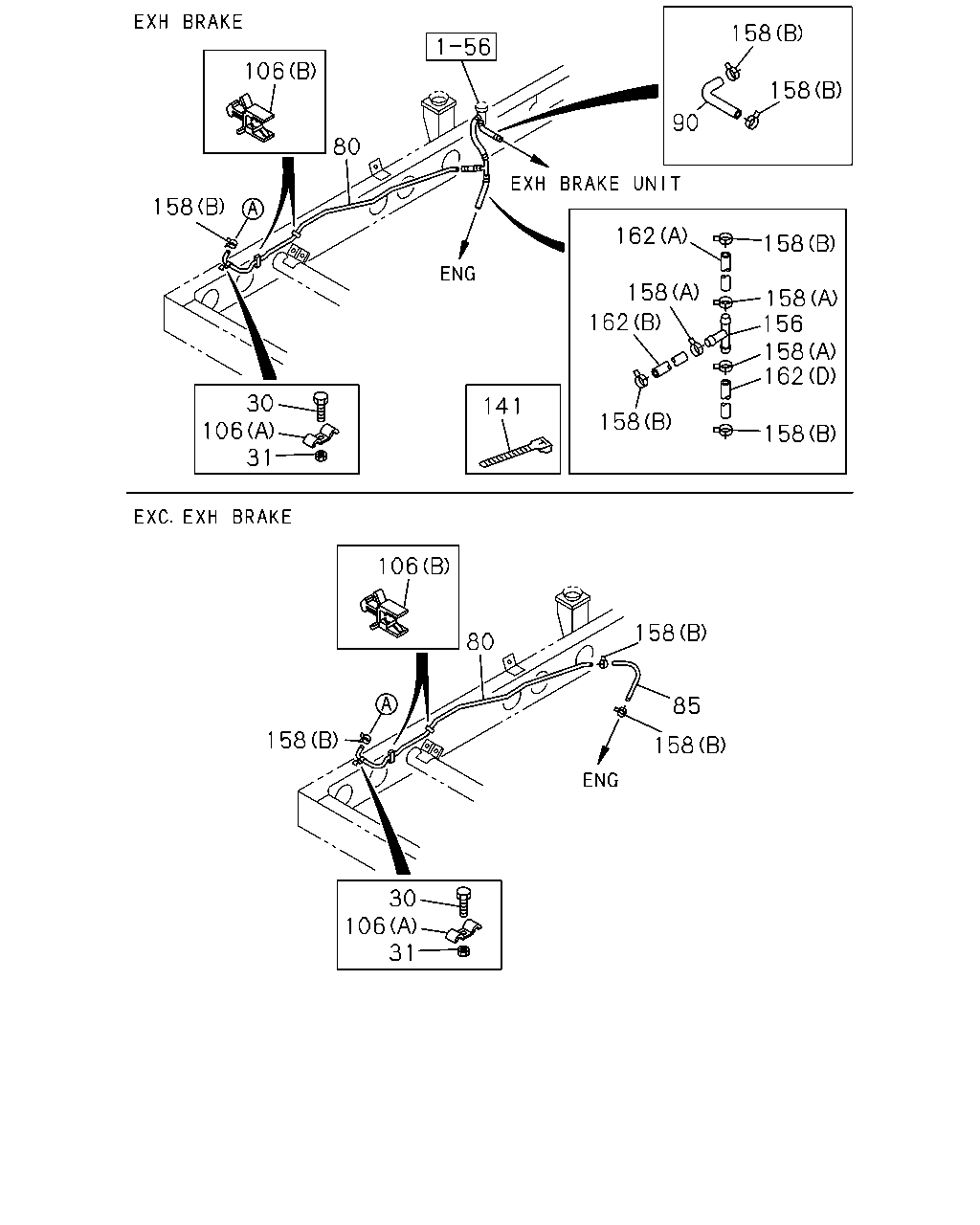

158 106 158 90 80 158 162 158 158 158 156 158 162 162 30 106 31 141 158 158 106 158 80 85 158 158 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-	●	●	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	9811-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97258-371-0	01	1	0005-0006				●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97161-684-0	01	1	0007-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	9811-0004				●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97178-175-0	01	1	0005-				●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0005-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0005-					●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9811-0004	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0005-	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> L=130	8-94438-246-0	01	1	0005-				●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9811-0004	●	●	●	●	●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0005-	●	●	●		●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0005-				●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9811-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9811-	●	●	●	●	●	●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0005-0006				●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	9811-0004	●	●	●	●	●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0005-	●	●	●		●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	01	1	0005-				●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9811-0004	●	●	●	●	●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0005-	●	●	●		●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=430	8-94467-387-0	01	1	0005-				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	9811-0004	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0005-	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0005-				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	9811-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	9811-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	01	1	9811-	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=16	8-94238-568-0	01	1	9811-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0005-				●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9811-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	9811-				●	●	●

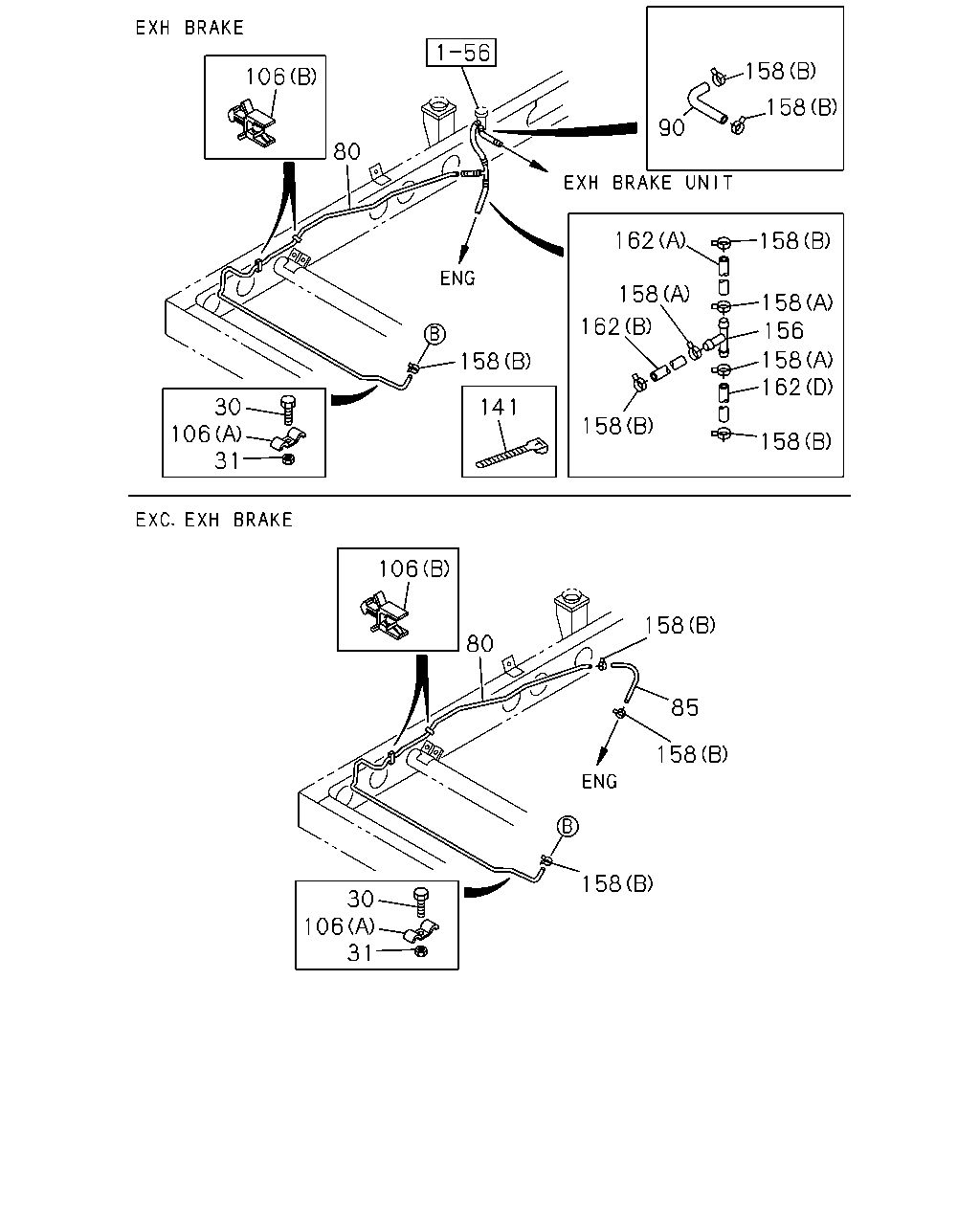

158 106 158 90 80 162 158 158 158 156 162 158 162 158 30 106 31 141 158 158 106 158 80 85 158 158 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-	●	●	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	9811-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97258-371-0	01	1	0005-0006				●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97161-684-0	01	1	0007-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	9811-0004				●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97178-175-0	01	1	0005-				●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0005-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0005-					●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9811-0004	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0005-	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> L=130	8-94438-246-0	01	1	0005-				●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9811-0004	●	●	●	●	●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0005-	●	●	●		●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0005-				●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9811-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9811-	●	●	●	●	●	●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0005-0006				●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	9811-0004	●	●	●	●	●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0005-	●	●	●		●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	01	1	0005-				●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9811-0004	●	●	●	●	●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0005-	●	●	●		●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=430	8-94467-387-0	01	1	0005-				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	9811-0004	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0005-	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0005-				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	9811-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	9811-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	01	1	9811-	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=16	8-94238-568-0	01	1	9811-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0005-				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9811-0004	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0005-	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0005-				●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9811-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	9811-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
