3-58 — FIXING PARTS; OIL PIPING (#42275) — 50 parça

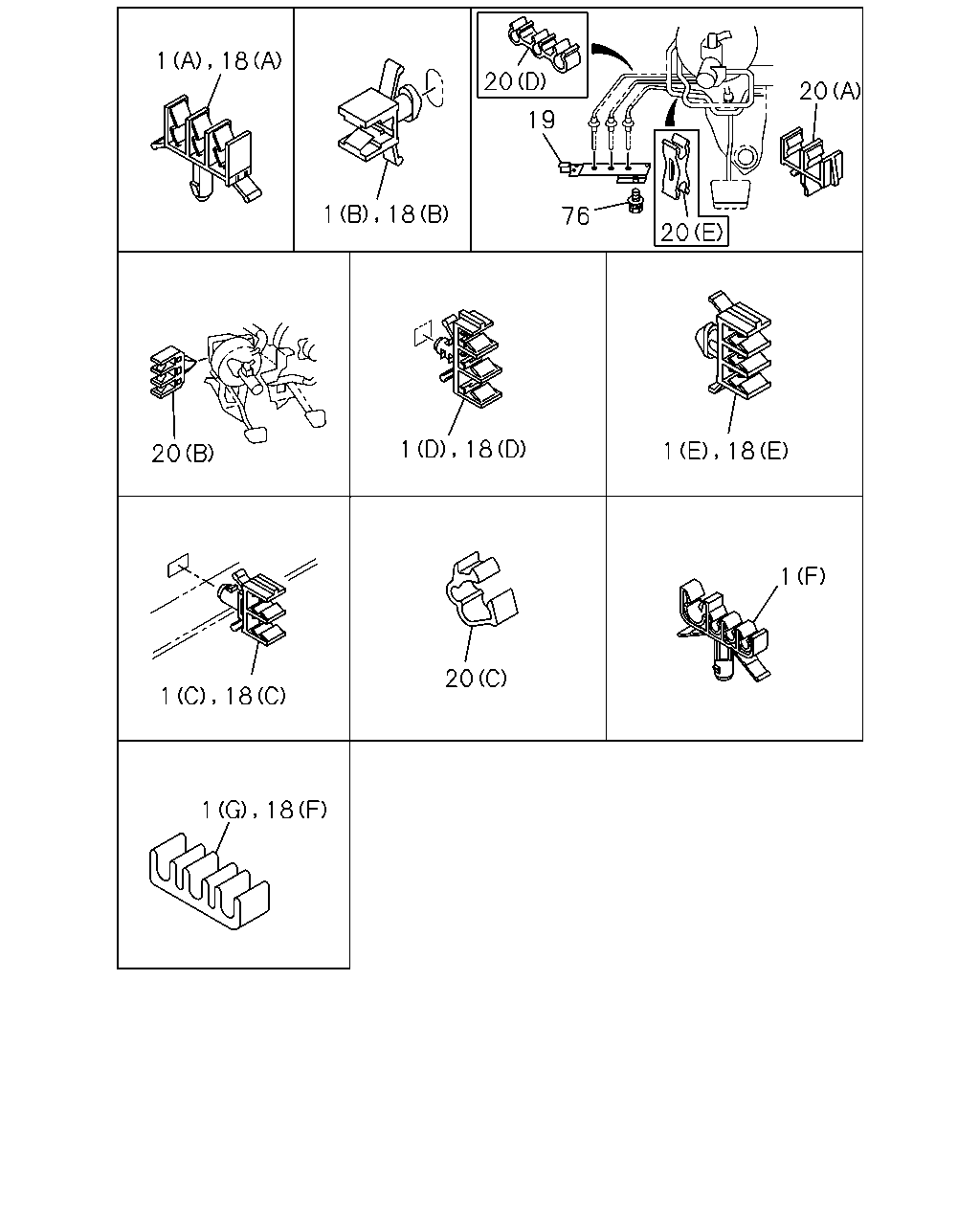

çizim 45568
18 1 20 20 19 1 18 76 20 1 18 1 18 20 1 20 1 18 18 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
(A) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 02 1 9811-0004 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 02 1 9811-0004 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 02 1 9811-0004 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0005-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0005-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0005-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 01 1 9811-0004 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(B) ID=4.8 H=26 		8-94249-685-0 01 1 0005-0105 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. CHARGE AIR COOLER<6PL> (B) ID=4.8 H=26 		8-94249-685-0 01 1 0005-0105 ●
1 04.686 CLIP; OIL PIPE TO BODY
(C) ID=4.8X2 		8-94316-410-0 01 1 9811-0004 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(C) ID=4.8X2 		8-94316-410-0 01 1 0005-0006 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. CHARGE AIR COOLER<6PL> (C) ID=4.8X2 		8-94316-410-0 01 1 0005-0006 ●
1 04.686 CLIP; OIL PIPE TO BODY
(C) ID=4.8X2 		8-94316-410-0 01 1 0007-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9902 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9903-0105 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
CHARGE AIR COOLER<6PL> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0005-0006 ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0007-0008 ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 0009-0105 ●
1 04.686 CLIP; OIL PIPE TO BODY
CHARGE AIR COOLER<6PL> (C) ID=4.8X2 		8-94316-410-0 02 1 0005-0006 ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0007-0105 ●
1 04.686 CLIP; OIL PIPE TO BODY
CHARGE AIR COOLER<6PL> (F) ID=10 & 4.76X3 		8-97168-820-0 02 1 0005-0006 ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> 04.685 (G) ID=4.76X3 		8-94122-333-0 01 1 0007-0105 ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 9903-0105 ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0106- ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0106- ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 02 1 0106- ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 02 1 0106- ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0106- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 01 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 01 1 0106- ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 01 1 0106- ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0106- ● ● ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0106- ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-94122-333-0 01 1 0106- ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 0106- ●
19 04.686 BRACKET; OIL PIPE 8-97042-258-4 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (E) ID=4.6X2 		8-94241-454-0 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9811- ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ●
