3-52 — BRAKE PIPING; OIL,FRONT (#42273) — 105 parça
çizim 10268
13 26 99 26 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 9811-0004 ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0005-0006 ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>, CHARGEAIR COOLER<6PL> 		8-97041-000-3 01 1 0005-0006 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0007- ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 0007- ●
13 04.685 PIPE; OIL,UNION TO UNION
CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT DSPV<JL8> 		8-97258-366-0 01 1 0005-0006 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97092-863-4 01 1 9811-0006 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97089-975-2 01 1 9811-0006 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97092-863-4 01 1 0007- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97228-635-0 01 1 0007-0007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97288-634-0 01 1 0007- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97089-975-2 01 1 0007-0007 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97089-975-2 01 1 0008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97089-975-2 01 1 0008- ● ●

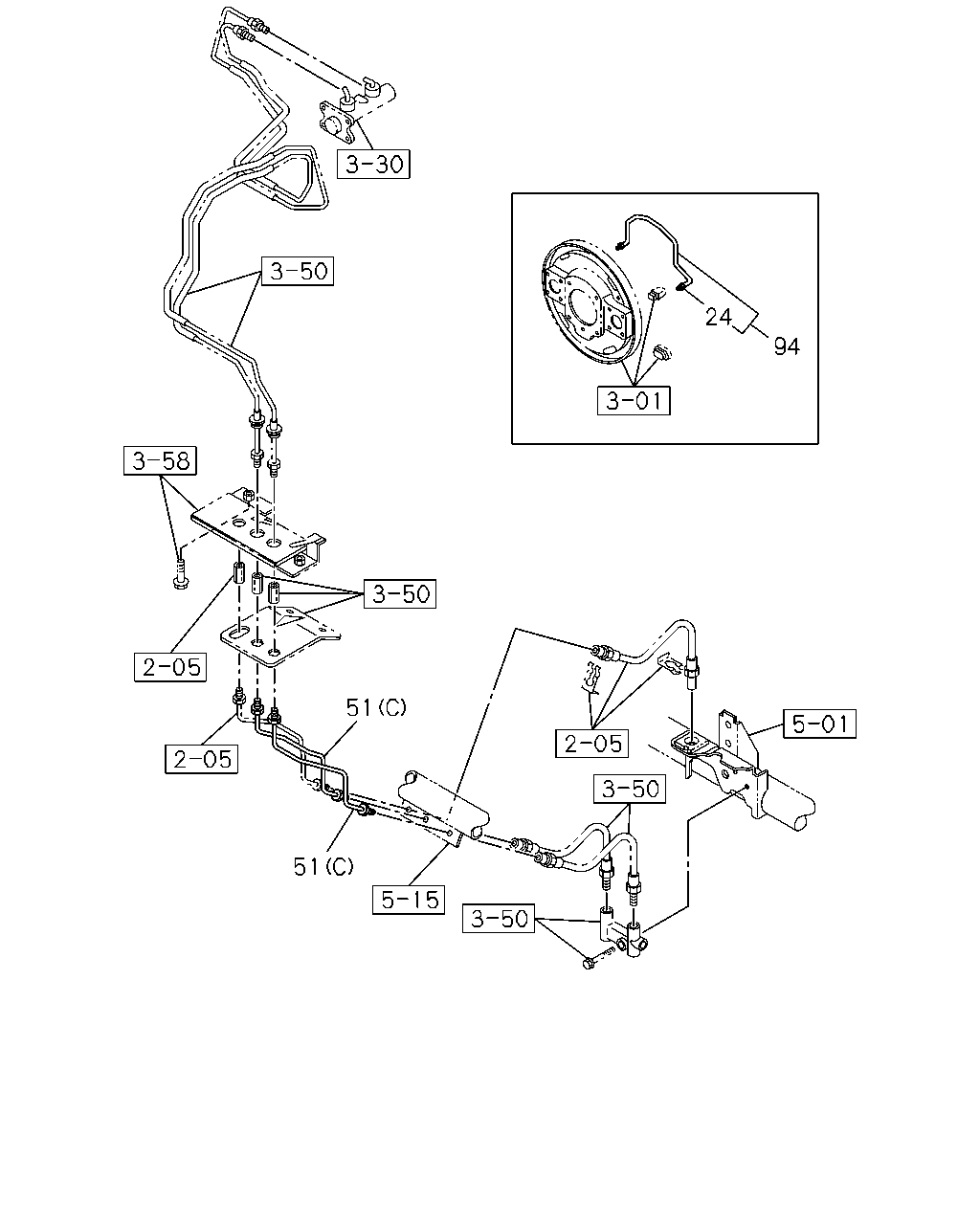

çizim 11150
24 94 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 9811-0106 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0107- ● ● ● ● ● ●
51 04.685 PIPE; BRK
(C) 		8-97035-978-0 02 1 9811- ● ● ●
51 04.685 PIPE; BRK
(A) FRONT 		5-47411-763-0 01 1 9811- ● ● ●
51 04.685 PIPE; BRK
(B) REAR 		8-97070-296-2 01 1 9811- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 9811- ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 9811- ● ● ● ● ● ●
çizim 46592
9 1 9 1 13 29 31 28 27 18 96 18 96 26 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-0 02 1 9811- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 9811-0004 ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0005-0006 ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>, CHARGEAIR COOLER<6PL> 		8-97041-000-3 01 1 0005-0006 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0007- ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 0007- ●
13 04.685 PIPE; OIL,UNION TO UNION
CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT DSPV<JL8> 		8-97258-366-0 01 1 0005-0006 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-629-1 01 1 9811-0105 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-630-2 01 1 9811-0105 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK WHL LK CONT LSPV<6PH> 		8-97288-636-0 01 1 0007-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97091-059-3 01 1 9811-0105 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97090-026-2 01 1 9811-0006 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97090-026-2 01 1 0007-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97090-026-2 01 1 0007-0105 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97092-863-4 01 1 9811-0006 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97089-975-2 01 1 9811-0006 ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811-0006 ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0007- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0007- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811- ● ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9811-0006 ● ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0007- ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0007- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20 		9-09535-533-0 01 1 0007- ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811- ● ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-629-1 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-630-2 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97288-636-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97090-026-2 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97090-026-2 01 1 0106- ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97091-059-3 01 1 0106- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97092-863-4 01 1 0007- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97228-635-0 01 1 0007-0007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97288-634-0 01 1 0007- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97089-975-2 01 1 0007-0007 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97089-975-2 01 1 0008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97089-975-2 01 1 0008- ● ●

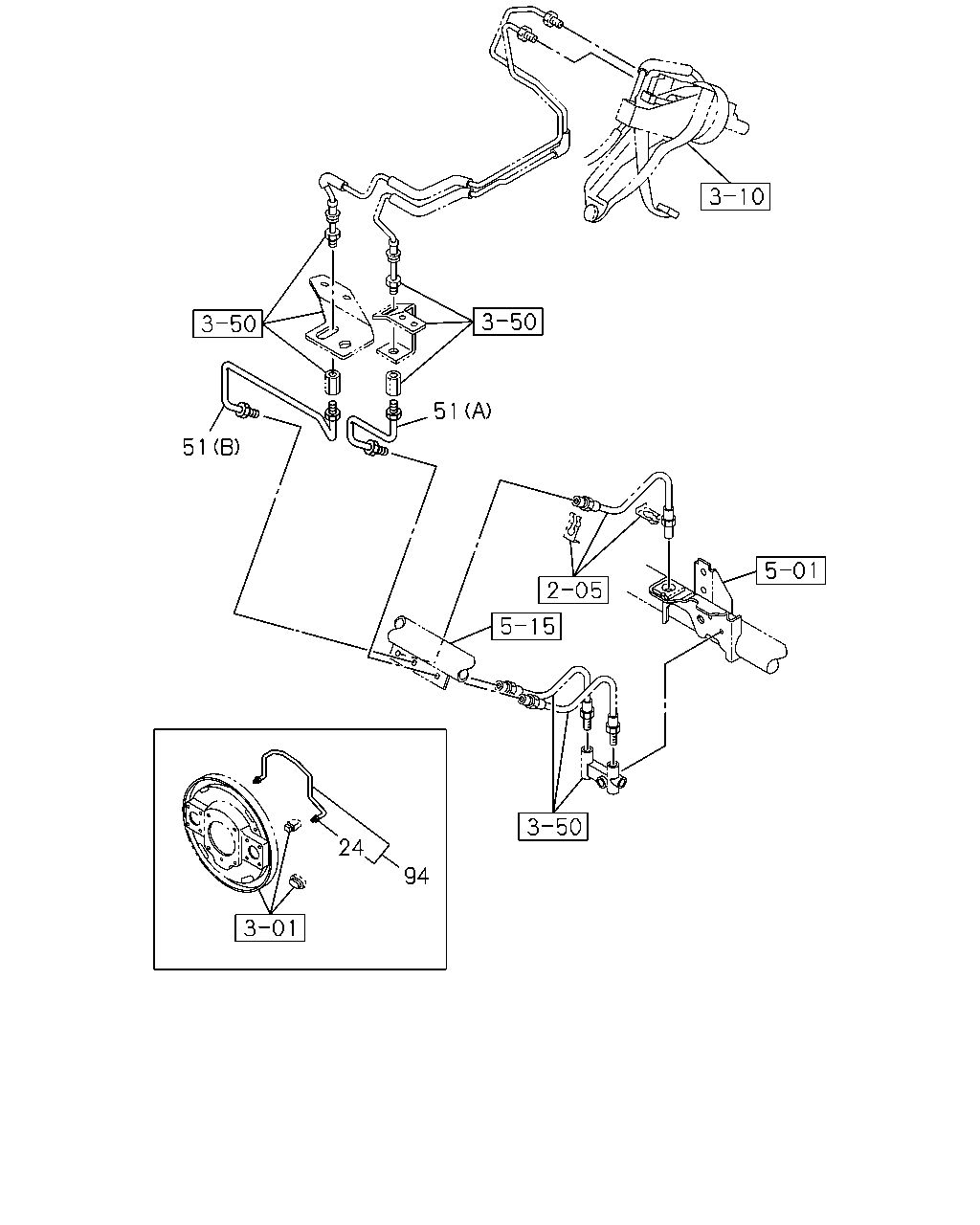

çizim 47247
51 51 24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 9811-0106 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0107- ● ● ● ● ● ●
51 04.685 PIPE; BRK
(C) 		8-97035-978-0 02 1 9811- ● ● ●
51 04.685 PIPE; BRK
(A) FRONT 		5-47411-763-0 01 1 9811- ● ● ●
51 04.685 PIPE; BRK
(B) REAR 		8-97070-296-2 01 1 9811- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 9811- ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 9811- ● ● ● ● ● ●
çizim 48858
48 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> FRONT 		8-97208-981-1 01 1 0007- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0007- ●

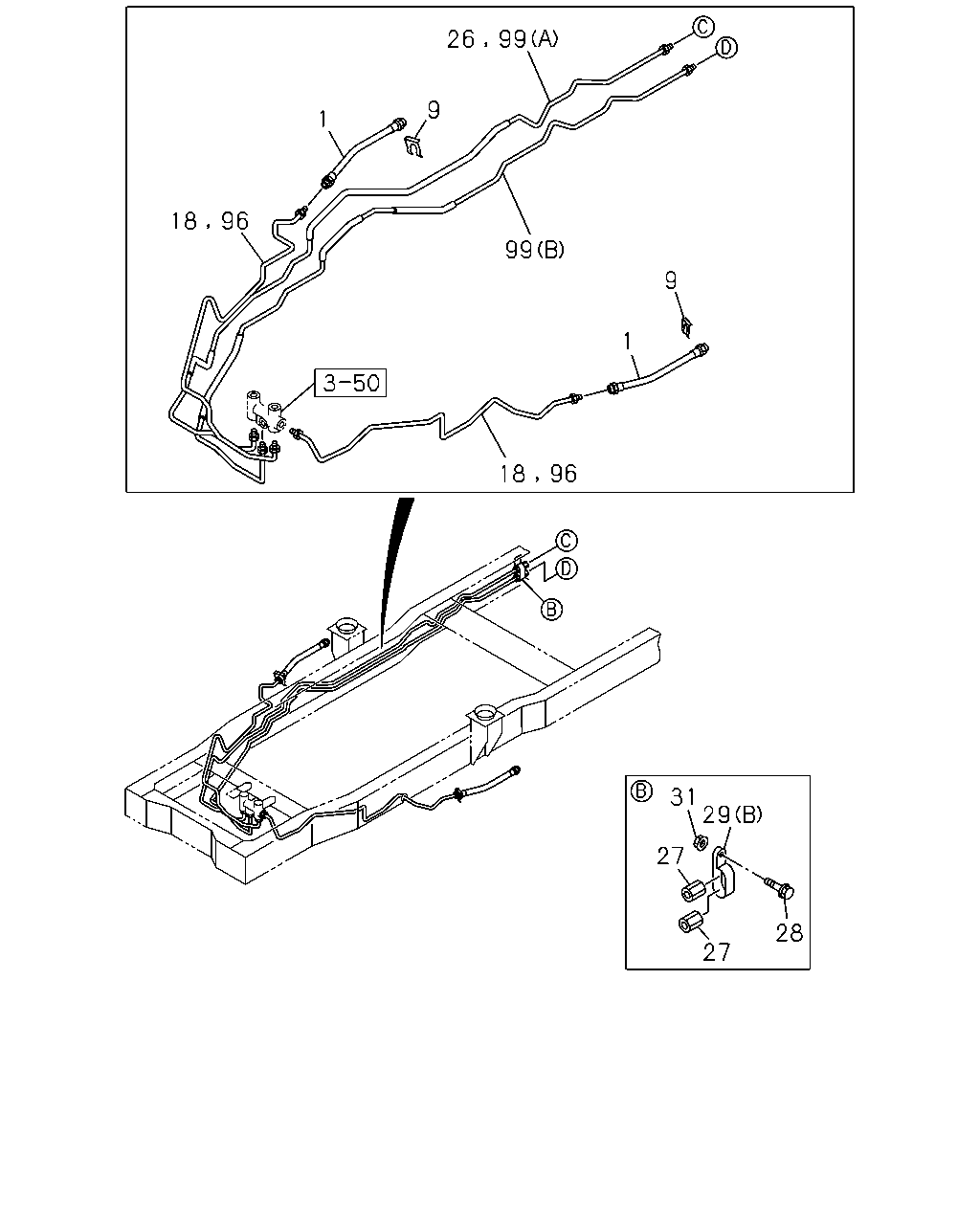

çizim 48944
26 99 9 1 18 96 99 9 1 18 96 31 29 27 28 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-0 02 1 9811- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-629-1 01 1 9811-0105 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-630-2 01 1 9811-0105 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK WHL LK CONT LSPV<6PH> 		8-97288-636-0 01 1 0007-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97091-059-3 01 1 9811-0105 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97090-026-2 01 1 9811-0006 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97090-026-2 01 1 0007-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97090-026-2 01 1 0007-0105 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97092-863-4 01 1 9811-0006 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97089-975-2 01 1 9811-0006 ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811-0006 ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0007- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0007- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811- ● ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9811-0006 ● ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0007- ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0007- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20 		9-09535-533-0 01 1 0007- ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811- ● ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-629-1 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-630-2 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97288-636-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97090-026-2 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97090-026-2 01 1 0106- ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97091-059-3 01 1 0106- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97092-863-4 01 1 0007- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97228-635-0 01 1 0007-0007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97288-634-0 01 1 0007- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97089-975-2 01 1 0007-0007 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97089-975-2 01 1 0008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97089-975-2 01 1 0008- ● ●
