3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#42272) — 45 parça

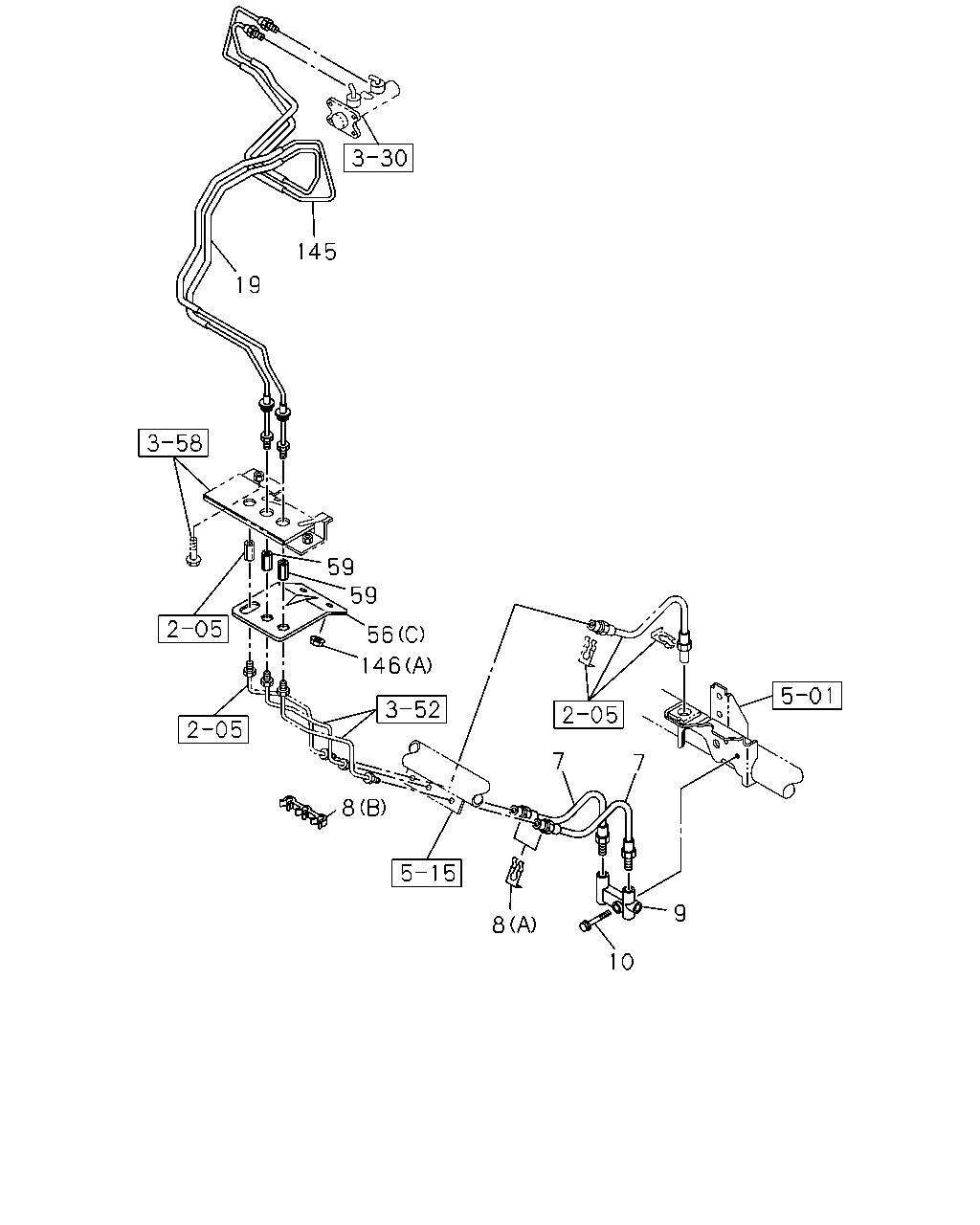

çizim 45245
145 19 59 59 56 146 7 7 8 9 8 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 9811- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A) 		8-94167-006-0 02 1 9811- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 9811- ● ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-0 01 1 9811-0006 ● ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 0007- ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE
EXC. BRK WHL LK CONT LSPV<6PH> 		5-47456-009-1 01 1 0007- ●
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 9811- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97035-977-0 01 1 9811- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97094-348-3 01 1 9811- ● ● ●
56 04.686 BRACKET; UNION,BRK
(C) 		8-97078-564-1 01 1 9811- ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-97102-365-0 01 1 9811- ● ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-97102-366-2 01 1 9811- ● ● ●
59 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9811- ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97035-976-0 01 1 9811- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97094-346-3 01 1 9811- ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ●
146 04.685 NUT; BRKT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811- ● ● ●

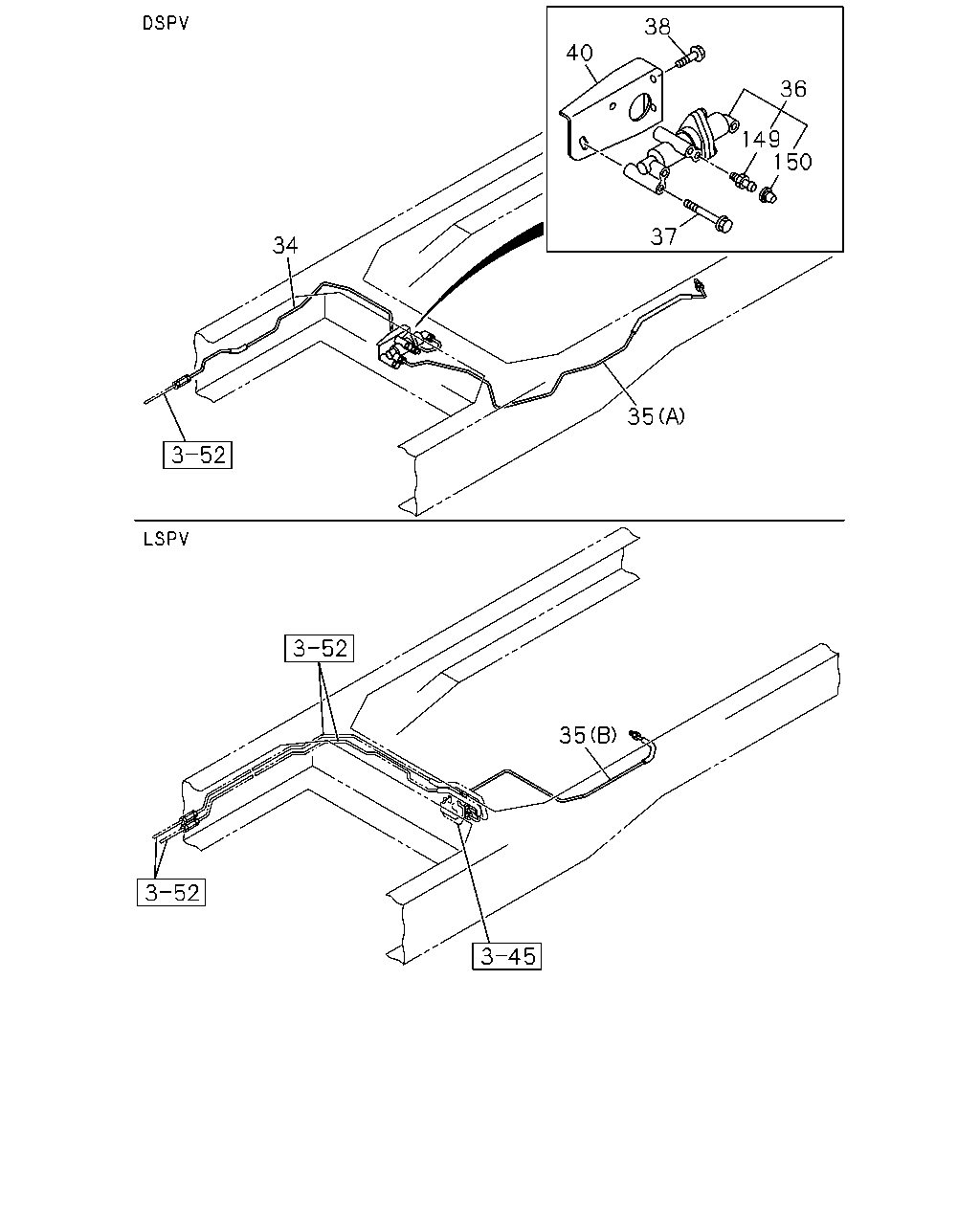

çizim 47105
38 40 36 149 150 37 34 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
34 04.685 PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8> 		5-47411-773-0 01 1 9811-0105 ● ● ● ● ● ●
34 04.685 PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8> 		8-97072-951-3 01 1 0106- ● ● ● ● ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT DSPV<JL8> (A) 		8-97091-258-1 01 1 9811- ● ● ● ● ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> (B) 		8-97259-533-1 01 1 0007- ●
36 04.690 VALVE ASM; DSPV
BRK WHL LK CONT DSPV<JL8> 		8-97082-058-0 01 1 9811- ● ● ● ● ● ●
37 04.690 BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 W/LK WASHER 		0-50040-870-0 02 1 9811- ● ● ● ● ● ●
38 04.690 BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9811- ● ● ● ● ● ●
40 04.690 BRACKET
BRK WHL LK CONT DSPV<JL8> 		8-94156-783-4 01 1 9811- ● ● ● ● ● ●
149 04.685 PLUG; BLEEDER,DSV
BRK WHL LK CONT DSPV<JL8> 		8-97093-663-0 01 1 9811- ● ● ● ● ● ●
150 04.685 CAP; BLEEDER PLUG,DSV
BRK WHL LK CONT DSPV<JL8> 		8-97093-662-0 01 1 9811- ● ● ● ● ● ●

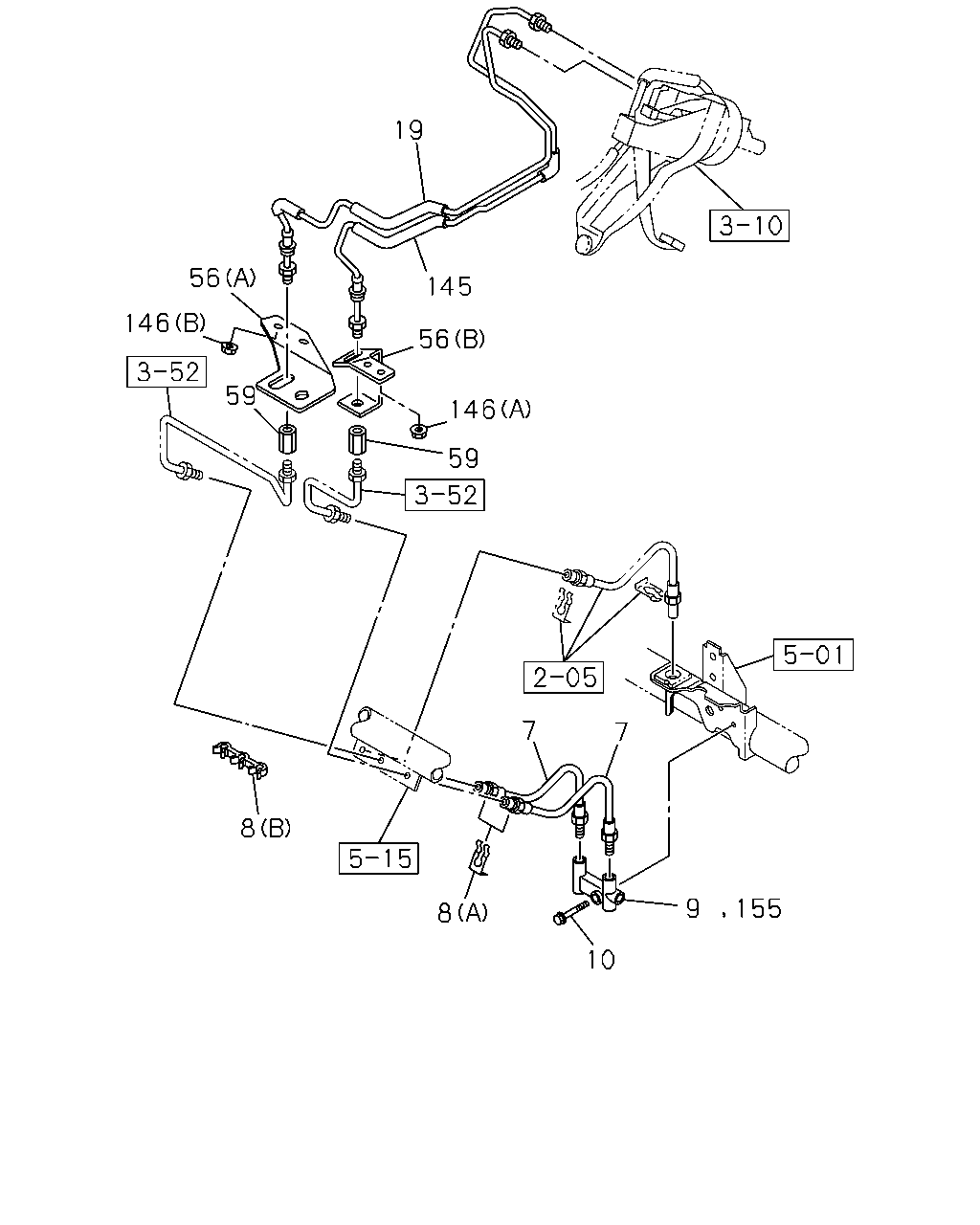

çizim 48901
19 56 145 146 56 59 146 59 7 7 8 9 155 8 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 9811- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A) 		8-94167-006-0 02 1 9811- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 9811- ● ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-0 01 1 9811-0006 ● ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 0007- ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE
EXC. BRK WHL LK CONT LSPV<6PH> 		5-47456-009-1 01 1 0007- ●
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 9811- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97035-977-0 01 1 9811- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97094-348-3 01 1 9811- ● ● ●
56 04.686 BRACKET; UNION,BRK
(C) 		8-97078-564-1 01 1 9811- ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-97102-365-0 01 1 9811- ● ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-97102-366-2 01 1 9811- ● ● ●
59 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9811- ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97035-976-0 01 1 9811- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97094-346-3 01 1 9811- ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ●
146 04.685 NUT; BRKT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811- ● ● ●
155 04.686 JOINT; 6WAY
BRK WHL LK CONT LSPV<6PH> 		8-97120-033-2 01 1 0007- ●
