3-11 — PARKING BRAKE CONTROL (#42267) — 52 parça

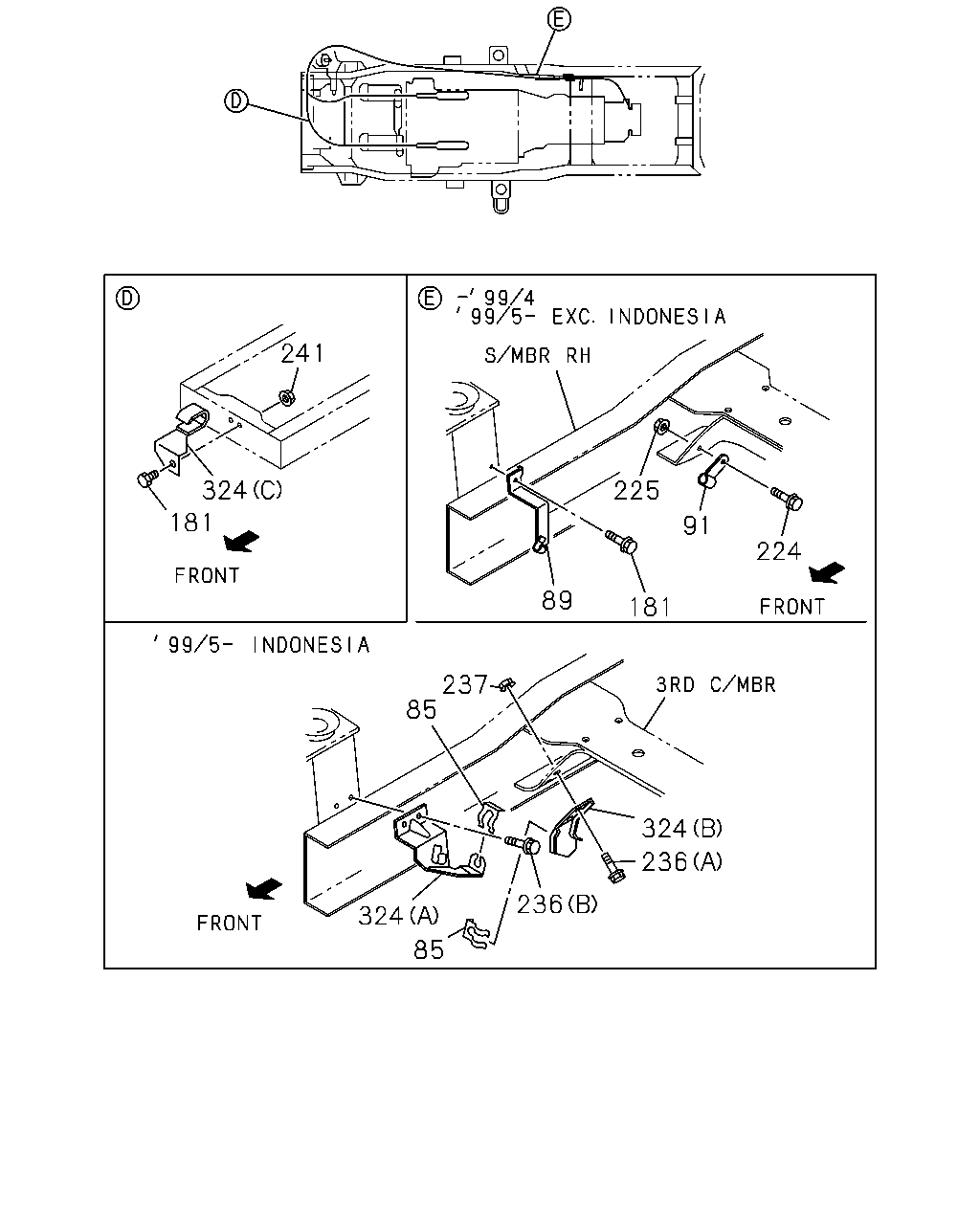

çizim 46524
241 324 225 181 91 224 89 181 237 85 324 236 236 324 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT
INDONESIA EQUIPMENT(S4S) 		8-97084-216-0 02 1 9905- ●
89 04.785 BRACKET; CLIP 8-97113-984-1 01 1 9811-9904 ● ● ● ● ● ●
89 04.785 BRACKET; CLIP
EXC. INDONESIA EQUIPMENT(S4S) 		8-97113-984-1 01 1 9905- ●
89 04.785 BRACKET; CLIP 8-97113-984-1 01 1 9905- ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
ID=13 L=50 		9-09525-286-0 01 1 9811-9904 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. INDONESIA EQUIPMENT(S4S) ID=13 L=50 		9-09525-286-0 01 1 9905- ●
91 04.785 CLIP; PARKING BRK CABLE
ID=13 L=50 		9-09525-286-0 01 1 9905- ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9904 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9904 ● ● ●
181 04.785 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9905- ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9905- ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9905- ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9904 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. INDONESIA EQUIPMENT(S4S) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9905- ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9905- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9904 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. INDONESIA EQUIPMENT(S4S) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9905- ●
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) 09.008 (A) M10X20 FLANGE 		0-28081-020-0 02 1 9905- ●
236 04.785 BOLT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ●
237 04.785 NUT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) M10 FLANGE 		0-91150-110-0 02 1 9905- ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ● ● ●
324 04.785 BRACKET
INDONESIA EQUIPMENT(S4S) (A) 		8-97063-090-1 01 1 9905- ●
324 04.785 BRACKET
INDONESIA EQUIPMENT(S4S) (B) 		8-97105-721-0 01 1 9905- ●
324 04.785 BRACKET
(C) 		8-97101-815-2 01 1 9811- ● ● ●

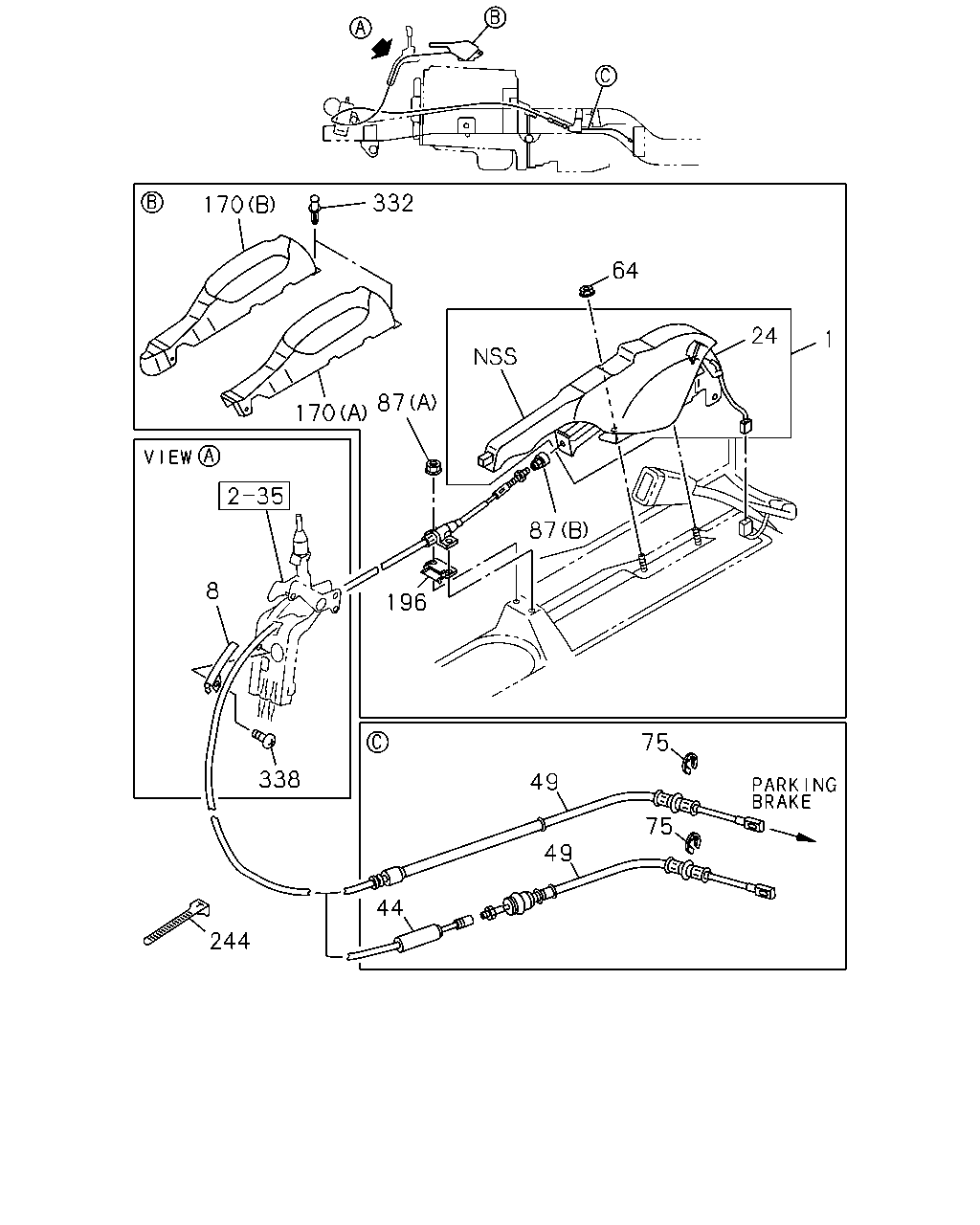

çizim 46674
332 170 64 24 1 87 170 87 8 196 75 338 49 75 49 44 244
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9811-0108 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-846-0 01 1 0109-0110 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-1 01 1 0111- ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9811-0108 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111- ● ● ●
8 04.592 GUIDE; PARKING BRK 8-97071-939-0 01 1 9811-9904 ● ● ●
8 04.592 GUIDE; PARKING BRK 8-97190-672-0 01 1 9905- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
INDONESIA EQUIPMENT(S4S) 		8-97176-235-0 01 1 9905- ●
49 04.779 CABLE; PARKING BRK
INDONESIA EQUIPMENT(S4S) 		8-97184-268-0 01 1 9905- ●
49 04.779 CABLE; PARKING BRK 8-97184-270-0 01 1 9811-9904 ● ● ●
49 04.779 CABLE; PARKING BRK
EXC. INDONESIA EQUIPMENT(S4S) 		8-97184-270-0 01 1 9905- ●
49 04.779 CABLE; PARKING BRK 8-97184-270-0 01 1 9905- ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 9811- ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 9811- ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
(A) DARK GRAY 		8-97155-172-0 01 1 9811- ● ● ●
170 04.595 COVER; PARKING BRK LEVER
(B) DARK GRAY 		8-97158-915-0 01 1 9811- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 9811- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 9811- ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 9811- ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 9811- ● ● ● ● ● ●
338 04.785 SCREW; GUIDE
16.270 M6X10 		9-03497-610-0 01 1 9811- ● ● ●
