◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#42264) — 42 parça

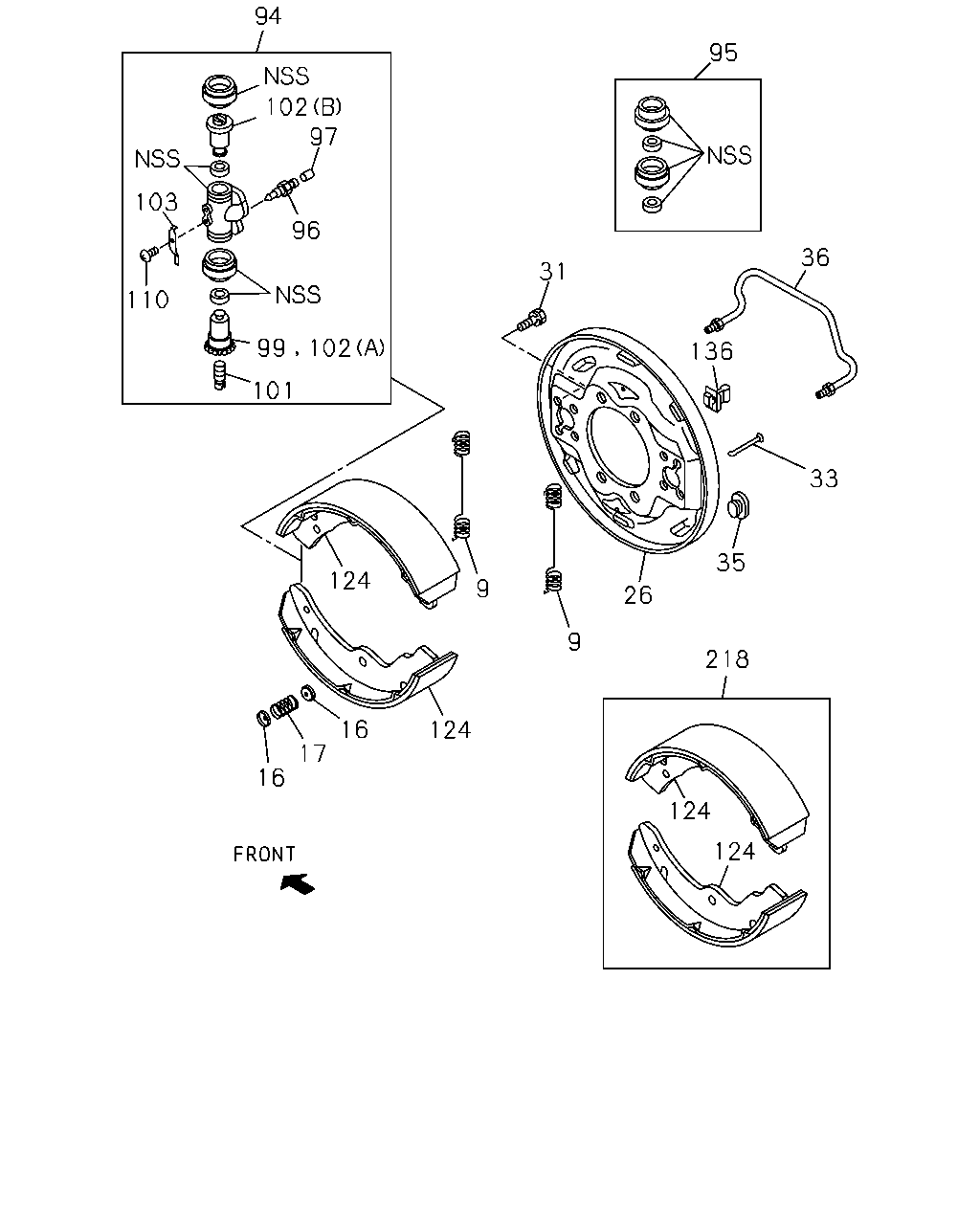

çizim 47141
94 95 102 97 103 96 36 31 110 99 102 136 101 33 35 124 9 26 9 218 16 124 17 16 124 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 05.026 SPRING; RETURN,BRK SHOE 8-97081-150-0 04 1 9811- ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE 5-47629-026-0 04 1 9811- ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 9811- ● ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 9811- ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97081-139-2 01 1 9811- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97081-138-0 01 1 9811- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97080-787-0 01 1 9811- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97080-786-0 01 1 9811- ● ●
31 04.665 BOLT; RR WHEEL CYL
04.686 M8X16 		9-09602-119-1 16 1 9811- ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 9811- ● ●
33 05.043 PIN; SHOE HOLD DOWN
L=52 		9-47162-045-0 04 1 9811- ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 9811- ● ● ● ●
35 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 9811- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94134-651-1 01 1 9811- ● ● ● ●
36 04.685 PIPE; OIL,RR BRK 8-94134-650-1 01 1 9811- ● ● ● ●
36 04.685 PIPE; OIL,RR BRK 8-94128-191-3 01 1 9811- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94128-190-3 01 1 9811- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97179-337-0 02 1 9811- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97179-335-0 01 1 9811- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97179-336-0 01 1 9811- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97179-334-0 02 1 9811- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97179-332-0 01 1 9811- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97179-333-0 01 1 9811- ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-625-0 01 1 9811- ● ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 9811- ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 9811- ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97081-149-0 02 1 9811- ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
W/GEAR 		8-94128-534-1 02 1 9811- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		8-97078-623-0 04 1 9811- ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		5-47629-027-1 04 1 9811- ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=22.22 		8-94128-533-1 04 1 9811- ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97081-149-0 02 1 9811- ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
(A) W/GEAR 		8-94128-534-1 02 1 9811- ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) WO/GEAR 		8-94128-535-1 04 1 9811- ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 9811- ● ● ● ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 9811- ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR 8-97035-084-0 04 1 9811- ● ● ● ●
124 05.017 SHOE ASM; BRK,RR 8-97035-083-1 04 1 9811- ● ●
136 05.002 GROMMET 9-09956-640-0 04 1 9811- ● ● ● ●
136 05.002 GROMMET 9-09756-034-0 04 1 9811- ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-084-0 01 1 0204- ● ● ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-087-0 01 1 0204- ● ●
