◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#42263) — 33 parça

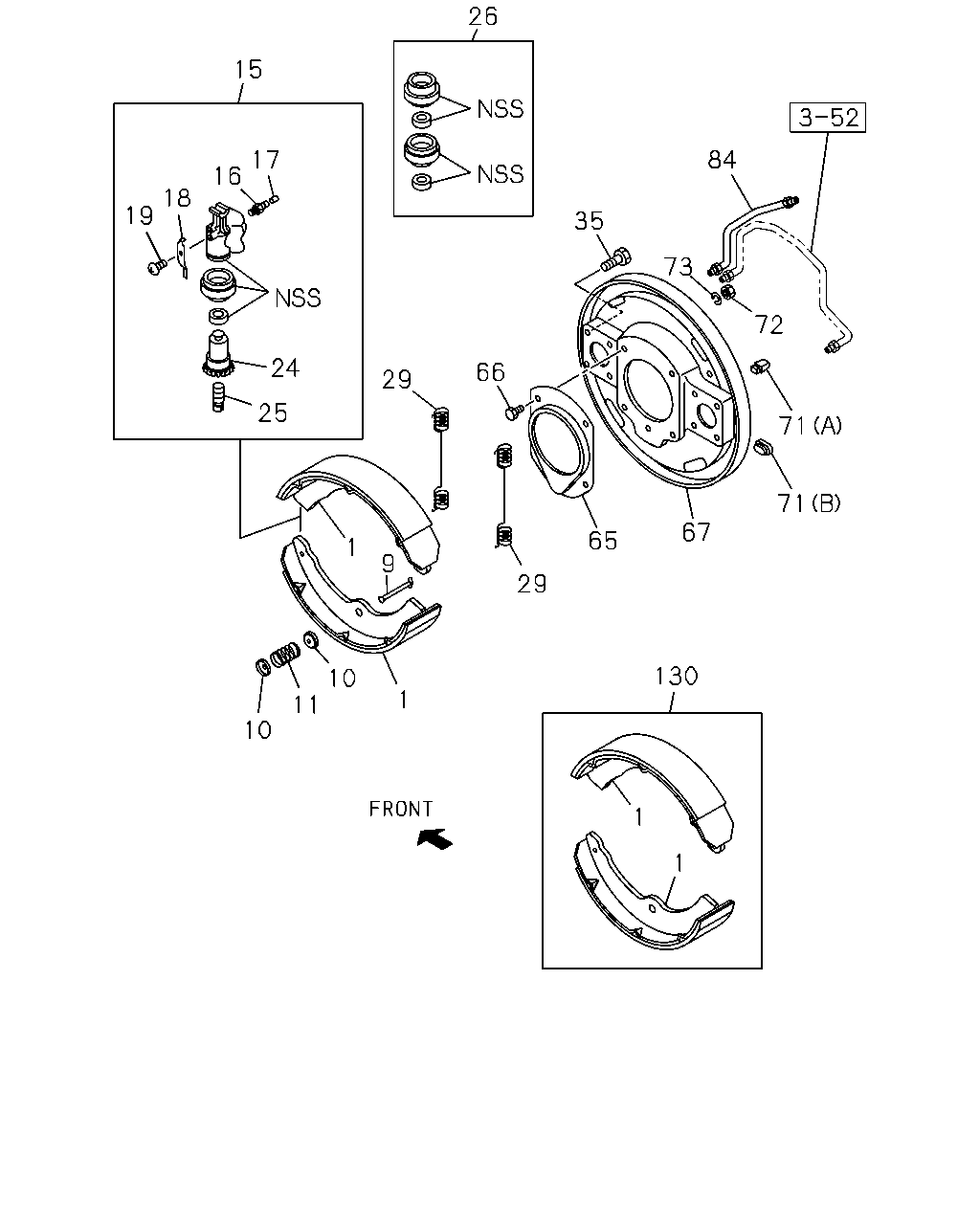

çizim 47596
26 15 84 17 16 18 19 35 73 72 24 66 29 25 71 71 67 65 1 9 29 130 10 1 11 10 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.017 SHOE; BRK,FRT 8-97035-084-0 04 1 9811- ● ● ● ● ● ●
9 05.026 PIN; SHOE HOLDER
05.043 L=52 		9-47162-045-0 04 1 9811- ● ● ● ● ● ●
10 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 9811- ● ● ● ● ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		9-09940-989-1 04 1 9811- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-358-0 01 1 9811- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-360-0 01 1 9811- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-357-0 01 1 9811- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-359-0 01 1 9811- ● ● ● ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 9811- ● ● ● ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 9811- ● ● ● ● ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 9811- ● ● ● ● ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 9811- ● ● ● ● ● ●
24 04.668 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 9811- ● ● ● ● ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 9811- ● ● ● ● ● ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 9811- ● ● ● ● ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97081-150-0 04 1 9811- ● ● ● ● ● ●
35 04.665 BOLT; FRT WHEEL CYL
04.686 M8X16 		9-09602-119-1 16 1 9811- ● ● ● ● ● ●
65 05.815 COVER; OIL SHIELD,FRT 8-94253-935-0 02 1 9811-0103 ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
M12X33 		9-09600-043-3 08 1 9811- ● ● ● ● ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97081-141-1 01 1 9811-0102 ● ● ● ● ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-583-0 01 1 0103- ● ● ● ● ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97081-140-1 01 1 9811-0102 ● ● ● ● ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-582-0 01 1 0103- ● ● ● ● ● ●
71 05.002 GROMMET; CHECK HOLE
(A) 		9-09956-640-0 04 1 9811- ● ● ● ● ● ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-94344-919-0 01 1 9811- ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
05.816 M12 		9-99110-412-0 08 1 9811-9907 ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
EXC. AXLE ISUZU PRODUCTION<8BF> 05.816 M12 		9-99110-412-0 08 1 9908-9909 ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
AXLE ISUZU PRODUCTION<8BF> 04.634 M12 		9-99110-512-0 08 1 9908-9909 ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
04.634 M12 		9-99110-512-0 08 1 9910- ● ● ● ● ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.515 ID=12.2 		9-09150-612-0 08 1 9811- ● ● ● ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97034-568-0 01 1 9811- ● ● ● ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97034-567-0 01 1 9811- ● ● ● ● ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-084-0 01 1 0204- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
