2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#42261) — 79 parça

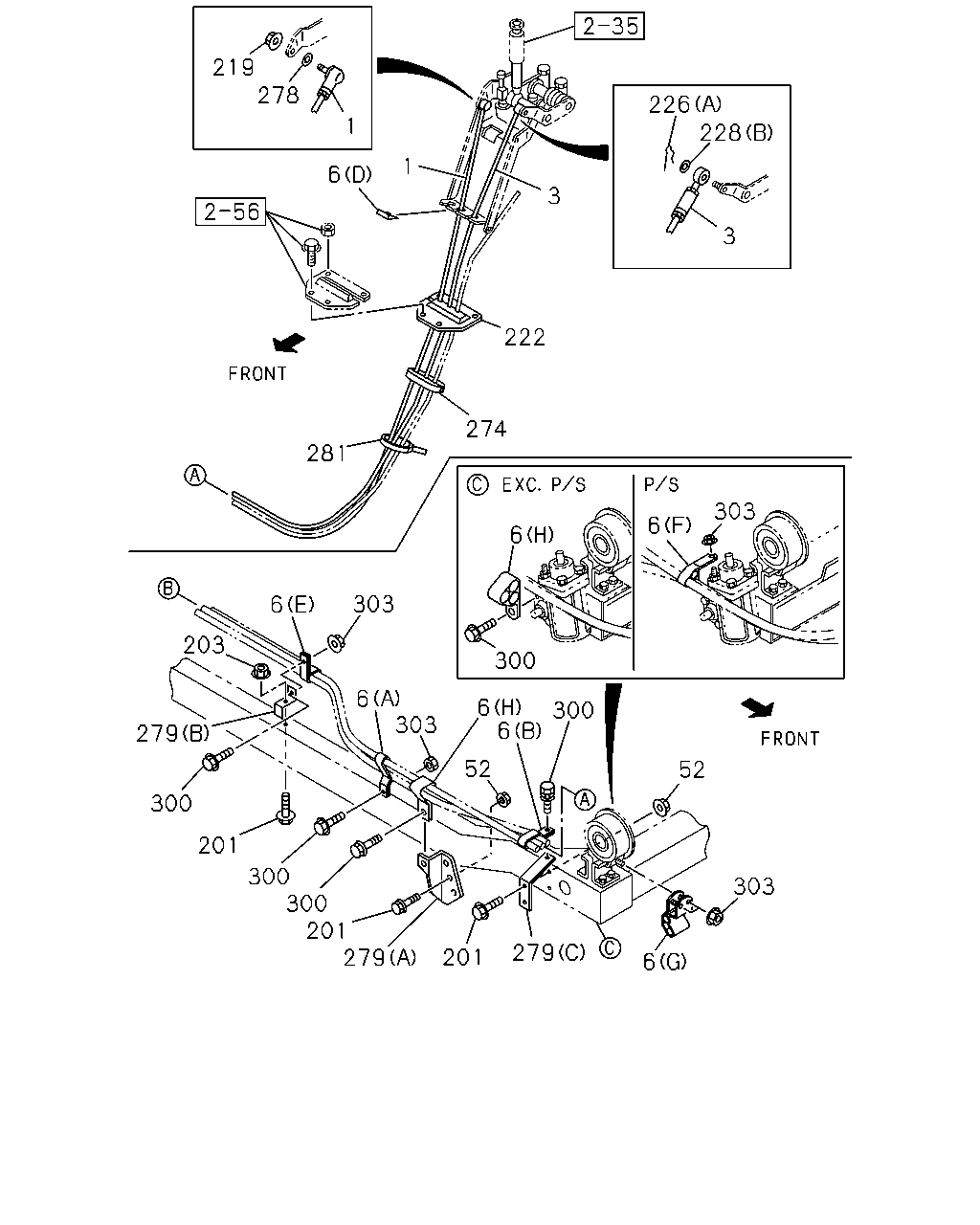

çizim 10097
219 278 226 228 1 1 6 3 3 222 274 281 303 6 6 303 6 203 300 6 303 6 6 300 279 52 52 300 201 300 300 201 279 303 279 201 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
RHD(NH*5**) L=2643 		8-97176-466-0 01 1 9811-
1 00.854 CABLE; SHIFT,TRANS CONT
LHD(NH*6**) L=2540 		8-97089-986-3 01 1 9811-
3 00.852 CABLE; SELECT,TRANS CONT
RHD(NH*5**) L=2810 		8-97176-474-0 01 1 9811-
3 00.852 CABLE; SELECT,TRANS CONT
LHD(NH*6**) L=2684 		8-97089-987-3 01 1 9811-
6 04.047 CLIP; CABLE
(D) 		8-97011-448-0 02 1 9811-
6 04.047 CLIP; CABLE
(A) 		8-97036-329-2 01 1 9811-
6 04.047 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9811-
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-97211-011-0 02 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) (G) 		8-97147-985-0 01 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> (F) 		8-97036-334-2 01 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) EXC. POWER STEERING<N40> (H) 		8-97036-333-1 01 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) (H) 		8-97036-333-1 01 1 9811-
6 04.047 CLIP; CABLE
LHD(NH*6**) (B) 		8-97137-589-0 01 1 9811-
52 04.047 NUT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-
52 04.047 NUT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-
201 04.032 BOLT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-
201 04.032 BOLT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-
219 04.047 NUT; FLANGE,SHAFT CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-
222 04.010 GROMMET; CABLE
RHD(NH*5**) 		8-97061-403-2 01 1 9811-
222 04.010 GROMMET; CABLE
LHD(NH*6**) 		8-97089-851-0 01 1 9811-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9811-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9811-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811-
274 04.008 CLIP; CONT CABLE 8-97093-491-1 01 1 9811-0009
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 0010-
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9811-
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97103-234-0 01 1 9811-
279 04.047 BRACKET; CABLE TO FRAME
RHD(NH*5**) EXC. POWER STEERING<N40> 06.606 (B) 		8-97089-879-0 01 1 9811-
279 04.047 BRACKET; CABLE TO FRAME
LHD(NH*6**) (C) 		8-97101-709-1 01 1 9811-
281 04.042 CLIP; BAND
SGL TIRE&LHD(NHB6**) 03.162 L=140 		5-09707-031-1 01 1 9811-
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-
300 00.854 BOLT; CLIP
RHD(NH*5**) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-
300 00.854 BOLT; CLIP
RHD(NH*5**) EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-
300 00.854 BOLT; CLIP
LHD(NH*6**) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9811-
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-
303 00.855 NUT; CLIP
RHD(NH*5**) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-
303 00.855 NUT; CLIP
RHD(NH*5**) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-

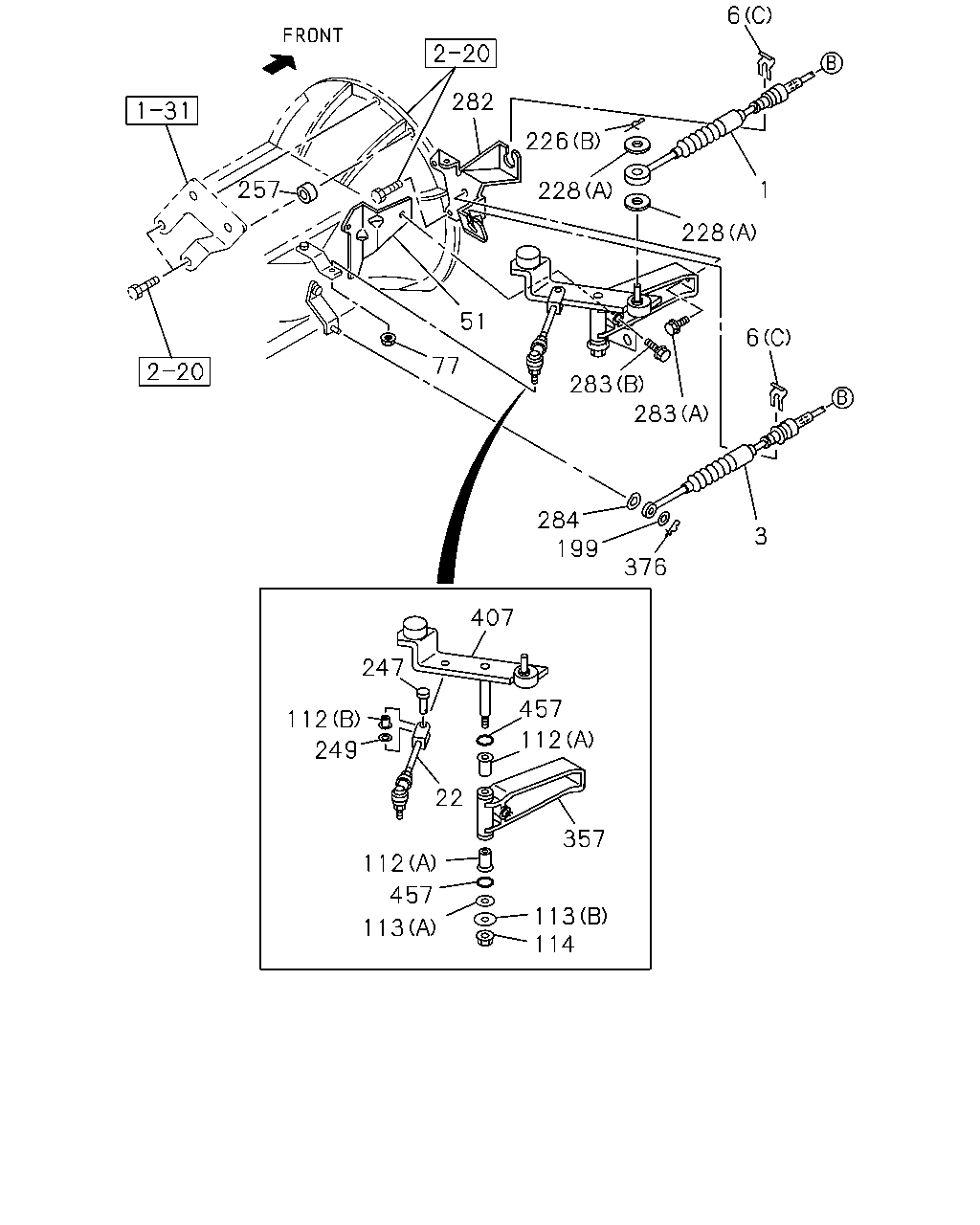

çizim 47523
6 282 226 257 1 228 228 51 6 77 283 283 284 199 3 376 407 247 457 112 112 249 22 357 112 457 113 114 113
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
RHD(NH*5**) L=2643 		8-97176-466-0 01 1 9811-
1 00.854 CABLE; SHIFT,TRANS CONT
LHD(NH*6**) L=2540 		8-97089-986-3 01 1 9811-
3 00.852 CABLE; SELECT,TRANS CONT
RHD(NH*5**) L=2810 		8-97176-474-0 01 1 9811-
3 00.852 CABLE; SELECT,TRANS CONT
LHD(NH*6**) L=2684 		8-97089-987-3 01 1 9811-
6 04.047 CLIP; CABLE
(D) 		8-97011-448-0 02 1 9811-
6 04.047 CLIP; CABLE
(A) 		8-97036-329-2 01 1 9811-
6 04.047 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9811-
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-97211-011-0 02 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) (G) 		8-97147-985-0 01 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> (F) 		8-97036-334-2 01 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) EXC. POWER STEERING<N40> (H) 		8-97036-333-1 01 1 9811-
6 04.047 CLIP; CABLE
RHD(NH*5**) (H) 		8-97036-333-1 01 1 9811-
6 04.047 CLIP; CABLE
LHD(NH*6**) (B) 		8-97137-589-0 01 1 9811-
22 04.035 ROD; CONT,SHIFT 8-97174-058-0 01 1 9811-
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 9811-
77 04.037 NUT; LK,BALL JOINT,CONT ROD
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9906-
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9811-
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9811-
113 04.046 WASHER; RELAY LEVER
16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 9811-
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 9811-
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9811-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9811-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9811-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811-
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 9811-
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 9811-
257 00.851 PIECE; DIST,RELAY LEVER
AIR INTAKE REAR VERTICAL<KJ3> 		8-94369-173-0 01 1 9811-
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9811-
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 9811-
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9811-
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9811-
357 04.010 BRACKET; RELAY LEVER 8-97182-166-0 01 1 9811-
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9811-
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 9811-
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 9811-
