2-26 — MANUAL TRANSMISSION GEAR (#42258) — 92 parça

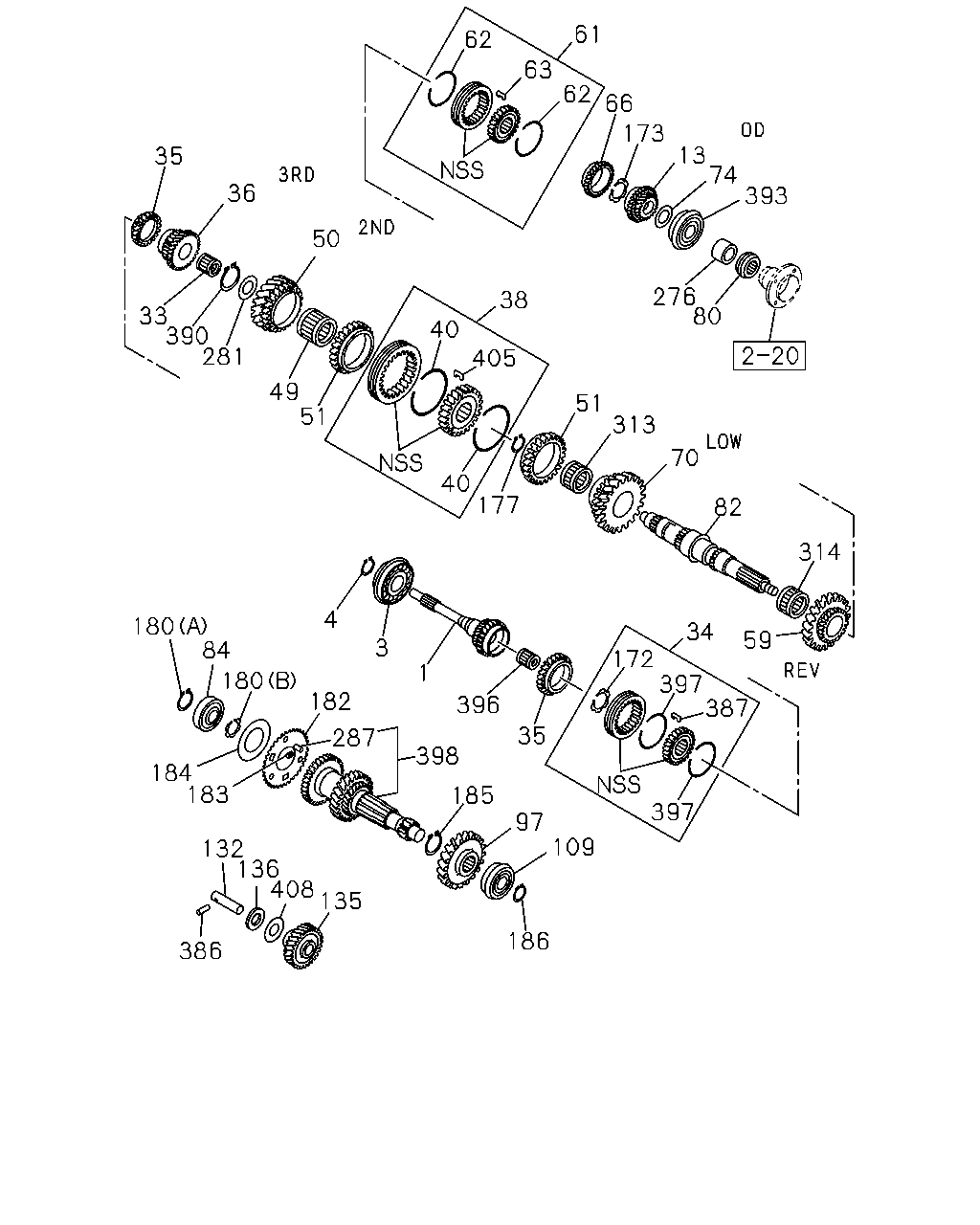

çizim 10181
61 62 63 62 66 173 13 74 393 35 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 180 84 34 59 3 172 397 387 1 180 182 396 35 287 398 184 183 397 185 97 109 132 136 408 135 186 386
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
Z=30 		8-97103-632-0 01 1 9811-
3 04.403 BEARING; TOP GEAR SHAFT
04.408 NSK 		8-94178-732-1 01 1 9811-
3 04.403 BEARING; TOP GEAR SHAFT
04.352 JTEKT 		8-94462-615-0 01 1 9811-
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934 ID=37.0 		9-09180-040-0 01 1 9811-
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-97147-817-0 01 1 9811-9905
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-97206-012-0 01 1 9906-0004
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. TURBOCHARGER<K51> Z=25 		8-97206-012-0 01 1 0005-
13 04.415 GEAR; 5TH,MAINSHAFT
TURBOCHARGER<K51> Z=25 		8-97206-015-0 01 1 0005-
33 04.352 BEARING; NEEDLE,3RD GEAR 8-94317-158-0 01 1 9811-
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97048-745-2 01 1 9811-
35 04.383 RING; BLOCK,4TH & 3RD
Z=36 		8-94128-775-2 02 1 9811-
36 04.415 GEAR; 3RD,MAINSHAFT
Z=33 		8-94316-761-2 01 1 9811-0203
36 04.415 GEAR; 3RD,MAINSHAFT
Z=33 		8-97324-853-0 01 1 0204-
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97048-748-0 01 1 9811-
40 04.384 SPRING; INSERT,LOW & 2ND 8-97023-708-0 02 1 9811-
49 04.352 BEARING; NEEDLE,2ND GEAR
04.419 NSK 		5-09811-014-0 01 1 9811-
50 04.395 GEAR; 2ND,MAINSHAFT
4JB1 ENG(RLF) Z=36 		8-97014-034-2 01 1 9811-0004
50 04.395 GEAR; 2ND,MAINSHAFT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=36 		8-97014-034-2 01 1 0005-
50 04.395 GEAR; 2ND,MAINSHAFT
4JG2 ENG(RJC) Z=36 		8-94316-766-3 01 1 9811-0004
50 04.395 GEAR; 2ND,MAINSHAFT
4JB1 ENG(RLF) TURBOCHARGER<K51> Z=36 		8-94316-766-3 01 1 0005-
50 04.395 GEAR; 2ND,MAINSHAFT
4JG2 ENG(RJC) Z=36 		8-94316-766-3 01 1 0005-
51 04.383 RING; BLOCK,LOW & 2ND
Z=42 		8-97074-619-3 02 1 9811-
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97115-777-0 01 1 9811-9905
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97206-006-0 01 1 9906-
61 04.380 SYNCHRONIZER; REV & 5TH 8-97048-750-0 01 1 9811-9905
61 04.380 SYNCHRONIZER; REV & 5TH 8-97206-010-0 01 1 9906-
62 04.384 SPRING; INSERT,REV & 5TH 8-97023-710-0 02 1 9811-
63 04.384 INSERT; SYN,REV & 5TH 9-33263-613-0 03 1 9811-
66 04.383 RING; BLOCK,SYN
Z=36 		8-94128-775-2 01 1 9811-
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97014-033-3 01 1 9811-
74 04.419 WASHER; THRUST,REV GEAR 9-33271-607-1 01 1 9811-9905
74 04.419 WASHER; THRUST,REV GEAR 8-97207-176-0 01 1 9906-
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97011-350-0 01 1 9811-9905
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97207-146-0 01 1 9906-
82 04.403 SHAFT; MAIN,TRANS
Z=27-40-31-24 		8-97045-932-1 01 1 9811-9905
82 04.403 SHAFT; MAIN,TRANS
4JB1 ENG(RLF) Z=27-40-31-24 		8-97045-932-1 01 1 9906-9911
82 04.403 SHAFT; MAIN,TRANS
4JG2 ENG(RJC) Z=27-40-37-27 		8-97207-119-0 01 1 9906-9911
82 04.403 SHAFT; MAIN,TRANS
Z=27-40-37-27 		8-97207-119-0 01 1 9912-
84 04.422 BEARING; COUNTER SHAFT,FRT
NSK 		5-09800-062-1 01 1 9811-
97 04.415 GEAR; 5TH,COUNTER
Z=53 		8-97077-341-1 01 1 9811-
109 04.422 BEARING; COUNTER SHAFT,RR 8-97095-913-0 01 1 9811-
132 04.433 SHAFT; REV 9-33351-604-1 01 1 9811-
135 04.430 GEAR; REV IDLER
Z=29 		8-97081-539-3 01 1 9811-
136 04.437 WASHER; THRUST,REV IDLE,RR 8-97081-579-2 01 1 9811-
172 04.412 RING; SNAP,CLU HUB
04.384 T=1.75 		8-94402-405-0 01 1 9811-
172 04.412 RING; SNAP,CLU HUB
04.384 T=1.80 		8-94402-406-0 01 1 9811-
172 04.412 RING; SNAP,CLU HUB
04.384 T=1.85 		8-94402-407-0 01 1 9811-
173 04.416 RING; SNAP,OVERDRIVE GEAR
T=1.85 		8-94151-522-0 01 1 9811-
173 04.416 RING; SNAP,OVERDRIVE GEAR
T=1.90 		8-94151-523-0 01 1 9811-
173 04.416 RING; SNAP,OVERDRIVE GEAR
T=1.95 		8-94151-524-0 01 1 9811-
173 04.416 RING; SNAP,OVERDRIVE GEAR
T=2.00 		8-94157-747-0 01 1 9811-
177 04.384 RING; SNAP,CLU HUB
T=1.75 		8-94402-405-0 01 1 9811-9905
177 04.384 RING; SNAP,CLU HUB
04.422 T=1.75 		5-09589-010-0 01 1 9906-
177 04.384 RING; SNAP,CLU HUB
T=1.80 		8-94402-406-0 01 1 9811-9905
177 04.384 RING; SNAP,CLU HUB
T=1.85 		8-94402-407-0 01 1 9811-9905
180 04.422 RING; SNAP,CLUSTER GEAR
(B) ID=38.5 		8-94146-483-0 01 1 9811-
180 04.422 RING; SNAP,CLUSTER GEAR
08.934 (A) ID=32.2 		9-09180-035-0 01 1 9811-
182 04.422 PLATE; CLUSTER GEAR 8-97095-984-0 01 1 9811-
183 04.422 SPRING; PLATE,CLUSTER GEAR 8-94132-168-0 03 1 9811-
184 04.422 SPRING; CLUSTER GEAR 8-94128-790-1 01 1 9811-
185 04.422 RING; SNAP,CLUSTER GEAR
ID=41.5 		9-09180-045-0 01 1 9811-
186 04.422 RING; SNAP,CLUSTER GEAR
ID=29.6 		9-09180-032-0 01 1 9811-
276 04.419 SPACER; BRG TO DRIVE GEAR 9-33235-606-1 01 1 9811-9905
276 04.419 SPACER; BRG TO DRIVE GEAR 8-97207-175-0 01 1 9906-
281 04.419 WASHER; THRUST,MAINSHAFT 5-33271-007-0 01 1 9811-
287 04.422 PIN; COUNTER GEAR 8-94402-462-0 01 1 9811-
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		8-94317-161-0 01 1 9811-
313 04.419 BEARING; NEEDLE,LOW GEAR
JTEKT 		8-97010-547-0 01 1 9811-
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		5-09811-014-0 01 1 9811-9905
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97207-174-0 01 1 9906-
386 04.435 PIN; REV SHAFT 8-94128-794-0 01 1 9811-
387 04.384 INSERT; SYN,4TH & 3RD 5-33263-001-0 03 1 9811-
390 04.383 RING; SNAP,CLU HUB
04.384 T=1.75 		8-94151-520-0 01 1 9811-
390 04.383 RING; SNAP,CLU HUB
04.384 T=1.80 		8-94151-521-0 01 1 9811-
390 04.383 RING; SNAP,CLU HUB
04.416 T=1.85 		8-94151-522-0 01 1 9811-
390 04.383 RING; SNAP,CLU HUB
4JB1 ENG(RLF) 04.416 T=1.90 		8-94151-523-0 01 1 9811-0004
390 04.383 RING; SNAP,CLU HUB
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.416 T=1.90 		8-94151-523-0 01 1 0005-
393 04.352 BEARING; MAINSHAFT END
04.422 		8-97095-913-0 01 1 9811-9905
393 04.352 BEARING; MAINSHAFT END 8-97207-512-0 01 1 9906-
396 04.352 BEARING; NEEDLE,MAINSHAFT
04.520 		9-00096-606-0 01 1 9811-0004
396 04.352 BEARING; NEEDLE,MAINSHAFT
EXC. TURBOCHARGER<K51> 04.520 		9-00096-606-0 01 1 0005-
396 04.352 BEARING; NEEDLE,MAINSHAFT
TURBOCHARGER<K51> 		8-97161-658-0 01 1 0005-
397 04.384 SPRING; INSERT,4TH & 3RD 8-97023-710-0 02 1 9811-
398 04.421 GEAR; COUNTER
Z=49-34-22-14 		8-97077-337-0 01 1 9811-0004
398 04.421 GEAR; COUNTER
EXC. TURBOCHARGER<K51> Z=49-34-22-14 		8-97077-337-0 01 1 0005-0203
398 04.421 GEAR; COUNTER
TURBOCHARGER<K51> Z=49-34-22-14 		8-97191-207-0 01 1 0005-0203
398 04.421 GEAR; COUNTER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> Z=49-34-22-14 		8-97333-915-0 01 1 0204-
398 04.421 GEAR; COUNTER
4JG2 ENG(RJC) Z=49-34-22-14 		8-97324-857-0 01 1 0204-
398 04.421 GEAR; COUNTER
4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> Z=49-34-22-14 		8-97324-857-0 01 1 0204-
398 04.421 GEAR; COUNTER
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> Z=49-34-22-14 		8-97324-857-0 01 1 0204-
405 04.384 INSERT; SYN,LOW & 2ND 5-33263-001-0 03 1 9811-
408 04.384 SPRING 8-97081-577-0 01 1 9811-
