2-08 — CLUTCH MASTER CYLINDER (#42254) — 12 parça

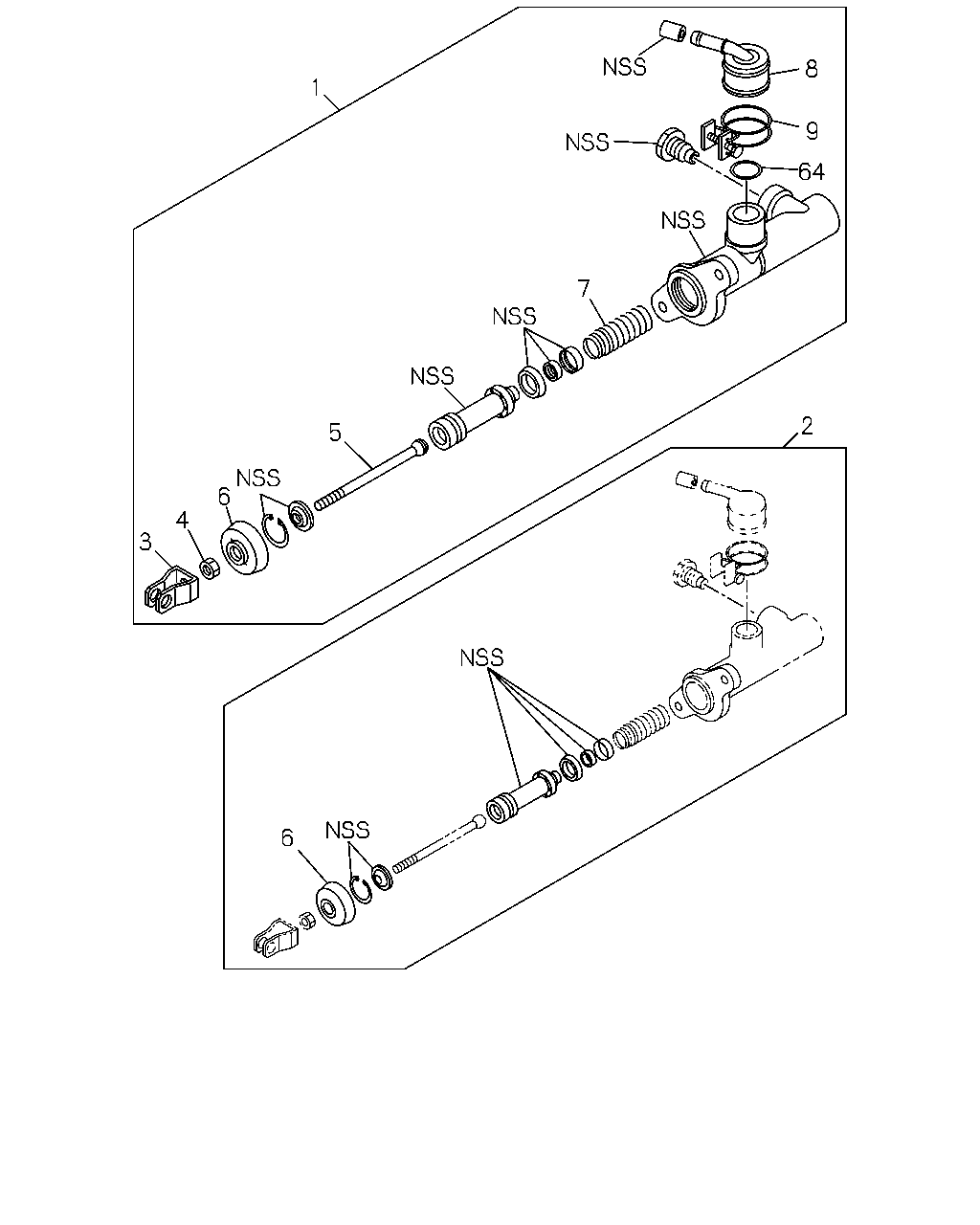

çizim 45660
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
RHD(NH*5**) 		8-97162-963-0 01 1 9811-
1 00.775 CYLINDER ASM; CLUTCH MASTER
LHD(NH*6**) 		8-97167-406-0 01 1 9811-
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9811-
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9811-
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9811-
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9811-
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 9811-
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9811-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
RHD(NH*5**) 		8-97163-191-0 01 1 9811-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
LHD(NH*6**) 		8-97167-766-0 01 1 9811-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9811-
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 9811-
