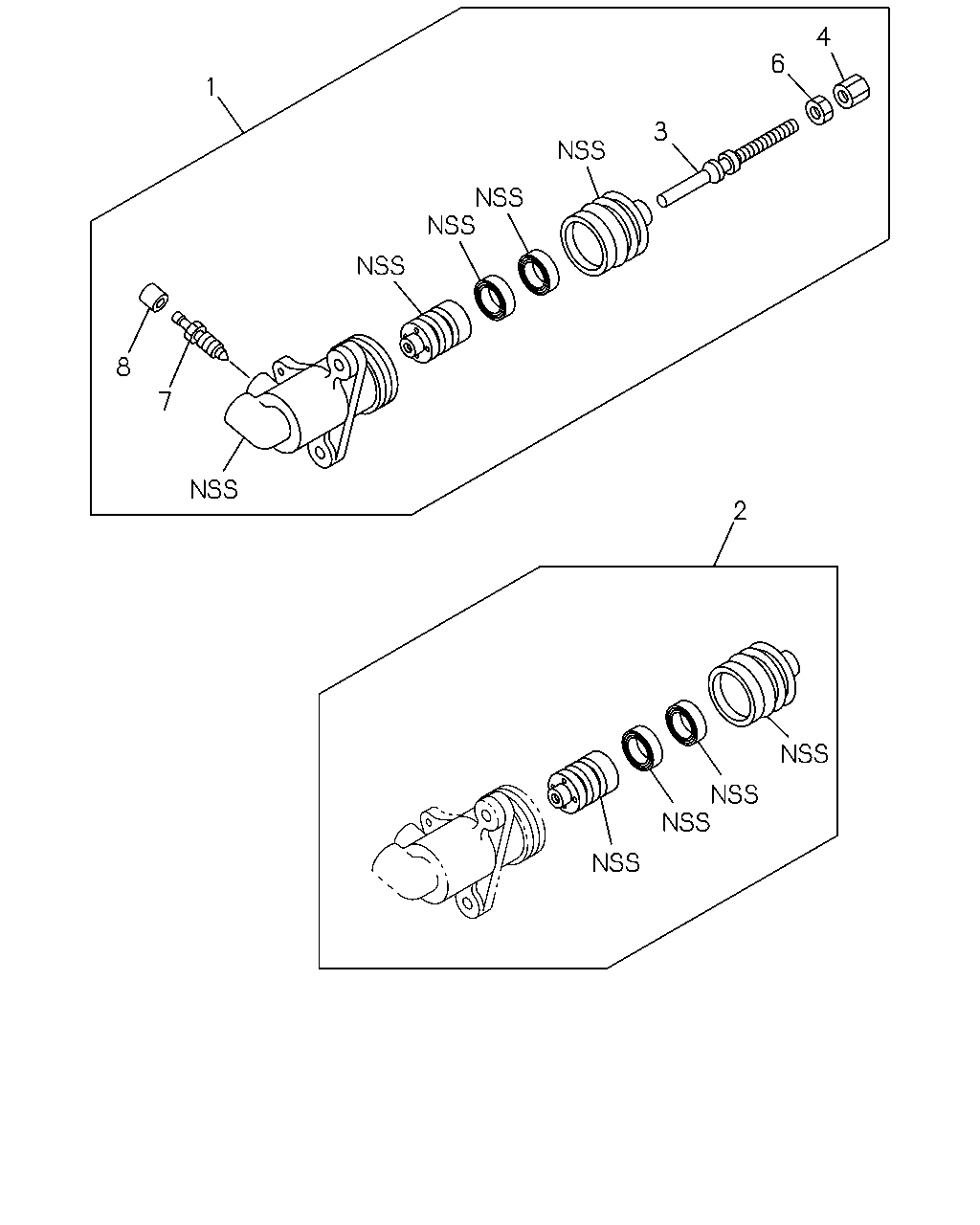

2-06 — CLUTCH SLAVE CYLINDER
(#42253) — 18 parça
4
6
1
3
8
7
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.780 CYLINDER; SLAVE,CLU
4JB1 ENG(RLF)
8-97047-971-0
01
1
9811-9812
1
00.780 CYLINDER; SLAVE,CLU
4JB1 ENG(RLF)
8-97212-010-0
01
1
9901-0004
1
00.780 CYLINDER; SLAVE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>
8-97212-010-0
01
1
0005-
1
00.780 CYLINDER; SLAVE,CLU
4JG2 ENG(RJC)
8-97160-881-0
01
1
9811-9812
1
00.780 CYLINDER; SLAVE,CLU
4JG2 ENG(RJC)
8-97212-015-0
01
1
9901-0004
1
00.780 CYLINDER; SLAVE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51>
8-97212-015-0
01
1
0005-
1
00.780 CYLINDER; SLAVE,CLU
4JG2 ENG(RJC)
8-97212-015-0
01
1
0005-
2
00.780 REPAIR KIT; CLU SLAVE CYL
5-87831-402-0
01
1
9811-9812
2
00.780 REPAIR KIT; CLU SLAVE CYL
5-87831-731-0
01
1
9901-
3
00.780 ROD; PUSH,SLAVE CYL
8-94459-698-0
01
1
9811-9812
3
00.780 ROD; PUSH,SLAVE CYL
8-97212-019-0
01
1
9901-
4
00.780 NUT; ADJ,SLAVE CYL PUSH ROD
00.787
9-09644-005-0
01
1
9811-9812
4
00.780 NUT; ADJ,SLAVE CYL PUSH ROD
8-97212-020-0
01
1
9901-
6
00.787 NUT; LK,ROD END
M8
9-09111-408-0
01
1
9811-
7
00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5
8-94115-113-0
01
1
9811-9812
7
00.780 SCREW; BLEEDER,SLAVE CYL
M7X19.5
8-97188-329-0
01
1
9901-
8
00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5
9-47619-005-0
01
1
9811-9812
8
00.780 CAP; BLEEDER,SLAVE CYL
8-97188-330-0
01
1
9901-
