◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#42252) — 100 parça

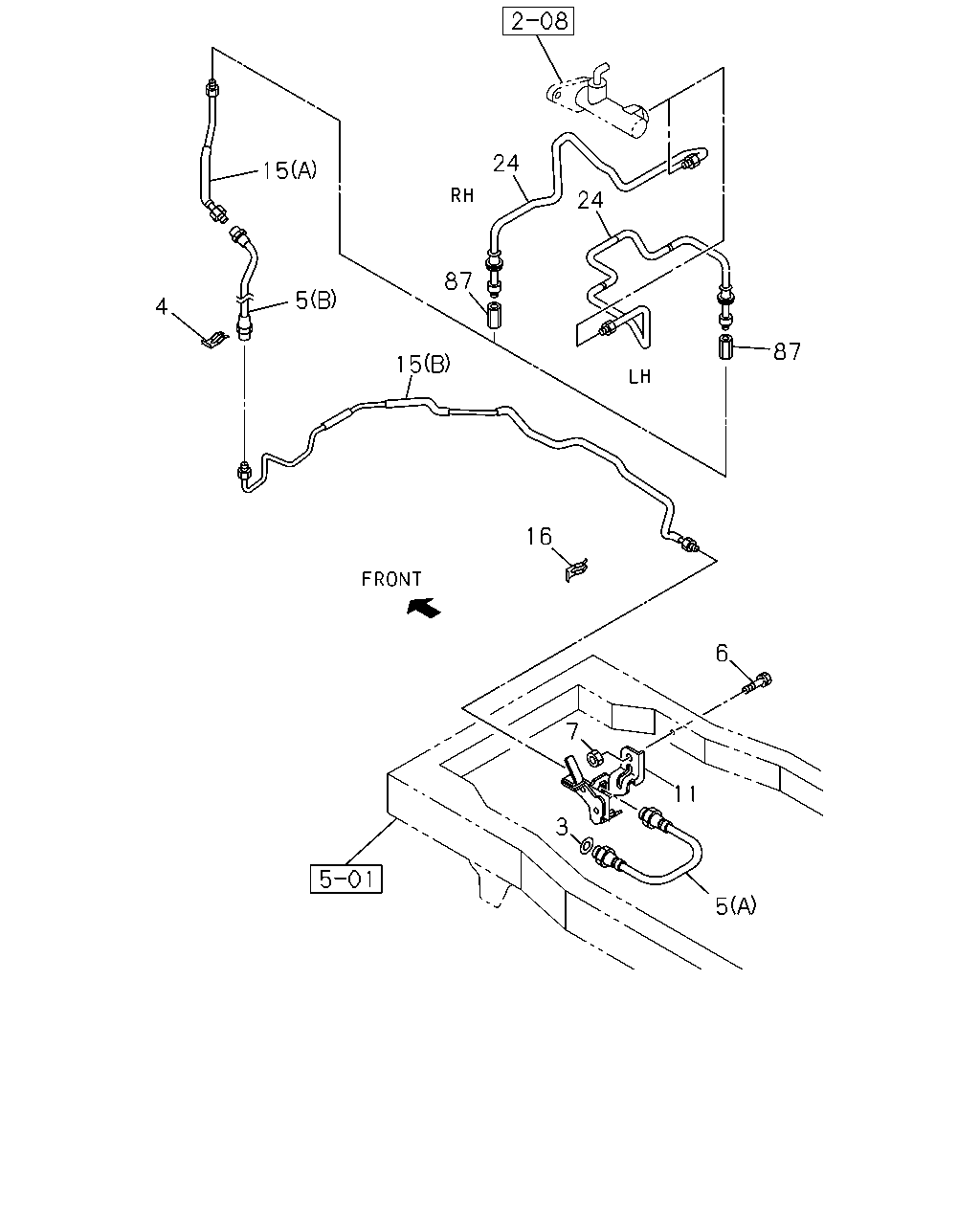

çizim 46622
24 15 24 87 5 4 87 15 16 6 7 11 3 5
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		9-09920-873-1 01 1 9811-0004
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 0005-
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9811-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9811-
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) (A) 		8-97064-108-1 01 1 9811-0004
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0005-
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 9811-0004
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0005-
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0005-
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0004
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0005-
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0004
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0005-
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0005-
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0004
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0005-
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		8-94411-135-0 01 1 9811-0004
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94411-135-0 01 1 0005-
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) 		8-97091-929-0 01 1 9811-0004
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97091-929-0 01 1 0005-
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) 		8-97091-929-0 01 1 0005-
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 9811-0004
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) 4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 0005-0105
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&SGL CAB(NHB6S*) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0005-0105
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&SGL CAB(NHB6S*) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0106-
15 00.785 PIPE; CLU,FLEX HOSE
SMALL DUAL RR TIRE&RHD(NHN5**) 4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 0106-
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (A) 		8-97035-987-0 01 1 9811-
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) 4JB1 ENG(RLF) (B) 		8-97100-830-3 01 1 9811-0105
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97100-830-3 01 1 0106-
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (A) 		8-97070-300-2 01 1 9811-0111
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (A) 		8-97328-481-0 01 1 0112-
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (B) 		8-97070-380-4 01 1 9811-0004
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&SGL CAB(NHB6S*) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0005-
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&LHD(NHN6SF) (B) 		8-97070-380-4 01 1 0005-
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 01 1 9811-0004
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94167-006-0 01 1 0005-
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 02 1 9811-0004
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 02 1 0005-
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 02 1 0005-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
RHD(NH*5**) 		8-97035-986-0 01 1 9811-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
LHD(NH*6**) 		8-97094-343-2 01 1 9811-
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9811-

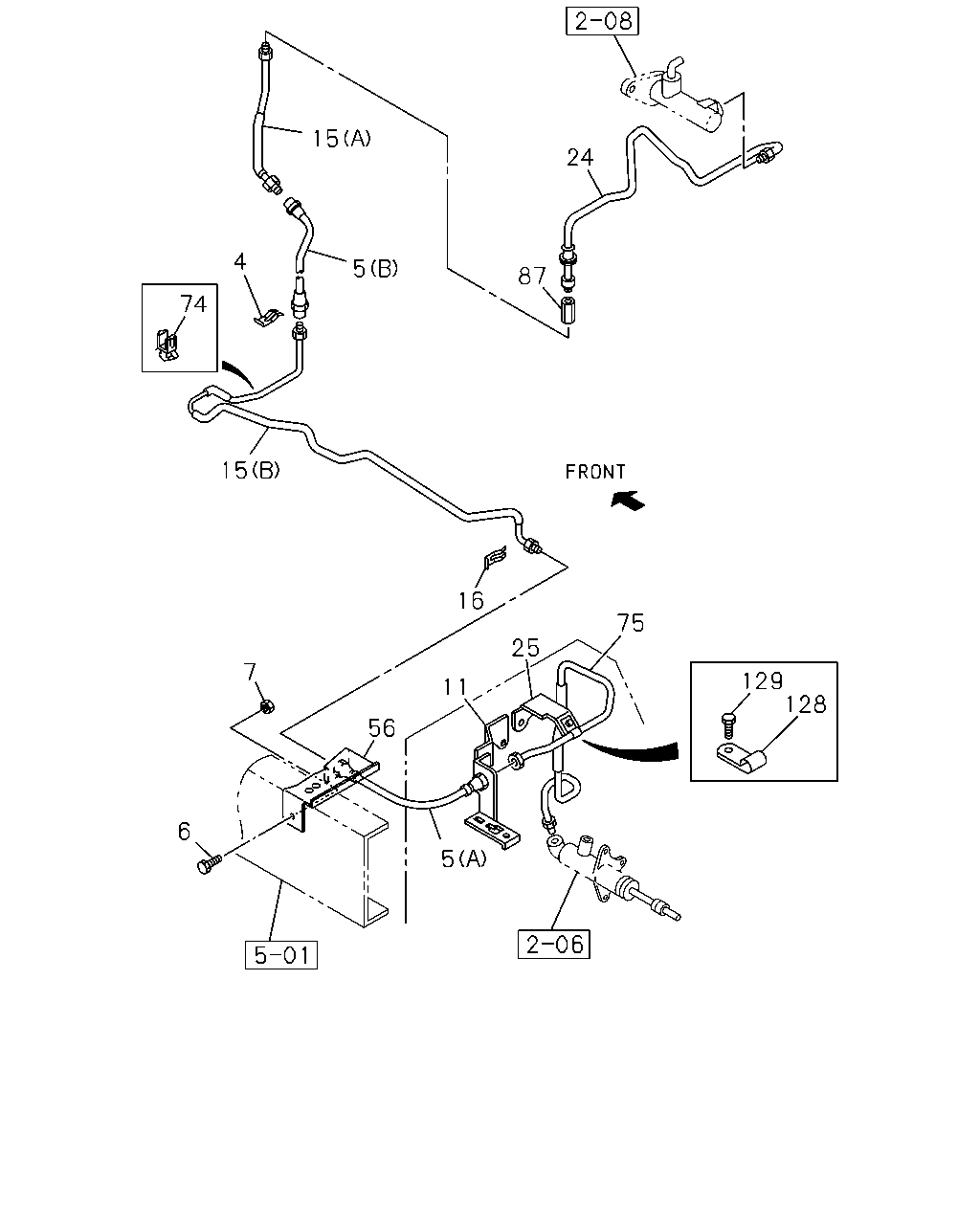

çizim 48980
15 24 4 5 87 74 15 16 75 25 7 129 128 11 56 6 5
BalonParca AdiParca NoAdetTipApplied Date
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9811-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9811-
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) (A) 		8-97064-108-1 01 1 9811-0004
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97064-108-1 01 1 0005-
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 9811-0004
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 0005-
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC) (A) 		8-94374-552-1 01 1 0005-
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0004
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0005-
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0004
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0005-
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0005-
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0004
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0005-
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		8-94411-135-0 01 1 9811-0004
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94411-135-0 01 1 0005-
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) 		8-97091-929-0 01 1 9811-0004
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97091-929-0 01 1 0005-
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC) 		8-97091-929-0 01 1 0005-
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 9811-0004
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) 4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 0005-0105
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&SGL CAB(NHB6S*) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0005-0105
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&SGL CAB(NHB6S*) TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 0106-
15 00.785 PIPE; CLU,FLEX HOSE
SMALL DUAL RR TIRE&RHD(NHN5**) 4JG2 ENG(RJC) (B) 		8-97122-637-0 01 1 0106-
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (A) 		8-97035-987-0 01 1 9811-
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) 4JB1 ENG(RLF) (B) 		8-97100-830-3 01 1 9811-0105
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) 		8-97100-830-3 01 1 0106-
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (A) 		8-97070-300-2 01 1 9811-0111
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (A) 		8-97328-481-0 01 1 0112-
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (B) 		8-97070-380-4 01 1 9811-0004
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&SGL CAB(NHB6S*) EXC. TURBOCHARGER<K51> (B) 		8-97070-380-4 01 1 0005-
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD&DBL CAB(NHB6WF) SMALL DUAL RR TIRE&LHD(NHN6SF) (B) 		8-97070-380-4 01 1 0005-
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 01 1 9811-0004
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94167-006-0 01 1 0005-
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 02 1 9811-0004
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-94167-006-0 02 1 0005-
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC) 		8-94167-006-0 02 1 0005-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
RHD(NH*5**) 		8-97035-986-0 01 1 9811-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
LHD(NH*6**) 		8-97094-343-2 01 1 9811-
25 00.785 BRACKET; OIL PIPE
4JG2 ENG(RJC) 		8-97013-211-1 01 1 9811-0004
25 00.785 BRACKET; OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97013-211-1 01 1 0005-
25 00.785 BRACKET; OIL PIPE
4JG2 ENG(RJC) 		8-97013-211-1 01 1 0005-
56 00.785 BRACKET; FLEX HOSE
4JG2 ENG(RJC) 		8-97090-299-0 01 1 9811-0004
56 00.785 BRACKET; FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97090-299-0 01 1 0005-
56 00.785 BRACKET; FLEX HOSE
4JG2 ENG(RJC) 		8-97090-299-0 01 1 0005-
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) 03.162 H=28.5 		8-94486-808-0 02 1 9811-0004
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.162 H=28.5 		8-94486-808-0 02 1 0005-
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC) 03.162 H=28.5 		8-94486-808-0 02 1 0005-
75 00.785 PIPE ASM; CLU,HSG
4JG2 ENG(RJC) 		8-97063-756-2 01 1 9811-0004
75 00.785 PIPE ASM; CLU,HSG
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97063-756-2 01 1 0005-
75 00.785 PIPE ASM; CLU,HSG
4JG2 ENG(RJC) 		8-97063-756-2 01 1 0005-
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9811-
128 00.785 CLIP; AIR PIPE
4JG2 ENG(RJC) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9811-0004
128 00.785 CLIP; AIR PIPE
4JB1 ENG(RLF) TURBOCHARGER<K51> 03.145 ID=7 L=16 		9-09524-622-0 02 1 0005-
128 00.785 CLIP; AIR PIPE
4JG2 ENG(RJC) 03.145 ID=7 L=16 		9-09524-622-0 02 1 0005-
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0004
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0005-
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0005-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
