◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#42246) — 36 parça
çizim 10092
1 9 7 5 36 87 41 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9811- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9811- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9811- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9811- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 9901- ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-0 01 1 9901- ● ● ● ● ● ●
çizim 10094
20 20 20 20 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9811- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 (A) M10X30 FLANGE 		0-28081-030-0 02 1 9811- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 9811- ● ● ● ● ● ●

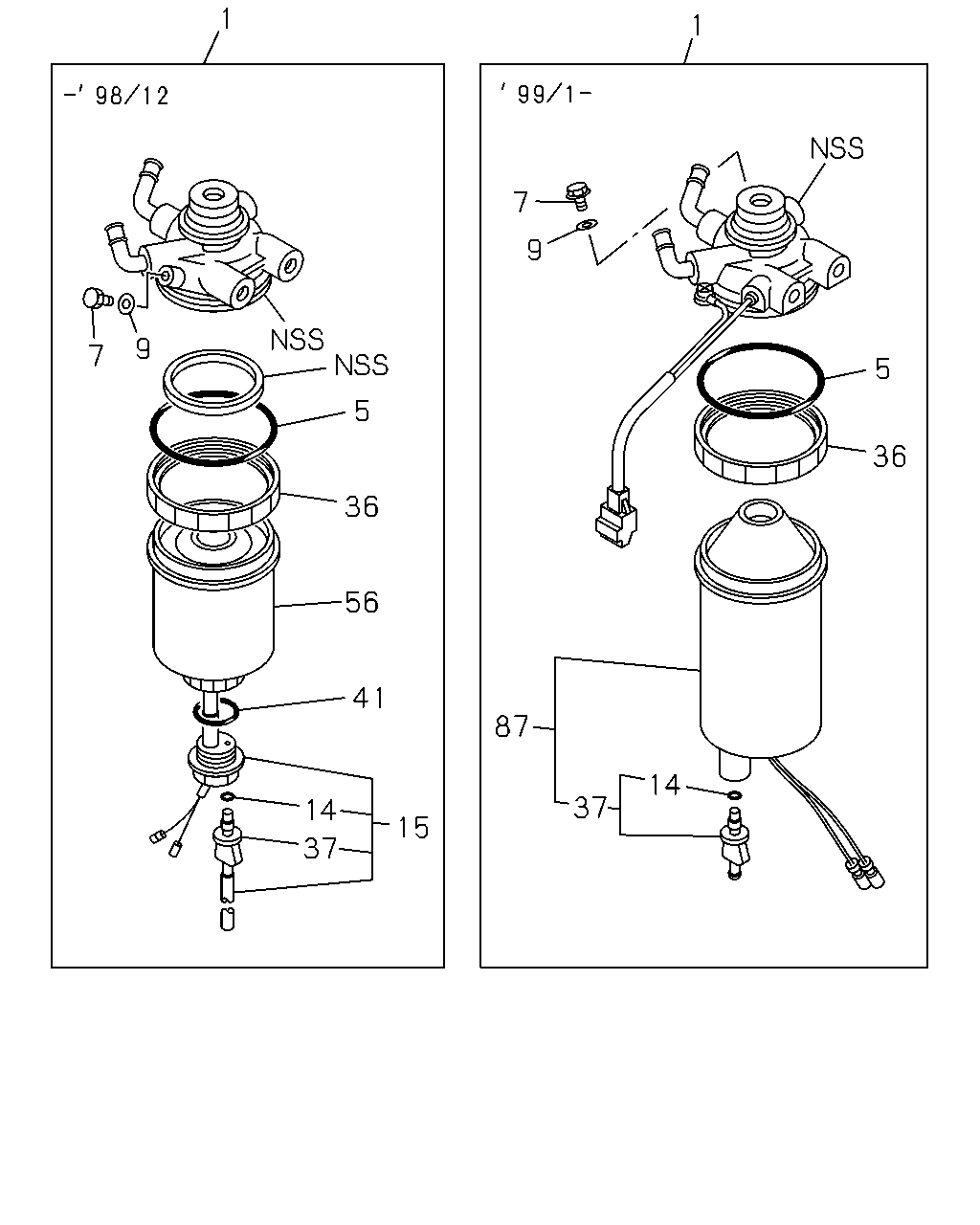

çizim 43280
1 1 7 9 9 7 5 5 36 36 56 41 87 14 37 14 15 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9811- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9811- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9811- ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 9811- ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9811-9812 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9811- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 9901- ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-0 01 1 9811-9812 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-0 01 1 9901- ● ● ● ● ● ●
çizim 48857
20 19 1 20 20 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9811- ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER 8-94366-685-0 01 1 9811- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 (A) M10X30 FLANGE 		0-28081-030-0 02 1 9811- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
