Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#42245) — 188 parça

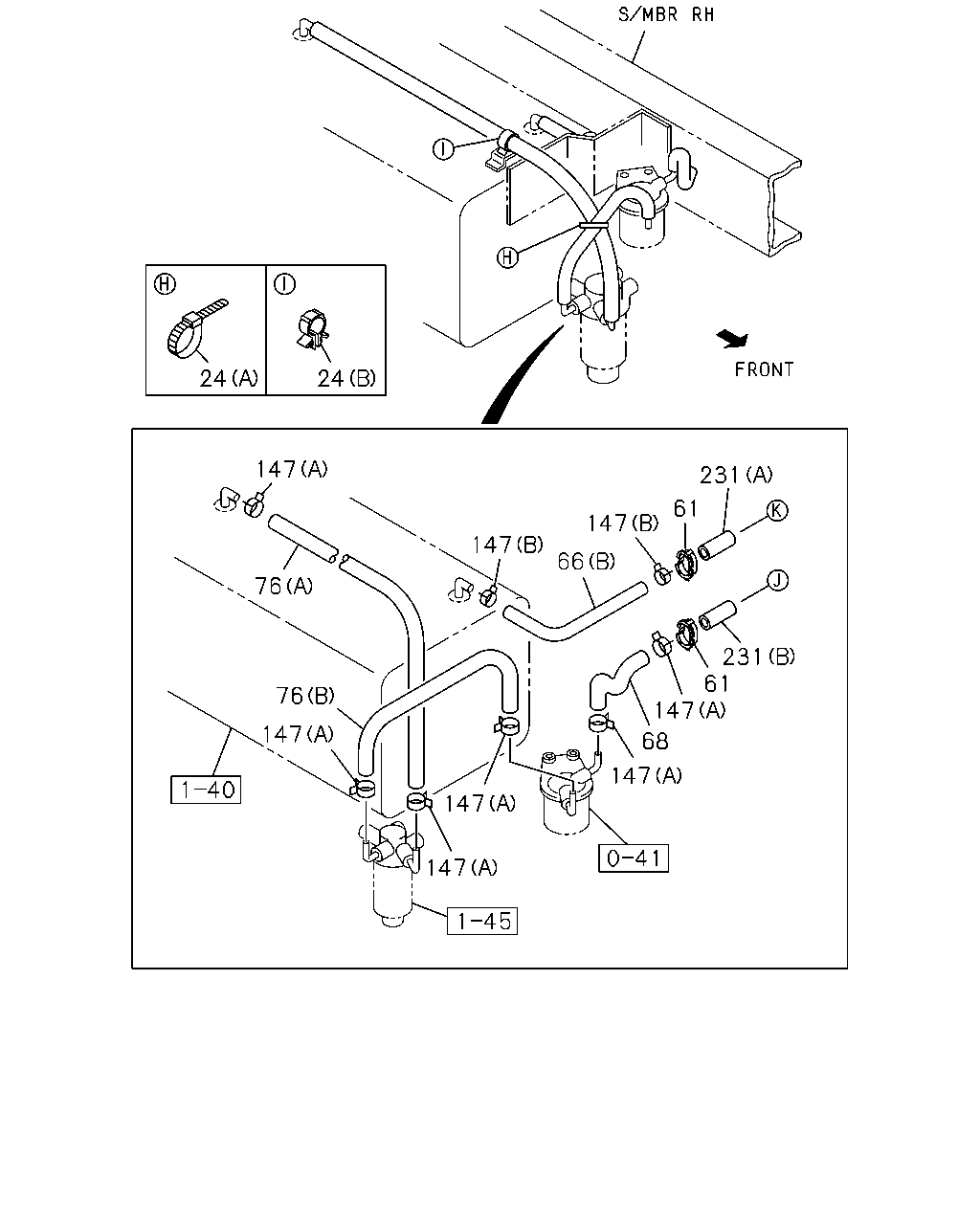

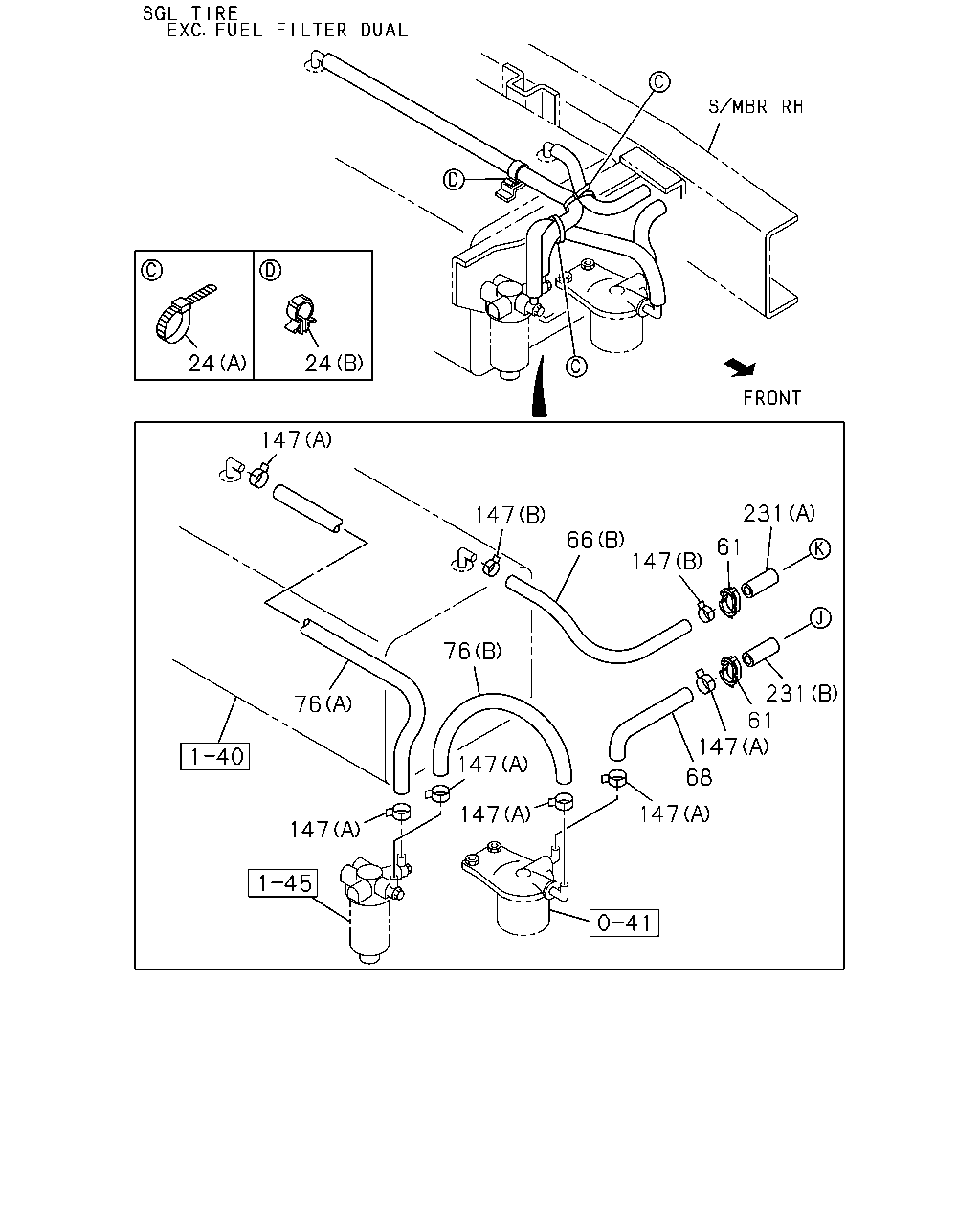

24 24 147 231 147 66 147 61 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9811-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	9811-	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	9811-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106		●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0107-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106		●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0107-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0107-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9811-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-0105	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-	●	●	●	●	●	●

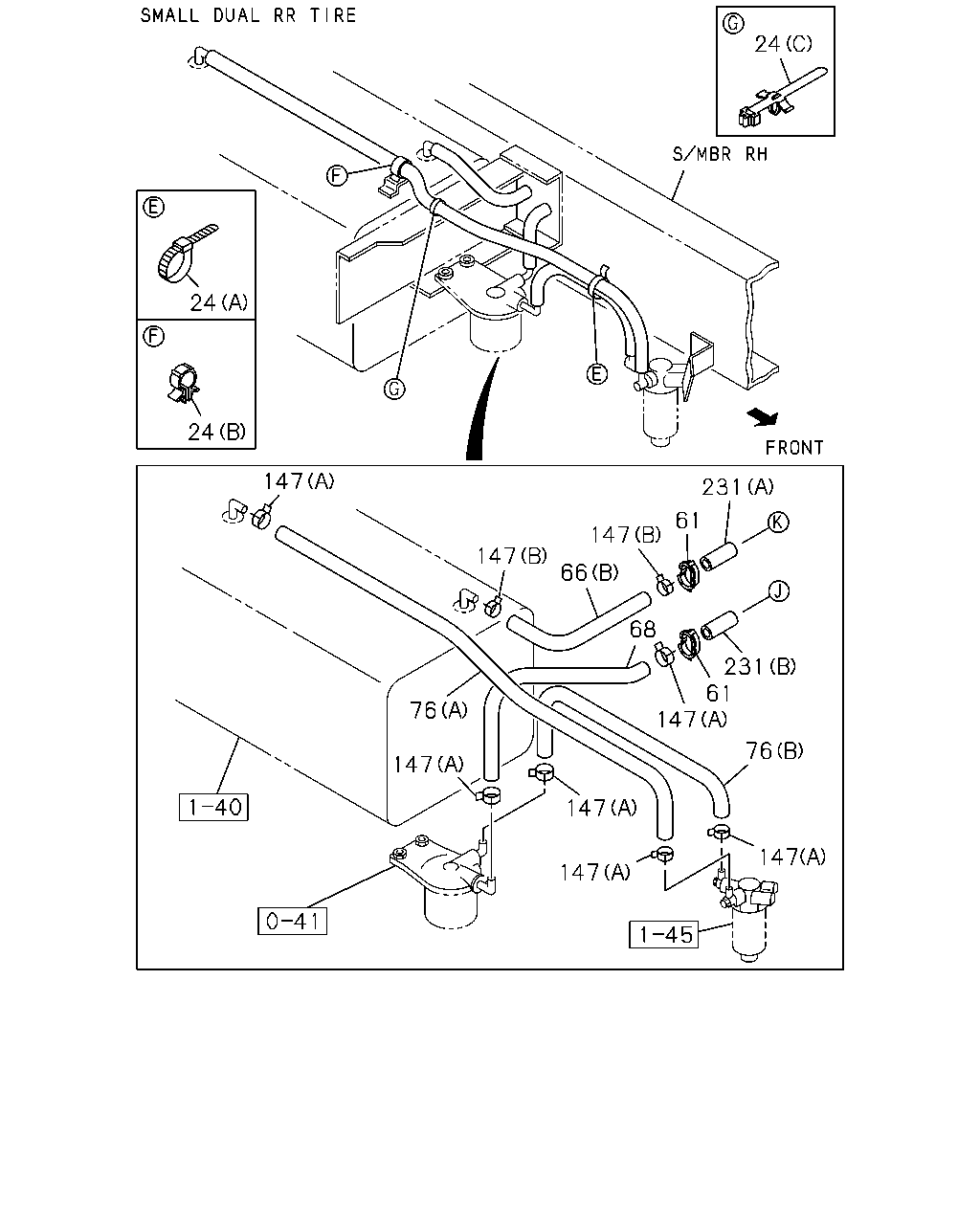

24 24 24 147 231 61 147 147 66 68 231 61 147 76 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9811-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	9811-	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	9811-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106		●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0107-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106		●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0107-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0107-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9811-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-0105	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-	●	●	●	●	●	●

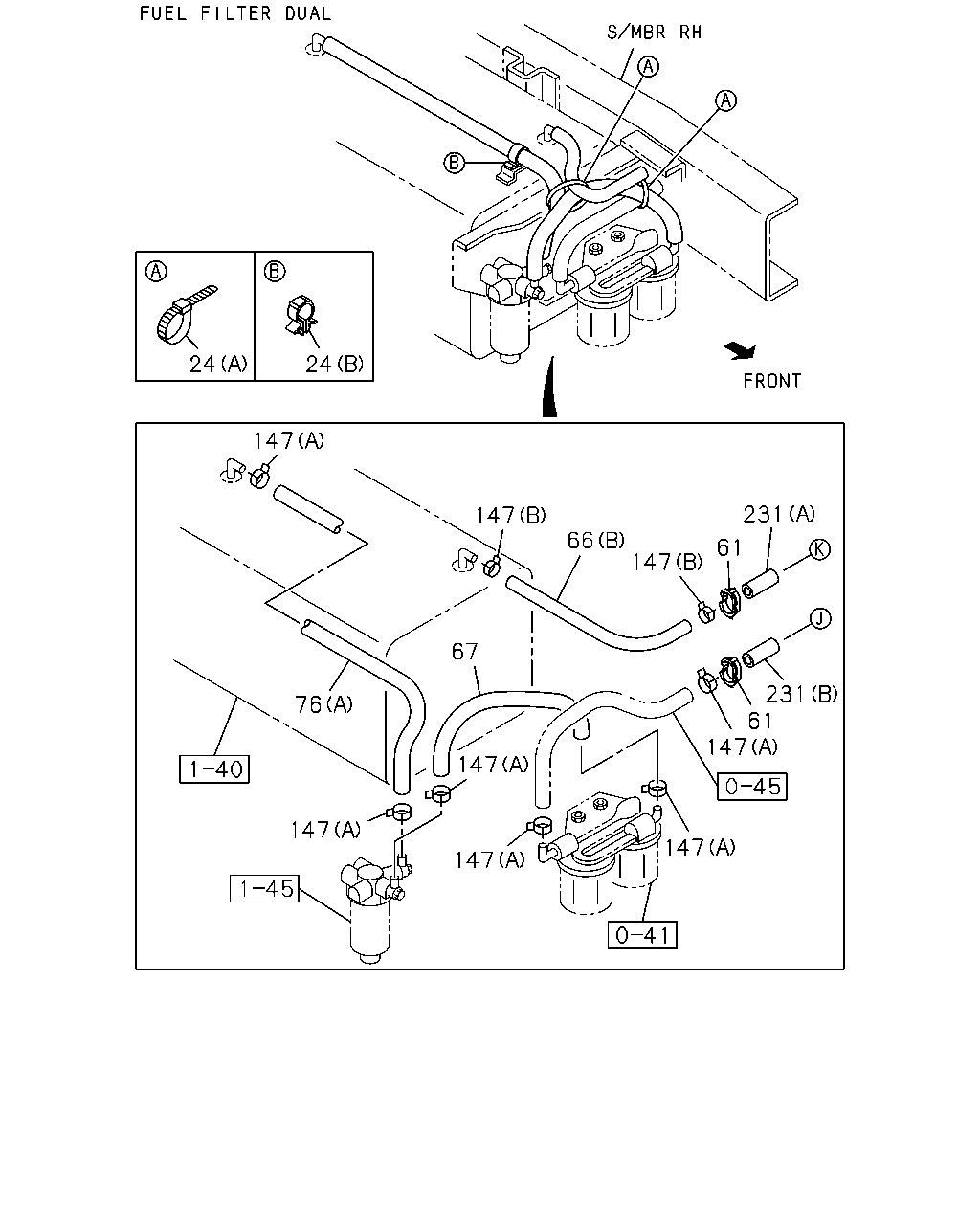

24 24 147 231 147 66 147 61 67 231 61 147 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9811-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> 03.003 L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106		●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0107-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0107-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9811-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-0105	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-	●	●	●	●	●	●

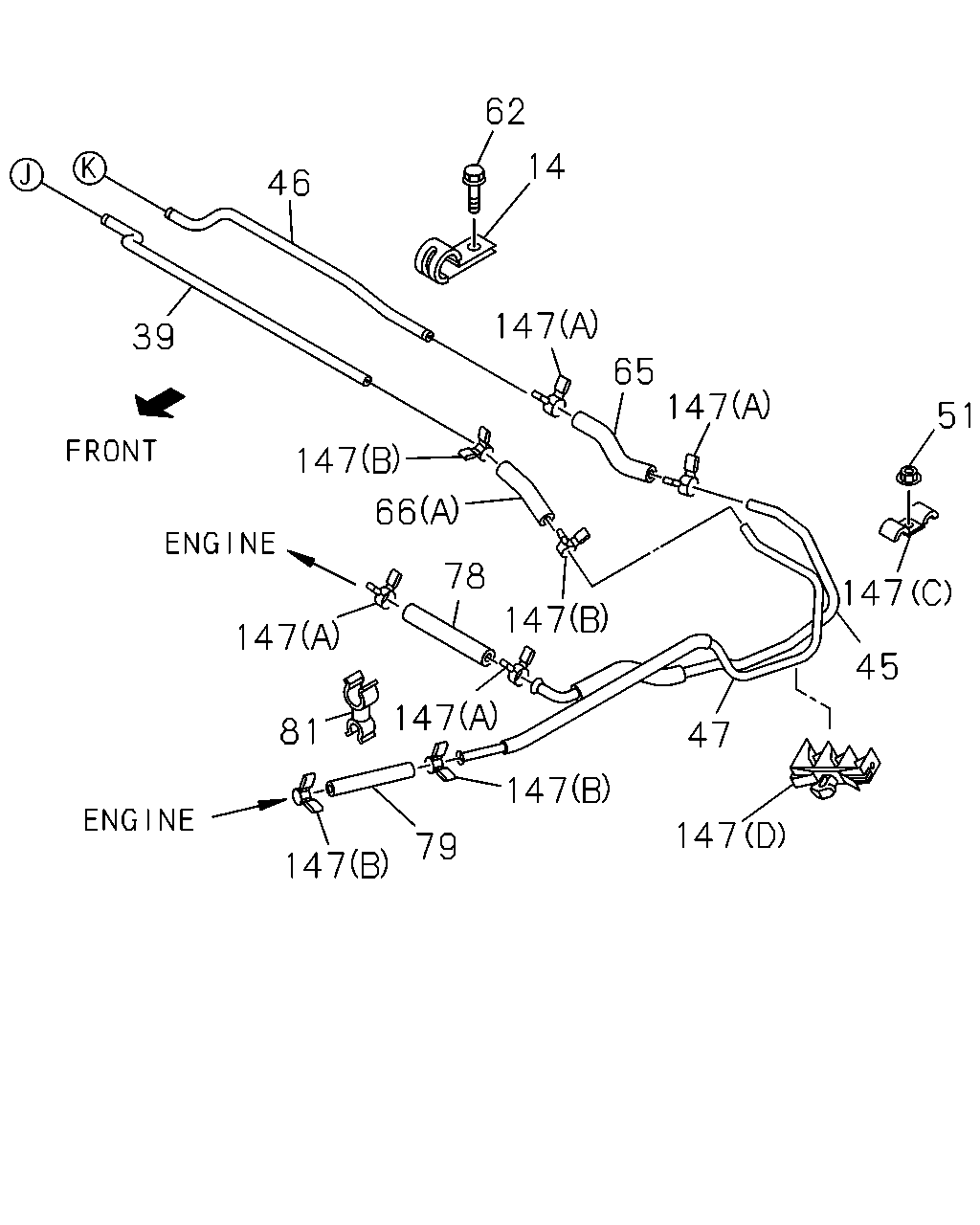

62 14 46 147 39 65 147 51 147 66 78 147 147 147 45 147 81 47 147 147 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.162 CLIP; HOSE CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0005-			●
39	03.163 PIPE; FUEL	8-97090-339-3	01	1	9811-	●		●		●	●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	9811-		●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97090-340-3	01	1	9811-0004	●	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97090-340-3	01	1	0005-	●	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97035-639-3	01	1	9811-9910	●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF>	8-97035-639-3	01	1	9911-0105	●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF>	8-97035-639-3	01	1	9911-0105	●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF>	8-97035-639-3	01	1	0106-					●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF>	8-97245-279-0	01	1	9911-0105		●			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP>	8-97245-279-0	01	1	0106-					●
45	03.163 PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL>	8-97260-217-0	01	1	0005-			●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	9811-	●		●		●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	9811-		●		●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9811-9910	●	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF>	8-97080-712-5	01	1	9911-0004	●	●			●
47	03.163 PIPE; FUEL,RETURN EXC. EURO2 SPECIFICATION<7AF>	8-97080-712-5	01	1	9911-0004	●	●			●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9911-0004			●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF>	8-97080-712-5	01	1	0005-0105	●	●			●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF>	8-97080-712-5	01	1	0005-0105	●	●			●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF)	8-97080-712-5	01	1	0005-0105	●	●			●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0005-0105			●	●		●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0106-	●	●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF>	8-97080-712-5	01	1	0106-					●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF)	8-97080-712-5	01	1	0106-					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF>	8-97245-280-1	01	1	9911-0105		●			●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP>	8-97245-280-1	01	1	0106-					●
51	03.162 NUT; CLIP,PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9811-	●	●	●	●	●	●
62	03.162 BOLT; CLIP FIX CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0005-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0004	●	●	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0005-	●	●	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9910	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9911-0105	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF> 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9911-0105	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0106-					●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 03.003 L=330 SERVICED BY L=3000	0-01259-300-0	01	1	9911-0105		●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 03.003 L=330 SERVICED BY L=3000	0-01259-300-0	01	1	0106-					●
78	03.163 HOSE; FUEL,PUMP TO PIPE CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0005-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9910	●	●	●	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9911-0004	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. EURO2 SPECIFICATION<7AF> L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9911-0004	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9911-0004			●	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0005-0105	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF> L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0005-0105	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0005-0105	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0005-0105			●	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0106-					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0106-					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9911-0105		●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	0106-					●
81	03.162 CLIP; FUEL HOSE TO HOSE 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 02.589 ID=13 & 16.5	8-94169-028-0	01	1	9911-0105		●			●
81	03.162 CLIP; FUEL HOSE TO HOSE 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 02.589 ID=13 & 16.5	8-94169-028-0	01	1	0106-					●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-0105	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●

24 24 147 231 61 147 147 66 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9811-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9811-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9811-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	9811-	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	9811-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106		●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0107-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0106		●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0107-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0107-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9811-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-0105	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
