◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#42244) — 32 parça

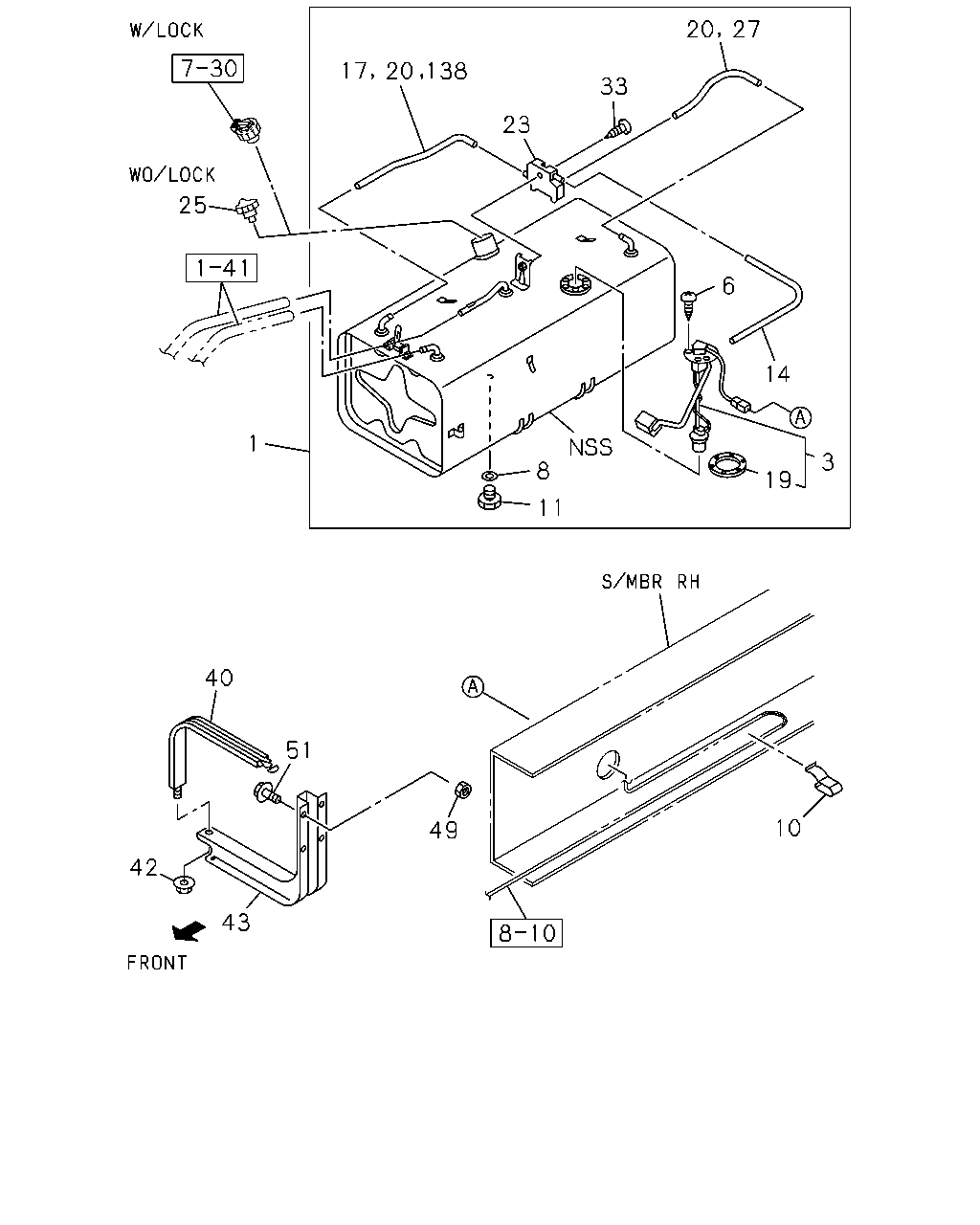

çizim 44044
20 27 17 33 23 25 6 14 1 3 8 19 11 40 51 10 49 42 43 20 138
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.001 TANK; FUEL
753X340X327 75L 		8-97188-864-0 01 1 9811- ● ●
1 03.001 TANK; FUEL
753X340X275 63L 		8-97188-861-0 01 1 9811- ● ●
1 03.001 TANK; FUEL
753X340X275 63L 		8-97188-862-0 01 1 9811- ● ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-190-0 01 1 9811- ● ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-188-0 01 1 9811- ● ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9811- ● ● ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 9811- ● ● ● ● ● ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240 T=5.5 		5-09709-047-0 03 1 9811- ● ● ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 9811- ● ● ● ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 9811- ● ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9811- ● ● ● ●
17 03.163 HOSE; BREATHER
L=440 SERVICED BY L=3000 		8-94128-826-0 01 1 9811- ● ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 9811- ● ● ● ● ● ●
20 03.163 HOSE; BREATHER
L=380 SERVICED BY L=3000 		8-94128-826-0 02 1 9811- ● ●
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 9811- ● ● ● ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 9811- ● ● ● ●
25 03.028 CAP; FILLER,FUEL TANK 8-94165-450-1 01 1 9811- ● ●
27 03.163 HOSE; BREATHER
L=340 SERVICED BY L=3000 		8-94128-826-0 01 1 9811- ● ●
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 9811- ● ● ● ● ● ●
40 03.022 BELT; SUPPORT,FUEL TANK 8-94438-385-4 02 1 9811- ● ●
40 03.022 BELT; SUPPORT,FUEL TANK 8-94438-384-3 02 1 9811- ● ● ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 9811- ● ● ● ● ● ●
43 03.015 BRACKET; FUEL TANK
RR BODY FLAT BED<RS6> 		8-97035-516-0 02 1 9811- ● ●
43 03.015 BRACKET; FUEL TANK
EXC. RR BODY FLAT BED<RS6> 		8-97035-517-0 02 1 9811- ● ●
43 03.015 BRACKET; FUEL TANK 8-97183-878-0 02 1 9811-0105 ● ●
43 03.015 BRACKET; FUEL TANK 8-97183-878-0 02 1 0106-0106 ● ● ● ●
43 03.015 BRACKET; FUEL TANK 8-97183-878-0 02 1 0107- ● ●
43 03.015 BRACKET; FUEL TANK 8-97035-514-1 02 1 9811-0105 ● ●
43 03.015 BRACKET; FUEL TANK 8-97035-514-1 02 1 0107- ● ●
49 03.023 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 08 1 9811- ● ● ● ● ● ●
51 03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 9811- ● ● ● ● ● ●
138 03.163 HOSE; BREATHER,BODY TO JOINT
L=440 SERVICED BY L=3000 		8-94128-826-0 01 1 9811- ● ●
