Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#42242) — 311 parça

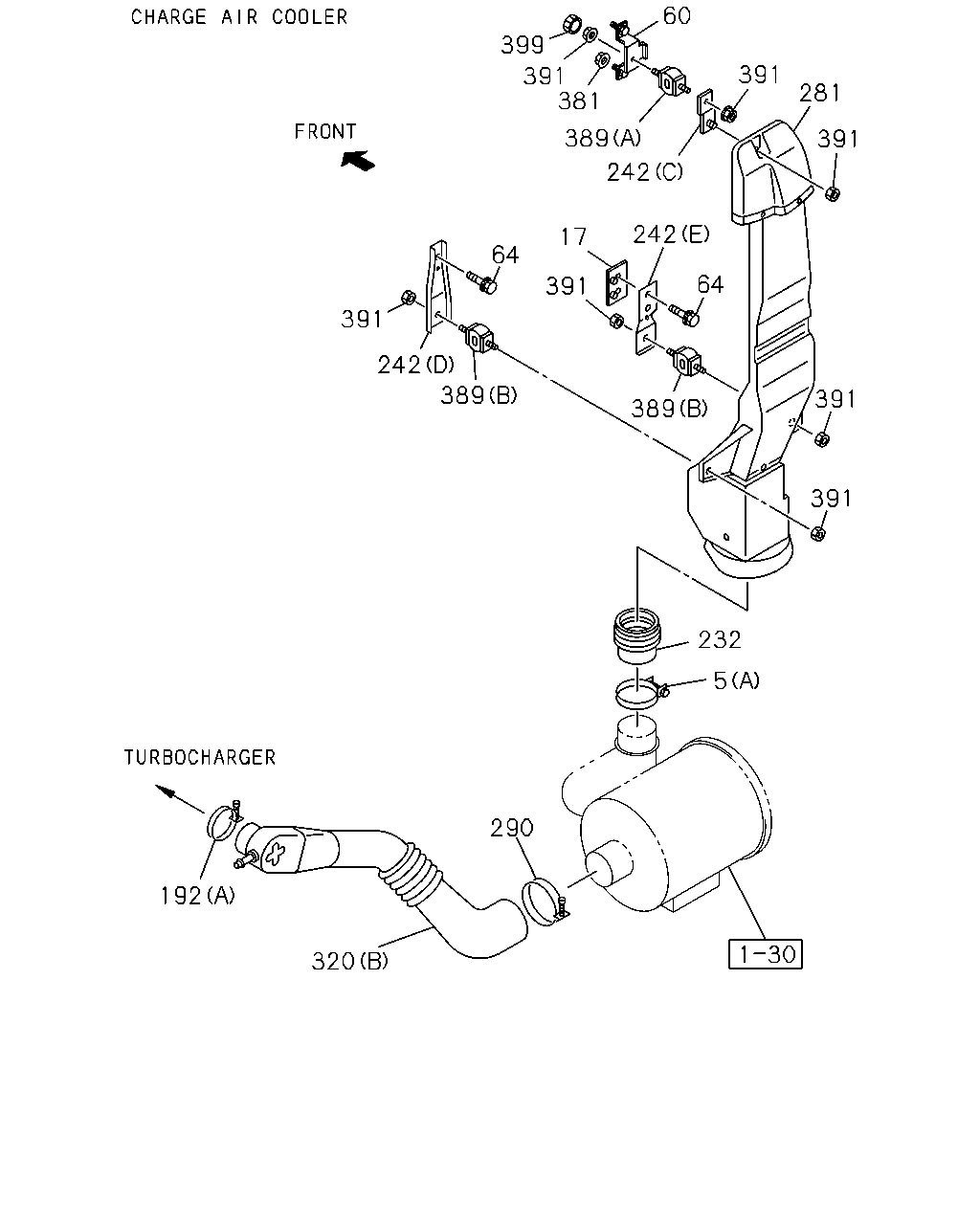

60 399 391 391 381 281 389 391 242 242 17 64 64 391 391 242 389 391 389 391 232 5 290 192 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-		●		●	●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9811-	●		●
60	03.417 BRACKET; AIR DUCT,UPR AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9811-	●		●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-	●		●
192	03.407 CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0005-			●
192	03.407 CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0005-			●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-0004	●		●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0005-	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0005-			●
232	03.417 HOSE; CONN AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-		●		●	●	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97856-935-0	01	1	9811-0004	●		●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97856-935-0	01	1	0005-	●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97856-935-0	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9811-	●		●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97856-967-1	01	1	9811-0004	●		●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97856-967-1	01	1	0005-	●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97856-967-1	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (E)	8-97856-932-0	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D)	8-97856-933-0	01	1	0005-			●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46)	8-97089-948-2	01	1	9811-0004	●		●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46)	8-97089-948-2	01	1	0005-	●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) EXC. CHARGE AIR COOLER<6PL>	8-97089-948-2	01	1	0005-			●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	9811-0004	●		●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0005-	●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46), CHARGE AIR COOLER<6PL>	8-97076-959-2	01	1	0005-			●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-94313-520-2	01	1	0005-			●
290	03.374 CLIP; ACL TO AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●
290	03.374 CLIP; ACL TO AIR DUCT 03.407 ID=92	9-09915-072-1	01	1	9811-		●			●
290	03.374 CLIP; ACL TO AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9811-			●
290	03.374 CLIP; ACL TO AIR DUCT 01.166 ID=76	1-09704-069-0	01	1	9811-				●		●
290	03.374 CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.407 ID=87	8-97087-432-0	01	1	0005-			●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94110-075-2	01	1	9811-0004	●		●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94110-075-2	01	1	0005-	●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A)	8-94110-075-2	01	1	0005-			●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0005-			●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9811-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9811-	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	01	1	9811-9905	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9811-	●		●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9811-	●		●

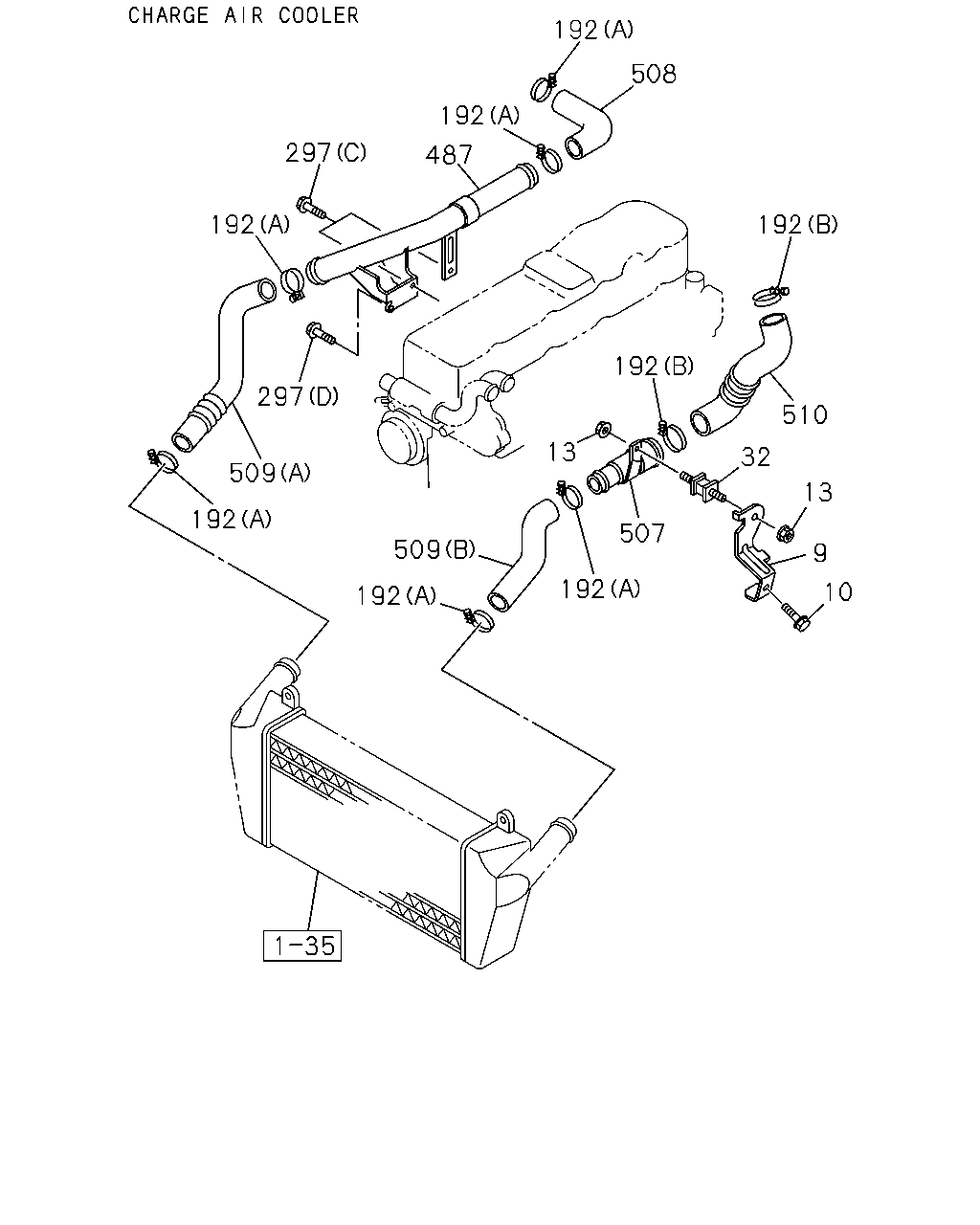

192 508 192 297 487 192 192 192 297 510 13 32 509 13 192 507 509 9 192 10 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	9811-0004	●		●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	0005-	●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-94155-425-1	01	1	0005-			●
9	03.417 BRACKET; INT PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97089-655-0	01	1	9811-	●		●
9	03.417 BRACKET; INT PIPE	8-97089-655-0	01	1	9811-		●		●	●	●
9	03.417 BRACKET; INT PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97226-059-0	01	1	0005-			●
10	03.417 BOLT; BRKT FIX TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0005-			●
13	03.417 NUT; BRKT FIX TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0005-			●
32	03.417 RUBBER; AIR DUCT MTG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	0005-			●
192	03.407 CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0005-			●
192	03.407 CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●	●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●		●
297	03.417 BOLT; DUCT 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-		●		●	●	●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-			●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (D) M10X12 FLANGE	0-28081-012-0	01	1	0005-			●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	0005-			●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	0005-			●
508	03.417 HOSE; AIR,TURBO TO PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	0005-			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	0005-			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	0005-			●
510	03.417 HOSE; AIR,PIPE TO INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	0005-			●

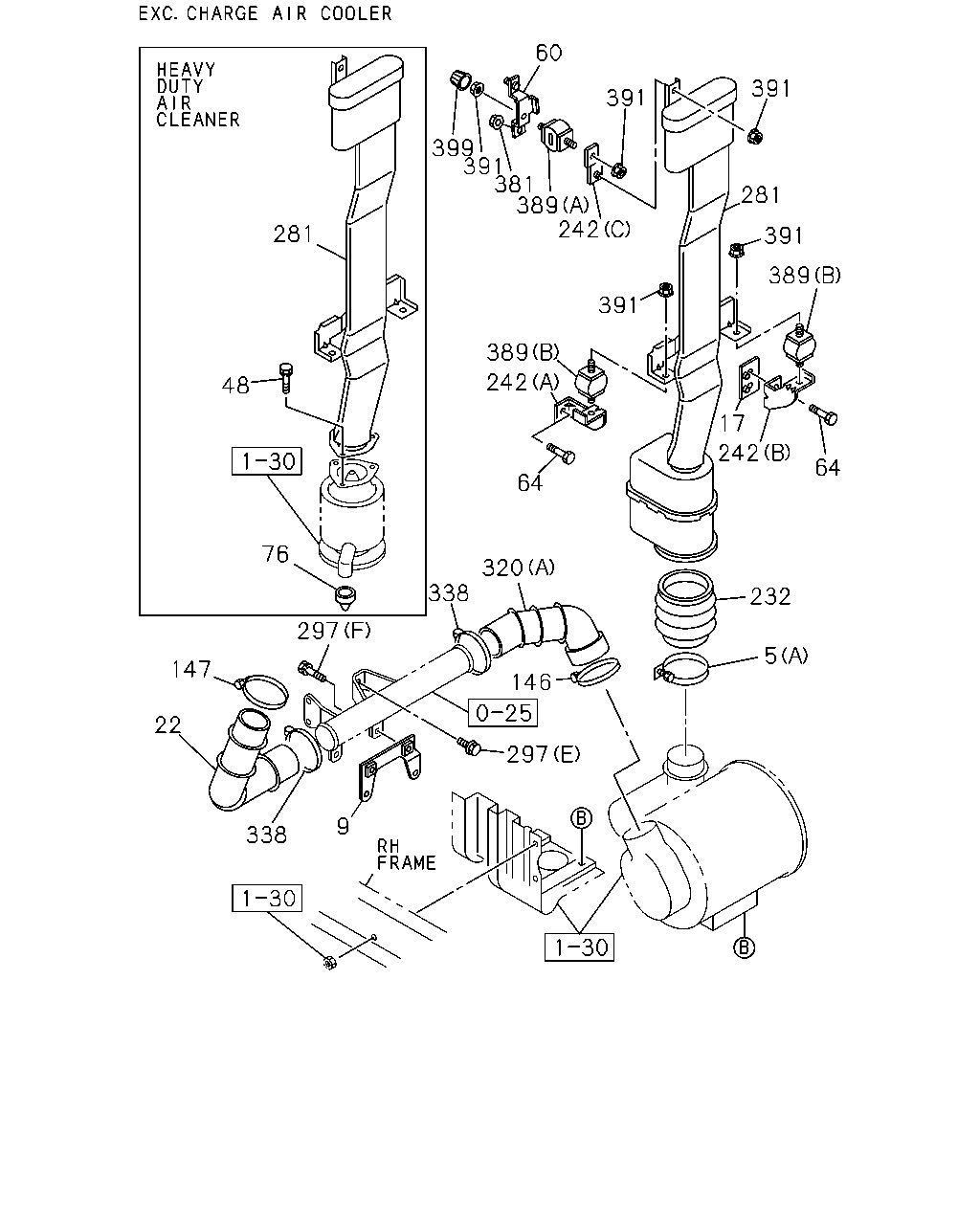

60 391 391 399 391 381 389 242 281 281 391 389 391 389 242 48 17 242 64 64 76 320 338 232 297 5 147 146 22 297 9 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-		●		●	●	●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	9811-0004	●		●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	0005-	●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-94155-425-1	01	1	0005-			●
9	03.417 BRACKET; INT PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97089-655-0	01	1	9811-	●		●
9	03.417 BRACKET; INT PIPE	8-97089-655-0	01	1	9811-		●		●	●	●
9	03.417 BRACKET; INT PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97226-059-0	01	1	0005-			●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9811-	●		●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-97107-173-0	01	1	9811-0004	●		●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-97107-173-0	01	1	0005-	●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-97107-173-0	01	1	0005-			●
48	03.417 BOLT; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9811-	●		●
60	03.417 BRACKET; AIR DUCT,UPR AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	9811-	●		●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-	●		●
76	03.403 VALVE; PRE ACL HEAVY DUTY AIR CLEANER(K46) 03.415	8-94447-157-0	01	1	9811-	●		●
146	03.417 CLIP; HOSE,ACL AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=92	9-09915-072-1	01	1	9811-0004	●		●
146	03.417 CLIP; HOSE,ACL AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=92	9-09915-072-1	01	1	0005-	●
146	03.417 CLIP; HOSE,ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 03.407 ID=92	9-09915-072-1	01	1	0005-			●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0004	●	●	●	●	●	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	0005-	●	●		●	●	●
147	03.417 CLIP; HOSE TO ENG AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0005-			●
147	03.417 CLIP; HOSE TO ENG AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 03.407 ID=79	9-09915-734-1	01	1	0005-			●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-0004	●		●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0005-	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0005-			●
232	03.417 HOSE; CONN AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-		●		●	●	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97856-935-0	01	1	9811-0004	●		●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97856-935-0	01	1	0005-	●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97856-935-0	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9811-	●		●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97856-967-1	01	1	9811-0004	●		●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97856-967-1	01	1	0005-	●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97856-967-1	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (E)	8-97856-932-0	01	1	0005-			●
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D)	8-97856-933-0	01	1	0005-			●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46)	8-97089-948-2	01	1	9811-0004	●		●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46)	8-97089-948-2	01	1	0005-	●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) EXC. CHARGE AIR COOLER<6PL>	8-97089-948-2	01	1	0005-			●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	9811-0004	●		●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0005-	●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46), CHARGE AIR COOLER<6PL>	8-97076-959-2	01	1	0005-			●
281	03.417 DUCT; AIR,VERTICAL INT AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-94313-520-2	01	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●	●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●		●
297	03.417 BOLT; DUCT 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-		●		●	●	●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-			●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (D) M10X12 FLANGE	0-28081-012-0	01	1	0005-			●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94110-075-2	01	1	9811-0004	●		●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94110-075-2	01	1	0005-	●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A)	8-94110-075-2	01	1	0005-			●
320	03.417 HOSE; CONN,ACL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0005-			●
338	03.417 CLIP; PIPE AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=79	9-09915-734-1	02	1	9811-0004	●		●
338	03.417 CLIP; PIPE AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=79	9-09915-734-1	02	1	0005-0105	●
338	03.417 CLIP; PIPE AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 03.407 ID=79	9-09915-734-1	02	1	0005-0105			●
338	03.417 CLIP; PIPE AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=79	9-09915-734-1	02	1	0106-	●		●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9811-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9811-	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	01	1	9811-9905	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9811-	●		●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9811-	●		●

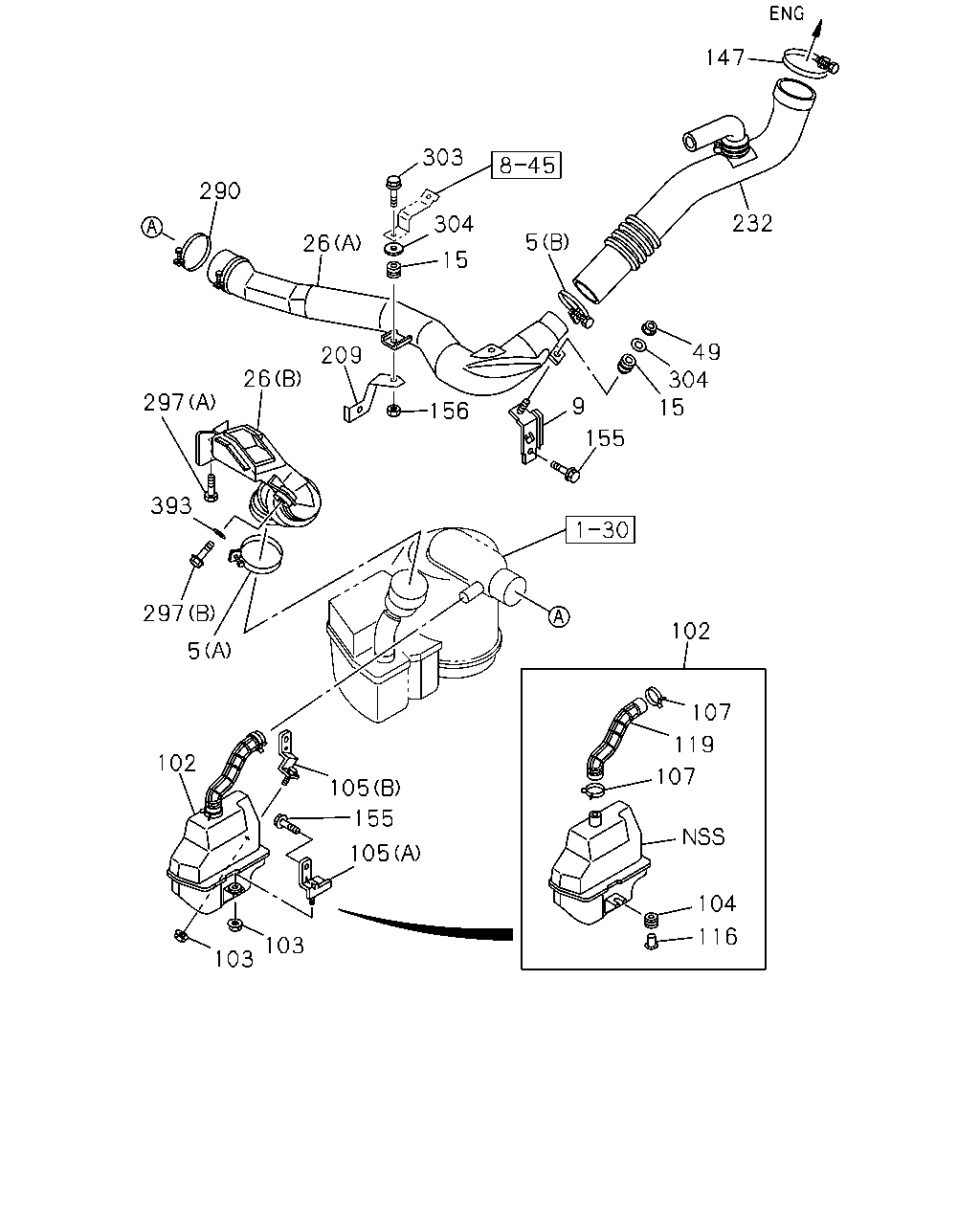

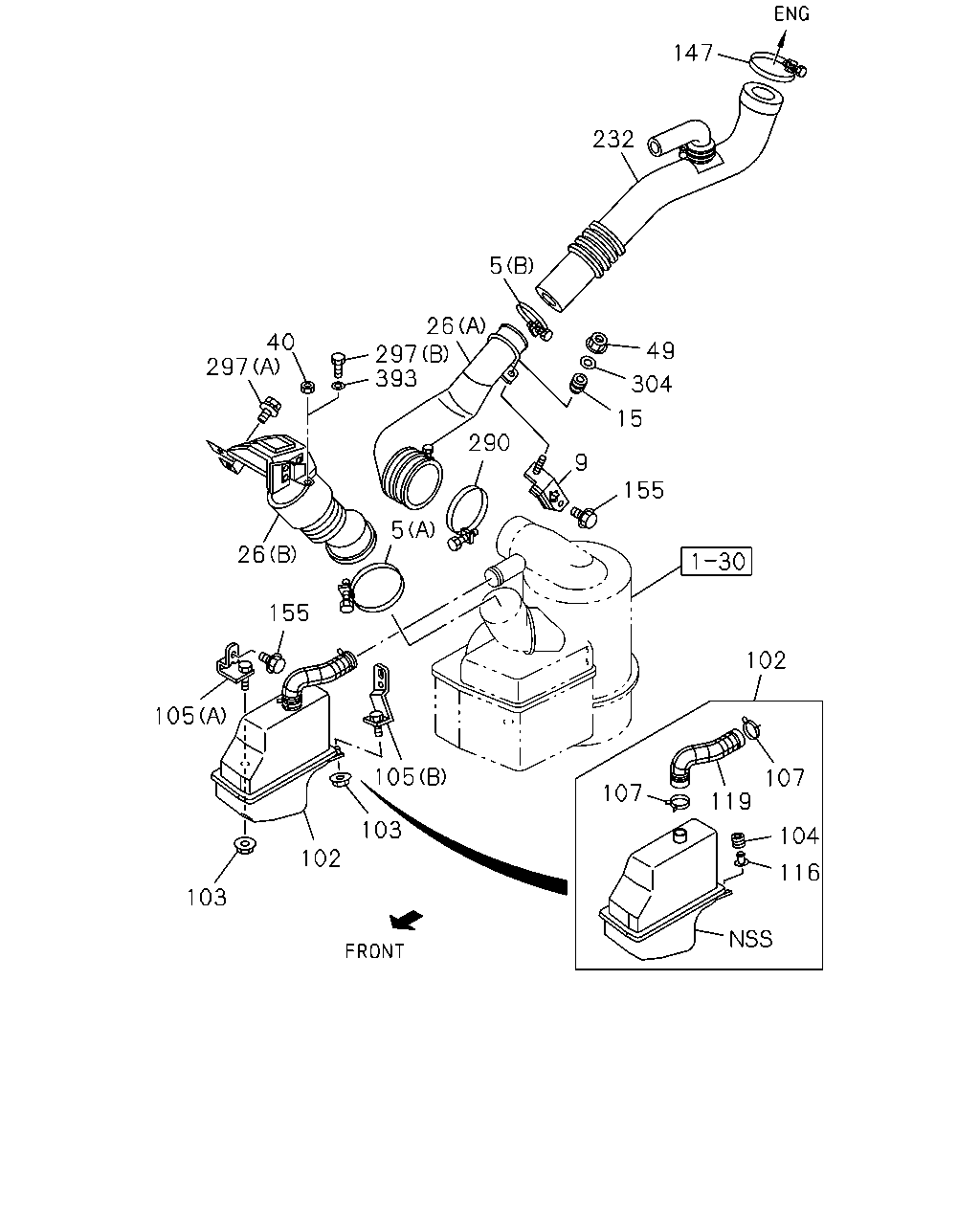

147 232 5 26 297 393 40 297 49 304 15 290 9 155 5 26 155 102 105 105 107 107 119 103 104 102 116 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-		●		●	●	●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	9811-0004	●		●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	0005-	●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-94155-425-1	01	1	0005-			●
9	03.417 BRACKET; INT PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97089-655-0	01	1	9811-	●		●
9	03.417 BRACKET; INT PIPE	8-97089-655-0	01	1	9811-		●		●	●	●
9	03.417 BRACKET; INT PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97226-059-0	01	1	0005-			●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-	●		●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-		●		●	●	●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-			●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-				●		●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97091-273-1	01	1	9811-	●
26	03.417 DUCT; AIR INT (A)	8-97091-273-1	01	1	9811-		●			●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97089-951-2	01	1	9811-	●	●			●
26	03.417 DUCT; AIR INT HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-949-1	01	1	9811-0105	●	●			●
26	03.417 DUCT; AIR INT HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97089-949-1	01	1	0106-					●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97069-873-3	01	1	9811-			●
26	03.417 DUCT; AIR INT (A)	8-97069-873-3	01	1	9811-				●		●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-952-1	01	1	9811-			●
26	03.417 DUCT; AIR INT (B)	8-97089-952-1	01	1	9811-				●		●
40	03.417 NUT; AIR INT DUCT HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> 09.005 M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9811-0105	●	●			●
40	03.417 NUT; AIR INT DUCT HALOGEN HEAD LAMP RECTANGULAR<TR4> 09.005 M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-					●
49	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●		●
49	03.417 NUT; AIR DUCT 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-		●		●	●	●
102	03.402 RESONATOR; AIR INT AIR INTAKE SYSTEM FRONT<6PC>	8-97103-541-1	01	1	9811-	●
102	03.402 RESONATOR; AIR INT	8-97103-541-1	01	1	9811-		●			●
102	03.402 RESONATOR; AIR INT AIR INTAKE SYSTEM FRONT<6PC>	8-97091-928-1	01	1	9811-			●
102	03.402 RESONATOR; AIR INT	8-97091-928-1	01	1	9811-				●		●
103	03.402 NUT; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
103	03.402 NUT; RESONATOR 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●		●	●	●
104	03.417 RUBBER; MOUNTING,RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	9811-	●		●
104	03.417 RUBBER; MOUNTING,RESONATOR	8-97095-600-0	02	1	9811-		●		●	●	●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-039-1	01	1	9811-	●
105	03.403 BRACKET; RESONATOR (A)	8-97092-039-1	01	1	9811-		●			●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97174-754-0	01	1	9811-	●
105	03.403 BRACKET; RESONATOR (B)	8-97174-754-0	01	1	9811-		●			●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97091-931-1	01	1	9811-			●
105	03.403 BRACKET; RESONATOR (B)	8-97091-931-1	01	1	9811-				●		●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-824-1	01	1	9811-			●
105	03.403 BRACKET; RESONATOR (A)	8-97092-824-1	01	1	9811-				●		●
107	03.417 CLIP; PROTECTOR AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	9811-	●		●
107	03.417 CLIP; PROTECTOR	8-97095-785-0	02	1	9811-		●		●	●	●
116	01.745 RETAINER; RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	9811-	●		●
116	01.745 RETAINER; RESONATOR	8-97105-842-0	02	1	9811-		●		●	●	●
119	03.403 HOSE; RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97109-542-0	01	1	9811-	●
119	03.403 HOSE; RESONATOR	8-97109-542-0	01	1	9811-		●			●
119	03.403 HOSE; RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97105-844-0	01	1	9811-			●
119	03.403 HOSE; RESONATOR	8-97105-844-0	01	1	9811-				●		●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0004	●	●	●	●	●	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	0005-	●	●		●	●	●
147	03.417 CLIP; HOSE TO ENG AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0005-			●
147	03.417 CLIP; HOSE TO ENG AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 03.407 ID=79	9-09915-734-1	01	1	0005-			●
155	03.417 BOLT; BRKT AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-	●		●
155	03.417 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-		●		●	●	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-0004	●		●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0005-	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0005-			●
232	03.417 HOSE; CONN AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-		●		●	●	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0005-			●
290	03.374 CLIP; ACL TO AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●
290	03.374 CLIP; ACL TO AIR DUCT 03.407 ID=92	9-09915-072-1	01	1	9811-		●			●
290	03.374 CLIP; ACL TO AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9811-			●
290	03.374 CLIP; ACL TO AIR DUCT 01.166 ID=76	1-09704-069-0	01	1	9811-				●		●
290	03.374 CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.407 ID=87	8-97087-432-0	01	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●	●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●		●
297	03.417 BOLT; DUCT 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-		●		●	●	●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-			●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (D) M10X12 FLANGE	0-28081-012-0	01	1	0005-			●
304	03.417 WASHER; PL,CONN PIPE BRKT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-	●		●
304	03.417 WASHER; PL,CONN PIPE BRKT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-		●		●	●	●
304	03.417 WASHER; PL,CONN PIPE BRKT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-			●
304	03.417 WASHER; PL,CONN PIPE BRKT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-				●		●
393	03.417 WASHER; LK,AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	9811-	●	●	●	●	●	●

147 303 290 304 232 5 26 15 49 304 15 209 26 297 9 156 155 393 297 102 5 107 119 102 107 105 155 105 104 116 103 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-		●		●	●	●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	9811-0004	●		●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3>	8-94155-425-1	01	1	0005-	●
9	03.417 BRACKET; INT PIPE AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-94155-425-1	01	1	0005-			●
9	03.417 BRACKET; INT PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97089-655-0	01	1	9811-	●		●
9	03.417 BRACKET; INT PIPE	8-97089-655-0	01	1	9811-		●		●	●	●
9	03.417 BRACKET; INT PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97226-059-0	01	1	0005-			●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-	●		●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-		●		●	●	●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-			●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-				●		●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97091-273-1	01	1	9811-	●
26	03.417 DUCT; AIR INT (A)	8-97091-273-1	01	1	9811-		●			●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97089-951-2	01	1	9811-	●	●			●
26	03.417 DUCT; AIR INT HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-949-1	01	1	9811-0105	●	●			●
26	03.417 DUCT; AIR INT HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97089-949-1	01	1	0106-					●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97069-873-3	01	1	9811-			●
26	03.417 DUCT; AIR INT (A)	8-97069-873-3	01	1	9811-				●		●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-952-1	01	1	9811-			●
26	03.417 DUCT; AIR INT (B)	8-97089-952-1	01	1	9811-				●		●
49	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●		●
49	03.417 NUT; AIR DUCT 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-		●		●	●	●
102	03.402 RESONATOR; AIR INT AIR INTAKE SYSTEM FRONT<6PC>	8-97103-541-1	01	1	9811-	●
102	03.402 RESONATOR; AIR INT	8-97103-541-1	01	1	9811-		●			●
102	03.402 RESONATOR; AIR INT AIR INTAKE SYSTEM FRONT<6PC>	8-97091-928-1	01	1	9811-			●
102	03.402 RESONATOR; AIR INT	8-97091-928-1	01	1	9811-				●		●
103	03.402 NUT; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
103	03.402 NUT; RESONATOR 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●		●	●	●
104	03.417 RUBBER; MOUNTING,RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	9811-	●		●
104	03.417 RUBBER; MOUNTING,RESONATOR	8-97095-600-0	02	1	9811-		●		●	●	●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-039-1	01	1	9811-	●
105	03.403 BRACKET; RESONATOR (A)	8-97092-039-1	01	1	9811-		●			●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97174-754-0	01	1	9811-	●
105	03.403 BRACKET; RESONATOR (B)	8-97174-754-0	01	1	9811-		●			●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97091-931-1	01	1	9811-			●
105	03.403 BRACKET; RESONATOR (B)	8-97091-931-1	01	1	9811-				●		●
105	03.403 BRACKET; RESONATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-824-1	01	1	9811-			●
105	03.403 BRACKET; RESONATOR (A)	8-97092-824-1	01	1	9811-				●		●
107	03.417 CLIP; PROTECTOR AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	9811-	●		●
107	03.417 CLIP; PROTECTOR	8-97095-785-0	02	1	9811-		●		●	●	●
116	01.745 RETAINER; RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	9811-	●		●
116	01.745 RETAINER; RESONATOR	8-97105-842-0	02	1	9811-		●		●	●	●
119	03.403 HOSE; RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97109-542-0	01	1	9811-	●
119	03.403 HOSE; RESONATOR	8-97109-542-0	01	1	9811-		●			●
119	03.403 HOSE; RESONATOR AIR INTAKE SYSTEM FRONT<6PC>	8-97105-844-0	01	1	9811-			●
119	03.403 HOSE; RESONATOR	8-97105-844-0	01	1	9811-				●		●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0004	●	●	●	●	●	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	0005-	●	●		●	●	●
147	03.417 CLIP; HOSE TO ENG AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0005-			●
147	03.417 CLIP; HOSE TO ENG AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 03.407 ID=79	9-09915-734-1	01	1	0005-			●
155	03.417 BOLT; BRKT AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-	●		●
155	03.417 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-		●		●	●	●
156	03.417 NUT; BRKT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-			●	●		●
209	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.417	8-97072-530-0	01	1	9811-0005			●	●		●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-0004	●		●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0005-	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0005-			●
232	03.417 HOSE; CONN AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-		●		●	●	●
232	03.417 HOSE; CONN AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0005-			●
290	03.374 CLIP; ACL TO AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●
290	03.374 CLIP; ACL TO AIR DUCT 03.407 ID=92	9-09915-072-1	01	1	9811-		●			●
290	03.374 CLIP; ACL TO AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9811-			●
290	03.374 CLIP; ACL TO AIR DUCT 01.166 ID=76	1-09704-069-0	01	1	9811-				●		●
290	03.374 CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.407 ID=87	8-97087-432-0	01	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●	●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 00.206 (E) M8X14 W/LK WASHER	0-50040-814-0	01	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	9811-0004	●		●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-	●
297	03.417 BOLT; DUCT AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 11.377 (F) M10X20 W/LK WASHER	0-50041-020-0	02	1	0005-			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●		●
297	03.417 BOLT; DUCT 16.550 (A) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-		●		●	●	●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-			●
297	03.417 BOLT; DUCT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (D) M10X12 FLANGE	0-28081-012-0	01	1	0005-			●
303	03.417 BOLT; CONN PIPE BRKT AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9811-			●	●		●
304	03.417 WASHER; PL,CONN PIPE BRKT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-	●		●
304	03.417 WASHER; PL,CONN PIPE BRKT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-		●		●	●	●
304	03.417 WASHER; PL,CONN PIPE BRKT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-			●
304	03.417 WASHER; PL,CONN PIPE BRKT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-				●		●
393	03.417 WASHER; LK,AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	9811-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
