1-30 — AIR CLEANER (#42241) — 158 parça

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	164	03.402 CLEANER ASM; AIR,SUB HEAVY DUTY AIR CLEANER(K46)	8-94144-273-2	01	1	9811-	●	●

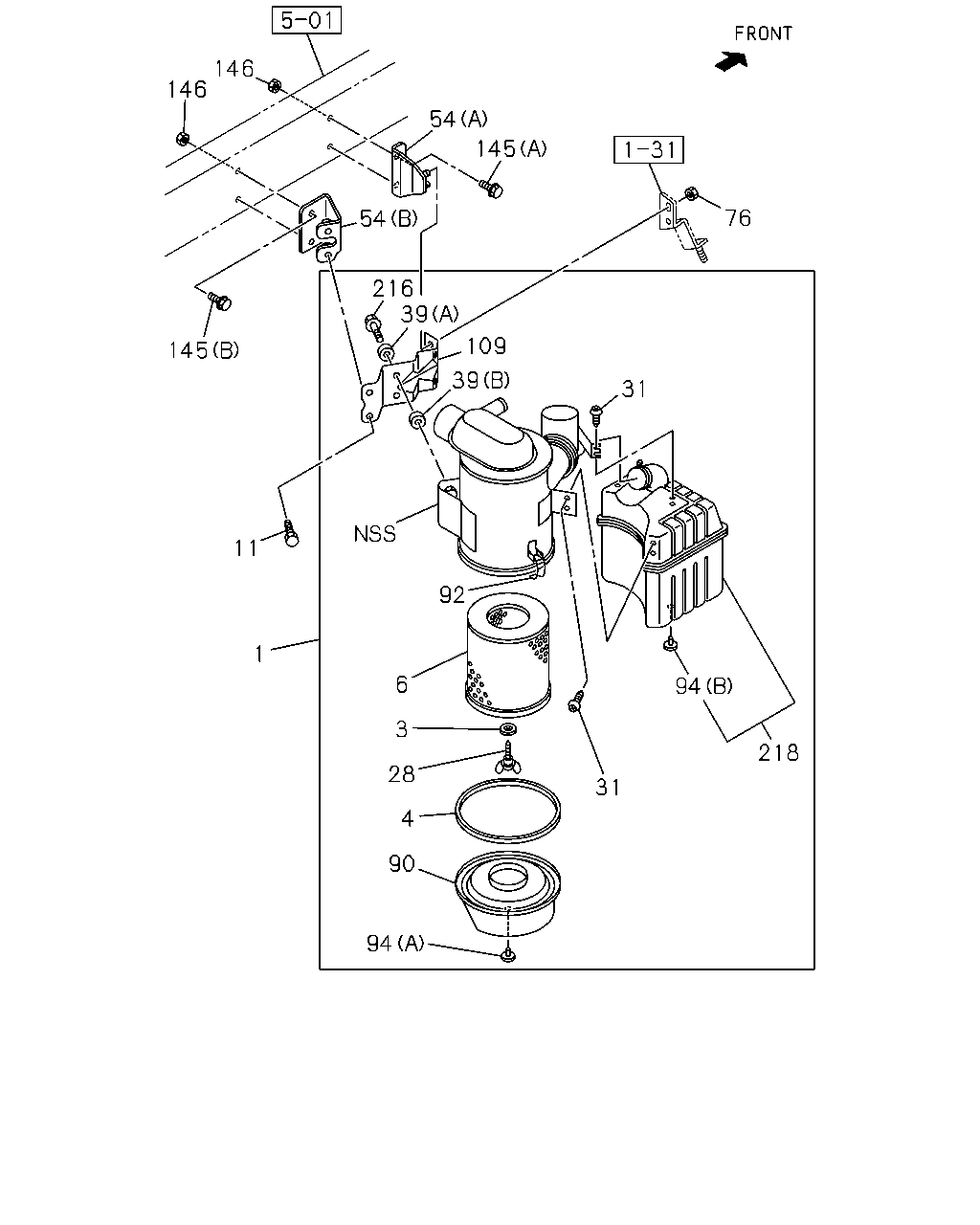

146 54 146 145 145 1 54 216 109 39 39 216 39 76 11 39 31 31 92 6 218 94 3 28 4 90 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9811-	●
1	03.402 CLEANER ASM; AIR	8-97090-029-2	01	1	9811-			●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	9811-0004	●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	0005-	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-94140-289-3	01	1	0005-		●
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9811-		●
1	03.402 CLEANER ASM; AIR	8-97090-028-1	01	1	9811-					●	●
1	03.402 CLEANER ASM; AIR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97062-053-1	01	1	0005-		●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9811-	●	●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9811-	●	●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9811-			●	●	●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	9811-	●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9811-	●	●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9811-			●	●	●	●
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9811-	●	●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9811-	●	●
6	03.410 FILTER; ACL	8-97173-210-0	01	1	9811-			●	●	●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9811-	●	●
11	03.403 BOLT; ACL 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9811-			●	●	●	●
28	03.403 BOLT; WING,ACL AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9811-	●	●
28	03.403 BOLT; WING,ACL	9-14217-090-0	01	1	9811-			●	●	●	●
31	03.406 SCREW; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9811-	●	●
31	03.406 SCREW; ACL 03.402	8-97100-001-0	04	1	9811-			●	●	●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9811-	●	●
39	03.403 RUBBER; MTG,BOLT (A)	8-97100-002-0	04	1	9811-			●	●	●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9811-	●	●
39	03.403 RUBBER; MTG,BOLT (B)	8-97100-007-0	02	1	9811-			●	●	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	9811-	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9811-			●	●
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94140-144-3	01	1	9811-	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9811-	●	●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9811-			●	●	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9811-		●			●	●
76	03.405 NUT; BRKT TO ACL AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-	●	●
76	03.405 NUT; BRKT TO ACL 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-			●	●	●	●
90	03.406 CUP; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9811-	●	●
90	03.406 CUP; ACL	8-97215-621-0	01	1	9811-			●	●	●	●
92	03.405 CLIP; WIRE,ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9811-	●	●
92	03.405 CLIP; WIRE,ACL	8-94118-230-0	03	1	9811-			●	●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9811-			●	●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9811-			●	●	●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	9811-	●
109	03.405 STAY; ACL	8-97096-175-1	01	1	9811-			●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-622-0	01	1	9811-		●
109	03.405 STAY; ACL	8-97215-622-0	01	1	9811-					●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-		●			●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> (C) M10X25 FLANGE	0-28681-025-0	04	1	9811-	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9811-	●	●
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	9811-			●	●	●	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-	●	●	●	●	●	●
216	03.402 BOLT; ACL TO SILENCER AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9811-	●	●
216	03.402 BOLT; ACL TO SILENCER	8-97126-074-0	04	1	9811-			●	●	●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	9811-	●
218	03.417 RESONATOR; ACL	8-97093-071-1	01	1	9811-			●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97106-120-1	01	1	9811-		●
218	03.417 RESONATOR; ACL	8-97106-120-1	01	1	9811-					●	●

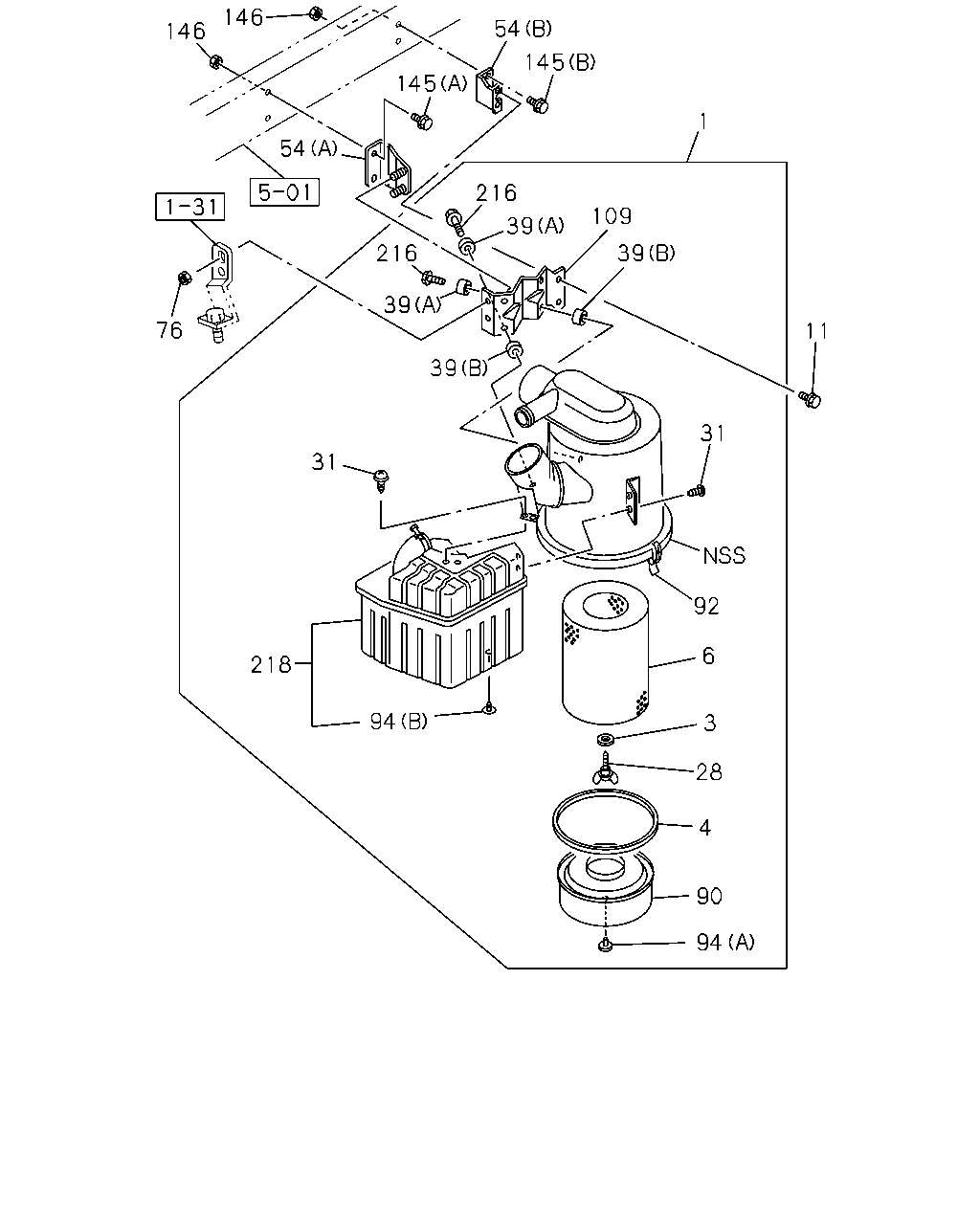

146 146 54 145 76 54 216 39 109 145 39 31 11 92 1 6 94 3 218 28 31 4 90 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9811-	●
1	03.402 CLEANER ASM; AIR	8-97090-029-2	01	1	9811-			●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	9811-0004	●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	0005-	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-94140-289-3	01	1	0005-		●
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9811-		●
1	03.402 CLEANER ASM; AIR	8-97090-028-1	01	1	9811-					●	●
1	03.402 CLEANER ASM; AIR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97062-053-1	01	1	0005-		●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9811-	●	●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9811-	●	●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9811-			●	●	●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	9811-	●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9811-	●	●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9811-			●	●	●	●
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9811-	●	●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9811-	●	●
6	03.410 FILTER; ACL	8-97173-210-0	01	1	9811-			●	●	●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9811-	●	●
11	03.403 BOLT; ACL 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9811-			●	●	●	●
28	03.403 BOLT; WING,ACL AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9811-	●	●
28	03.403 BOLT; WING,ACL	9-14217-090-0	01	1	9811-			●	●	●	●
31	03.406 SCREW; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9811-	●	●
31	03.406 SCREW; ACL 03.402	8-97100-001-0	04	1	9811-			●	●	●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9811-	●	●
39	03.403 RUBBER; MTG,BOLT (A)	8-97100-002-0	04	1	9811-			●	●	●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9811-	●	●
39	03.403 RUBBER; MTG,BOLT (B)	8-97100-007-0	02	1	9811-			●	●	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	9811-	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9811-			●	●
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94140-144-3	01	1	9811-	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9811-	●	●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9811-			●	●	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9811-		●			●	●
76	03.405 NUT; BRKT TO ACL AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-	●	●
76	03.405 NUT; BRKT TO ACL 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-			●	●	●	●
90	03.406 CUP; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9811-	●	●
90	03.406 CUP; ACL	8-97215-621-0	01	1	9811-			●	●	●	●
92	03.405 CLIP; WIRE,ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9811-	●	●
92	03.405 CLIP; WIRE,ACL	8-94118-230-0	03	1	9811-			●	●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9811-			●	●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9811-			●	●	●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	9811-	●
109	03.405 STAY; ACL	8-97096-175-1	01	1	9811-			●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-622-0	01	1	9811-		●
109	03.405 STAY; ACL	8-97215-622-0	01	1	9811-					●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-		●			●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> (C) M10X25 FLANGE	0-28681-025-0	04	1	9811-	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9811-	●	●
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	9811-			●	●	●	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-	●	●	●	●	●	●
216	03.402 BOLT; ACL TO SILENCER AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9811-	●	●
216	03.402 BOLT; ACL TO SILENCER	8-97126-074-0	04	1	9811-			●	●	●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	9811-	●
218	03.417 RESONATOR; ACL	8-97093-071-1	01	1	9811-			●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97106-120-1	01	1	9811-		●
218	03.417 RESONATOR; ACL	8-97106-120-1	01	1	9811-					●	●

1 2 3 2 3 6 4 8 94 44 54 145 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9811-	●
1	03.402 CLEANER ASM; AIR	8-97090-029-2	01	1	9811-			●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	9811-0004	●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	0005-	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL>	8-94140-289-3	01	1	0005-		●
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9811-		●
1	03.402 CLEANER ASM; AIR	8-97090-028-1	01	1	9811-					●	●
1	03.402 CLEANER ASM; AIR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97062-053-1	01	1	0005-		●
2	03.403 NUT; WING,ELEMENT AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9811-	●	●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9811-	●	●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9811-	●	●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9811-			●	●	●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	9811-	●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9811-	●	●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9811-			●	●	●	●
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9811-	●	●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9811-	●	●
6	03.410 FILTER; ACL	8-97173-210-0	01	1	9811-			●	●	●	●
8	03.410 COVER ASM; ACL AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	9811-	●	●
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9811-	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	9811-	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9811-			●	●
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94140-144-3	01	1	9811-	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9811-	●	●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9811-			●	●	●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9811-		●			●	●
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9811-			●	●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9811-	●	●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9811-			●	●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-		●			●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> (C) M10X25 FLANGE	0-28681-025-0	04	1	9811-	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9811-	●	●
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	9811-			●	●	●	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-	●	●	●	●	●	●
