Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#42240) — 178 parça

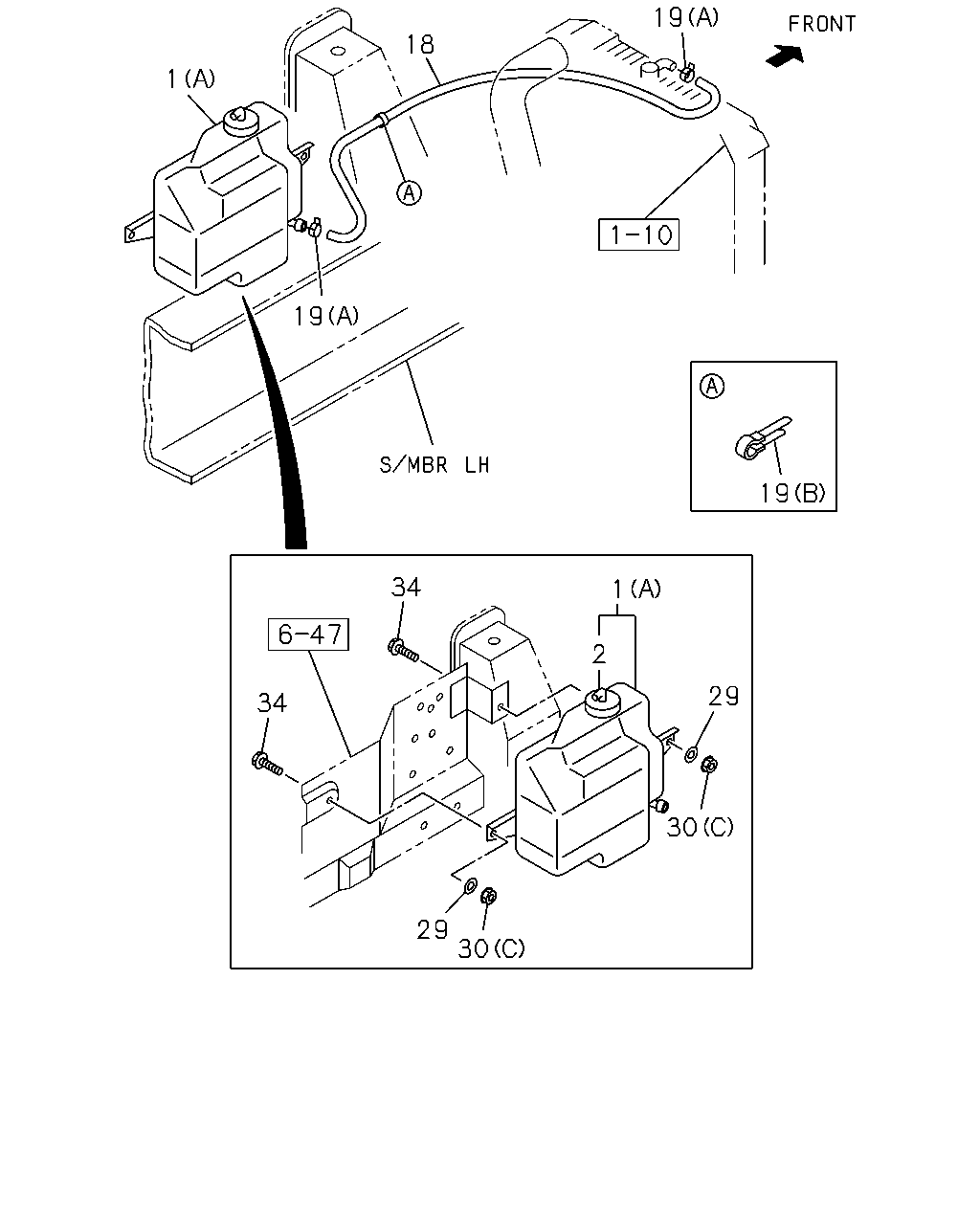

19 18 1 19 19 34 1 2 29 34 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	9811-0004	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0005-	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0005-		●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97131-202-0	01	1	9811-9811	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97131-202-0	01	1	9811-9811			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	9812-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	9812-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0005-		●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9811-0004	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9811-0004					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0005-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0005-					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0005-		●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9811-9811	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9811-9811			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9812-	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	9812-			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0004	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0005-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0005-		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9811-			●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9811-0004	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0005-	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0005-		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0004	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0005-	●		●	●
29	01.203 WASHER; PL,RESERVE TANK EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0005-		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9811-0004	●	●	●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0005-	●		●	●
30	01.203 NUT EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0005-		●
30	01.203 NUT CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0005-		●
30	01.203 NUT CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0005-		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0004	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0005-	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0005-		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-			●	●
34	01.203 BOLT; RESERVE TANK CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0005-		●

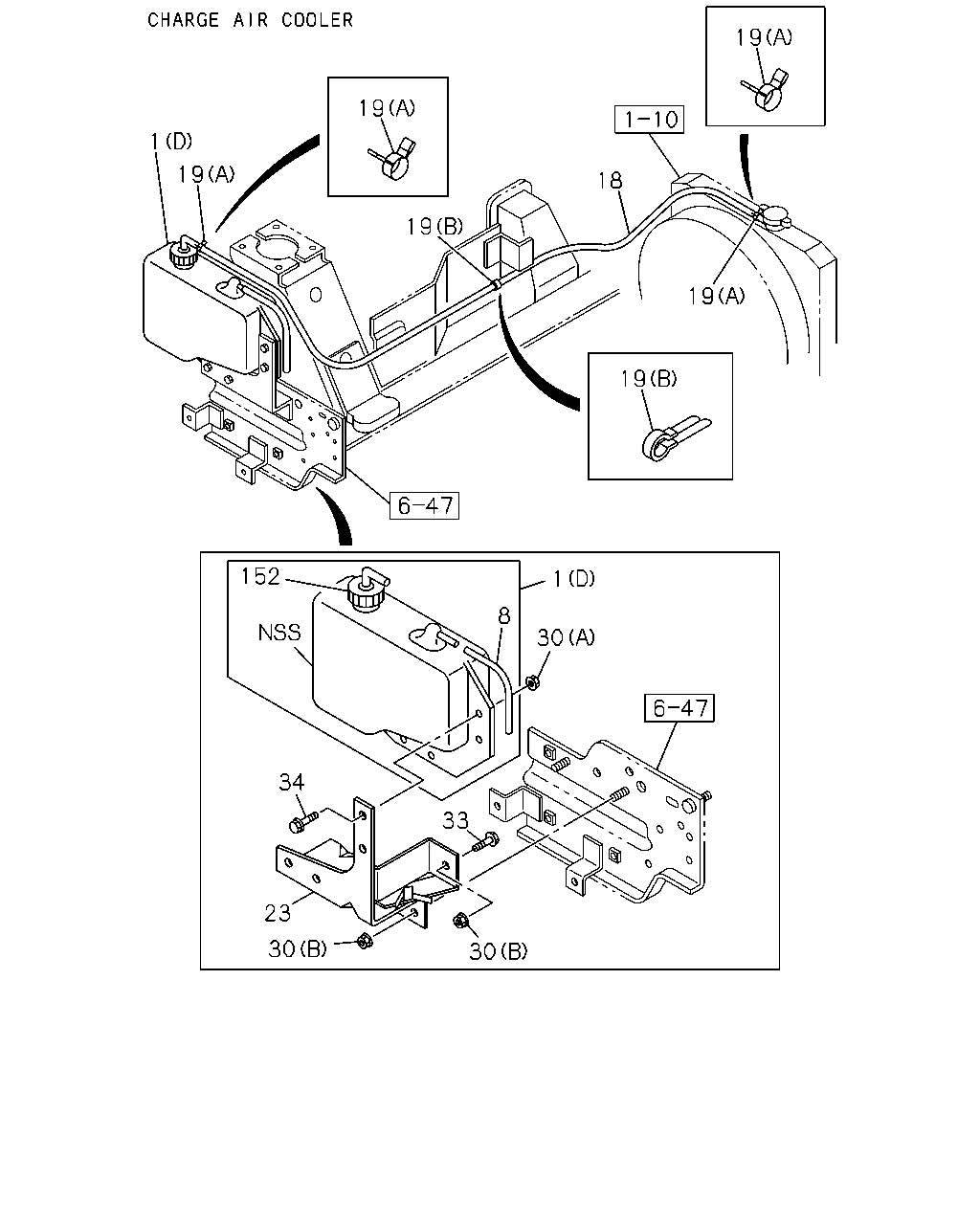

19 19 1 19 18 19 19 19 152 1 8 30 34 33 23 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	9811-0004	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0005-	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0005-		●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97131-202-0	01	1	9811-9811	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97131-202-0	01	1	9811-9811			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	9812-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	9812-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0005-		●
8	01.166 HOSE; VINYL CHARGE AIR COOLER<6PL> 01.240 L=500	1-09366-179-0	01	1	0005-		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0004	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0005-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0005-		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9811-			●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9811-0004	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0005-	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0005-		●
23	01.219 BRACKET; RESERVE TANK CHARGE AIR COOLER<6PL>	8-97225-271-1	01	1	0005-		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9811-0004	●	●	●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0005-	●		●	●
30	01.203 NUT EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0005-		●
30	01.203 NUT CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0005-		●
30	01.203 NUT CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0005-		●
33	01.277 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0005-		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0004	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0005-	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0005-		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-			●	●
34	01.203 BOLT; RESERVE TANK CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0005-		●
152	01.203 CAP ASM; SURGE TANK CHARGE AIR COOLER<6PL>	8-97217-799-0	01	1	0005-		●

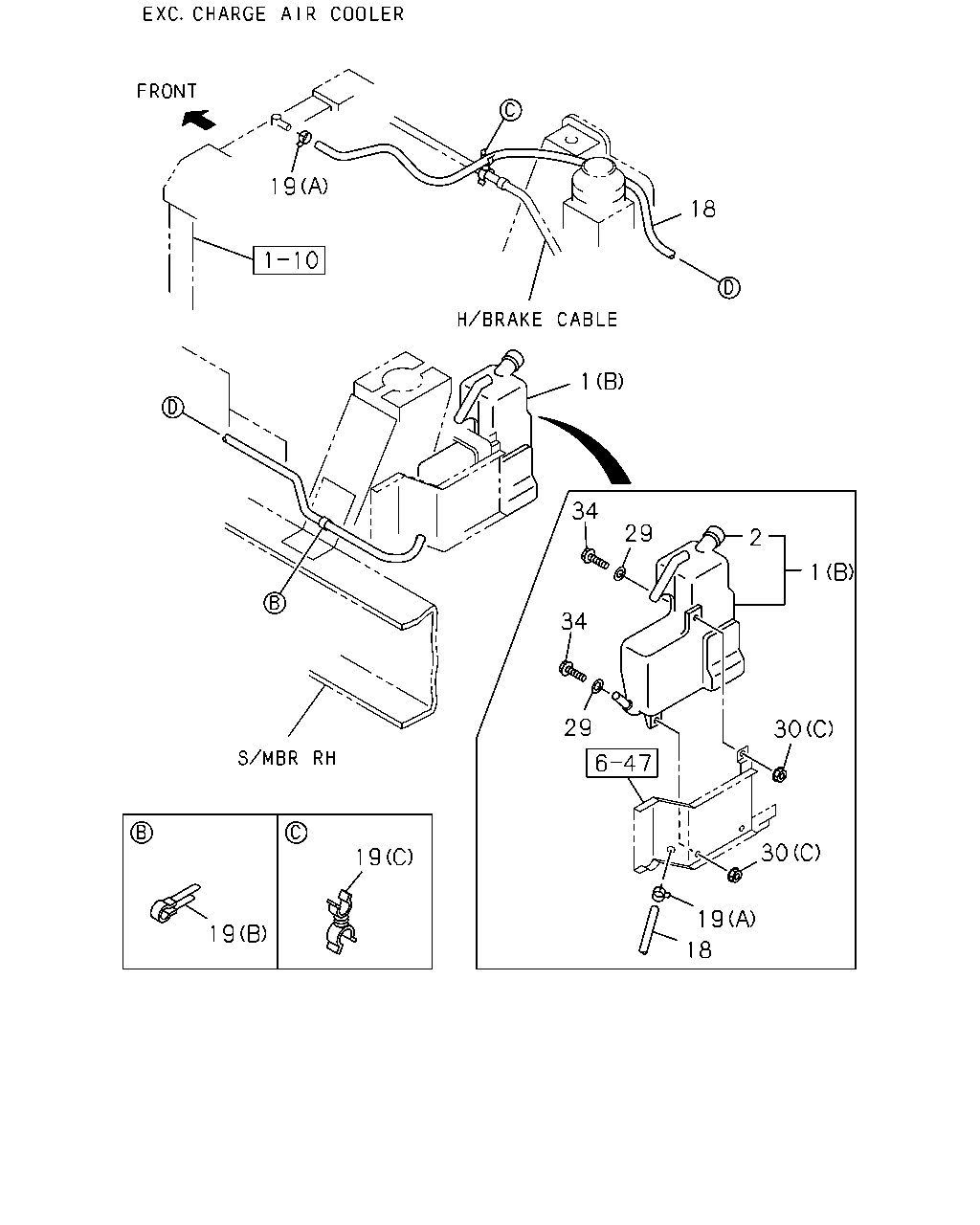

19 18 1 34 29 2 1 34 29 30 30 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	9811-0004	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0005-	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0005-		●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97131-202-0	01	1	9811-9811	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97131-202-0	01	1	9811-9811			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	9812-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	9812-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0005-		●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9811-0004	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9811-0004					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0005-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0005-					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0005-		●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9811-9811	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9811-9811			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9812-	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	9812-			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0004	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0005-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0005-		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9811-			●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9811-0004	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0005-	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0005-		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0004	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0005-	●		●	●
29	01.203 WASHER; PL,RESERVE TANK EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0005-		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	9811-0004	●	●	●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0005-	●		●	●
30	01.203 NUT EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0005-		●
30	01.203 NUT CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0005-		●
30	01.203 NUT CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0005-		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0004	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0005-	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0005-		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-			●	●
34	01.203 BOLT; RESERVE TANK CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0005-		●

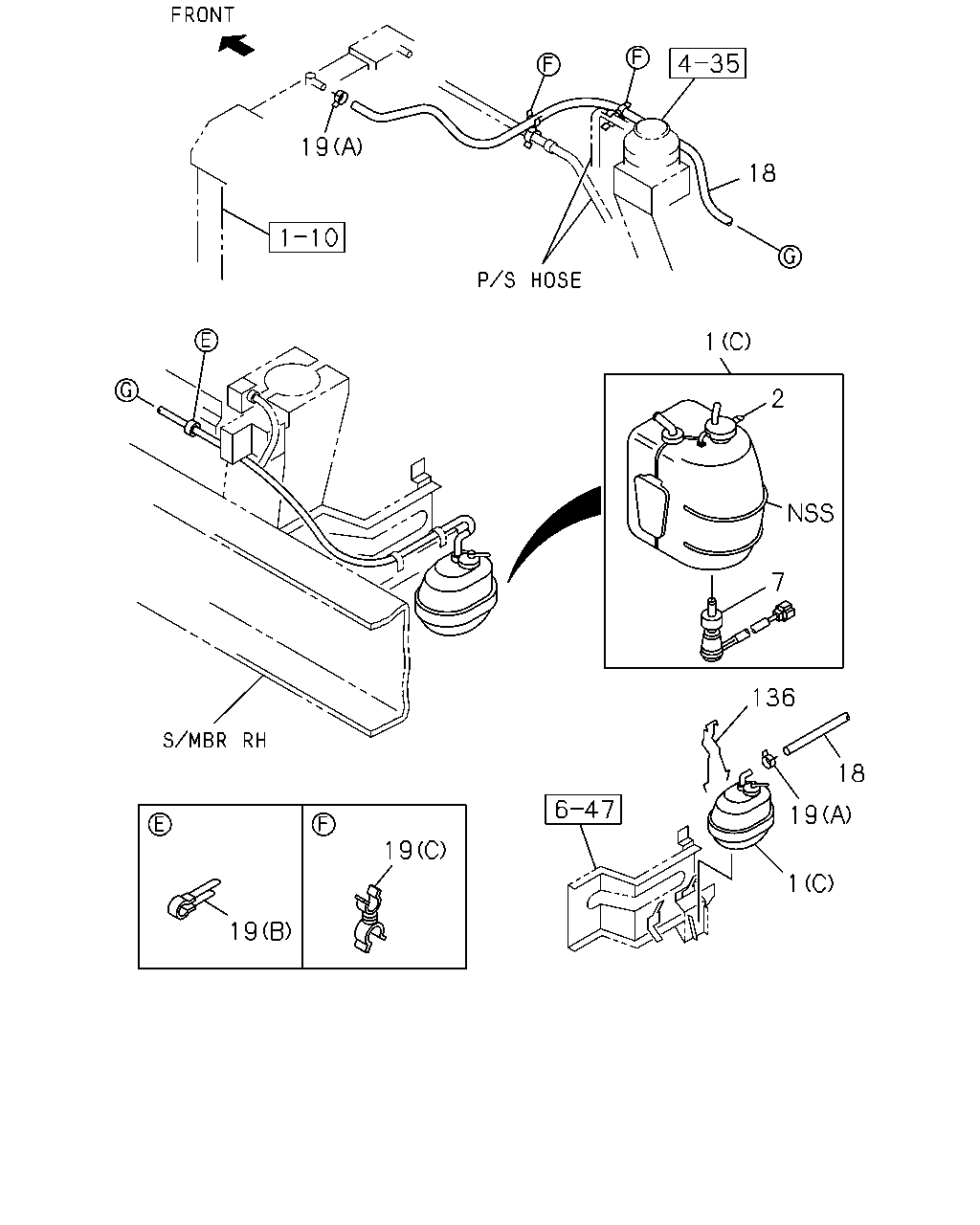

19 18 1 2 7 136 18 19 19 1 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	9811-0004	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0005-	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0005-		●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97131-202-0	01	1	9811-9811	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97131-202-0	01	1	9811-9811			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	9812-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	9812-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0005-		●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9811-0004	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9811-0004					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0005-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0005-					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0005-		●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9811-9811	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9811-9811			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9812-	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	9812-			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0004	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0005-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0005-		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9811-			●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9811-0004	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0005-	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0005-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0005-		●
136	01.219 STOPPER; SURGE TANK	8-97087-220-0	01	1	9811-					●	●

56 56 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	9811-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	5-09704-047-1	01	1	9811-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	03	1	9811-	●	●	●	●	●	●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	9811-0004	●	●	●	●	●	●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	0005-	●		●	●	●	●
128	01.159 HOSE; WATER,RAD INL EXC. CHARGE AIR COOLER<6PL>	8-97147-473-0	01	1	0005-		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97221-676-0	01	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
