1-10 — RADIATOR (#42239) — 72 parça

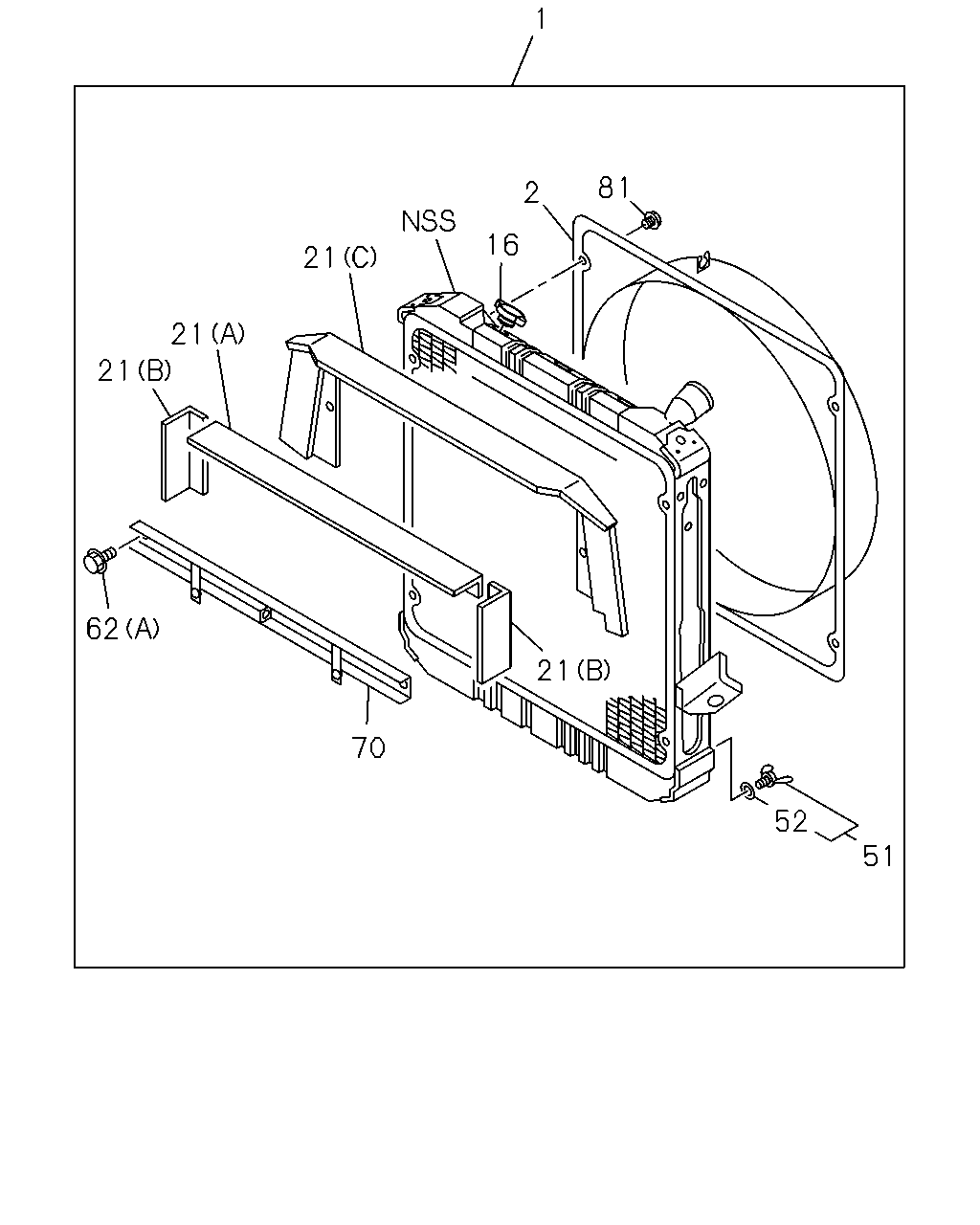

çizim 9511
1 81 2 16 21 21 21 62 21 70 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) 		8-97162-144-1 01 1 9811- ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) 		8-97162-131-1 01 1 9811-0105 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) 		8-97162-131-1 01 1 0106- ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97221-762-0 01 1 0005- ●
1 01.219 RADIATOR ASM
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-145-1 01 1 9811-0004 ● ● ●
1 01.219 RADIATOR ASM
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL> 		8-97162-145-1 01 1 0005- ● ● ●
1 01.219 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9811-0004 ● ●
1 01.219 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> 		8-97162-135-1 01 1 0005- ● ●
2 01.277 GUIDE; FAN 8-97066-011-0 01 1 9811- ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9811-0004 ● ● ● ●
16 01.203 CAP; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9811-0004 ● ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 0005- ● ● ● ●
16 01.203 CAP; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL> 		8-97167-854-0 01 1 0005- ●
16 01.203 CAP; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 0005- ●
16 01.203 CAP; RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9811-0004 ● ●
16 01.203 CAP; RAD
SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0005- ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0005- ●
16 01.203 CAP; RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 0005- ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 9811-0004 ● ● ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 9811-0004 ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 0005-0105 ● ● ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97085-689-0 01 1 0005-0105 ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 0005-0105 ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97085-689-0 01 1 0106- ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 0106- ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 0106- ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 9811-0004 ● ● ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 9811-0004 ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 0005-0105 ● ● ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97085-690-0 02 1 0005-0105 ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 0005-0105 ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97085-690-0 02 1 0106- ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 0106- ●
21 01.276 SEAL; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 0106- ●
21 01.276 SEAL; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97219-806-1 01 1 0005- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9811- ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9811- ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9811- ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9811- ● ● ● ● ● ●

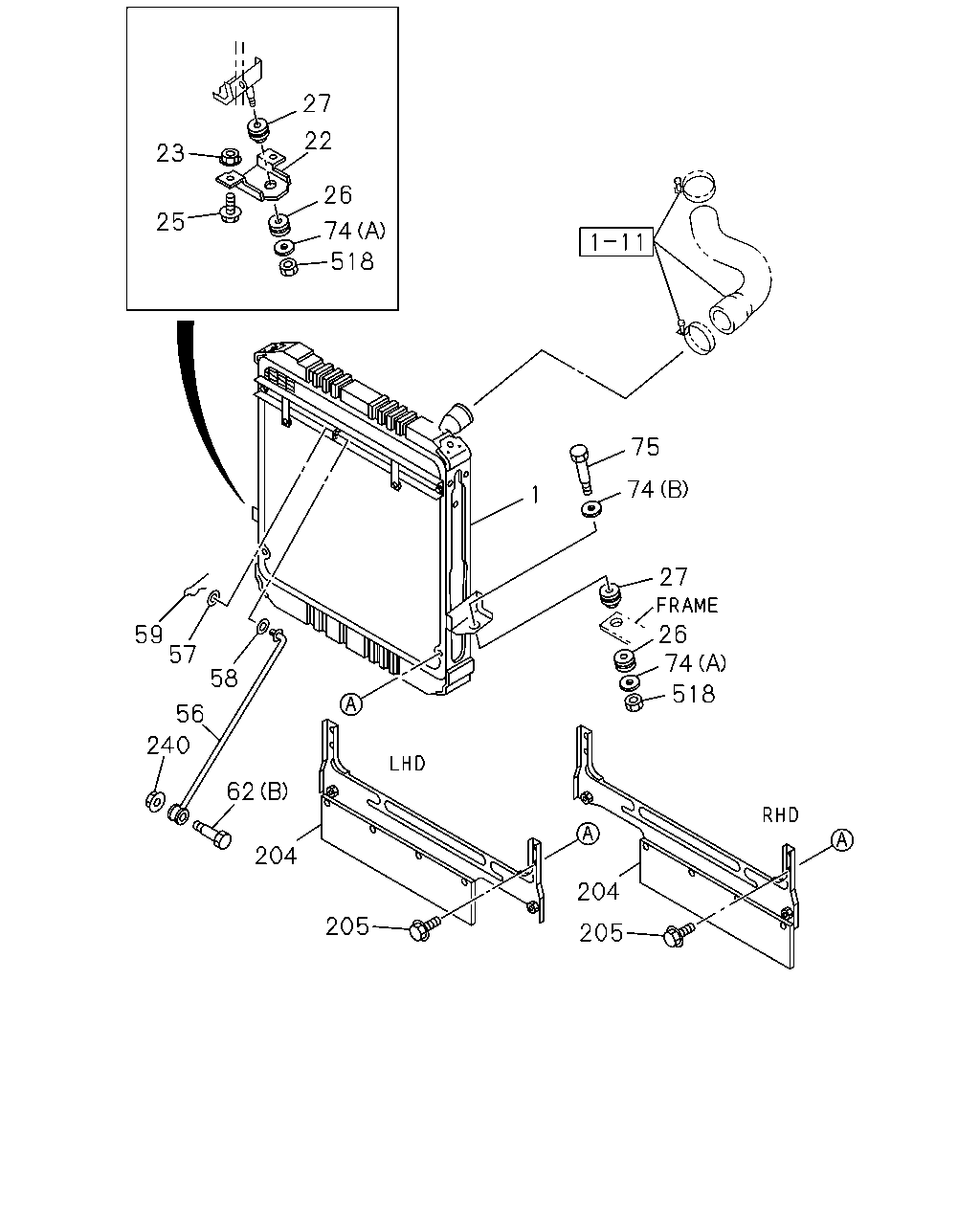

çizim 47556
27 22 23 26 25 74 518 75 74 1 27 26 74 59 57 58 518 56 240 62 204 204 205 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) 		8-97162-144-1 01 1 9811- ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) 		8-97162-131-1 01 1 9811-0105 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) 		8-97162-131-1 01 1 0106- ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97221-762-0 01 1 0005- ●
1 01.219 RADIATOR ASM
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-145-1 01 1 9811-0004 ● ● ●
1 01.219 RADIATOR ASM
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL> 		8-97162-145-1 01 1 0005- ● ● ●
1 01.219 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9811-0004 ● ●
1 01.219 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> 		8-97162-135-1 01 1 0005- ● ●
22 01.270 BRACKET; RAD MTG 8-94257-949-1 01 1 9811- ● ● ● ● ● ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 02 1 9811- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811- ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9811- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9811- ● ● ● ● ● ●
56 01.270 STAY; RAD 8-97032-798-2 01 1 9811- ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9811- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9811- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9811- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 9811- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 9811- ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9811- ● ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) 		8-97035-512-3 01 1 9811- ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) 		8-97089-919-3 01 1 9811-0004 ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97089-919-3 01 1 0005- ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) 		8-97089-919-3 01 1 0005- ● ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-0004 ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0005- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0005- ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9811- ● ● ● ● ● ●
518 01.270 NUT
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811- ● ● ● ● ● ●
