1-01 — ACCELERATOR PEDAL AND CONTROL (#42238) — 115 parça

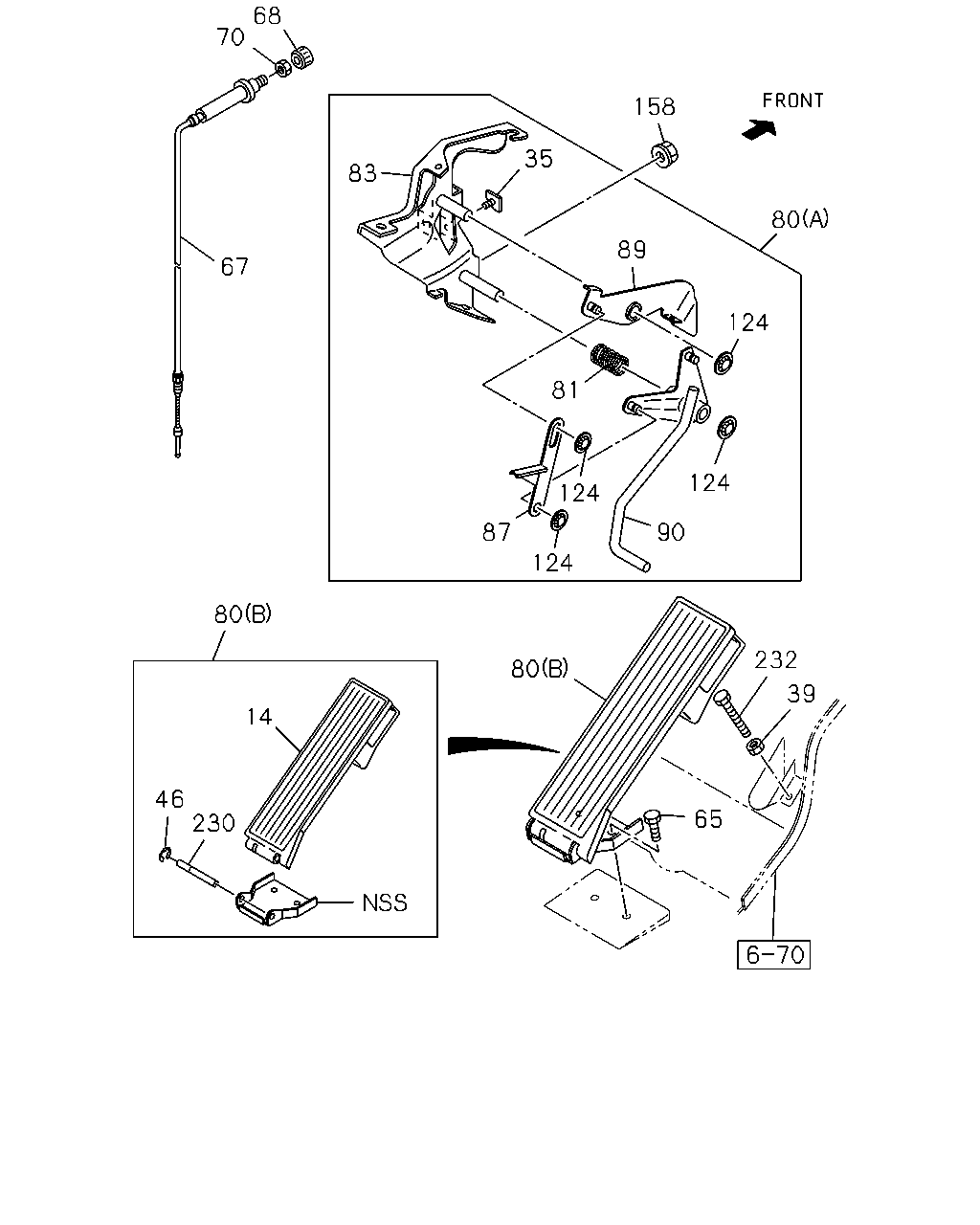

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9811-	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9811-				●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9811-0012	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0101-	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9811-0012				●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0101-				●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9811-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9811-				●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9811-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9811-				●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9811-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9811-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9811-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9811-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	9811-				●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9811-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9811-				●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9811-	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9811-	●	●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	9811-				●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9811-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9811-				●	●	●
124	03.463 NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9811-				●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9811-	●	●	●

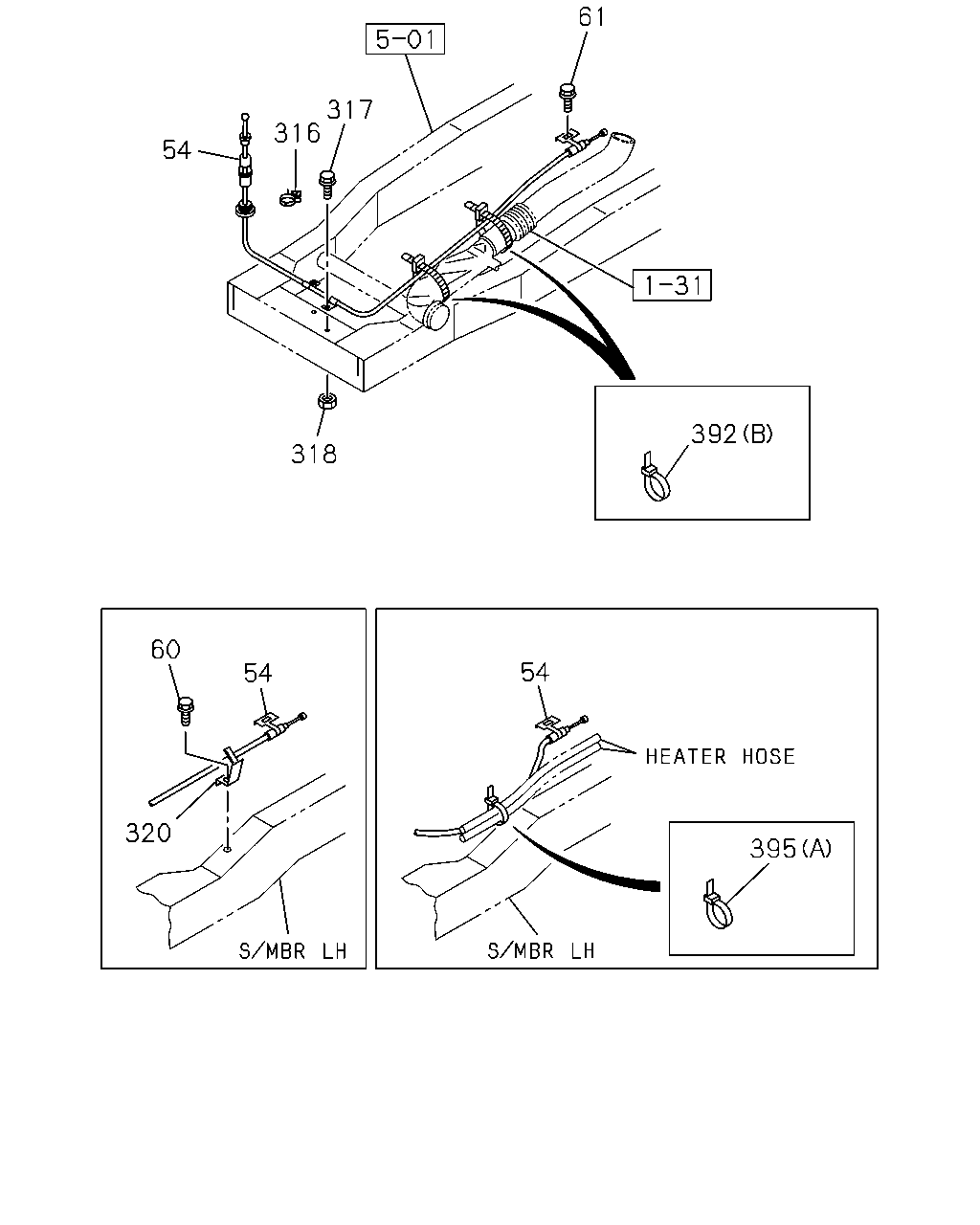

61 317 316 54 392 318 60 54 54 320 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-4	01	1	9811-	●	●	●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> L=1749	8-97228-819-2	01	1	0005-				●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-1	01	1	9811-0004				●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-1	01	1	0005-0105				●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-1	01	1	0005-0105					●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-2	01	1	0106-				●	●	●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0004	●			●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0005-	●			●
60	08.155 BOLT; CABLE CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0005-				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9811-	●	●	●
317	03.425 BOLT; LAMP BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-	●	●	●
318	03.275 NUT; LAMP BRKT 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9811-	●	●	●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9811-0004	●			●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0005-	●			●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 03.008 (B) L=330	5-09709-118-0	02	1	9811-	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	9811-		●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9811-				●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9811-					●	●
392	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> 02.334 (C) ID=16	9-09525-552-0	01	1	0005-				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	9811-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9811-0004				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0005-				●

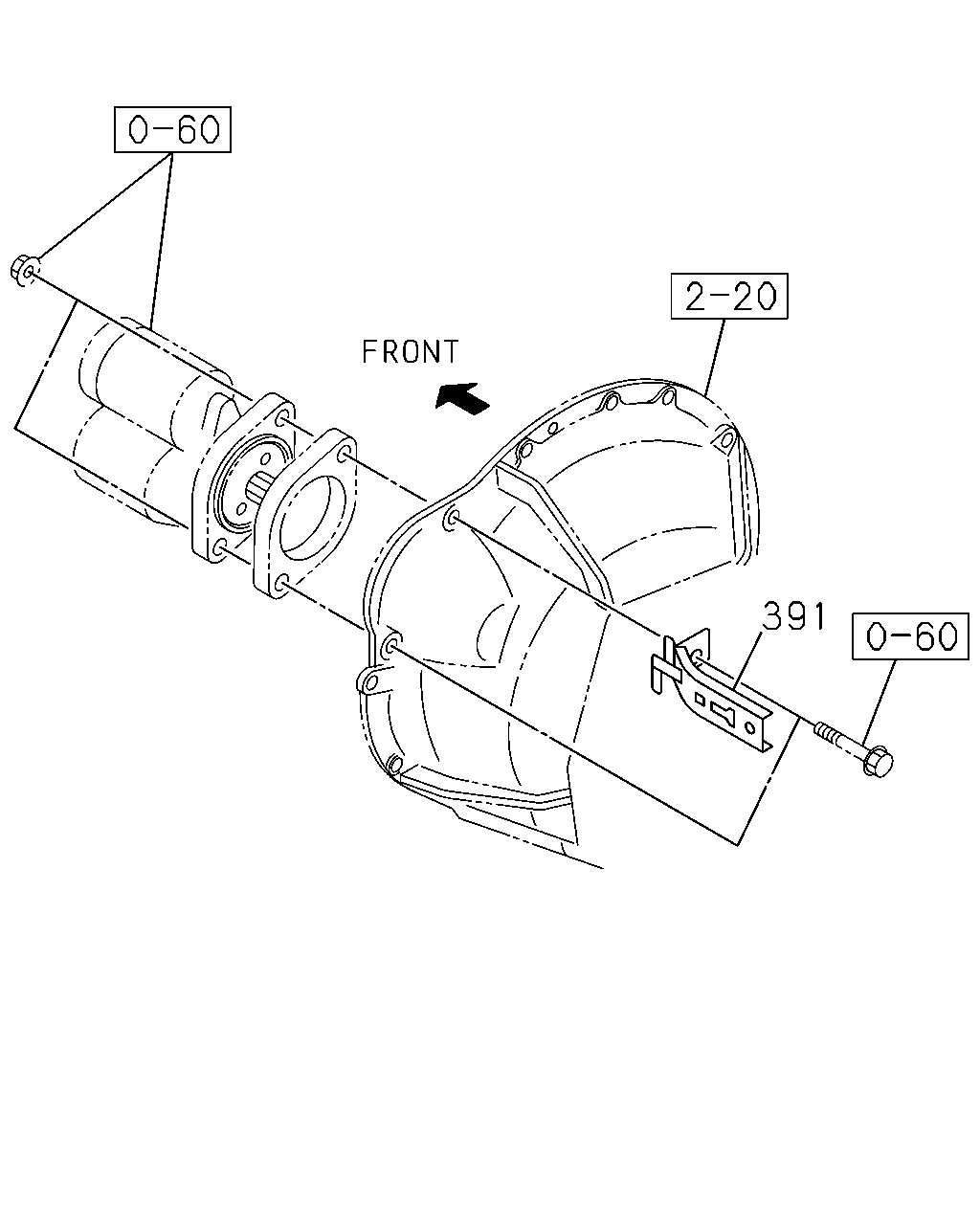

391

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483	8-97068-801-1	01	1	9811-0004	●	●	●	●	●	●
	391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483	8-97068-801-1	01	1	0005-	●	●	●	●	●	●

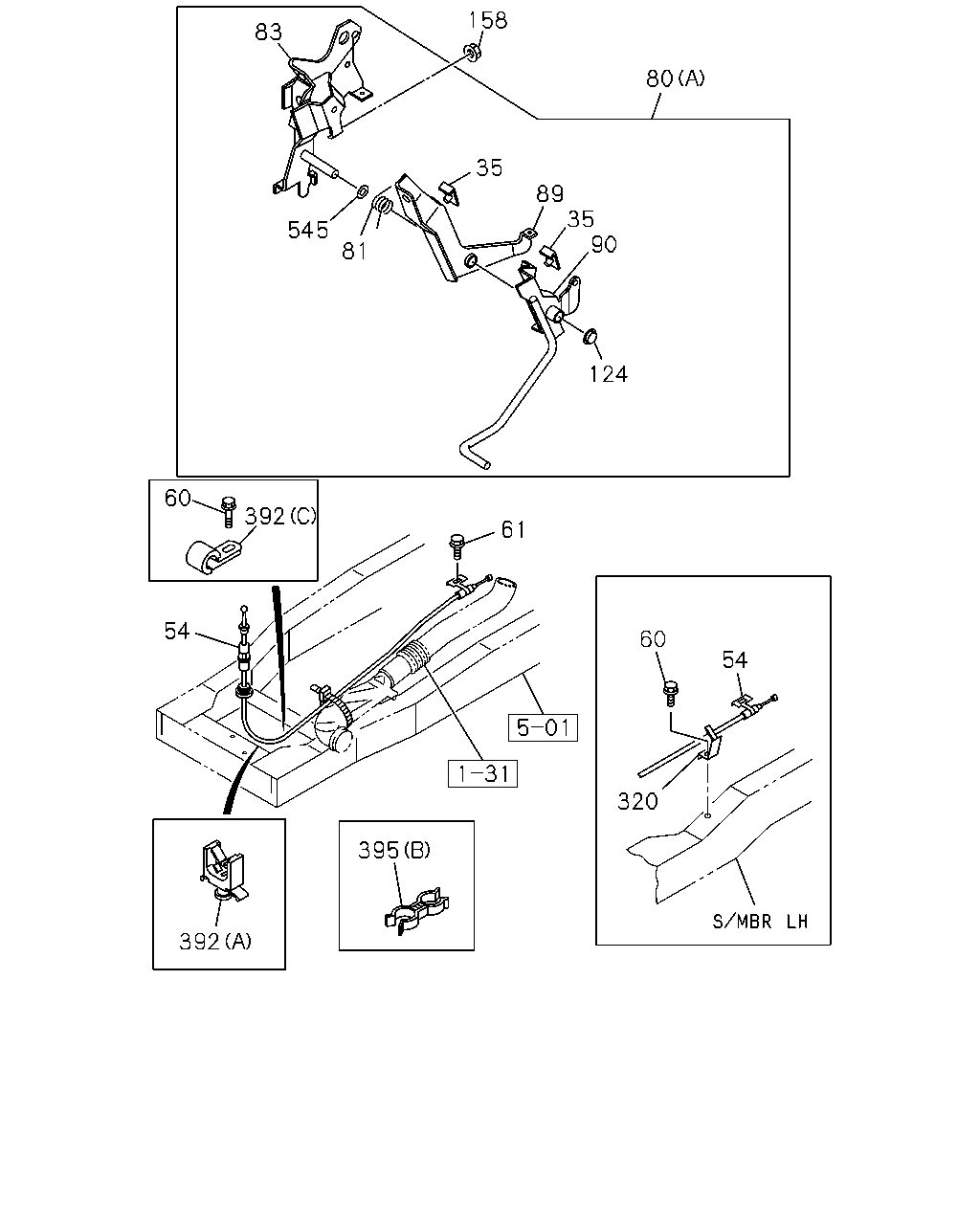

158 83 80 35 89 35 90 545 81 124 60 392 61 54 60 54 320 395 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9811-0012	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0101-	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9811-0012				●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0101-				●	●	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-4	01	1	9811-	●	●	●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> L=1749	8-97228-819-2	01	1	0005-				●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-1	01	1	9811-0004				●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-1	01	1	0005-0105				●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-1	01	1	0005-0105					●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-2	01	1	0106-				●	●	●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0004	●			●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0005-	●			●
60	08.155 BOLT; CABLE CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0005-				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9811-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9811-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9811-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	9811-				●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9811-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9811-				●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9811-	●	●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	9811-				●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9811-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9811-				●	●	●
124	03.463 NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9811-				●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9811-0004	●			●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0005-	●			●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 03.008 (B) L=330	5-09709-118-0	02	1	9811-	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	9811-		●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9811-				●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9811-					●	●
392	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> 02.334 (C) ID=16	9-09525-552-0	01	1	0005-				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	9811-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9811-0004				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0005-				●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9811-				●	●	●

537 537 70 68 67 80 80 65 80 14 230 24 242 46 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9811-	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9811-				●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9811-				●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9811-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9811-				●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9811-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9811-				●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9811-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9811-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9811-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9811-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	9811-				●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9811-				●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	9811-				●	●	●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	9811-				●	●	●
