Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#42237) — 159 parça

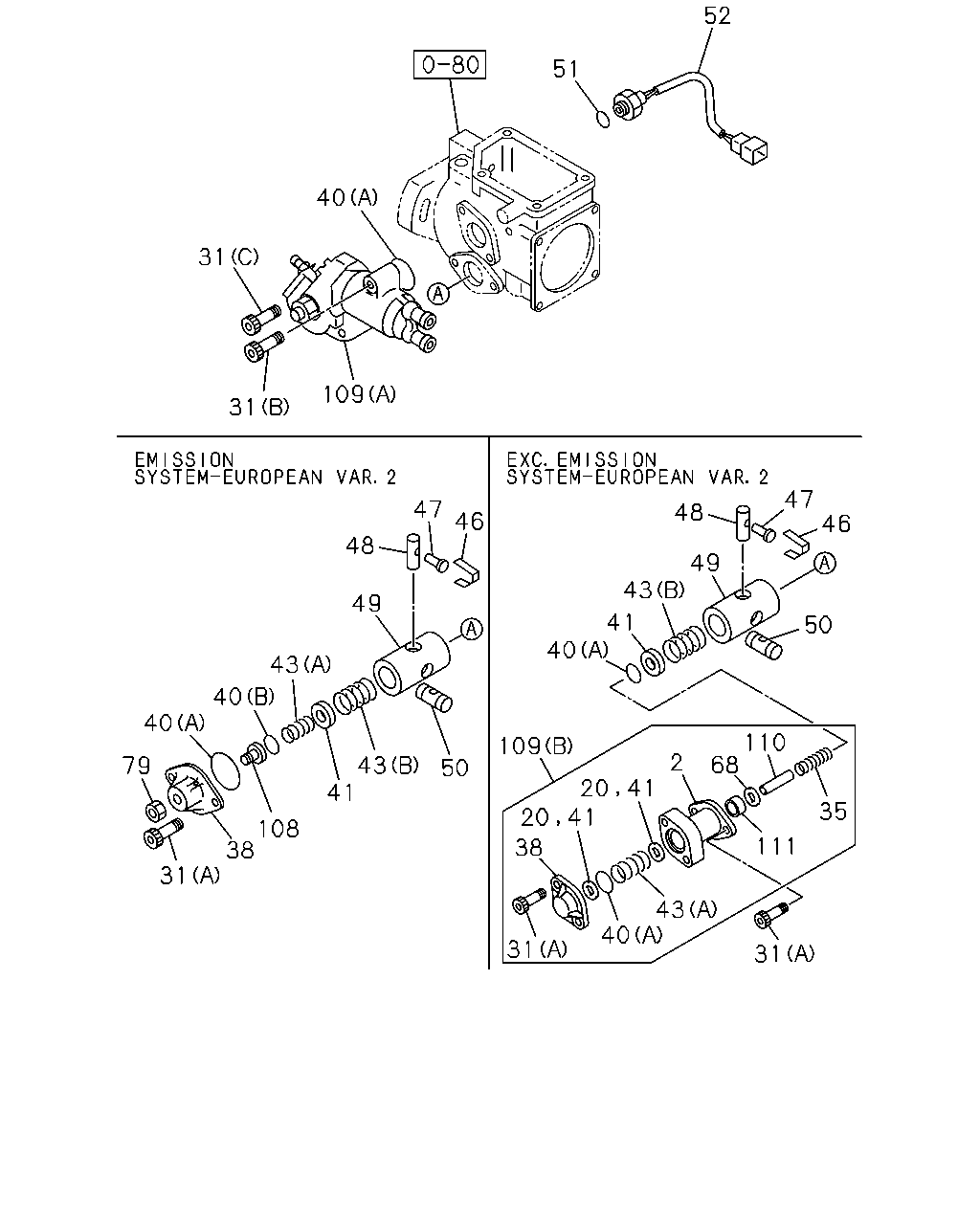

52 51 40 31 109 31 47 46 47 48 46 48 49 43 49 41 50 40 43 40 40 110 68 109 2 43 41 79 50 35 108 38 111 38 31 43 40 31 31 20 41 20 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.340 HOUSING; TIMER,INJ PUMP ASM PART: H = 8-97245-694-1, 97245694	8-97174-588-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-495-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.1 ASM PART: H = 8-97245-694-1, 97245694	8-97174-590-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.2 ASM PART: H = 8-97245-694-1, 97245694	8-97174-591-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.5 ASM PART: H = 8-97245-694-1, 97245694	8-97174-592-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=1.0 ASM PART: H = 8-97245-694-1, 97245694	8-97174-593-0	AR	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (D) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: E = 8-97138-842-3, 97138842	8-97140-853-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: H = 8-97245-694-1, 97245694	8-97140-853-0	04	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97141-258-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97141-456-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (D) ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-933-0	02	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP 0.18 ASM PART: H = 8-97245-694-1, 97245694	8-97174-599-0	01	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP 0.15 ASM PART: H = 8-97245-694-1, 97245694	8-97174-600-0	01	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP 0.16 ASM PART: H = 8-97245-694-1, 97245694	8-97174-601-0	01	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP 0.17 ASM PART: H = 8-97245-694-1, 97245694	8-97174-602-0	01	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP 0.19 ASM PART: H = 8-97245-694-1, 97245694	8-97174-603-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: H = 8-97245-694-1, 97245694	8-97140-966-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842	8-97161-886-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (C) ASM PART: F = 8-97186-952-0, 97186952	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (C) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: H = 8-97245-694-1, 97245694	8-97140-980-0	03	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: E = 8-97138-842-3, 97138842	8-97140-980-0	02	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: E = 8-97138-842-3, 97138842	8-97161-897-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (C) ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97224-532-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-499-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-954-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.1 ASM PART: H = 8-97245-694-1, 97245694	8-97174-590-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.2 ASM PART: H = 8-97245-694-1, 97245694	8-97174-591-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: H = 8-97245-694-1, 97245694	8-97174-592-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.0 ASM PART: H = 8-97245-694-1, 97245694	8-97174-593-0	AR	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=35.5 EFFECT TURN=4.9 ASM PART: F = 8-97186-952-0, 97186952	8-94313-227-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=35.6 EFFECT TURN=5.4 ASM PART: F = 8-97186-952-0, 97186952	8-94313-241-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=35.4 EFFECT TURN=5.2 ASM PART: F = 8-97186-952-0, 97186952	8-94473-119-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=40.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=40.2 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=40.6 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.6 ASM PART: E = 8-97138-842-3, 97138842	8-97161-899-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=32.7 ASM PART: E = 8-97138-842-3, 97138842	8-97161-900-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.1 ASM PART: E = 8-97138-842-3, 97138842	8-97161-901-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-961-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.07 ASM PART: H = 8-97245-694-1, 97245694	8-97174-594-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.08 ASM PART: H = 8-97245-694-1, 97245694	8-97174-595-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.09 ASM PART: H = 8-97245-694-1, 97245694	8-97174-596-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.1 ASM PART: H = 8-97245-694-1, 97245694	8-97174-597-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.11 ASM PART: H = 8-97245-694-1, 97245694	8-97174-598-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=44.0 ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=41.7 ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=42.0 ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-488-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-961-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-487-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-952-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-951-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842	8-97161-881-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: H = 8-97245-694-1, 97245694	8-97174-584-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: F = 8-97186-952-0, 97186952	8-97202-361-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: F = 8-97186-952-0, 97186952	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-944-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97218-961-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-671-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-962-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94343-307-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-903-0	01	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP T=0.1 ASM PART: H = 8-97245-694-1, 97245694	8-97174-604-0	AR	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP T=0.2 ASM PART: H = 8-97245-694-1, 97245694	8-97174-605-0	AR	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP T=0.4 ASM PART: H = 8-97245-694-1, 97245694	8-97174-606-0	AR	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP T=0.15 ASM PART: H = 8-97245-694-1, 97245694	8-97174-607-0	AR	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP T=0.3 ASM PART: H = 8-97245-694-1, 97245694	8-97174-608-0	AR	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP T=0.5 ASM PART: H = 8-97245-694-1, 97245694	8-97174-609-0	AR	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP T=1.0 ASM PART: H = 8-97245-694-1, 97245694	8-97174-610-0	AR	1	-
79	03.340 NUT; CAP,TIMER COVER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842	8-97161-898-0	01	1	-
108	03.330 STOPPER; TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842	8-97161-896-0	01	1	-
109	03.330 COVER SUB ASM; TIMER (A) ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-963-0	01	1	-
109	03.330 COVER SUB ASM; TIMER (B) ASM PART: H = 8-97245-694-1, 97245694	8-97174-587-0	01	1	-
110	03.340 SEAT; SPRING,TIMER ASM PART: H = 8-97245-694-1, 97245694	8-97174-589-0	01	1	-
111	03.340 COLLAR; TIMER,INJ PUMP ASM PART: H = 8-97245-694-1, 97245694	8-97174-611-0	01	1	-

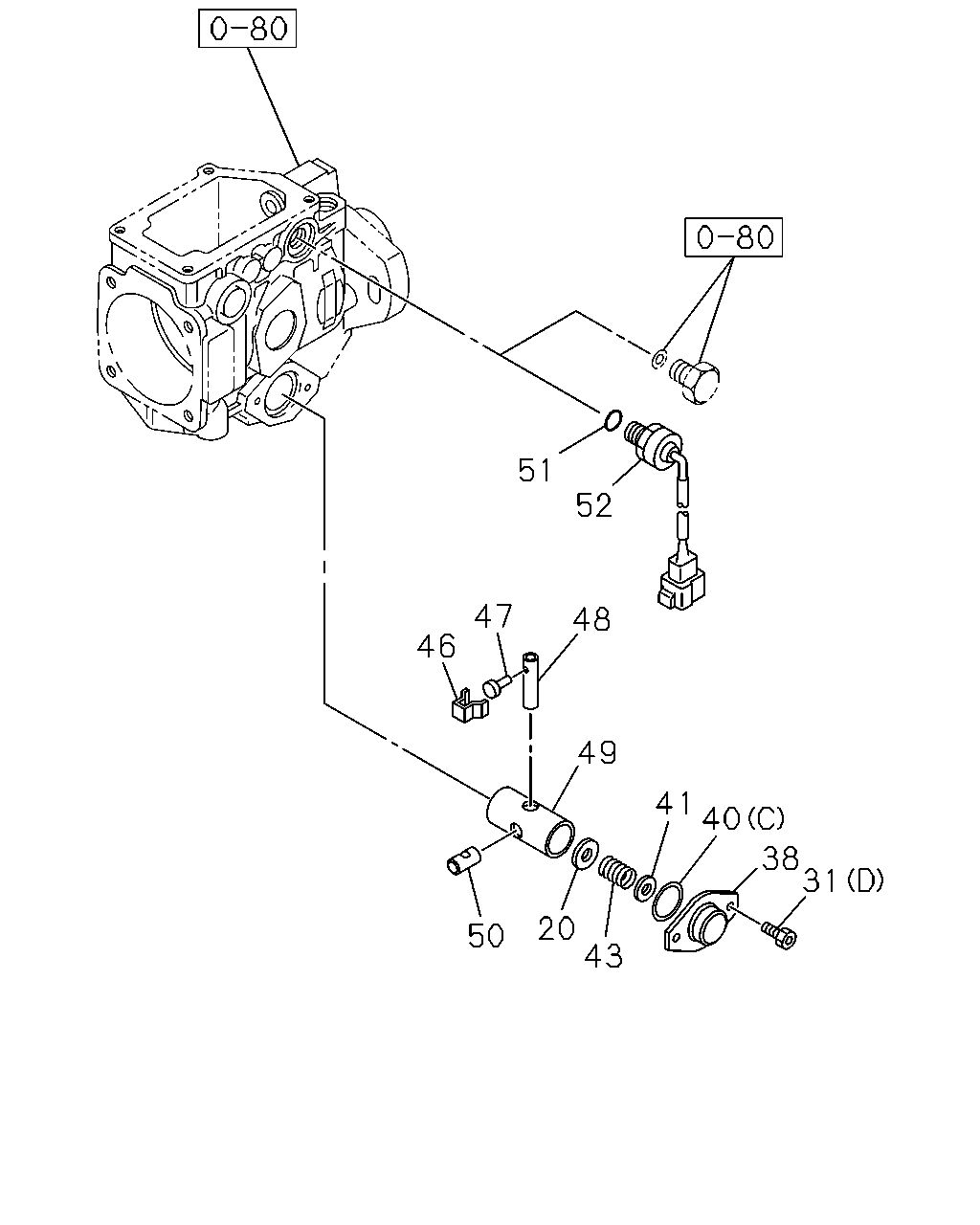

51 52 47 48 46 49 41 40 38 31 20 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-495-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.1 ASM PART: H = 8-97245-694-1, 97245694	8-97174-590-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.2 ASM PART: H = 8-97245-694-1, 97245694	8-97174-591-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.5 ASM PART: H = 8-97245-694-1, 97245694	8-97174-592-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=1.0 ASM PART: H = 8-97245-694-1, 97245694	8-97174-593-0	AR	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (D) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: E = 8-97138-842-3, 97138842	8-97140-853-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: H = 8-97245-694-1, 97245694	8-97140-853-0	04	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97141-258-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97141-456-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (D) ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-933-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: H = 8-97245-694-1, 97245694	8-97140-966-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842	8-97161-886-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (C) ASM PART: F = 8-97186-952-0, 97186952	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (C) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: H = 8-97245-694-1, 97245694	8-97140-980-0	03	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: E = 8-97138-842-3, 97138842	8-97140-980-0	02	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: E = 8-97138-842-3, 97138842	8-97161-897-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (C) ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97224-532-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-499-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-954-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.1 ASM PART: H = 8-97245-694-1, 97245694	8-97174-590-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.2 ASM PART: H = 8-97245-694-1, 97245694	8-97174-591-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: H = 8-97245-694-1, 97245694	8-97174-592-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.0 ASM PART: H = 8-97245-694-1, 97245694	8-97174-593-0	AR	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=35.5 EFFECT TURN=4.9 ASM PART: F = 8-97186-952-0, 97186952	8-94313-227-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=35.6 EFFECT TURN=5.4 ASM PART: F = 8-97186-952-0, 97186952	8-94313-241-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=35.4 EFFECT TURN=5.2 ASM PART: F = 8-97186-952-0, 97186952	8-94473-119-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=40.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=40.2 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=40.6 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.6 ASM PART: E = 8-97138-842-3, 97138842	8-97161-899-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=32.7 ASM PART: E = 8-97138-842-3, 97138842	8-97161-900-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.1 ASM PART: E = 8-97138-842-3, 97138842	8-97161-901-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-961-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.07 ASM PART: H = 8-97245-694-1, 97245694	8-97174-594-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.08 ASM PART: H = 8-97245-694-1, 97245694	8-97174-595-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.09 ASM PART: H = 8-97245-694-1, 97245694	8-97174-596-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.1 ASM PART: H = 8-97245-694-1, 97245694	8-97174-597-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A) K=0.11 ASM PART: H = 8-97245-694-1, 97245694	8-97174-598-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=44.0 ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=41.7 ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (C), L=42.0 ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-488-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-961-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-487-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-952-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090, F = 8-97186-952-0, 97186952	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-951-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842	8-97161-881-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: H = 8-97245-694-1, 97245694	8-97174-584-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: F = 8-97186-952-0, 97186952	8-97202-361-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: F = 8-97186-952-0, 97186952	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97140-944-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-97218-961-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94227-671-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-962-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, F = 8-97186-952-0, 97186952, G = 8-97204-201-6, 97204201, I = 8-97263-086-1, 97263086	8-94343-307-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: E = 8-97138-842-3, 97138842, H = 8-97245-694-1, 97245694	8-97161-903-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
