0-66 — GENERATOR (#42231) — 42 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-1, 97187657	8-94156-603-0	01	1	-

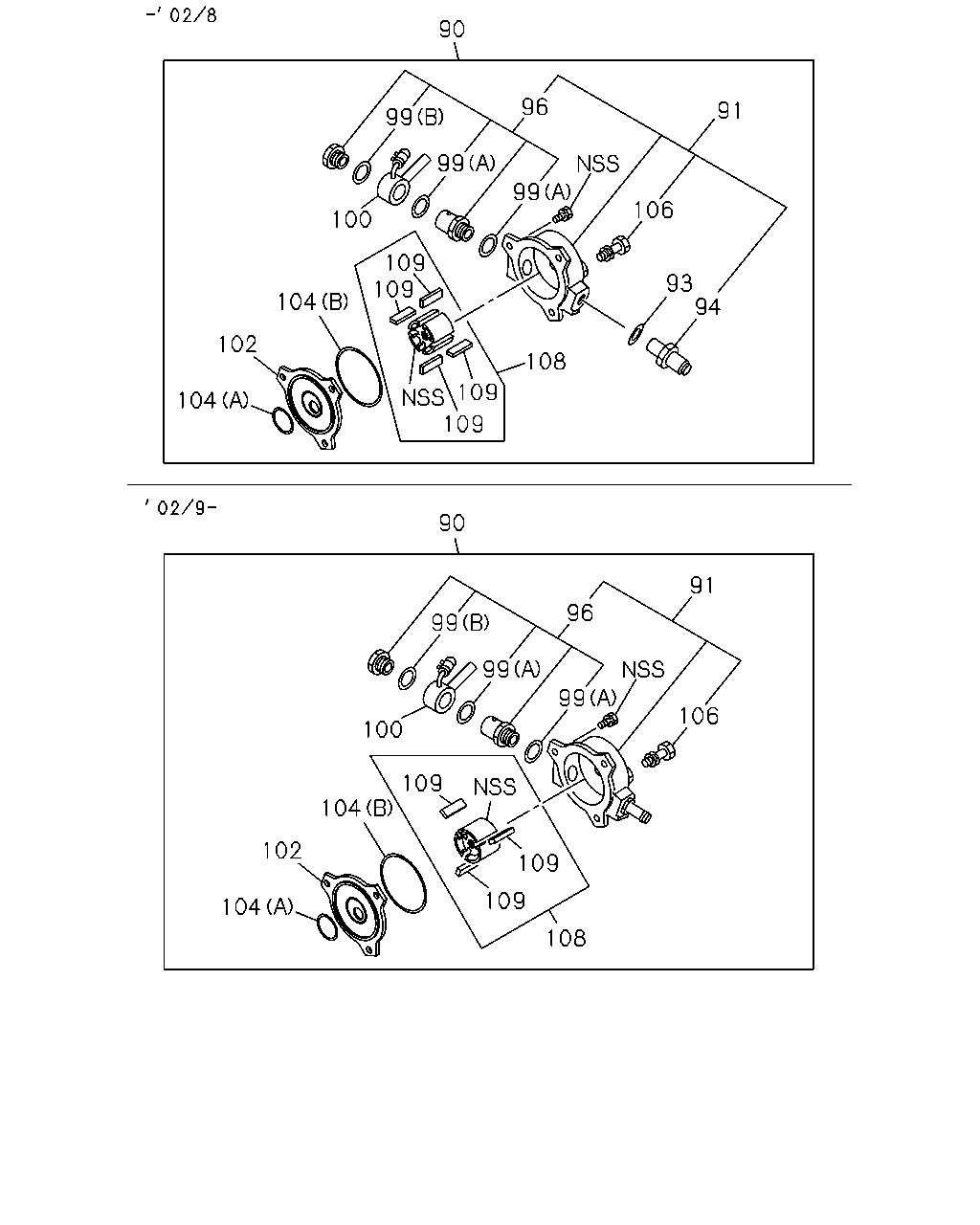

90 96 91 99 99 99 106 100 109 109 93 94 104 102 108 109 109 104 90 91 96 99 99 99 106 100 109 104 102 109 109 104 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-97236-694-0	01	1	0209-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-97187-657-1, 97187657	5-19679-004-2	01	1	-0208
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	5-19619-034-0	01	1	-0208
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97187-657-1, 97187657	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97187-657-1, 97187657	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97187-657-1, 97187657	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97187-657-1, 97187657	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-97236-693-0	01	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-

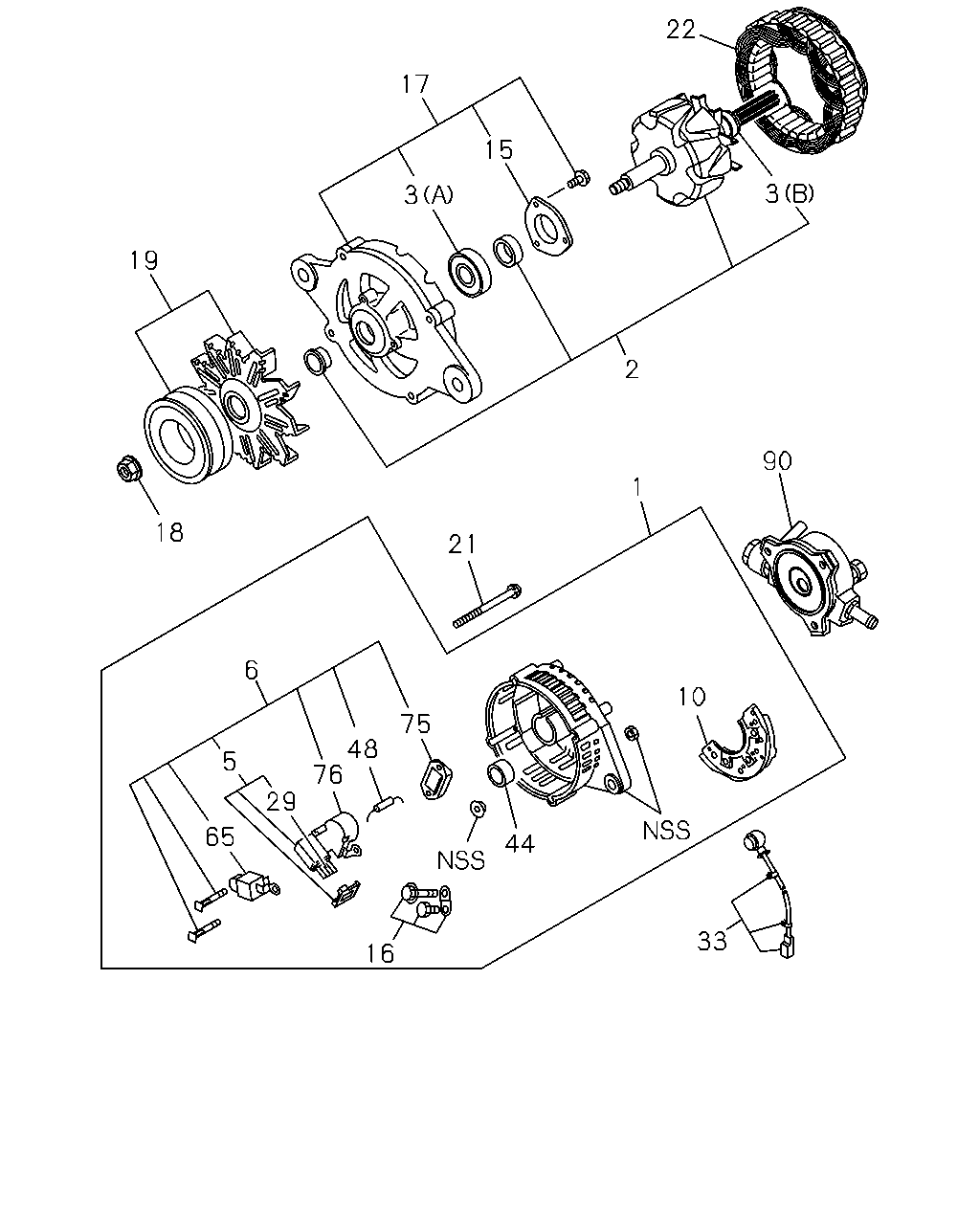

22 17 15 3 3 19 2 90 1 18 21 6 10 75 48 76 5 29 65 44 33 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97187-657-1, 97187657	8-97083-006-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: A = 8-97187-657-1, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97187-657-1, 97187657	8-97062-654-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97026-053-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97026-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97187-657-1, 97187657	8-97188-870-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-97187-657-1, 97187657	8-94223-974-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97071-214-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97187-657-1, 97187657	8-97029-004-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97187-657-1, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97187-657-1, 97187657	8-97203-864-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97187-657-1, 97187657	8-94156-593-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97071-213-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97187-657-1, 97187657	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-97187-657-1, 97187657	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97187-657-1, 97187657	8-94156-594-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: A = 8-97187-657-1, 97187657	8-94250-964-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: A = 8-97187-657-1, 97187657	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
