0-15A — CRANKSHAFT,PISTON AND FLYWHEEL (#4223) — 126 parça

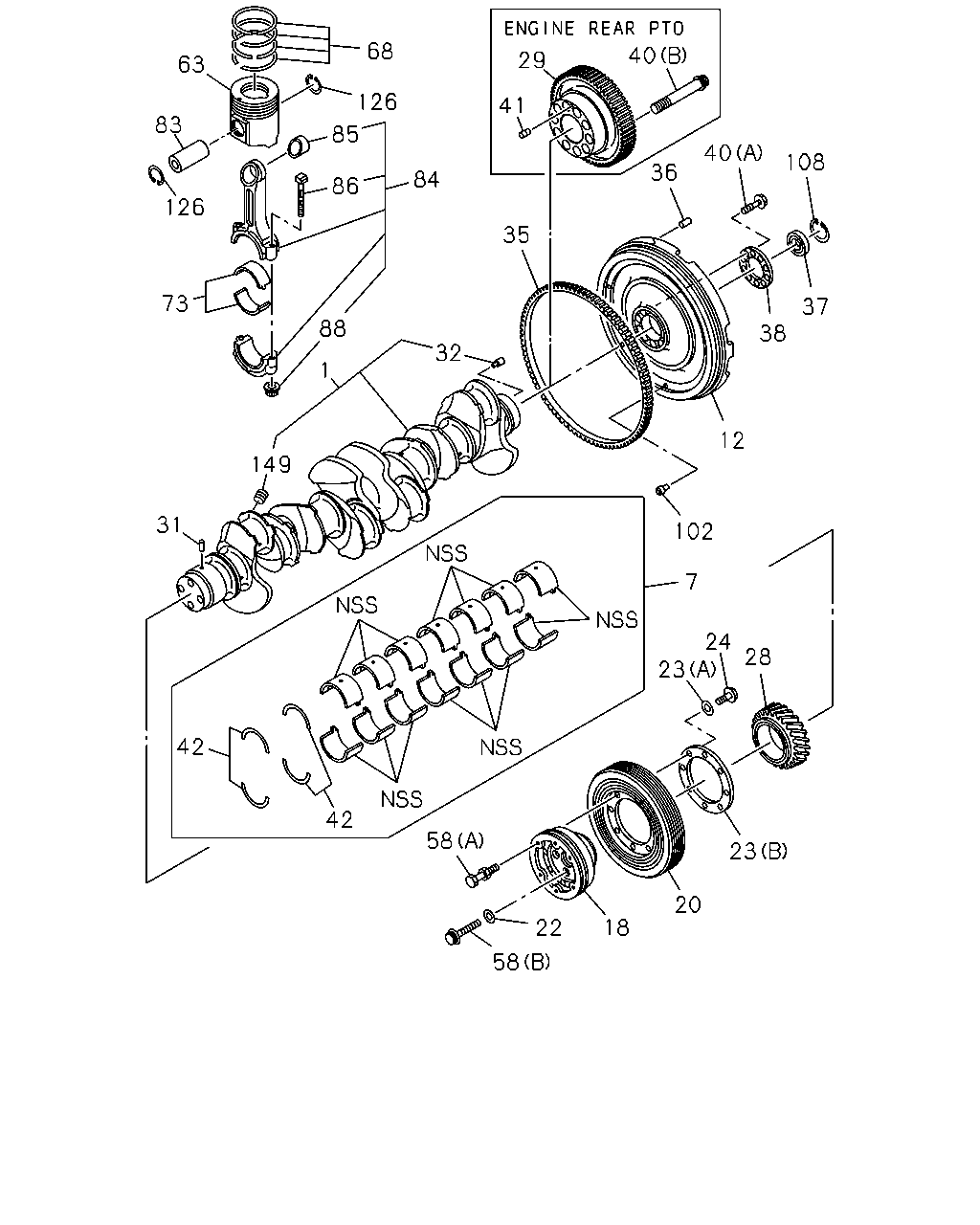

çizim 6203
68 40 29 63 126 41 83 85 40 108 36 84 86 126 35 73 37 88 38 32 1 12 149 31 102 7 24 23 28 42 42 58 23 20 18 22 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CRANKSHAFT 1-12310-625-9 01 1 9603-9904 ●
1 CRANKSHAFT 1-12310-625-9 01 1 9905- ● ● ●
1 CRANKSHAFT 1-12310-675-1 01 1 9707-9904 ●
1 CRANKSHAFT 1-12310-675-1 01 1 9905- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-093-0 01 1 9603-9706 ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-093-0 01 1 9707-9904 ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-093-2 01 1 9905- ● ● ● ●
12 FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-12330-417-0 01 1 9603-9904 ●
12 FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-12330-417-0 01 1 9905- ● ●
12 FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-12330-400-1 01 1 9603-9904 ●
12 FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-12330-400-1 01 1 9905- ● ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-12331-309-1 01 1 9603-9706 ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-12331-309-1 01 1 9707-9801 ●
12 FLYWHEEL 1-12331-309-1 01 1 9707-9801 ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-12330-480-0 01 1 9802-9904 ●
12 FLYWHEEL 1-12330-480-0 01 1 9802-9904 ●
12 FLYWHEEL 1-12330-480-0 01 1 9905- ● ●
18 PULLEY; CR/SHF
1-GROOVE 		1-12371-420-1 01 1 9603-9706 ●
18 PULLEY; CR/SHF
1-GROOVE 		1-12371-420-2 01 1 9707-9904 ● ●
18 PULLEY; CR/SHF
1-GROOVE 		1-12371-420-2 01 1 9905- ● ● ● ●
20 DAMPER; CR/SHF 1-12375-153-0 01 1 9603-9904 ●
20 DAMPER; CR/SHF 1-12375-153-0 01 1 9905- ● ● ●
20 DAMPER; CR/SHF 1-12375-193-0 01 1 9707-9904 ●
20 DAMPER; CR/SHF 1-12375-193-0 01 1 9905- ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 04 1 9603-9706 ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 04 1 9707-9904 ● ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 04 1 9905- ● ● ● ●
23 WASHER; DAMPER
(A) ID=12.2 		1-09503-008-0 08 1 9603-9604 ●
23 WASHER; DAMPER
(B) 		1-12379-039-0 01 1 9603-9706 ●
23 WASHER; DAMPER
(B) 		1-12379-039-0 01 1 9707-9904 ● ●
23 WASHER; DAMPER
(B) 		1-12379-039-0 01 1 9905- ● ● ● ●
24 BOLT; DAMPER
M12X30 		9-02361-230-0 08 1 9603-9604 ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28791-230-0 08 1 9605-9706 ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28791-230-0 08 1 9707-9904 ● ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28791-230-0 08 1 9905- ● ● ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-048-5 01 1 9603-9706 ●
28 GEAR; CR/SHF
Z=48 		1-12521-048-6 01 1 9707-9904 ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-048-6 01 1 9905-9910 ● ● ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-1 01 1 9911- ● ● ● ●
29 GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1) 		1-38261-029-0 01 1 9703-9904 ●
29 GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1) 		1-38261-029-0 01 1 9905- ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 9603-9706 ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 9707-9904 ● ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 9905- ● ● ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 9603-9706 ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 9707-9904 ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 9905- ● ● ● ●
35 GEAR; RING
Z=139 		1-12333-013-0 01 1 9603-9706 ●
35 GEAR; RING
Z=139 		1-12333-013-0 01 1 9707-9904 ● ●
35 GEAR; RING
Z=139 		1-12333-013-1 01 1 9905- ● ● ● ●
36 PIN; FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) OD=10 L=22 		9-08151-022-0 02 1 9603-9904 ●
36 PIN; FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=10 L=22 		9-08151-022-0 02 1 9905- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 9603-9706 ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 9707-9904 ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 9905- ● ● ● ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 9603-9706 ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 9707-9904 ● ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 9905- ● ● ● ●
40 BOLT; FLYWHEEL
(A) 		1-09070-017-1 10 1 9603-9702 ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-09070-017-1 10 1 9703-9706 ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-09070-017-1 10 1 9707-9904 ●
40 BOLT; FLYWHEEL
(A) 		1-09070-017-1 10 1 9707-9904 ●
40 BOLT; FLYWHEEL
(A) 		1-09070-017-1 10 1 9905- ● ● ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-09070-017-1 10 1 9905- ●
40 BOLT; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-09070-133-0 10 1 9703-9904 ●
40 BOLT; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-09070-133-0 10 1 9905- ●
41 PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO(SV1) OD=8 L=16 		9-08150-816-0 01 1 9703-9904 ●
41 PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO(SV1) OD=8 L=16 		9-08150-816-0 01 1 9905- ●
42 WASHER; THRUST,CR/SHF 1-11599-009-0 02 1 9603-9706 ●
42 WASHER; THRUST,CR/SHF 1-11599-009-0 02 1 9707-9904 ● ●
42 WASHER; THRUST,CR/SHF 1-11599-009-0 02 1 9905- ● ● ● ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09029-073-0 06 1 9603-9706 ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09029-073-0 06 1 9707-9904 ● ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09029-073-0 06 1 9905- ● ● ● ●
58 BOLT; CR/SHF PULLEY
(B) 		1-09070-017-1 04 1 9603-9706 ●
58 BOLT; CR/SHF PULLEY
(B) 		1-09070-017-1 04 1 9707-9904 ● ●
58 BOLT; CR/SHF PULLEY
(B) 		1-09070-017-1 04 1 9905- ● ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE 		1-12111-852-0 06 1 9603-9704 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE 		1-12111-906-0 06 1 9705-9904 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-906-0 06 1 9905-9905 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) NON GRADE 		1-12111-906-1 06 1 9906- ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE 		1-12111-853-0 06 1 9603-9704 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE 		1-12111-908-0 06 1 9705-9904 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-908-1 06 1 9905- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-887-0 06 1 9707-9904 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-888-0 06 1 9905- ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) NON GRADE 		1-12111-907-1 06 1 9906- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-127-1 06 1 9603-9607 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-136-0 06 1 9608-9704 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-139-0 06 1 9705-9710 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-141-0 06 1 9711-9904 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-141-0 06 1 9905- ● ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-132-0 06 1 9707-9812 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-143-0 06 1 9901-9904 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-143-0 06 1 9905- ●
73 METAL SET; CONN ROD,STANDARD 1-12271-072-0 06 1 9603-9706 ●
73 METAL SET; CONN ROD,STANDARD 1-12271-072-0 06 1 9707-9904 ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-072-1 06 1 9905- ● ● ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-0 06 1 9603-9706 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-0 06 1 9707-9904 ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 9905- ● ● ● ●
84 ROD ASM; CONN 1-12230-176-1 06 1 9603-9706 ●
84 ROD ASM; CONN 1-12230-176-2 06 1 9707-9904 ● ●
84 ROD ASM; CONN 1-12230-176-2 06 1 9905- ● ● ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 9603-9706 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 9707-9904 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 9905- ● ● ● ●
86 BOLT; CONNROD 1-12235-036-2 12 1 9603-9706 ●
86 BOLT; CONNROD 1-12235-036-3 12 1 9707-9904 ● ●
86 BOLT; CONNROD 1-12235-036-3 12 1 9905- ● ● ● ●
88 NUT; CONNROD 1-12239-005-1 12 1 9603-9706 ●
88 NUT; CONNROD 1-12239-005-1 12 1 9707-9904 ● ●
88 NUT; CONNROD 1-12239-005-1 12 1 9905- ● ● ● ●
102 PIN; TIMING SENSOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-12339-013-0 06 1 9603-9609 ●
102 PIN; TIMING SENSOR
EXC. CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-12339-013-0 06 1 9610-9801 ●
102 PIN; TIMING SENSOR 1-12339-013-0 06 1 9802-9904 ● ●
102 PIN; TIMING SENSOR 1-12339-013-0 06 1 9905- ● ● ● ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 9603-9706 ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 9707-9904 ● ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 9905- ● ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 9603-9706 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 9707-9904 ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 9905- ● ● ● ●
149 PLUG
PT1 		1-09605-021-0 06 1 9603-9706 ●
149 PLUG
PT1 		1-09605-021-0 06 1 9707-9904 ● ●
149 PLUG
PT1 		1-09605-021-0 06 1 9905- ● ● ● ●
