0-60 — ENGINE ELECTRICAL CONTROL PARTS (#42228) — 58 parça

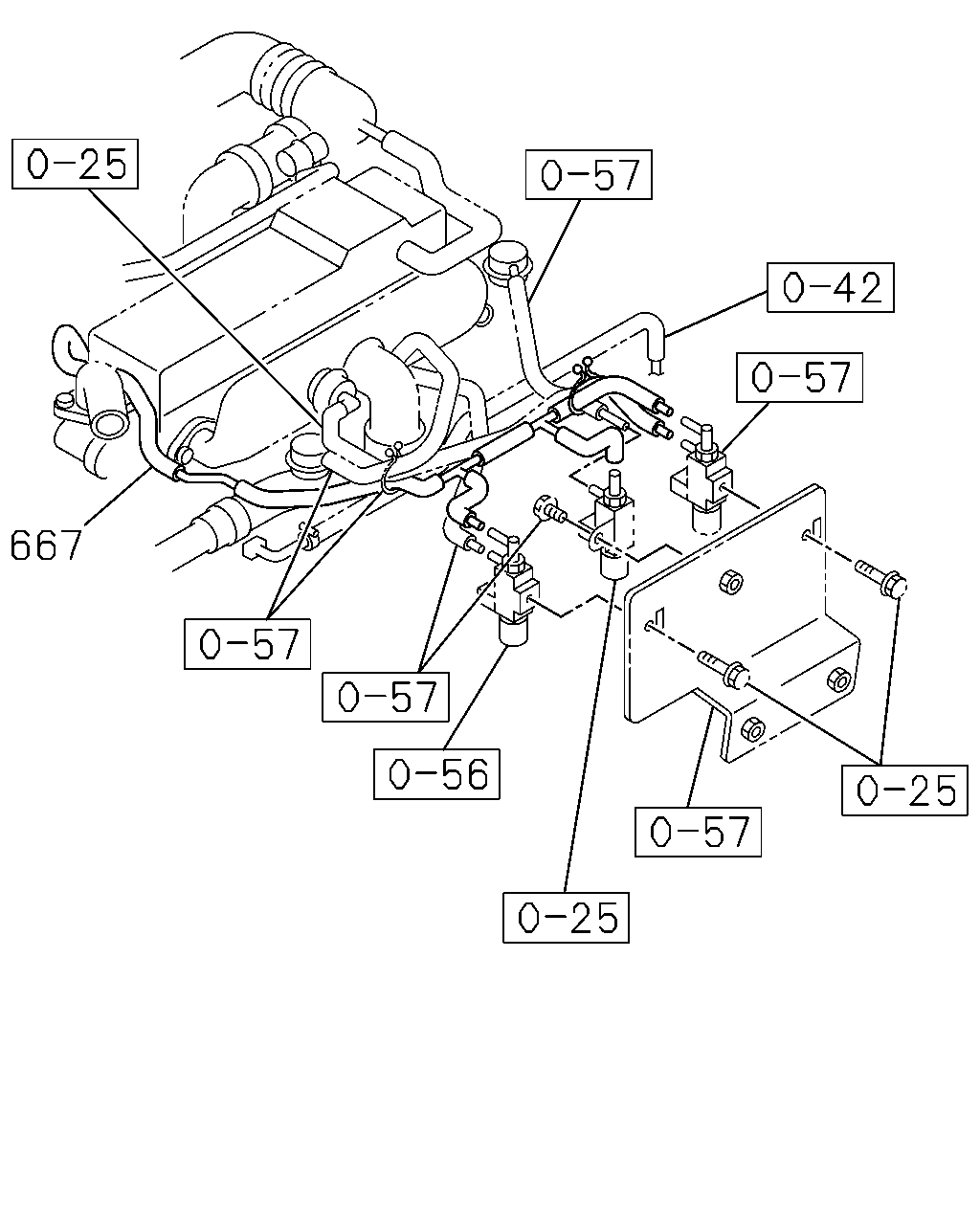

çizim 9168
667
BalonParca AdiParca NoAdetTipApplied Date A B
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> 		8-97228-358-1 01 1 0005- ●

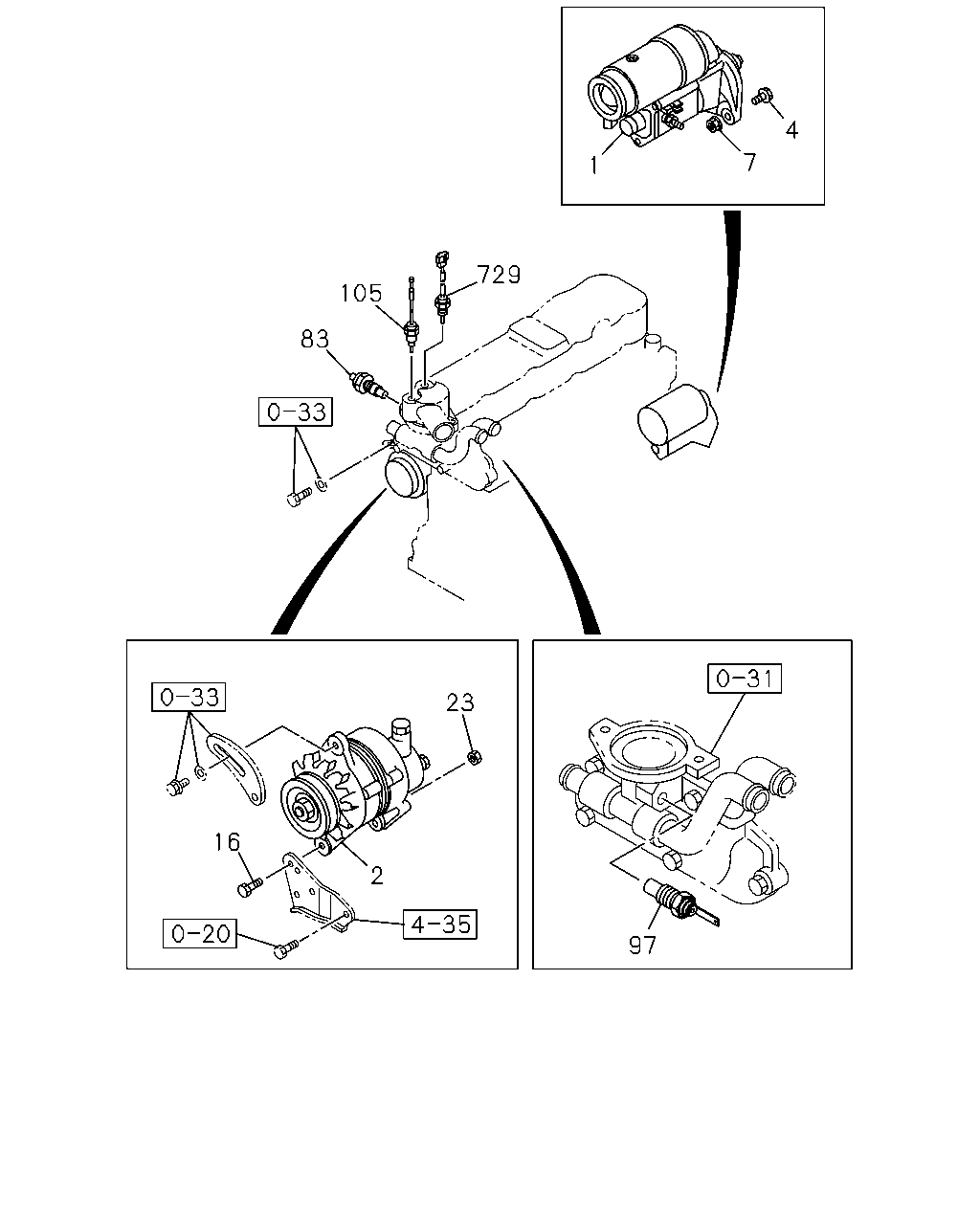

çizim 46193
4 7 1 729 105 83 23 16 2 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 9811- ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811- ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911- ● ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9911- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811- ● ●
97 01.150 SWITCH; THERMO,EGR CONT
EXC. EURO2 SPECIFICATION<7AF> 		8-94368-591-0 01 1 9911-0004 ●
97 01.150 SWITCH; THERMO,EGR CONT
TURBOCHARGER<K51> 		8-94368-591-0 01 1 0005-0105 ●
97 01.150 SWITCH; THERMO,EGR CONT
EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) 		8-94368-591-0 01 1 0005-0105 ●
97 01.150 SWITCH; THERMO,EGR CONT
TURBOCHARGER<K51> 		8-94368-591-0 01 1 0106- ●
97 01.150 SWITCH; THERMO,EGR CONT
EXC. EURO2 SPECIFICATION<7AF> 		8-94368-591-0 01 1 0106- ●
105 01.150 SWITCH; THERMO,QOS
COLOMBIA EQUIPMENT(X74) GREEN 		8-97068-804-0 01 1 9811-0004 ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> GREEN 		8-94336-668-0 01 1 0005- ●
105 01.150 SWITCH; THERMO,QOS
EXC. INDONESIA EQUIPMENT(S4S),COLOMBIA EQUIPMENT(X74) WHITE 		8-94457-511-0 01 1 9811-0006 ●
105 01.150 SWITCH; THERMO,QOS
EXC. INDONESIA EQUIPMENT(S4S),COLOMBIA EQUIPMENT(X74) WHITE 		8-94457-511-0 01 1 0007- ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> WHITE 		8-94457-511-0 01 1 0007- ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 9811- ●

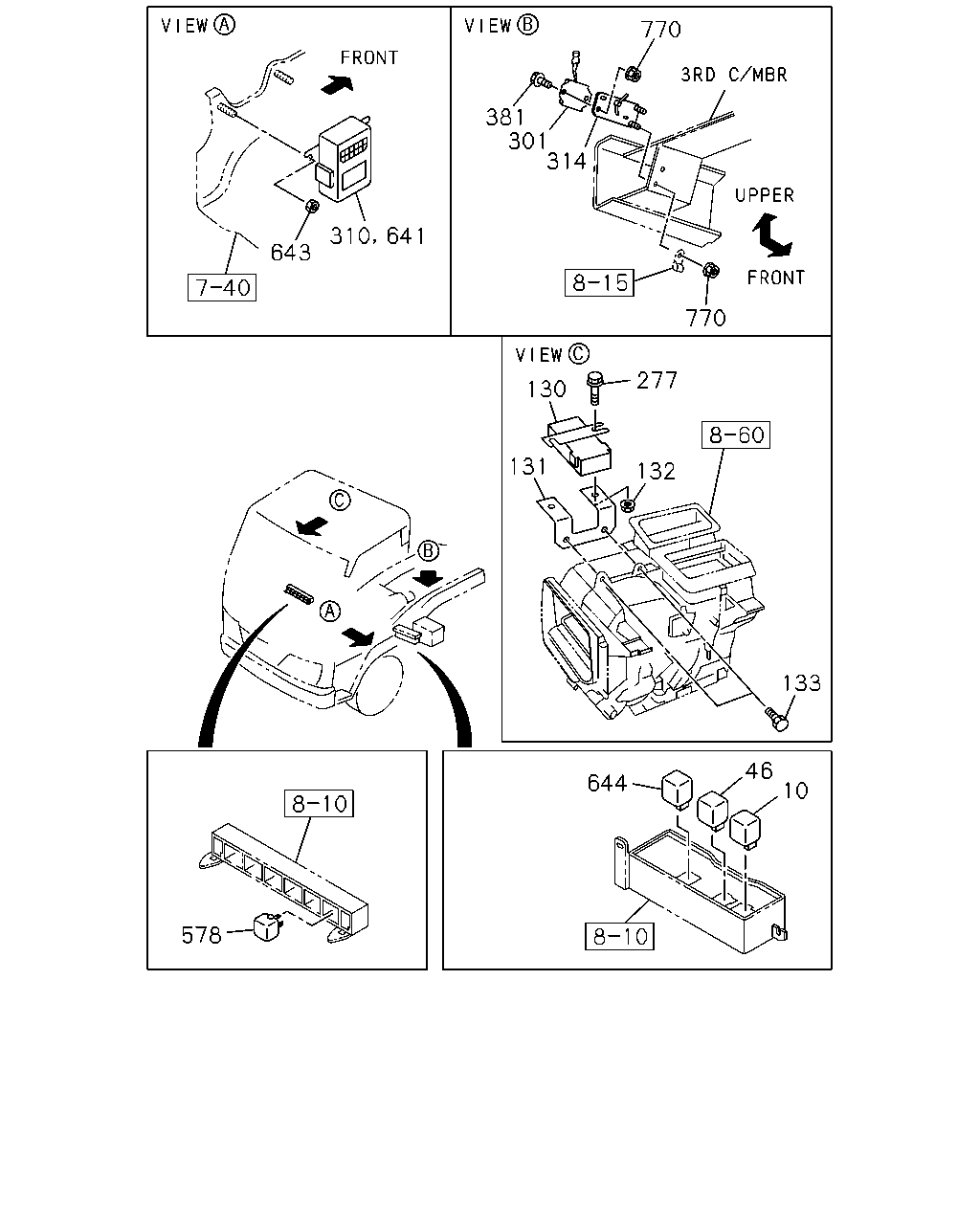

çizim 46600
770 381 301 314 310 641 643 770 277 130 131 132 133 46 644 10 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 9811- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 02 1 9811- ●
130 02.510 CONTROLLER; EGR
TURBOCHARGER<K51> 		8-97201-734-3 01 1 0005- ●
130 02.510 CONTROLLER; EGR
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97217-995-1 01 1 9911-0105 ●
130 02.510 CONTROLLER; EGR
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97217-995-1 01 1 0106- ●
131 03.670 BRACKET; EGR
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97217-813-1 01 1 9912-0004 ●
131 03.670 BRACKET; EGR
TURBOCHARGER<K51> 		8-97217-813-1 01 1 0005-0105 ●
131 03.670 BRACKET; EGR
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97217-813-1 01 1 0005-0105 ●
131 03.670 BRACKET; EGR
TURBOCHARGER<K51> 		8-97217-813-1 01 1 0106- ●
131 03.670 BRACKET; EGR
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97217-813-1 01 1 0106- ●
132 03.675 NUT; CONTROLLER
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9911-9911 ●
133 02.500 BOLT; EGR CONTROLLER
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9912-0004 ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0005-0105 ●
133 02.500 BOLT; EGR CONTROLLER
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0005-0105 ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
133 02.500 BOLT; EGR CONTROLLER
LOW EMISSION VEHICLE PACKAGE<7VP> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
277 02.510 BOLT; BRKT
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9912-0004 ●
277 02.510 BOLT; BRKT
TURBOCHARGER<K51> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0005-0105 ●
277 02.510 BOLT; BRKT
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0005-0105 ●
277 02.510 BOLT; BRKT
TURBOCHARGER<K51> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
277 02.510 BOLT; BRKT
LOW EMISSION VEHICLE PACKAGE<7VP> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
301 02.510 RESISTOR; DROPPING
FAST GLOW SYSTEM<KM6> 		8-94389-802-1 01 1 9811- ●
310 02.510 CONTROLLER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-029-0 01 1 9811- ●
314 02.500 BRACKET; DROPPING RESISTOR
RHD(NH*5**) 		8-97061-910-2 01 1 9811-0105 ●
314 02.500 BRACKET; DROPPING RESISTOR
SMALL DUAL RR TIRE&RHD(NHN5**) 		8-97061-910-2 01 1 0106- ●
381 02.183 BOLT; DROPPING RESISTOR
RHD(NH*5**) 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 9811-0105 ●
381 02.183 BOLT; DROPPING RESISTOR
SMALL DUAL RR TIRE&RHD(NHN5**) 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0106- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 9811- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9811- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ● ●
644 02.510 RELAY; COLD START DEVICE
08.852 12V 20A 		8-97060-926-1 01 1 9811- ●
770 02.183 NUT; DROPPING REGISTER
RHD(NH*5**) 04.594 M6 FLANGE 		0-91150-106-0 04 1 9811-0105 ●
770 02.183 NUT; DROPPING REGISTER
SMALL DUAL RR TIRE&RHD(NHN5**) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0106- ●
