◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#42223) — 516 parça
çizim 19389
268
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
268 01.152 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
268 01.152 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
268 01.152 CLIP; HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 0109- ● ● ● ● ● ● ● ●

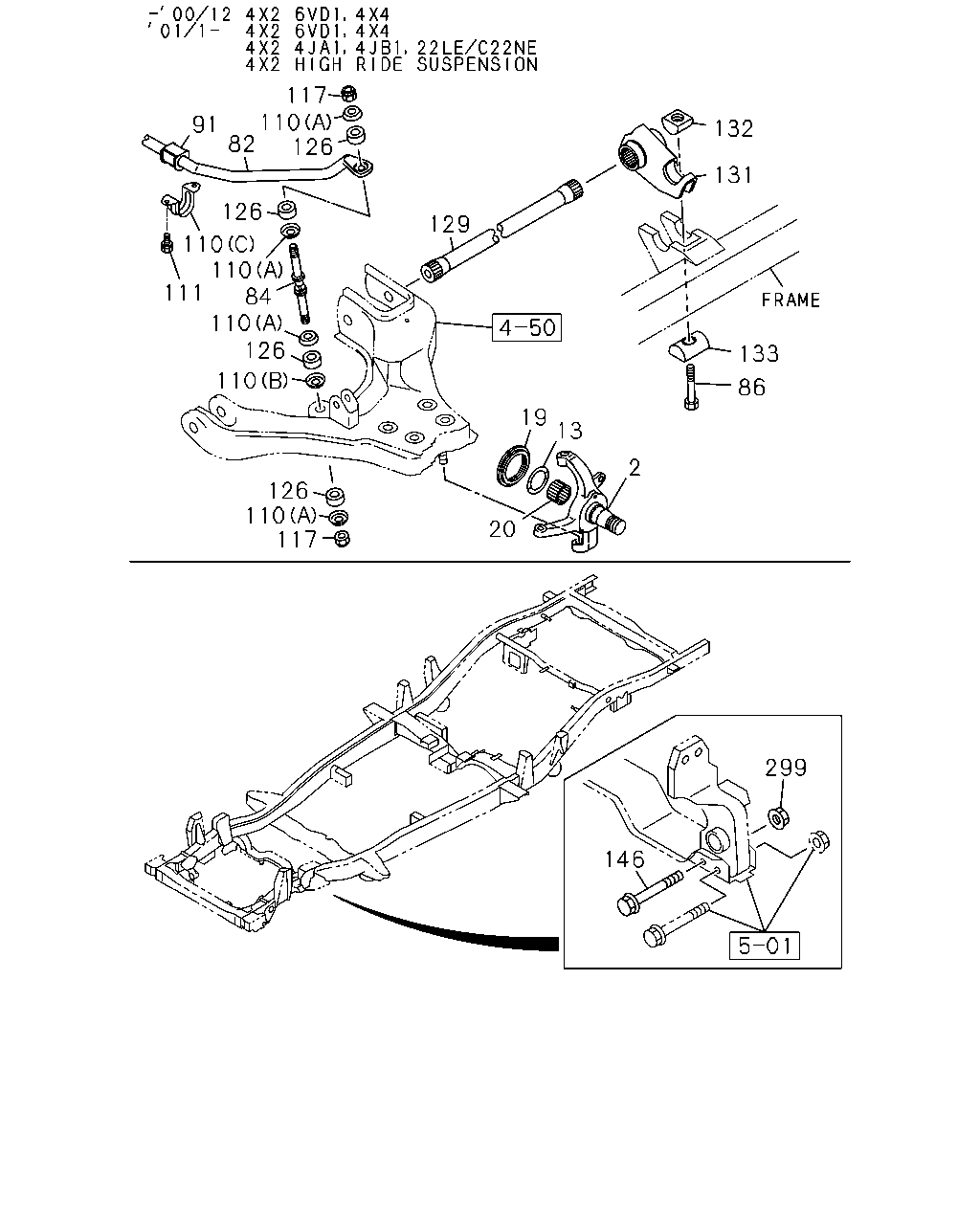

çizim 71220
117 110 82 126 91 132 131 126 129 110 110 84 110 126 111 133 110 86 19 13 2 126 110 117 20 299 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94432-077-2 01 1 9804-9812 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94432-077-2 01 1 9901-0012 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-077-2 01 1 0101-0108 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0101-0108 ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-077-2 01 1 0109- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0109- ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94432-076-2 01 1 9804-9812 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94432-076-2 01 1 9901-0012 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-076-2 01 1 0101-0108 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0101-0108 ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-076-2 01 1 0109- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0109- ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-632-1 01 1 9804-9812 ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-632-1 01 1 9901-0012 ● ●
2 06.020 KNUCKLE; FRT AXLE
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94320-632-1 01 1 0101- ● ● ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-631-1 01 1 9804-9812 ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-631-1 01 1 9901-0012 ● ●
2 06.020 KNUCKLE; FRT AXLE
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94320-631-1 01 1 0101- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-341-5 01 1 9804- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-340-5 01 1 9804- ● ● ● ●
13 06.104 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 9804- ● ● ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 9804- ● ● ● ●
20 06.104 BEARING; KNUCKLE 8-94407-708-0 02 1 9804- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94472-311-0 01 1 9804-9812 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94472-311-0 01 1 9901-0012 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94472-311-0 01 1 0101-0108 ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94472-311-0 01 1 0101-0108 ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94472-311-0 01 1 0109- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94472-311-0 01 1 0109- ●
82 07.241 BAR; STAB,FRT SUSP
6VD1 ENG(RLV) 		8-94438-650-2 01 1 9804-9812 ●
82 07.241 BAR; STAB,FRT SUSP
6VD1 ENG(RLV) 		8-94438-650-2 01 1 9901- ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 9804-0012 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0101-0108 ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 0101-0108 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0109-0109 ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0109-0109 ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 0109-0109 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0110- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 0110- ● ● ● ●
84 07.242 BOLT; STAB SHAFT TO CONT LINK
6VD1 ENG(RLV) 		8-94408-853-1 02 1 9804-9812 ●
84 07.242 BOLT; STAB SHAFT TO CONT LINK 8-94408-853-1 02 1 9804-9812 ● ● ● ●
84 07.242 BOLT; STAB SHAFT TO CONT LINK
6VD1 ENG(RLV) 		8-94408-853-1 02 1 9901-0012 ● ●
84 07.242 BOLT; STAB SHAFT TO CONT LINK 8-94408-853-1 02 1 9901-0012 ● ● ● ●
84 07.242 BOLT; STAB SHAFT TO CONT LINK
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94408-853-1 02 1 0101- ● ● ●
84 07.242 BOLT; STAB SHAFT TO CONT LINK 8-94408-853-1 02 1 0101- ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X130 		8-94101-707-0 02 1 9804-9812 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M14X130 		8-94101-707-0 02 1 9901-0012 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M14X130 		8-94101-707-0 02 1 0101-0108 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M14X130 		8-94101-707-0 02 1 0109-0308 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M16X130 		8-97309-565-0 02 1 0309- ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) M18X148 		8-97033-127-2 02 1 9804-9812 ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9804-9812 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) M18X148 		8-97033-127-2 02 1 9901-0012 ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9901-0012 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97033-127-2 02 1 0101-0101 ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97033-127-2 02 1 0101-0101 ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 0101-0101 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97307-297-0 02 1 0102- ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97307-297-0 02 1 0102- ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97307-297-0 02 1 0102- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94459-459-2 02 1 9804-9812 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94459-459-2 02 1 9901-0012 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-459-2 02 1 0101-0108 ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 0101-0108 ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-459-2 02 1 0109- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 0109- ●
91 07.243 BUSHING; RUBBER,STAB BAR
6VD1 ENG(RLV) 		8-94419-403-0 02 1 9804-9812 ●
91 07.243 BUSHING; RUBBER,STAB BAR
6VD1 ENG(RLV) 		8-94419-403-0 02 1 9901- ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 9804-0012 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0101-0108 ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 0101-0108 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0109-0109 ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0109-0109 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 0109-0109 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0110- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 0110- ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94322-472-0 02 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94322-472-0 02 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94322-472-0 02 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-94322-472-0 02 1 0101- ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (B) ID=18 OD=39 		8-94227-049-1 02 1 9804-9812 ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (B) ID=18 OD=39 		8-94227-049-1 02 1 9901-0012 ● ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=18 OD=39 		8-94227-049-1 02 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 0101- ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (A) OD=32 		8-94342-383-0 08 1 9804-9812 ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (A) OD=32 		8-94342-383-0 08 1 9901-0012 ● ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) (A) OD=32 		8-94342-383-0 08 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 0101- ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (C) ID=36 		8-97032-869-0 02 1 9804-9812 ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (C) ID=36 		8-97032-869-0 02 1 9901-0012 ● ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) (C) ID=36 		8-97032-869-0 02 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 0101- ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9804-9812 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9901-0012 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0101- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0101- ●
111 07.242 BOLT; CLAMP TO ROD
6VD1 ENG(RLV) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9804-9812 ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9804-9812 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
6VD1 ENG(RLV) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9901-0012 ● ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9901-0012 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0101- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0101- ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10 		9-09110-410-0 02 1 9804-9812 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.011 M10 		9-09110-410-0 02 1 9901-0012 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 09.011 M10 		9-09110-410-0 02 1 0101-0108 ● ● ●
117 06.174 NUT; STAB BAR BUSHING
09.011 M10 		9-09110-410-0 02 1 0101-0108 ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 09.011 M10 		9-09110-410-0 02 1 0109- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
09.011 M10 		9-09110-410-0 02 1 0109- ●
117 06.174 NUT; STAB BAR BUSHING
6VD1 ENG(RLV) M8 FLANGE 		8-94342-381-0 04 1 9804-9812 ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 9804-9812 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
6VD1 ENG(RLV) M8 FLANGE 		8-94342-381-0 04 1 9901-0012 ● ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 9901-0012 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
4X2 HIGH RIDE SUSPENSION(7YC) M8 FLANGE 		8-94342-381-0 04 1 0101- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 0101- ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.244 		5-51631-017-0 04 1 9804-9812 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 07.244 		5-51631-017-0 04 1 9901-0012 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		5-51631-017-0 04 1 0101-0108 ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		5-51631-017-0 04 1 0101-0108 ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		5-51631-017-0 04 1 0109- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		5-51631-017-0 04 1 0109- ●
126 07.243 RUBBER; MTG,STAB BAR
6VD1 ENG(RLV) 07.244 		8-94227-138-0 08 1 9804-9812 ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 9804-9812 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
6VD1 ENG(RLV) 07.244 		8-94227-138-0 08 1 9901-0012 ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 9901-0012 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		8-94227-138-0 08 1 0101- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 0101- ● ● ● ●

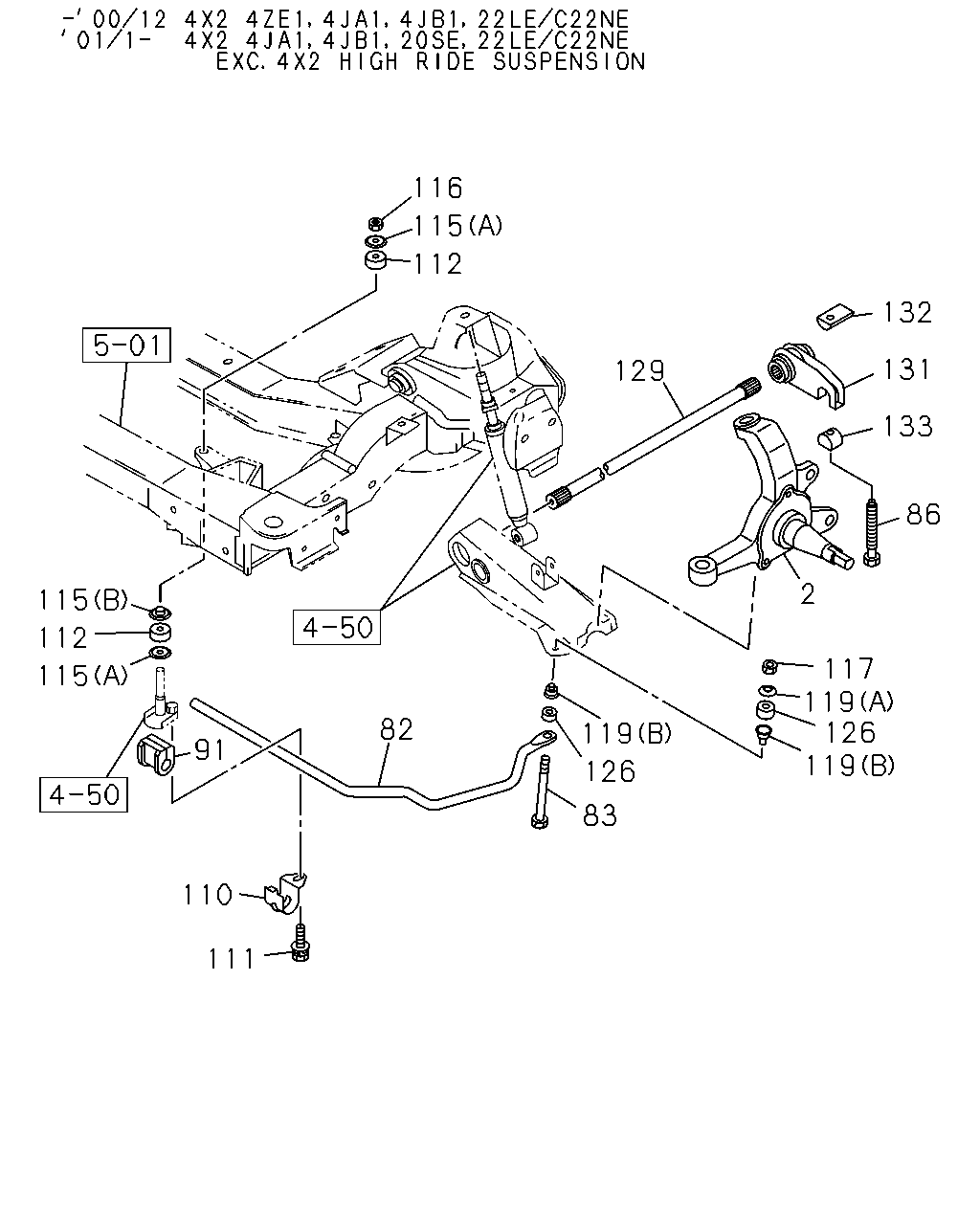

129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-654-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-654-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-654-0 01 1 9910-0011 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94433-680-0 01 1 0012-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-680-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-680-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-653-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-653-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-653-0 01 1 9910-0011 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94433-679-0 01 1 0012-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-679-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-679-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9804-9812 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9901-9909 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-656-0 01 1 9910-0004 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-656-0 01 1 9910-0004 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-441-0 01 1 0005-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-441-0 01 1 0005-0012 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0109- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9804-9812 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9901-9909 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-655-0 01 1 9910-0004 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-655-0 01 1 9910-0004 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-440-0 01 1 0005-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-440-0 01 1 0005-0012 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0109- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS), REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97044-391-0 01 1 9804-9909 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97044-391-0 01 1 9910-0012 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97044-391-0 01 1 0101- ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS), REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97044-390-0 01 1 9804-9909 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97044-390-0 01 1 9910-0012 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97044-390-0 01 1 0101- ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97117-734-0 01 1 0010-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-734-0 01 1 0101- ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97117-733-0 01 1 0010-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-733-0 01 1 0101- ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-684-0 01 1 9804-9812 ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-684-0 01 1 9901- ● ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-683-0 01 1 9804-9812 ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-683-0 01 1 9901- ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 9804-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0109-0109 ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0109-0109 ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 0109-0109 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0110- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 0110- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 9804-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0109-0109 ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0109-0109 ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 0109-0109 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0110- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 0110- ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94468-001-1 02 1 9804-9812 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94468-001-1 02 1 9901-0012 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-001-1 02 1 0101-0108 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-001-1 02 1 0109-0308 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97309-626-0 02 1 0309- ● ● ● ●
131 07.436 ARM; HEIGHT CONT
6VD1 ENG(RLV) 		8-94360-802-2 02 1 9804-9812 ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 9804-9812 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
6VD1 ENG(RLV) 		8-94360-802-2 02 1 9901-0012 ● ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 9901-0012 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94360-802-2 02 1 0101- ● ● ●
131 07.436 ARM; HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94360-802-2 02 1 0101- ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 0101- ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94468-556-2 02 1 9804-9812 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94468-556-2 02 1 9901-0012 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-556-2 02 1 0101-0108 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-556-2 02 1 0109-0308 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97309-544-0 02 1 0309- ● ● ● ●
132 07.436 COLLAR; TORSION BAR
6VD1 ENG(RLV) 		8-94367-757-0 02 1 9804-9812 ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 9804-9812 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
6VD1 ENG(RLV) 		8-94367-757-0 02 1 9901-0012 ● ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 9901-0012 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-757-0 02 1 0101- ● ● ●
132 07.436 COLLAR; TORSION BAR
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-757-0 02 1 0101- ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 0101- ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94367-950-0 02 1 9804-9812 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94367-950-0 02 1 9901-0012 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-950-0 02 1 0101-0108 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-950-0 02 1 0109-0308 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97309-542-0 02 1 0309- ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) 		8-97032-976-1 02 1 9804-9812 ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9804-9812 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) 		8-97032-976-1 02 1 9901-0012 ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9901-0012 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97032-976-1 02 1 0101- ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97032-976-1 02 1 0101- ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 0101- ● ● ● ●
146 07.039 BOLT; SUPPORT
6VD1 ENG(RLV) M10X83 FLANGE 		8-97805-841-0 02 1 9804-9812 ●
146 07.039 BOLT; SUPPORT
M10X83 FLANGE 		8-97805-841-0 02 1 9804-9812 ● ● ● ●
146 07.039 BOLT; SUPPORT
6VD1 ENG(RLV) M10X83 FLANGE 		8-97805-841-0 02 1 9901-0012 ● ●
146 07.039 BOLT; SUPPORT
M10X83 FLANGE 		8-97805-841-0 02 1 9901-0012 ● ● ● ●
146 07.039 BOLT; SUPPORT
4X2 HIGH RIDE SUSPENSION(7YC) M10X83 FLANGE 		8-97805-841-1 02 1 0101- ● ● ●
146 07.039 BOLT; SUPPORT
M10X83 FLANGE 		8-97805-841-1 02 1 0101- ● ● ● ●
299 07.039 NUT; SUPPORT BAR
6VD1 ENG(RLV) M10 FLANGE 		8-94383-595-0 02 1 9804-9812 ●
299 07.039 NUT; SUPPORT BAR
M10 FLANGE 		8-94383-595-0 02 1 9804-9812 ● ● ● ●
299 07.039 NUT; SUPPORT BAR
6VD1 ENG(RLV) M10 FLANGE 		8-94383-595-0 02 1 9901-0012 ● ●
299 07.039 NUT; SUPPORT BAR
M10 FLANGE 		8-94383-595-0 02 1 9901-0012 ● ● ● ●
299 07.039 NUT; SUPPORT BAR
4X2 HIGH RIDE SUSPENSION(7YC) M10 FLANGE 		8-94383-595-0 02 1 0101- ● ● ●
299 07.039 NUT; SUPPORT BAR
M10 FLANGE 		8-94383-595-0 02 1 0101- ● ● ● ●
çizim 74017
116 115 112 132 131 129 133 86 2 115 112 117 119 126 119 115 91 82 119 126 83 110 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94432-077-2 01 1 9804-9812 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94432-077-2 01 1 9901-0012 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-077-2 01 1 0101-0108 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0101-0108 ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-077-2 01 1 0109- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0109- ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94432-076-2 01 1 9804-9812 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94432-076-2 01 1 9901-0012 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-076-2 01 1 0101-0108 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0101-0108 ●
2 06.020 KNUCKLE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94432-076-2 01 1 0109- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0109- ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-632-1 01 1 9804-9812 ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-632-1 01 1 9901-0012 ● ●
2 06.020 KNUCKLE; FRT AXLE
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94320-632-1 01 1 0101- ● ● ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-631-1 01 1 9804-9812 ●
2 06.020 KNUCKLE; FRT AXLE
6VD1 ENG(RLV) 		8-94320-631-1 01 1 9901-0012 ● ●
2 06.020 KNUCKLE; FRT AXLE
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94320-631-1 01 1 0101- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-341-5 01 1 9804- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-340-5 01 1 9804- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94472-311-0 01 1 9804-9812 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94472-311-0 01 1 9901-0012 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94472-311-0 01 1 0101-0108 ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94472-311-0 01 1 0101-0108 ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94472-311-0 01 1 0109- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94472-311-0 01 1 0109- ●
82 07.241 BAR; STAB,FRT SUSP
6VD1 ENG(RLV) 		8-94438-650-2 01 1 9804-9812 ●
82 07.241 BAR; STAB,FRT SUSP
6VD1 ENG(RLV) 		8-94438-650-2 01 1 9901- ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 9804-0012 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0101-0108 ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 0101-0108 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0109-0109 ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0109-0109 ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 0109-0109 ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-458-1 01 1 0110- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 0110- ● ● ● ●
83 07.242 BOLT; STAB BAR TO CONT ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94478-868-0 02 1 9804-9812 ● ● ● ●
83 07.242 BOLT; STAB BAR TO CONT ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94478-868-0 02 1 9901-0012 ● ● ● ●
83 07.242 BOLT; STAB BAR TO CONT ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94478-868-0 02 1 0101-0108 ● ● ●
83 07.242 BOLT; STAB BAR TO CONT ARM 8-94478-868-0 02 1 0101-0108 ●
83 07.242 BOLT; STAB BAR TO CONT ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94478-868-0 02 1 0109- ● ● ●
83 07.242 BOLT; STAB BAR TO CONT ARM 8-94478-868-0 02 1 0109- ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X130 		8-94101-707-0 02 1 9804-9812 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M14X130 		8-94101-707-0 02 1 9901-0012 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M14X130 		8-94101-707-0 02 1 0101-0108 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M14X130 		8-94101-707-0 02 1 0109-0308 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M16X130 		8-97309-565-0 02 1 0309- ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) M18X148 		8-97033-127-2 02 1 9804-9812 ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9804-9812 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) M18X148 		8-97033-127-2 02 1 9901-0012 ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9901-0012 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97033-127-2 02 1 0101-0101 ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97033-127-2 02 1 0101-0101 ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 0101-0101 ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97307-297-0 02 1 0102- ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M18X148 		8-97307-297-0 02 1 0102- ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97307-297-0 02 1 0102- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94459-459-2 02 1 9804-9812 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94459-459-2 02 1 9901-0012 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-459-2 02 1 0101-0108 ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 0101-0108 ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-459-2 02 1 0109- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 0109- ●
91 07.243 BUSHING; RUBBER,STAB BAR
6VD1 ENG(RLV) 		8-94419-403-0 02 1 9804-9812 ●
91 07.243 BUSHING; RUBBER,STAB BAR
6VD1 ENG(RLV) 		8-94419-403-0 02 1 9901- ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 9804-0012 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0101-0108 ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 0101-0108 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0109-0109 ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0109-0109 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 0109-0109 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94318-777-1 02 1 0110- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 0110- ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94322-472-0 02 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94322-472-0 02 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94322-472-0 02 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-94322-472-0 02 1 0101- ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (B) ID=18 OD=39 		8-94227-049-1 02 1 9804-9812 ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (B) ID=18 OD=39 		8-94227-049-1 02 1 9901-0012 ● ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=18 OD=39 		8-94227-049-1 02 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 0101- ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (A) OD=32 		8-94342-383-0 08 1 9804-9812 ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (A) OD=32 		8-94342-383-0 08 1 9901-0012 ● ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) (A) OD=32 		8-94342-383-0 08 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 0101- ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (C) ID=36 		8-97032-869-0 02 1 9804-9812 ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9804-9812 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
6VD1 ENG(RLV) (C) ID=36 		8-97032-869-0 02 1 9901-0012 ● ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9901-0012 ● ● ● ●
110 07.242 CLAMP; STAB TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) (C) ID=36 		8-97032-869-0 02 1 0101- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 0101- ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9804-9812 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9901-0012 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0101- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0101- ●
111 07.242 BOLT; CLAMP TO ROD
6VD1 ENG(RLV) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9804-9812 ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9804-9812 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
6VD1 ENG(RLV) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9901-0012 ● ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9901-0012 ● ● ● ●
111 07.242 BOLT; CLAMP TO ROD
4X2 HIGH RIDE SUSPENSION(7YC) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0101- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0101- ● ● ● ●
112 07.243 BUSHING; ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.244 		8-94143-210-0 04 1 9804-9812 ● ● ● ●
112 07.243 BUSHING; ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 07.244 		8-94143-210-0 04 1 9901-0012 ● ● ● ●
112 07.243 BUSHING; ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		8-94143-210-0 04 1 0101-0108 ● ● ●
112 07.243 BUSHING; ROD
07.244 		8-94143-210-0 04 1 0101-0108 ●
112 07.243 BUSHING; ROD
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		8-94143-210-0 04 1 0109- ● ● ●
112 07.243 BUSHING; ROD
07.244 		8-94143-210-0 04 1 0109- ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.245 (A) ID=10.5 OD=32 		9-51631-048-0 04 1 9804-9812 ● ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 07.245 (A) ID=10.5 OD=32 		9-51631-048-0 04 1 9901-0012 ● ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.245 (A) ID=10.5 OD=32 		9-51631-048-0 04 1 0101-0108 ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
07.245 (A) ID=10.5 OD=32 		9-51631-048-0 04 1 0101-0108 ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.245 (A) ID=10.5 OD=32 		9-51631-048-0 04 1 0109- ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
07.245 (A) ID=10.5 OD=32 		9-51631-048-0 04 1 0109- ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.245 (B) ID=15.0 OD=32 		9-51631-049-0 02 1 9804-9812 ● ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 07.245 (B) ID=15.0 OD=32 		9-51631-049-0 02 1 9901-0012 ● ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.245 (B) ID=15.0 OD=32 		9-51631-049-0 02 1 0101-0108 ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
07.245 (B) ID=15.0 OD=32 		9-51631-049-0 02 1 0101-0108 ●
115 07.242 WASHER; CENTER,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.245 (B) ID=15.0 OD=32 		9-51631-049-0 02 1 0109- ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
07.245 (B) ID=15.0 OD=32 		9-51631-049-0 02 1 0109- ●
116 07.242 NUT; LK,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10 		9-09110-410-0 02 1 9804-9812 ● ● ● ●
116 07.242 NUT; LK,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.011 M10 		9-09110-410-0 02 1 9901-0012 ● ● ● ●
116 07.242 NUT; LK,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 09.011 M10 		9-09110-410-0 02 1 0101-0108 ● ● ●
116 07.242 NUT; LK,STAB TO FRAME
09.011 M10 		9-09110-410-0 02 1 0101-0108 ●
116 07.242 NUT; LK,STAB TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 09.011 M10 		9-09110-410-0 02 1 0109- ● ● ●
116 07.242 NUT; LK,STAB TO FRAME
09.011 M10 		9-09110-410-0 02 1 0109- ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10 		9-09110-410-0 02 1 9804-9812 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.011 M10 		9-09110-410-0 02 1 9901-0012 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 09.011 M10 		9-09110-410-0 02 1 0101-0108 ● ● ●
117 06.174 NUT; STAB BAR BUSHING
09.011 M10 		9-09110-410-0 02 1 0101-0108 ●
117 06.174 NUT; STAB BAR BUSHING
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 09.011 M10 		9-09110-410-0 02 1 0109- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
09.011 M10 		9-09110-410-0 02 1 0109- ●
117 06.174 NUT; STAB BAR BUSHING
6VD1 ENG(RLV) M8 FLANGE 		8-94342-381-0 04 1 9804-9812 ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 9804-9812 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
6VD1 ENG(RLV) M8 FLANGE 		8-94342-381-0 04 1 9901-0012 ● ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 9901-0012 ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
4X2 HIGH RIDE SUSPENSION(7YC) M8 FLANGE 		8-94342-381-0 04 1 0101- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 0101- ● ● ● ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) ID=10.5 OD=32 		9-51631-048-0 02 1 9804-9812 ● ● ● ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) ID=10.5 OD=32 		9-51631-048-0 02 1 9901-0012 ● ● ● ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) ID=10.5 OD=32 		9-51631-048-0 02 1 0101-0108 ● ● ●
119 07.245 WASHER; CTR,STAB BAR
(A) ID=10.5 OD=32 		9-51631-048-0 02 1 0101-0108 ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) ID=10.5 OD=32 		9-51631-048-0 02 1 0109- ● ● ●
119 07.245 WASHER; CTR,STAB BAR
(A) ID=10.5 OD=32 		9-51631-048-0 02 1 0109- ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) ID=15.0 OD=32 		9-51631-049-0 04 1 9804-9812 ● ● ● ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) ID=15.0 OD=32 		9-51631-049-0 04 1 9901-0012 ● ● ● ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=15.0 OD=32 		9-51631-049-0 04 1 0101-0108 ● ● ●
119 07.245 WASHER; CTR,STAB BAR
(B) ID=15.0 OD=32 		9-51631-049-0 04 1 0101-0108 ●
119 07.245 WASHER; CTR,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=15.0 OD=32 		9-51631-049-0 04 1 0109- ● ● ●
119 07.245 WASHER; CTR,STAB BAR
(B) ID=15.0 OD=32 		9-51631-049-0 04 1 0109- ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.244 		5-51631-017-0 04 1 9804-9812 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 07.244 		5-51631-017-0 04 1 9901-0012 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		5-51631-017-0 04 1 0101-0108 ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		5-51631-017-0 04 1 0101-0108 ●
126 07.243 RUBBER; MTG,STAB BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		5-51631-017-0 04 1 0109- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		5-51631-017-0 04 1 0109- ●
126 07.243 RUBBER; MTG,STAB BAR
6VD1 ENG(RLV) 07.244 		8-94227-138-0 08 1 9804-9812 ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 9804-9812 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
6VD1 ENG(RLV) 07.244 		8-94227-138-0 08 1 9901-0012 ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 9901-0012 ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
4X2 HIGH RIDE SUSPENSION(7YC) 07.244 		8-94227-138-0 08 1 0101- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 0101- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-654-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-654-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-654-0 01 1 9910-0011 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94433-680-0 01 1 0012-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-680-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-680-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-653-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-653-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-653-0 01 1 9910-0011 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94433-679-0 01 1 0012-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-679-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-679-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9804-9812 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-656-0 01 1 9901-9909 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-656-0 01 1 9910-0004 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-656-0 01 1 9910-0004 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-441-0 01 1 0005-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-441-0 01 1 0005-0012 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-441-0 01 1 0109- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9804-9812 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9804-9812 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9901-9909 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97138-655-0 01 1 9901-9909 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-655-0 01 1 9910-0004 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97138-655-0 01 1 9910-0004 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-440-0 01 1 0005-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-94459-440-0 01 1 0005-0012 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. REEXPORT FROM CHILE EQUIPMENT(7KS),4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0109- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),20SE ENG(RND) CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-440-0 01 1 0109- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS), REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97044-391-0 01 1 9804-9909 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97044-391-0 01 1 9910-0012 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97044-391-0 01 1 0101- ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS), REEXPORT FROM KENYA EQUIPMENT(7NT) 		8-97044-390-0 01 1 9804-9909 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97044-390-0 01 1 9910-0012 ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JA1 ENG(RLE) REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97044-390-0 01 1 0101- ● ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97117-734-0 01 1 0010-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-734-0 01 1 0101- ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) 		8-97117-733-0 01 1 0010-0012 ●
129 07.412 BAR; TORSION,FRT SUSP
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-733-0 01 1 0101- ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-684-0 01 1 9804-9812 ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-684-0 01 1 9901- ● ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-683-0 01 1 9804-9812 ●
129 07.412 BAR; TORSION,FRT SUSP
6VD1 ENG(RLV) 		8-94433-683-0 01 1 9901- ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 9804-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0109-0109 ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0109-0109 ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 0109-0109 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-445-0 01 1 0110- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 0110- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 9804-0012 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0101-0108 ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 0101-0108 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0109-0109 ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0109-0109 ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 0109-0109 ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94459-444-0 01 1 0110- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 0110- ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94468-001-1 02 1 9804-9812 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94468-001-1 02 1 9901-0012 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-001-1 02 1 0101-0108 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-001-1 02 1 0109-0308 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97309-626-0 02 1 0309- ● ● ● ●
131 07.436 ARM; HEIGHT CONT
6VD1 ENG(RLV) 		8-94360-802-2 02 1 9804-9812 ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 9804-9812 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
6VD1 ENG(RLV) 		8-94360-802-2 02 1 9901-0012 ● ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 9901-0012 ● ● ● ●
131 07.436 ARM; HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94360-802-2 02 1 0101- ● ● ●
131 07.436 ARM; HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94360-802-2 02 1 0101- ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 0101- ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94468-556-2 02 1 9804-9812 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94468-556-2 02 1 9901-0012 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-556-2 02 1 0101-0108 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94468-556-2 02 1 0109-0308 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97309-544-0 02 1 0309- ● ● ● ●
132 07.436 COLLAR; TORSION BAR
6VD1 ENG(RLV) 		8-94367-757-0 02 1 9804-9812 ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 9804-9812 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
6VD1 ENG(RLV) 		8-94367-757-0 02 1 9901-0012 ● ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 9901-0012 ● ● ● ●
132 07.436 COLLAR; TORSION BAR
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-757-0 02 1 0101- ● ● ●
132 07.436 COLLAR; TORSION BAR
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-757-0 02 1 0101- ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 0101- ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94367-950-0 02 1 9804-9812 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94367-950-0 02 1 9901-0012 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-950-0 02 1 0101-0108 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94367-950-0 02 1 0109-0308 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97309-542-0 02 1 0309- ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) 		8-97032-976-1 02 1 9804-9812 ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9804-9812 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
6VD1 ENG(RLV) 		8-97032-976-1 02 1 9901-0012 ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9901-0012 ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97032-976-1 02 1 0101- ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
4JB1 ENG(RLF) A/T AISIN(RMD) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97032-976-1 02 1 0101- ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 0101- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
