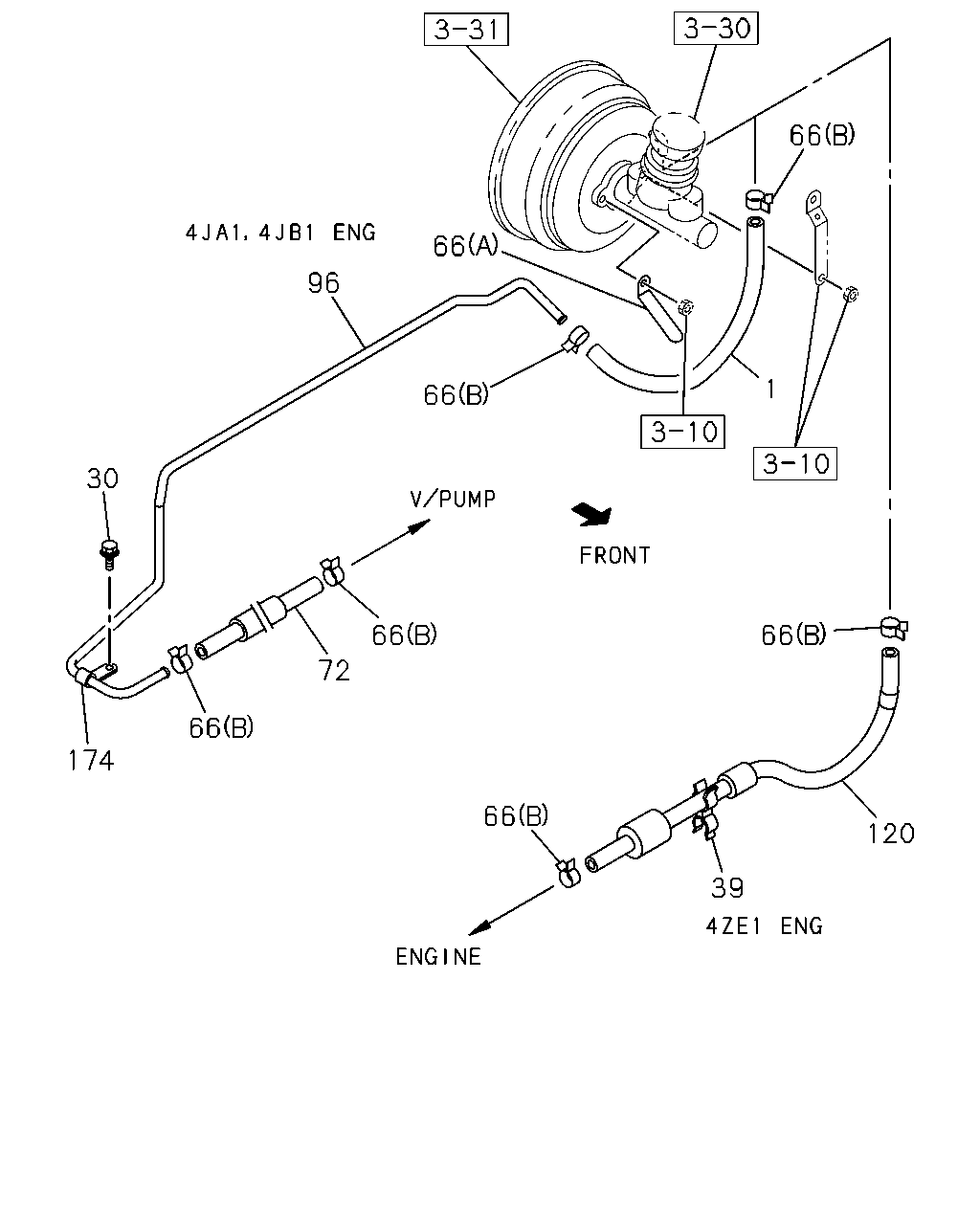

3-60 — BRAKE PIPING; VACUUM (#42221) — 75 parça

106 66 120 66 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
30	04.686 BOLT; CLIP,VAC PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9804-9911	●	●	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9912-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT) 04.681 (C)	8-97080-695-1	01	1	9804-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),20SE ENG(RND) 04.681 (C)	8-97080-695-1	01	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT) 04.681 (B) ID=16	8-97173-222-0	03	1	9804-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),20SE ENG(RND) 04.681 (B) ID=16	8-97173-222-0	03	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9804-9812	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4ZE1 ENG(RLJ),6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9804-9812			●	●				●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9901-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9901-0108			●	●			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) 04.681 (B) ID=16	8-97173-222-0	01	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	0109-			●	●			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (B) ID=16	8-97173-222-0	04	1	9804-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=91 ID=8.5	8-94329-956-0	01	1	9804-9812	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF) (A) L=91 ID=8.5	8-94329-956-0	01	1	9901-	●	●	●	●	●	●	●	●
106	04.930 CLIP; PIPE 6VD1 ENG(RLV) 04.931	8-97049-783-1	01	1	9804-9812				●				●
106	04.930 CLIP; PIPE 6VD1 ENG(RLV) 04.931	8-97049-783-1	01	1	9901-			●	●			●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 22LE/C22NE ENG(RJT)	8-97181-177-2	01	1	9804-0108	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 22LE/C22NE ENG(RJT),20SE ENG(RND)	8-97181-177-3	01	1	0109-	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 4ZE1 ENG(RLJ)	8-94328-121-1	01	1	9804-9811			●	●				●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 6VD1 ENG(RLV)	8-97163-843-2	01	1	9804-9812				●				●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 6VD1 ENG(RLV)	8-97163-843-3	01	1	9901-			●	●			●	●

66 66 96 1 66 30 66 66 72 66 174 66 120 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.931 HOSE; VAC,M/VAC TO VAC PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) L=420 SERVICED BY L=3000	0-08358-300-0	01	1	9804-0207	●	●	●	●	●	●	●	●
1	04.931 HOSE; VAC,M/VAC TO VAC PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) L=420 SERVICED BY L=3000	0-08158-300-0	01	1	0208-	●	●	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9804-9911	●	●	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9912-	●	●	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC 4ZE1 ENG(RLJ) 03.430 ID=6 & 16.5	8-94165-402-0	01	1	9804-9812			●	●				●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT) 04.681 (C)	8-97080-695-1	01	1	9804-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),20SE ENG(RND) 04.681 (C)	8-97080-695-1	01	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT) 04.681 (B) ID=16	8-97173-222-0	03	1	9804-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),20SE ENG(RND) 04.681 (B) ID=16	8-97173-222-0	03	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9804-9812	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4ZE1 ENG(RLJ),6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9804-9812			●	●				●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9901-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9901-0108			●	●			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) 04.681 (B) ID=16	8-97173-222-0	01	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	0109-			●	●			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (B) ID=16	8-97173-222-0	04	1	9804-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=91 ID=8.5	8-94329-956-0	01	1	9804-9812	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF) (A) L=91 ID=8.5	8-94329-956-0	01	1	9901-	●	●	●	●	●	●	●	●
72	04.931 HOSE; VAC,VAC PUMP TO PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF)	8-97073-616-0	01	1	9804-	●	●	●	●	●	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 22LE/C22NE ENG(RJT)	8-97183-596-2	01	1	9804-0108	●	●	●	●	●	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 22LE/C22NE ENG(RJT),20SE ENG(RND)	8-97183-596-2	01	1	0109-	●	●	●	●	●	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JA1 ENG(RLE),4JB1 ENG(RLF)	8-97110-877-0	01	1	9804-	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 22LE/C22NE ENG(RJT)	8-97181-177-2	01	1	9804-0108	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 22LE/C22NE ENG(RJT),20SE ENG(RND)	8-97181-177-3	01	1	0109-	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 4ZE1 ENG(RLJ)	8-94328-121-1	01	1	9804-9811			●	●				●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 6VD1 ENG(RLV)	8-97163-843-2	01	1	9804-9812				●				●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 6VD1 ENG(RLV)	8-97163-843-3	01	1	9901-			●	●			●	●
174	04.930 CLIP; VAC HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) ID=11 H=20 L=20	9-09527-010-0	01	1	9804-	●	●	●	●	●	●	●	●

131 66 162 120 96 66 66 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT) 04.681 (C)	8-97080-695-1	01	1	9804-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),20SE ENG(RND) 04.681 (C)	8-97080-695-1	01	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT) 04.681 (B) ID=16	8-97173-222-0	03	1	9804-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),20SE ENG(RND) 04.681 (B) ID=16	8-97173-222-0	03	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),4ZE1 ENG(RLJ), 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9804-9812	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4ZE1 ENG(RLJ),6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9804-9812			●	●				●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9901-0108	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	9901-0108			●	●			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 22LE/C22NE ENG(RJT),6VD1 ENG(RLV), 20SE ENG(RND) 04.681 (B) ID=16	8-97173-222-0	01	1	0109-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 6VD1 ENG(RLV) 04.681 (B) ID=16	8-97173-222-0	01	1	0109-			●	●			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (B) ID=16	8-97173-222-0	04	1	9804-	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=91 ID=8.5	8-94329-956-0	01	1	9804-9812	●	●	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1 ENG(RLE),4JB1 ENG(RLF) (A) L=91 ID=8.5	8-94329-956-0	01	1	9901-	●	●	●	●	●	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 22LE/C22NE ENG(RJT)	8-97183-596-2	01	1	9804-0108	●	●	●	●	●	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 22LE/C22NE ENG(RJT),20SE ENG(RND)	8-97183-596-2	01	1	0109-	●	●	●	●	●	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JA1 ENG(RLE),4JB1 ENG(RLF)	8-97110-877-0	01	1	9804-	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 22LE/C22NE ENG(RJT)	8-97181-177-2	01	1	9804-0108	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 22LE/C22NE ENG(RJT),20SE ENG(RND)	8-97181-177-3	01	1	0109-	●	●	●	●	●	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 4ZE1 ENG(RLJ)	8-94328-121-1	01	1	9804-9811			●	●				●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 6VD1 ENG(RLV)	8-97163-843-2	01	1	9804-9812				●				●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 6VD1 ENG(RLV)	8-97163-843-3	01	1	9901-			●	●			●	●
131	04.930 NUT; VAC PIPE FIX 22LE/C22NE ENG(RJT) 04.594 M6 FLANGE	0-91150-106-0	01	1	9806-0108	●	●	●	●	●	●	●	●
131	04.930 NUT; VAC PIPE FIX 22LE/C22NE ENG(RJT),20SE ENG(RND) 04.594 M6 FLANGE	0-91150-106-0	01	1	0109-	●	●	●	●	●	●	●	●
162	04.931 HOSE; VAC 22LE/C22NE ENG(RJT)	8-97183-599-0	01	1	9804-0108	●	●	●	●	●	●	●	●
162	04.931 HOSE; VAC 22LE/C22NE ENG(RJT),20SE ENG(RND)	8-97183-599-1	01	1	0109-	●	●	●	●	●	●	●	●
