◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#42220) — 108 parça
çizim 19585
4 3 147 9 4 4 3 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 04.685 CLIP; BRK PIPE
ARGENTINA EQUIPMENT(7SZ) 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 0010-0012 ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 0101- ●
3 04.685 CLIP; BRK PIPE
04.686 (D) 		9-09524-562-0 01 1 9804- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9804-9909 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9910-0012 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9910-0012 ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0101- ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 0101-0108 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 0109- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9804-9812 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9804-9812 ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9901-9909 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9901-9909 ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0109- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 04 1 9804- ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 9804-9909 ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 02 1 9804- ● ●
3 04.685 CLIP; BRK PIPE
4ZE1 ENG(RLJ) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9804-9812 ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 03 1 9804- ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9804-9909 ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT) EXC. TURKISH EQUIPMENT(S6S), COLOMBIA EQUIPMENT(X74) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9804-9909 ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 04.686 (B) 		8-94326-752-0 01 1 9910- ● ● ● ●
4 04.686 BOLT; BRKT
03.163 (A) M6X40 FLANGE 		0-28680-640-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9804-9909 ● ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9910-0012 ● ●
4 04.686 BOLT; BRKT
ARGENTINA EQUIPMENT(7SZ) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9910-0012 ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 04.595 (B) M8X20 FLANGE 		0-28480-820-0 02 1 0101-0108 ● ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 04.595 (B) M8X20 FLANGE 		0-28480-820-0 02 1 0101-0108 ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 04.595 (B) M8X20 FLANGE 		0-28480-820-0 02 1 0109-0111 ● ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 04.595 (B) M8X20 FLANGE 		0-28480-820-0 02 1 0109-0111 ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0112-0210 ● ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0112-0210 ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 02 1 0211- ● ● ●
4 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 02.183 (B) M8X35 FLANGE 		0-28680-835-0 02 1 0211- ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9804-9909 ● ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9910-0012 ● ●
9 04.686 BOLT; BRKT
ARGENTINA EQUIPMENT(7SZ) 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9910-0012 ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0101-0108 ● ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0101-0108 ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0109-0210 ● ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0109-0210 ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) M8X30 FLANGE 		0-28680-830-0 01 1 0211- ● ● ●
9 04.686 BOLT; BRKT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> M8X30 FLANGE 		0-28680-830-0 01 1 0211- ● ●
147 04.686 BRACKET; CONNECTOR
(A) 		8-94331-701-1 01 1 9804-0012 ● ● ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-94333-040-1 01 1 9804-9909 ● ● ●
147 04.686 BRACKET; CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94333-040-1 01 1 9910-0012 ● ●
147 04.686 BRACKET; CONNECTOR
ARGENTINA EQUIPMENT(7SZ) (B) 		8-94333-040-1 01 1 9910-0012 ● ●
147 04.686 BRACKET; CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94333-040-1 01 1 0101-0108 ● ● ●
147 04.686 BRACKET; CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-040-1 01 1 0101-0108 ● ●
147 04.686 BRACKET; CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94333-040-1 01 1 0109- ● ● ●
147 04.686 BRACKET; CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-040-1 01 1 0109- ● ●

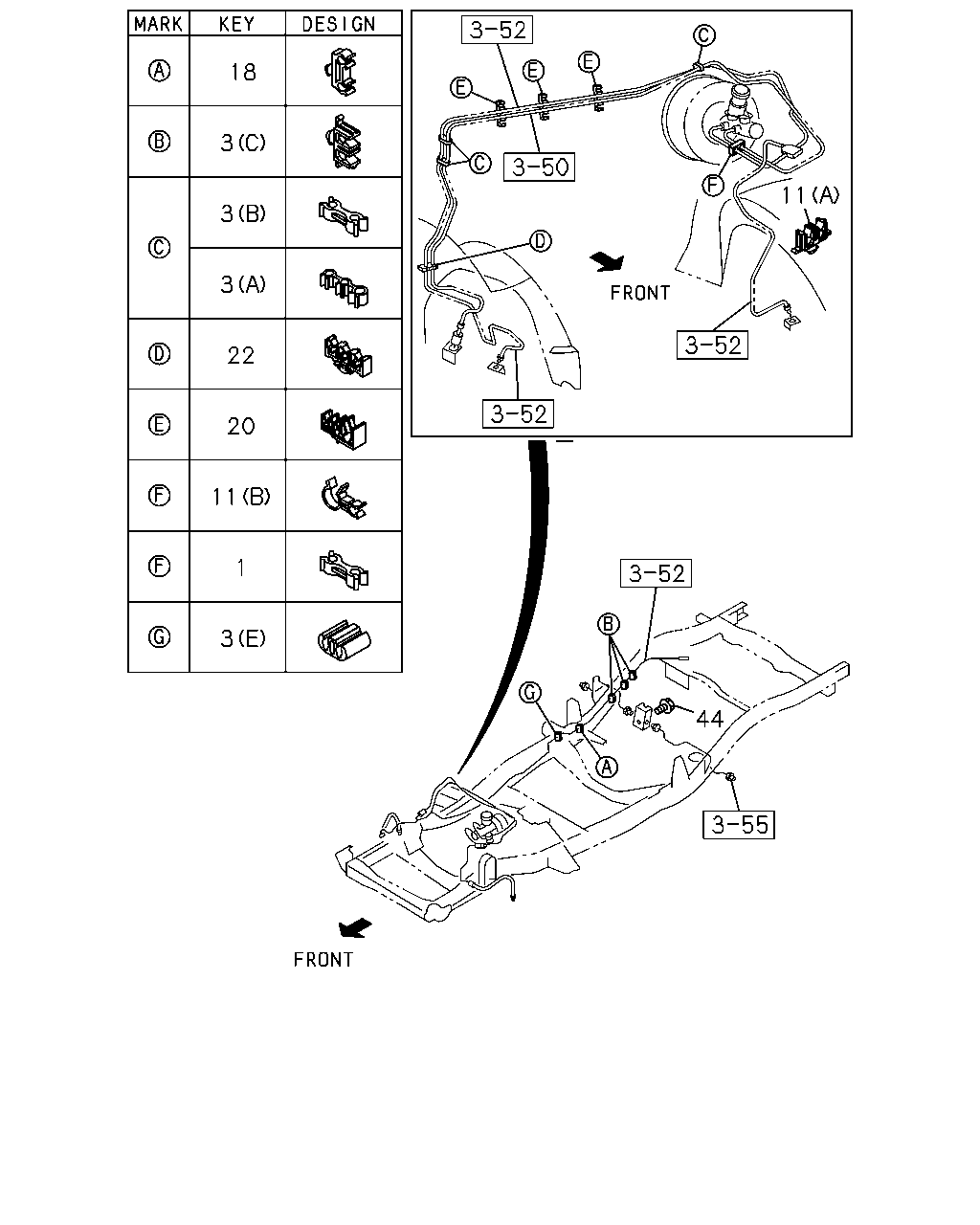

çizim 71943
18 11 3 3 3 22 20 11 1 3 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.686 CLIP; OIL PIPE TO BODY
6VD1 ENG(RLV) ID=6.4 & 4.8 		8-94257-329-0 02 1 9804-9812 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
6VD1 ENG(RLV) ID=6.4 & 4.8 		8-94257-329-0 02 1 9901- ● ● ● ●
3 04.685 CLIP; BRK PIPE
ARGENTINA EQUIPMENT(7SZ) 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 0010-0012 ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 0101- ●
3 04.685 CLIP; BRK PIPE
04.686 (D) 		9-09524-562-0 01 1 9804- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9804-9909 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9910-0012 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9910-0012 ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0101- ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 0101-0108 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 0109- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9804-9812 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9804-9812 ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9901-9909 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9901-9909 ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0109- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 04 1 9804- ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 9804-9909 ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 02 1 9804- ● ●
3 04.685 CLIP; BRK PIPE
4ZE1 ENG(RLJ) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9804-9812 ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 03 1 9804- ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9804-9909 ● ● ● ●
3 04.685 CLIP; BRK PIPE
22LE/C22NE ENG(RJT) EXC. TURKISH EQUIPMENT(S6S), COLOMBIA EQUIPMENT(X74) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9804-9909 ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 04.686 (B) 		8-94326-752-0 01 1 9910- ● ● ● ●
11 04.686 CLIP; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) ID=4.8X2 		8-94113-470-0 01 1 9804-9812 ● ● ● ●
11 04.686 CLIP; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) ID=4.8X2 		8-94113-470-0 01 1 9901-9909 ● ● ● ●
11 04.686 CLIP; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) ID=4.8X2 		8-94113-470-0 01 1 9910-0012 ● ● ● ●
11 04.686 CLIP; OIL PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (A) ID=4.8X2 		8-94113-470-0 01 1 9910-0012 ● ● ● ●
11 04.686 CLIP; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X2 		8-94113-470-0 01 1 0101-0108 ● ● ● ●
11 04.686 CLIP; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) ID=4.8X2 		8-94113-470-0 01 1 0101-0108 ● ● ● ●
11 04.686 CLIP; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X2 		8-94113-470-0 01 1 0109- ● ● ● ●
11 04.686 CLIP; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) ID=4.8X2 		8-94113-470-0 01 1 0109- ● ● ● ●
11 04.686 CLIP; OIL PIPE
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97084-569-0 01 1 9804-9904 ● ● ● ● ● ●
11 04.686 CLIP; OIL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENT INA EQUIPMENT(7SZ) (B) 		8-97084-569-0 01 1 9905- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE 8-94389-586-0 01 1 9804- ● ● ● ●
20 04.686 CLIP; BRK PIPE 8-97102-873-0 03 1 9804- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94442-883-1 01 1 9804-9812 ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94442-883-1 01 1 9901-0012 ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94442-883-1 01 1 0101-0109 ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 0101-0109 ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94442-883-1 01 1 0110- ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 0110- ●
22 04.686 CLIP; PIPE TO FRAME
6VD1 ENG(RLV) 		8-94442-883-1 02 1 9804-9812 ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 02 1 9804-9812 ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
6VD1 ENG(RLV) 		8-94442-883-1 02 1 9901-0012 ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 02 1 9901-0012 ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4X2 HIGH RIDE SUSPENSION(7YC) 		8-94442-883-1 02 1 0101- ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 02 1 0101- ● ● ● ●
44 04.686 BOLT; CLIP TO FRAME
M8X30 FLANGE 		0-28680-830-0 01 1 9804- ● ● ● ● ● ● ● ●
