3-52 — BRAKE PIPING; OIL,FRONT (#42218) — 469 parça

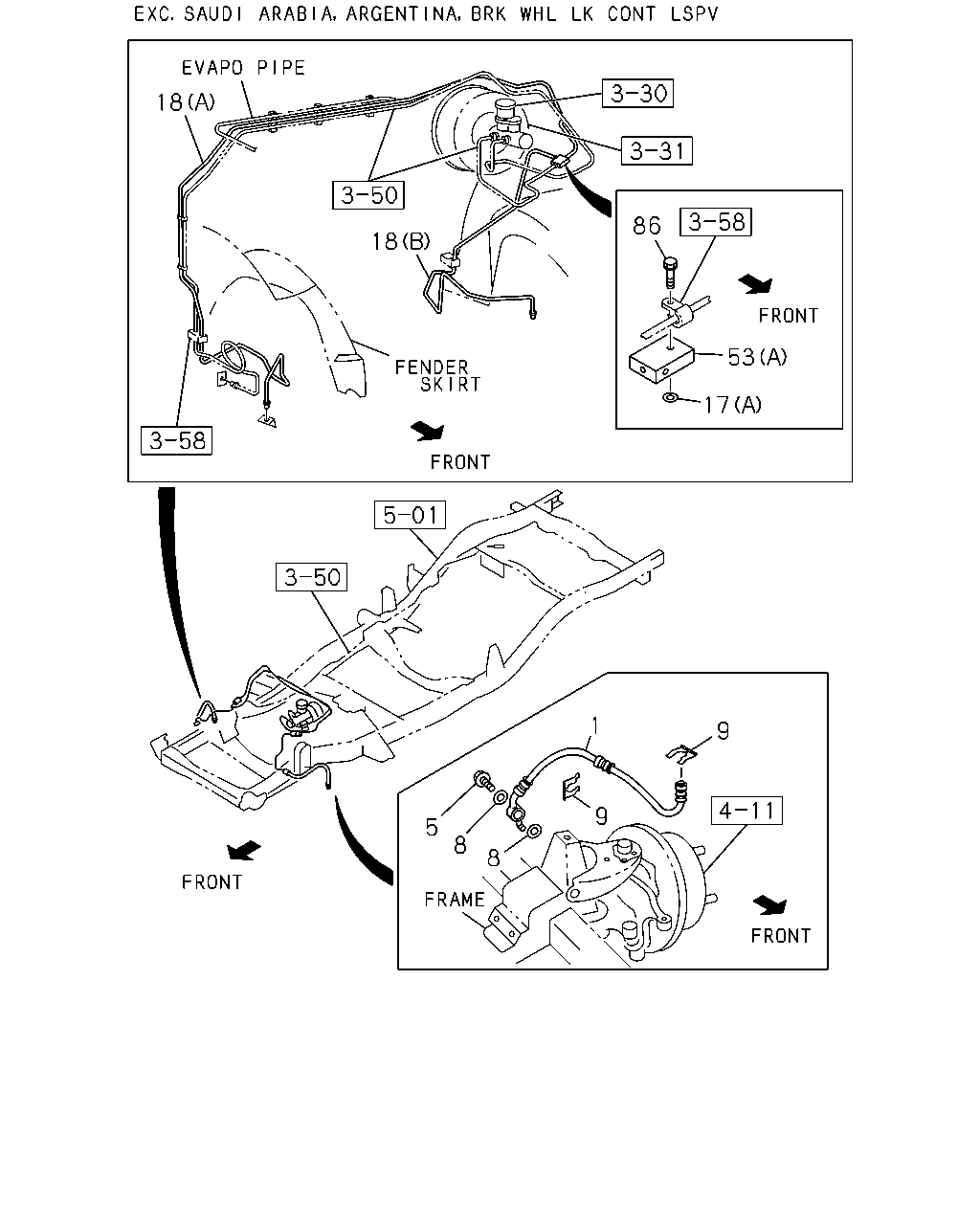

çizim 71543
18 86 18 53 17 1 9 9 5 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-829-0 02 1 9804-9812 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-829-0 02 1 9901-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-0 02 1 0101-0108 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 0101-0108 ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-1 02 1 0109- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-1 02 1 0109- ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9804-9812 ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-1 02 1 9901- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-830-0 02 1 9804-9812 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 9901-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-0 02 1 0101-0108 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0108 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-1 02 1 0109- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-1 02 1 0109- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9804- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9804- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9804- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 0101- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) ID=8.2 		8-94312-733-0 01 1 9804-9903 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
ARGENTINA EQUIPMENT(7SZ) (B) ID=8.2 		8-94312-733-0 01 1 9904-0012 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) ID=8.2 		8-94312-733-0 01 1 9904-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0101-0108 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97181-032-2 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97213-252-0 01 1 9901-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-0 01 1 0101-0108 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) 		8-97306-375-0 01 1 0101-0108 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) 		8-97109-877-0 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97109-877-1 01 1 9901-9906 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97231-349-0 01 1 9907-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-97306-376-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (A) 		8-97306-376-1 01 1 0101-0108 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-97306-376-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-230-4 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> (A) 		8-94435-230-4 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9901-9901 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97212-622-1 01 1 9901-9901 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51>,GUATEMALA/COSTA RIC A EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9902-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9910-9912 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) (A) 		8-97212-622-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) (A) 		8-97212-622-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),GUATEMALA/C OSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97231-350-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (B) 		8-97231-350-1 01 1 0101-0108 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97231-350-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (C) 		8-97086-043-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97086-043-0 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97212-625-0 01 1 9901-9907 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 9908-0009 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97230-486-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97230-486-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-317-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 9901-9909 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 9910-9912 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 0001-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97212-623-1 01 1 0001-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97261-130-1 01 1 0101-0205 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) 		8-97261-130-1 01 1 0101-0205 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97349-467-0 01 1 0206- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) 		8-97349-467-0 01 1 0206- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-94435-238-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (D) 		8-97232-148-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (D) 		8-97232-148-1 01 1 0101- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97179-660-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97179-660-2 01 1 9901-9908 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97227-159-0 01 1 9909-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) (B) 		8-97227-159-0 01 1 9909-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97261-083-2 01 1 0101- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97179-625-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97179-625-2 01 1 9901-9903 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97225-928-0 01 1 9904-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-928-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97181-033-2 01 1 9804-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) 		8-97110-223-0 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97110-223-1 01 1 9901-9908 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-4 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-5 01 1 9901-9912 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-5 01 1 0001-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97115-645-0 01 1 9804-9909 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97115-645-0 01 1 9910-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 9901-9912 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0001-0009 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (A) 		8-97182-318-1 01 1 0001-0009 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (A) 		8-97182-318-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-0 01 1 0101-0107 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97115-645-1 01 1 0108-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-1 01 1 0108-0108 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97115-645-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-1 01 1 0109- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94406-895-0 01 1 9804-9909 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-94406-895-0 01 1 9910-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) (A) 		8-94406-895-0 01 1 9910-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0101-0108 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0101-0108 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0109- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0109- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0109- ● ●
53 04.686 CONNECTOR; OIL PIPE
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-94328-125-0 01 1 9804-9903 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) (B) 		8-94328-125-0 01 1 9904-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94328-125-0 01 1 9904-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0101-0108 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0109- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97232-314-0 01 1 9910-0012 ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (C) 		8-97232-314-2 01 1 0101- ● ● ● ●
86 04.686 BOLT; BRK PIPE
03.634 M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
00.206 M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0110- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-9903 ● ● ●
86 04.686 BOLT; BRK PIPE
ARGENTINA EQUIPMENT(7SZ) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9904-0012 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9904-0012 ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0101-0108 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0109-0210 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9910-9912 ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0001-0012 ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0101- ● ● ● ●

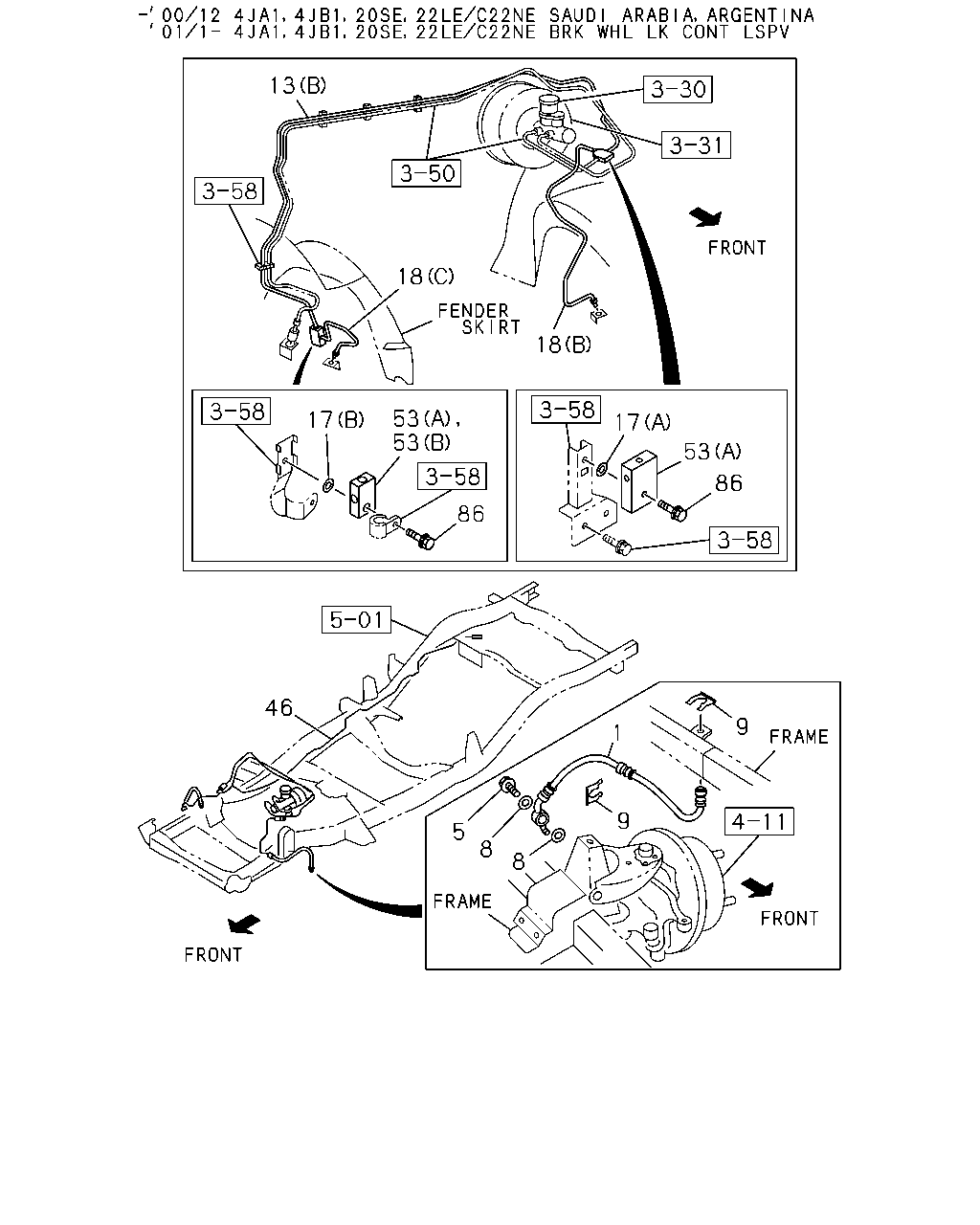

çizim 71807
13 18 18 53 53 17 17 53 86 86 46 9 1 9 5 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-829-0 02 1 9804-9812 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-829-0 02 1 9901-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-0 02 1 0101-0108 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 0101-0108 ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-1 02 1 0109- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-1 02 1 0109- ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9804-9812 ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-1 02 1 9901- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-830-0 02 1 9804-9812 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 9901-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-0 02 1 0101-0108 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0108 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-1 02 1 0109- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-1 02 1 0109- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9804- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9804- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9804- ● ● ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-807-2 01 1 9804-0009 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-807-2 01 1 0010-0012 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-807-2 01 1 0010-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-377-0 01 1 0101-0108 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97306-377-0 01 1 0101-0108 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-377-1 01 1 0109- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97306-377-1 01 1 0109- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97209-420-1 01 1 9804-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-378-1 01 1 0101-0108 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-378-1 01 1 0109- ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-378-1 01 1 0109- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97232-150-0 01 1 9910-0012 ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97264-946-3 01 1 0101- ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-808-2 01 1 9804-9909 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-808-2 01 1 9910-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97209-202-1 01 1 9804-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 0101- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) ID=8.2 		8-94312-733-0 01 1 9804-9903 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
ARGENTINA EQUIPMENT(7SZ) (B) ID=8.2 		8-94312-733-0 01 1 9904-0012 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) ID=8.2 		8-94312-733-0 01 1 9904-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0101-0108 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97181-032-2 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97213-252-0 01 1 9901-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-0 01 1 0101-0108 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) 		8-97306-375-0 01 1 0101-0108 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) 		8-97109-877-0 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97109-877-1 01 1 9901-9906 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97231-349-0 01 1 9907-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-97306-376-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (A) 		8-97306-376-1 01 1 0101-0108 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-97306-376-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-230-4 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> (A) 		8-94435-230-4 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9901-9901 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97212-622-1 01 1 9901-9901 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51>,GUATEMALA/COSTA RIC A EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9902-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9910-9912 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) (A) 		8-97212-622-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) (A) 		8-97212-622-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),GUATEMALA/C OSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97231-350-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (B) 		8-97231-350-1 01 1 0101-0108 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97231-350-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (C) 		8-97086-043-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97086-043-0 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97212-625-0 01 1 9901-9907 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 9908-0009 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97230-486-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97230-486-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-317-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 9901-9909 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 9910-9912 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 0001-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97212-623-1 01 1 0001-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97261-130-1 01 1 0101-0205 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) 		8-97261-130-1 01 1 0101-0205 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97349-467-0 01 1 0206- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) 		8-97349-467-0 01 1 0206- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-94435-238-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (D) 		8-97232-148-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (D) 		8-97232-148-1 01 1 0101- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97179-660-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97179-660-2 01 1 9901-9908 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97227-159-0 01 1 9909-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) (B) 		8-97227-159-0 01 1 9909-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97261-083-2 01 1 0101- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97179-625-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97179-625-2 01 1 9901-9903 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97225-928-0 01 1 9904-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-928-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97181-033-2 01 1 9804-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) 		8-97110-223-0 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97110-223-1 01 1 9901-9908 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-4 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-5 01 1 9901-9912 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-5 01 1 0001-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97115-645-0 01 1 9804-9909 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97115-645-0 01 1 9910-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 9901-9912 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0001-0009 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (A) 		8-97182-318-1 01 1 0001-0009 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (A) 		8-97182-318-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-0 01 1 0101-0107 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97115-645-1 01 1 0108-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-1 01 1 0108-0108 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97115-645-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-1 01 1 0109- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97117-623-0 01 1 9804-9909 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97117-623-0 01 1 9910-0009 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) ARGENTINA EQUIPMENT(7SZ) (B) 		8-97117-623-0 01 1 0010-0012 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97117-623-0 01 1 0010-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97117-623-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97300-999-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-347-0 01 1 9804-9909 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-347-0 01 1 9910-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-347-1 01 1 0101-0108 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-347-1 01 1 0109-0206 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97355-808-0 01 1 0207- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97232-149-2 01 1 9910-0012 ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-149-3 01 1 0101- ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97117-624-0 01 1 9804-9909 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97216-857-0 01 1 9910-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97216-857-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97216-857-1 01 1 0101-0109 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97301-000-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97301-000-1 01 1 0110- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-346-0 01 1 9804-9909 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-346-0 01 1 9910-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-346-0 01 1 0101-0108 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-346-0 01 1 0101-0108 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-346-1 01 1 0109- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-346-1 01 1 0109- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94406-895-0 01 1 9804-9909 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-94406-895-0 01 1 9910-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) (A) 		8-94406-895-0 01 1 9910-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0101-0108 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0101-0108 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0109- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0109- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0109- ● ●
53 04.686 CONNECTOR; OIL PIPE
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-94328-125-0 01 1 9804-9903 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) (B) 		8-94328-125-0 01 1 9904-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94328-125-0 01 1 9904-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0101-0108 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0109- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97232-314-0 01 1 9910-0012 ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (C) 		8-97232-314-2 01 1 0101- ● ● ● ●
86 04.686 BOLT; BRK PIPE
03.634 M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
00.206 M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0110- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-9903 ● ● ●
86 04.686 BOLT; BRK PIPE
ARGENTINA EQUIPMENT(7SZ) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9904-0012 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9904-0012 ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0101-0108 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0109-0210 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9910-9912 ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0001-0012 ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0101- ● ● ● ●

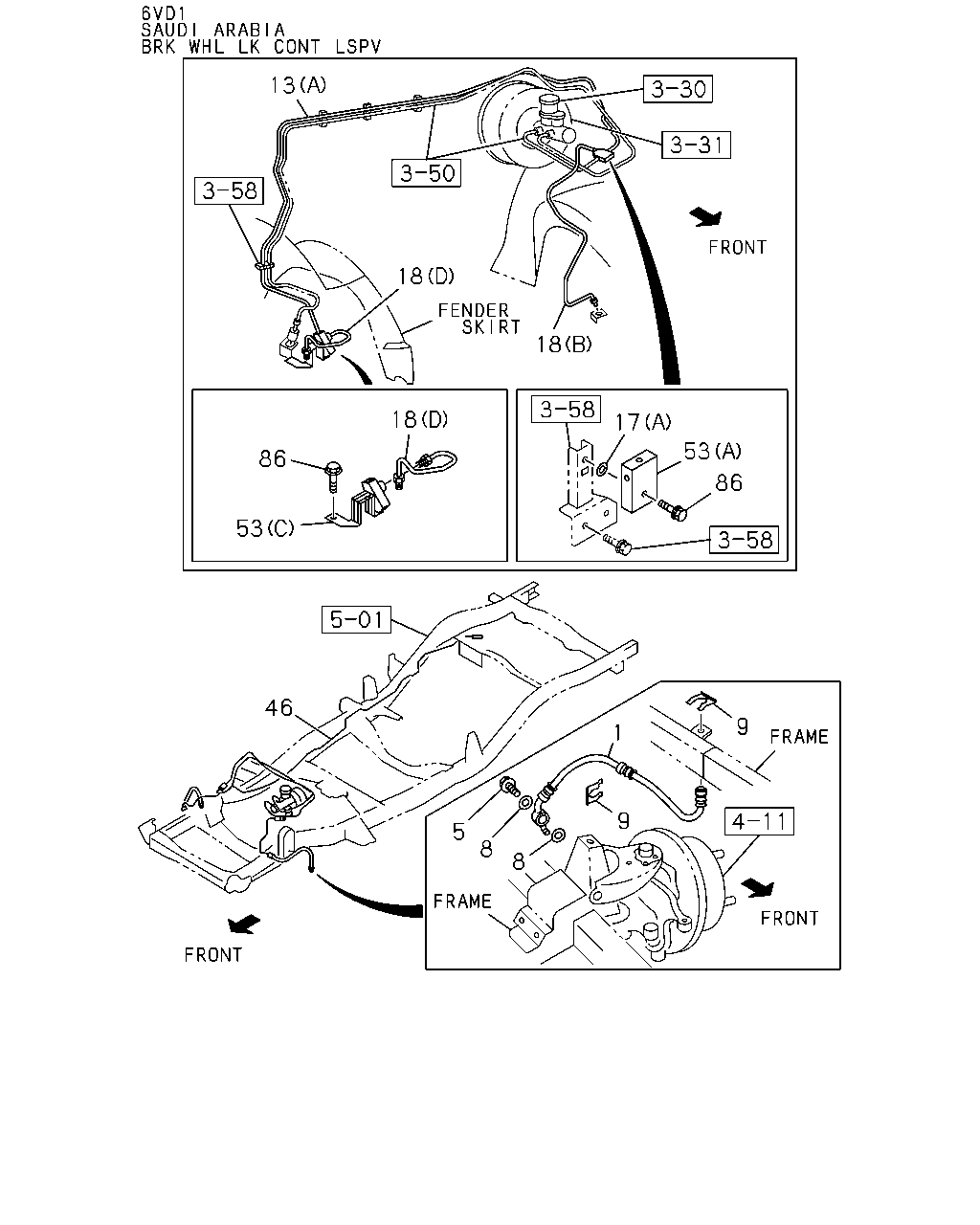

çizim 72594
13 18 18 18 17 53 86 86 53 46 9 1 9 5 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-829-0 02 1 9804-9812 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-829-0 02 1 9901-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-0 02 1 0101-0108 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 0101-0108 ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-1 02 1 0109- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-1 02 1 0109- ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9804-9812 ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-1 02 1 9901- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-830-0 02 1 9804-9812 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 9901-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-0 02 1 0101-0108 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0108 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-1 02 1 0109- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-1 02 1 0109- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9804- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9804- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9804- ● ● ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-807-2 01 1 9804-0009 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-807-2 01 1 0010-0012 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-807-2 01 1 0010-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-377-0 01 1 0101-0108 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97306-377-0 01 1 0101-0108 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-377-1 01 1 0109- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97306-377-1 01 1 0109- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97209-420-1 01 1 9804-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-378-1 01 1 0101-0108 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-378-1 01 1 0109- ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97306-378-1 01 1 0109- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97232-150-0 01 1 9910-0012 ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97264-946-3 01 1 0101- ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-808-2 01 1 9804-9909 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97081-808-2 01 1 9910-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97209-202-1 01 1 9804-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 0101- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) ID=8.2 		8-94312-733-0 01 1 9804-9903 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
ARGENTINA EQUIPMENT(7SZ) (B) ID=8.2 		8-94312-733-0 01 1 9904-0012 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) ID=8.2 		8-94312-733-0 01 1 9904-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0101-0108 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97181-032-2 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97213-252-0 01 1 9901-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-0 01 1 0101-0108 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) 		8-97306-375-0 01 1 0101-0108 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97306-375-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) 		8-97109-877-0 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97109-877-1 01 1 9901-9906 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97231-349-0 01 1 9907-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-97306-376-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (A) 		8-97306-376-1 01 1 0101-0108 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-97306-376-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-230-4 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> (A) 		8-94435-230-4 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9901-9901 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) 		8-97212-622-1 01 1 9901-9901 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51>,GUATEMALA/COSTA RIC A EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9902-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 9910-9912 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) (A) 		8-97212-622-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) (A) 		8-97212-622-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),GUATEMALA/C OSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-622-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97231-350-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (B) 		8-97231-350-1 01 1 0101-0108 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97231-350-1 01 1 0109- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (C) 		8-97086-043-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97086-043-0 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97212-625-0 01 1 9901-9907 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 9908-0009 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97230-486-0 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97230-486-1 01 1 0101-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97230-486-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-317-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 9901-9909 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 9910-9912 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97212-623-1 01 1 0001-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97212-623-1 01 1 0001-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97261-130-1 01 1 0101-0205 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) 		8-97261-130-1 01 1 0101-0205 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97349-467-0 01 1 0206- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) 		8-97349-467-0 01 1 0206- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-94435-238-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (D) 		8-97232-148-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (D) 		8-97232-148-1 01 1 0101- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97179-660-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97179-660-2 01 1 9901-9908 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (B) 		8-97227-159-0 01 1 9909-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) (B) 		8-97227-159-0 01 1 9909-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97261-083-2 01 1 0101- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97179-625-2 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97179-625-2 01 1 9901-9903 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (A) 		8-97225-928-0 01 1 9904-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-928-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97181-033-2 01 1 9804-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) 		8-97110-223-0 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) 		8-97110-223-1 01 1 9901-9908 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-4 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-5 01 1 9901-9912 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD),A RGENTINA EQUIPMENT(7SZ) (A) 		8-94435-231-5 01 1 0001-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97115-645-0 01 1 9804-9909 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97115-645-0 01 1 9910-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 9901-9912 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0001-0009 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (A) 		8-97182-318-1 01 1 0001-0009 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 0001-0009 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) (A) 		8-97182-318-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97182-318-1 01 1 0010-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97182-318-1 01 1 0010-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-0 01 1 0101-0107 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97115-645-1 01 1 0108-0108 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-1 01 1 0108-0108 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97115-645-1 01 1 0109- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (C) 		8-97115-645-1 01 1 0109- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97117-623-0 01 1 9804-9909 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97117-623-0 01 1 9910-0009 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) ARGENTINA EQUIPMENT(7SZ) (B) 		8-97117-623-0 01 1 0010-0012 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97117-623-0 01 1 0010-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97117-623-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97300-999-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-347-0 01 1 9804-9909 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-347-0 01 1 9910-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-347-1 01 1 0101-0108 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-347-1 01 1 0109-0206 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97355-808-0 01 1 0207- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97232-149-2 01 1 9910-0012 ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-149-3 01 1 0101- ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97117-624-0 01 1 9804-9909 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97216-857-0 01 1 9910-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97216-857-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97216-857-1 01 1 0101-0109 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97301-000-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97301-000-1 01 1 0110- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-346-0 01 1 9804-9909 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-346-0 01 1 9910-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-346-0 01 1 0101-0108 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-346-0 01 1 0101-0108 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-346-1 01 1 0109- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-346-1 01 1 0109- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (A) 		8-94406-895-0 01 1 9804-9909 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-94406-895-0 01 1 9910-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) (A) 		8-94406-895-0 01 1 9910-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0101-0108 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0101-0108 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0101-0108 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0109- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0109- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0109- ● ●
53 04.686 CONNECTOR; OIL PIPE
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) (B) 		8-94328-125-0 01 1 9804-9903 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) (B) 		8-94328-125-0 01 1 9904-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94328-125-0 01 1 9904-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0101-0108 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0109- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97232-314-0 01 1 9910-0012 ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (C) 		8-97232-314-2 01 1 0101- ● ● ● ●
86 04.686 BOLT; BRK PIPE
03.634 M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
00.206 M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0110- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-9903 ● ● ●
86 04.686 BOLT; BRK PIPE
ARGENTINA EQUIPMENT(7SZ) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9904-0012 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9904-0012 ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0101-0108 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0109-0210 ● ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9910-9912 ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0001-0012 ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0101- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
