3-30 — BRAKE MASTER CYLINDER (#42214) — 85 parça

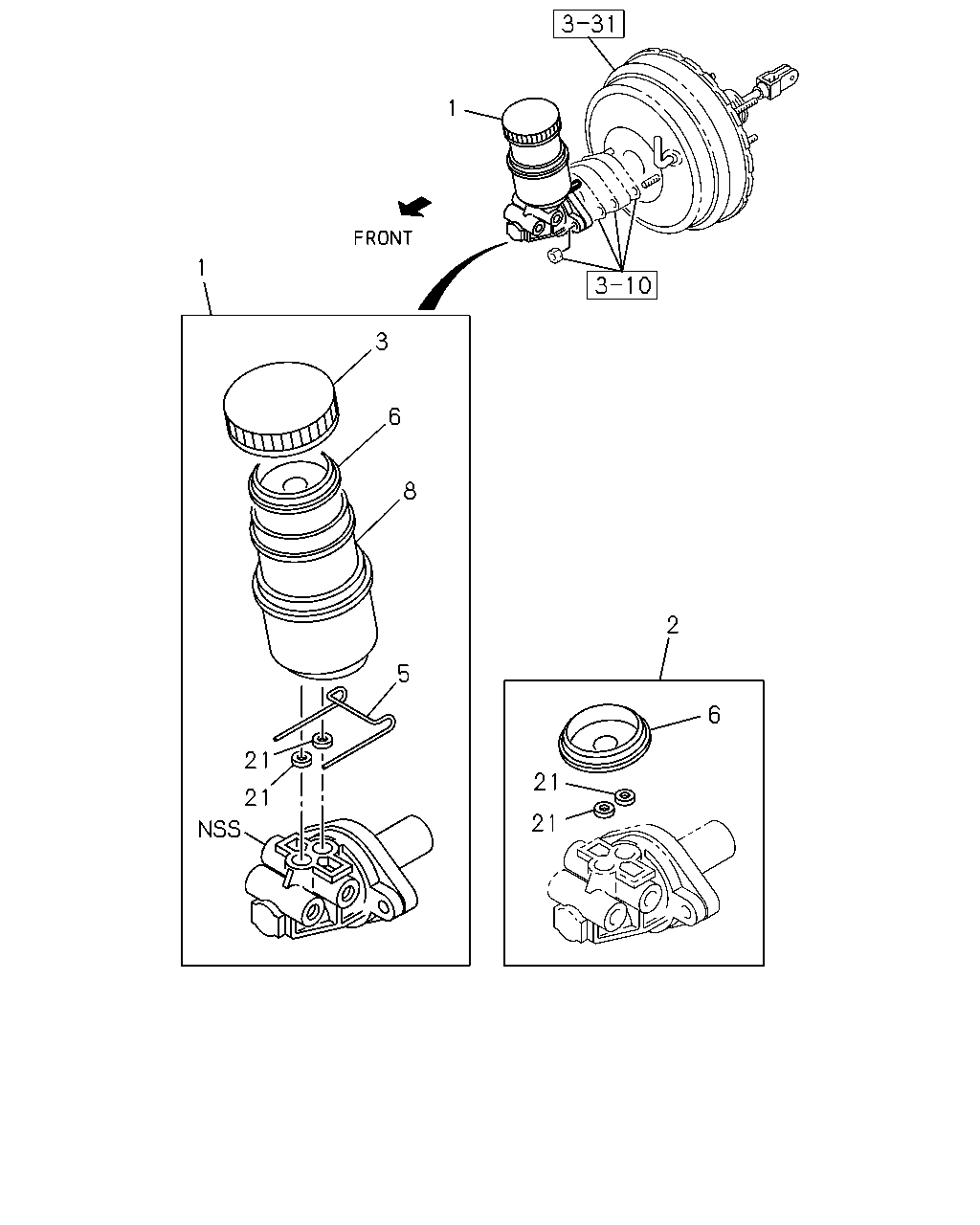

çizim 71681
1 1 3 6 8 2 5 21 21 6 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-97148-431-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-97148-431-0 01 1 0109- ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9804-9812 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZE1 ENG(RLJ) 		8-97148-432-0 01 1 9804-9812 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9901- ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97178-010-0 01 1 9804-9812 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97178-010-0 01 1 9901-0010 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97302-964-0 01 1 0011-0104 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97309-954-0 01 1 0105- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97160-707-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-97160-707-0 01 1 0109- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97178-913-0 01 1 9804-9812 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97178-913-0 01 1 9901-0104 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97311-076-0 01 1 0105- ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 9804-0010 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) 		8-94124-872-0 01 1 9804-0010 ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 0011-0108 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 0109- ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9804-9812 ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
4ZE1 ENG(RLJ) 		8-97138-667-0 01 1 9804-9812 ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9901- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) 		8-97289-099-0 01 1 0011- ● ● ● ●
5 04.651 RETAINER; DIAPH,M/CYL
6VD1 ENG(RLV) 		8-97061-568-0 01 1 9804-9812 ● ●
5 04.651 RETAINER; DIAPH,M/CYL
6VD1 ENG(RLV) 		8-97061-568-0 01 1 9901- ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9804- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97071-797-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-97071-797-0 01 1 0109- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) 		8-97061-565-0 01 1 9804-9812 ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) 		8-97061-565-0 01 1 9901- ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94133-716-0 02 1 9804-9812 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9901-0108 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94133-716-0 02 1 0109- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) 		8-97061-567-0 02 1 9804-9812 ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) 		8-97061-567-0 02 1 9901- ● ● ● ●

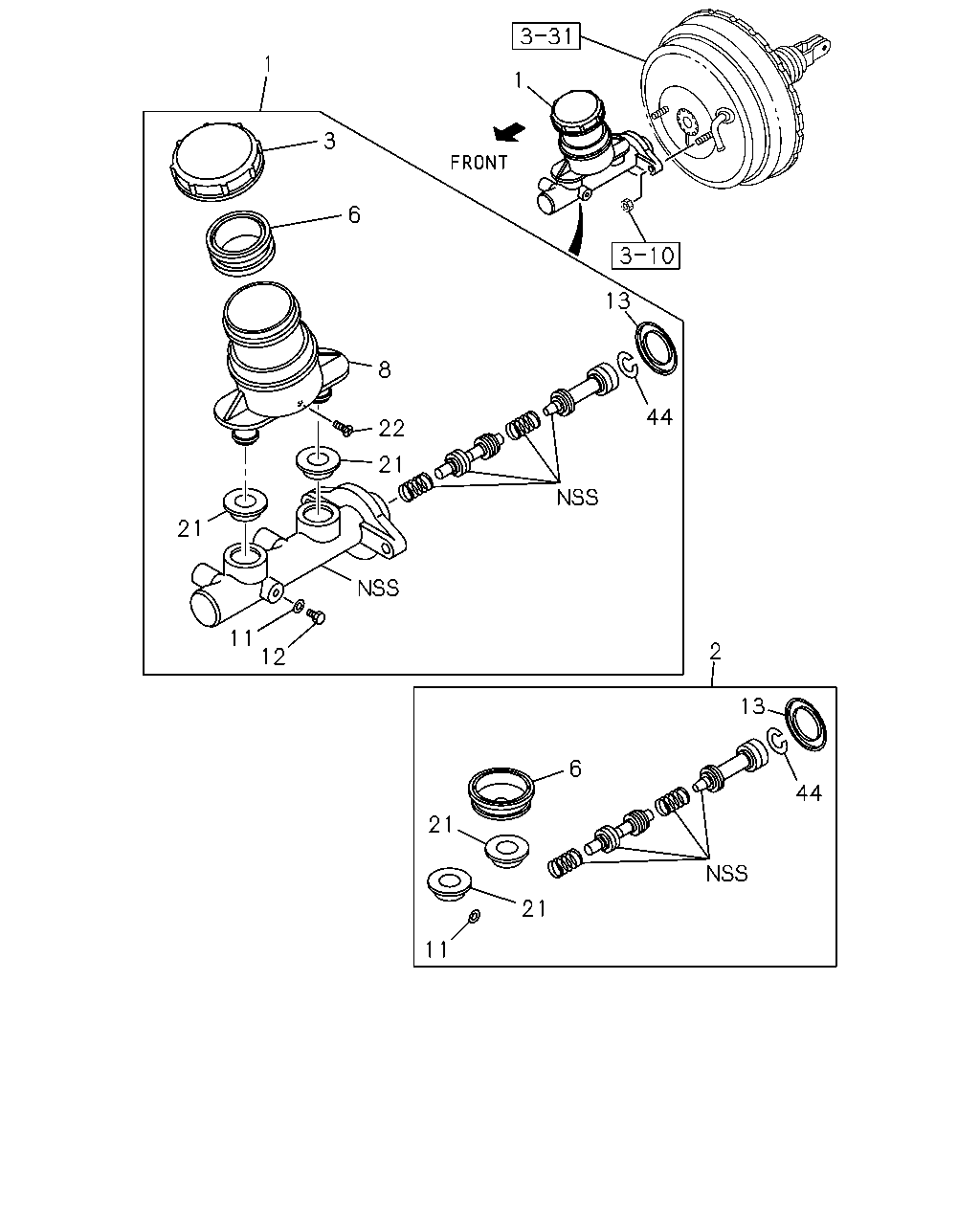

çizim 71805
1 1 3 6 13 8 44 22 21 21 11 12 2 13 6 44 21 21 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-97148-431-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-97148-431-0 01 1 0109- ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9804-9812 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZE1 ENG(RLJ) 		8-97148-432-0 01 1 9804-9812 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9901- ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97178-010-0 01 1 9804-9812 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97178-010-0 01 1 9901-0010 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97302-964-0 01 1 0011-0104 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97309-954-0 01 1 0105- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97160-707-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-97160-707-0 01 1 0109- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97178-913-0 01 1 9804-9812 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97178-913-0 01 1 9901-0104 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97311-076-0 01 1 0105- ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 9804-0010 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) 		8-94124-872-0 01 1 9804-0010 ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 0011-0108 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 0109- ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9804-9812 ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
4ZE1 ENG(RLJ) 		8-97138-667-0 01 1 9804-9812 ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9901- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) 		8-97289-099-0 01 1 0011- ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9804- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97071-797-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-97071-797-0 01 1 0109- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) 		8-97061-565-0 01 1 9804-9812 ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) 		8-97061-565-0 01 1 9901- ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94107-675-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94107-675-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94107-675-0 01 1 0109- ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M6X13 		8-94107-674-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M6X13 		8-94107-674-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) M6X13 		8-94107-674-0 01 1 0109- ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94132-833-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94132-833-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94132-833-0 01 1 0109- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94133-716-0 02 1 9804-9812 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9901-0108 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94133-716-0 02 1 0109- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) 		8-97061-567-0 02 1 9804-9812 ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) 		8-97061-567-0 02 1 9901- ● ● ● ●
22 04.651 SCREW; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94230-600-1 01 1 9804-9812 ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94230-600-1 01 1 9901-0108 ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 		8-94230-600-1 01 1 0109- ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.017 OD=27.9 		9-09180-126-0 01 1 9804-9812 ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.017 OD=27.9 		9-09180-126-0 01 1 9901-0108 ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) 04.017 OD=27.9 		9-09180-126-0 01 1 0109- ● ● ● ● ● ● ● ●
