Sayfa 3-11 - Isuzu EPC

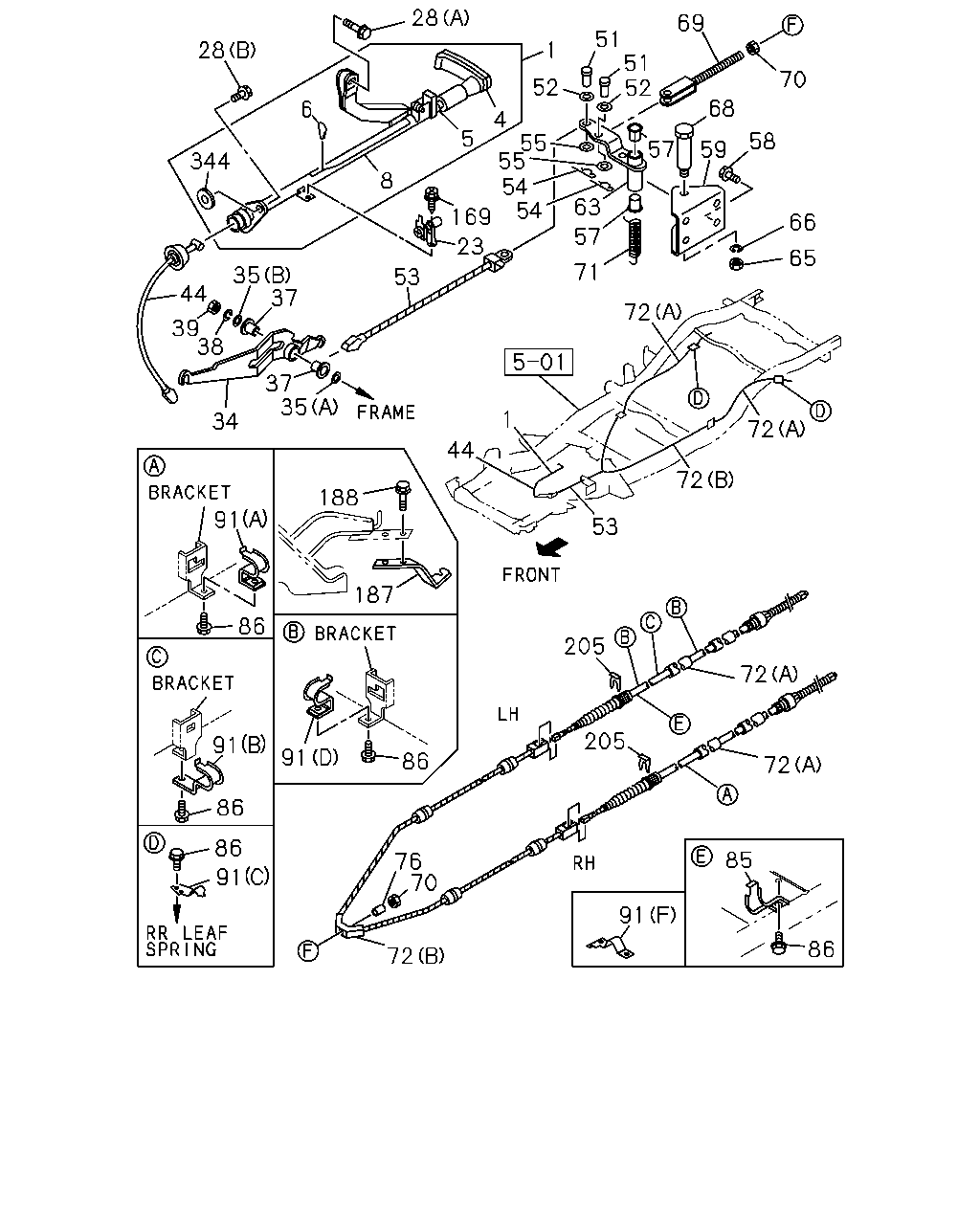

3-11 — PARKING BRAKE CONTROL (#42213) — 626 parça

28 69 51 51 52 28 1 70 52 68 58 6 4 55 55 54 169 54 63 57 23 5 57 59 344 8 66 65 71 35 37 53 44 39 38 72 37 35 72 1 34 44 91 72 188 53 187 205 86 72 91 91 86 205 72 86 86 91 85 76 70 86 91 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.592 STEM ASM; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97131-923-0	01	1	9804-9812	●	●	●	●
1	04.592 STEM ASM; PARKING BRK GRADE S(RBA)	8-97131-923-0	01	1	9804-9812					●	●	●
1	04.592 STEM ASM; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-97131-923-0	01	1	9901-9909	●	●	●	●
1	04.592 STEM ASM; PARKING BRK GRADE S(RBA)	8-97131-923-0	01	1	9901-9909					●	●	●
1	04.592 STEM ASM; PARKING BRK	8-97131-923-0	01	1	9910-	●	●			●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97131-923-0	01	1	9910-			●	●		●	●
4	04.592 STEM; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97162-053-0	01	1	9804-9812	●	●	●	●
4	04.592 STEM; PARKING BRK GRADE S(RBA)	8-97162-053-0	01	1	9804-9812					●	●	●
4	04.592 STEM; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-97162-053-0	01	1	9901-9909	●	●	●	●
4	04.592 STEM; PARKING BRK GRADE S(RBA)	8-97162-053-0	01	1	9901-9909					●	●	●
4	04.592 STEM; PARKING BRK	8-97162-053-0	01	1	9910-	●	●			●
4	04.592 STEM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-053-0	01	1	9910-			●	●		●	●
5	04.592 BUSHING; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	9-46129-022-0	01	1	9804-9812	●	●	●	●
5	04.592 BUSHING; PARKING BRK GRADE S(RBA)	9-46129-022-0	01	1	9804-9812					●	●	●
5	04.592 BUSHING; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	9-46129-022-0	01	1	9901-9909	●	●	●	●
5	04.592 BUSHING; PARKING BRK GRADE S(RBA)	9-46129-022-0	01	1	9901-9909					●	●	●
5	04.592 BUSHING; PARKING BRK	9-46129-022-0	01	1	9910-	●	●			●
5	04.592 BUSHING; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	9-46129-022-0	01	1	9910-			●	●		●	●
6	04.589 PIN; STEM,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97162-045-0	01	1	9804-9812	●	●	●	●
6	04.589 PIN; STEM,PARK BRK GRADE S(RBA)	8-97162-045-0	01	1	9804-9812					●	●	●
6	04.589 PIN; STEM,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-97162-045-0	01	1	9901-9909	●	●	●	●
6	04.589 PIN; STEM,PARK BRK GRADE S(RBA)	8-97162-045-0	01	1	9901-9909					●	●	●
6	04.589 PIN; STEM,PARK BRK	8-97162-045-0	01	1	9910-	●	●			●
6	04.589 PIN; STEM,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-045-0	01	1	9910-			●	●		●	●
8	04.592 GUIDE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97076-059-0	01	1	9804-9812	●	●	●	●
8	04.592 GUIDE; PARKING BRK GRADE S(RBA)	8-97076-059-0	01	1	9804-9812					●	●	●
8	04.592 GUIDE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-97076-059-0	01	1	9901-9909	●	●	●	●
8	04.592 GUIDE; PARKING BRK GRADE S(RBA)	8-97076-059-0	01	1	9901-9909					●	●	●
8	04.592 GUIDE; PARKING BRK	8-97076-059-0	01	1	9910-	●	●			●
8	04.592 GUIDE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97076-059-0	01	1	9910-			●	●		●	●
23	04.589 SWITCH; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94328-267-0	01	1	9804-9812	●	●	●	●
23	04.589 SWITCH; PARKING BRK GRADE S(RBA)	8-94328-267-0	01	1	9804-9812					●	●	●
23	04.589 SWITCH; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94328-267-0	01	1	9901-9909	●	●	●	●
23	04.589 SWITCH; PARKING BRK GRADE S(RBA)	8-94328-267-0	01	1	9901-9909					●	●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9910-	●	●			●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	9910-			●	●		●	●
23	04.589 SWITCH; PARKING BRK 6VD1 ENG(RLV)	8-97032-276-0	01	1	9804-9812				●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9804-9812						●	●	●
23	04.589 SWITCH; PARKING BRK 6VD1 ENG(RLV)	8-97032-276-0	01	1	9901-9909			●	●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9901-9909						●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97032-276-0	01	1	9910-			●	●		●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9910-								●
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9804-9812	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER GRADE S(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9804-9812					●	●	●
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9901-9909	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER GRADE S(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9901-9909					●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9910-	●	●			●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9910-			●	●		●	●
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-9812	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-9812					●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9901-9909	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9901-9909					●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9910-	●	●	●	●	●	●	●	●
34	04.591 LEVER; PARK BRK CONT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-100-1	01	1	9804-9812	●	●	●	●
34	04.591 LEVER; PARK BRK CONT GRADE S(RBA)	8-94479-100-1	01	1	9804-9812					●	●	●
34	04.591 LEVER; PARK BRK CONT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94479-100-1	01	1	9901-9909	●	●	●	●
34	04.591 LEVER; PARK BRK CONT GRADE S(RBA)	8-94479-100-1	01	1	9901-9909					●	●	●
34	04.591 LEVER; PARK BRK CONT	8-94479-100-1	01	1	9910-	●	●			●
34	04.591 LEVER; PARK BRK CONT EXC. PARKING BRAKE FLOOR<7XW>	8-94479-100-1	01	1	9910-			●	●		●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) ID=15.5 OD=24	8-94222-473-0	01	1	9804-9812	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE S(RBA) (A) ID=15.5 OD=24	8-94222-473-0	01	1	9804-9812					●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) ID=15.5 OD=24	8-94222-473-0	01	1	9901-9909	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE S(RBA) (A) ID=15.5 OD=24	8-94222-473-0	01	1	9901-9909					●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9910-	●	●			●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (A) ID=15.5 OD=24	8-94222-473-0	01	1	9910-			●	●		●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) ID=10.5 OD=26	9-09160-710-0	01	1	9804-9812	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE S(RBA) (B) ID=10.5 OD=26	9-09160-710-0	01	1	9804-9812					●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) ID=10.5 OD=26	9-09160-710-0	01	1	9901-9909	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE S(RBA) (B) ID=10.5 OD=26	9-09160-710-0	01	1	9901-9909					●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9910-	●	●			●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (B) ID=10.5 OD=26	9-09160-710-0	01	1	9910-			●	●		●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94408-022-0	02	1	9804-9812	●	●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK GRADE S(RBA)	8-94408-022-0	02	1	9804-9812					●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94408-022-0	02	1	9901-9909	●	●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK GRADE S(RBA)	8-94408-022-0	02	1	9901-9909					●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK	8-94408-022-0	02	1	9910-	●	●			●
37	04.792 BUSHING; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94408-022-0	02	1	9910-			●	●		●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 ID=10.2	9-09150-510-0	01	1	9804-9812	●	●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK GRADE S(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9804-9812					●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-510-0	01	1	9901-9909	●	●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK GRADE S(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9901-9909					●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 00.002 ID=10.2	9-09150-510-0	01	1	9910-	●	●			●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 00.002 ID=10.2	9-09150-510-0	01	1	9910-			●	●		●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10	9-09110-410-0	01	1	9804-9812	●	●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK GRADE S(RBA) 09.011 M10	9-09110-410-0	01	1	9804-9812					●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.011 M10	9-09110-410-0	01	1	9901-9909	●	●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK GRADE S(RBA) 09.011 M10	9-09110-410-0	01	1	9901-9909					●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 09.011 M10	9-09110-410-0	01	1	9910-	●	●			●
39	04.792 NUT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 09.011 M10	9-09110-410-0	01	1	9910-			●	●		●	●
44	04.779 CABLE; PARKING BRK,FRT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-091-1	01	1	9804-9812	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT GRADE S(RBA)	8-94479-091-1	01	1	9804-9812					●	●	●
44	04.779 CABLE; PARKING BRK,FRT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94479-091-1	01	1	9901-9909	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT GRADE S(RBA)	8-94479-091-1	01	1	9901-9909					●	●	●
44	04.779 CABLE; PARKING BRK,FRT	8-94479-091-1	01	1	9910-	●	●			●
44	04.779 CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW>	8-94479-091-1	01	1	9910-			●	●		●	●
51	04.785 PIN; JOINT,RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.942 OD=8 L=20	9-08233-820-0	02	1	9804-9812	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER GRADE S(RBA) 08.942 OD=8 L=20	9-08233-820-0	02	1	9804-9812					●	●	●
51	04.785 PIN; JOINT,RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 08.942 OD=8 L=20	9-08233-820-0	02	1	9901-9909	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER GRADE S(RBA) 08.942 OD=8 L=20	9-08233-820-0	02	1	9901-9909					●	●	●
51	04.785 PIN; JOINT,RELAY LEVER 08.942 OD=8 L=20	9-08233-820-0	02	1	9910-	●	●			●
51	04.785 PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 08.942 OD=8 L=20	9-08233-820-0	02	1	9910-			●	●		●	●
52	04.785 WASHER; CURVED RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9804-9812	●	●	●	●
52	04.785 WASHER; CURVED RELAY LEVER GRADE S(RBA) 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9804-9812					●	●	●
52	04.785 WASHER; CURVED RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9901-9909	●	●	●	●
52	04.785 WASHER; CURVED RELAY LEVER GRADE S(RBA) 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9901-9909					●	●	●
52	04.785 WASHER; CURVED RELAY LEVER 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9910-	●	●			●
52	04.785 WASHER; CURVED RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9910-			●	●		●	●
53	04.779 CABLE; PARK BRK,FRT LWR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-095-0	01	1	9804-9812	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94479-095-0	01	1	9901-9909	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	9910-0012	●	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-94479-095-0	01	1	9910-0012			●	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94479-095-0	01	1	0101-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	0101-		●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC)	8-94479-095-0	01	1	0101-			●	●
53	04.779 CABLE; PARK BRK,FRT LWR GRADE S(RBA)	8-94479-099-0	01	1	9804-9909					●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-099-0	01	1	9910-0012					●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-94479-099-0	01	1	9910-0012						●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4X2 HIGH RIDE SUSPENSION(7YC)	8-94479-099-0	01	1	0101-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW>	8-94479-099-0	01	1	0101-			●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-099-0	01	1	0101-					●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-94479-099-0	01	1	0101-						●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9804-9812	●	●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER GRADE S(RBA) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9804-9812					●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9901-9909	●	●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER GRADE S(RBA) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9901-9909					●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9910-	●	●			●
54	04.606 PIN; SNAP,CABLE TO LEVER EXC. PARKING BRAKE FLOOR<7XW> 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9910-			●	●		●	●
55	04.792 WASHER; PL,PARK BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.674 ID=8.4	9-09160-508-0	02	1	9804-9812	●	●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE GRADE S(RBA) 16.674 ID=8.4	9-09160-508-0	02	1	9804-9812					●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 16.674 ID=8.4	9-09160-508-0	02	1	9901-9909	●	●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE GRADE S(RBA) 16.674 ID=8.4	9-09160-508-0	02	1	9901-9909					●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE 16.674 ID=8.4	9-09160-508-0	02	1	9910-	●	●			●
55	04.792 WASHER; PL,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 16.674 ID=8.4	9-09160-508-0	02	1	9910-			●	●		●	●
57	04.592 BUSHING; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.439	5-33659-053-0	02	1	9804-9812	●	●	●	●
57	04.592 BUSHING; RELAY LEVER GRADE S(RBA) 04.439	5-33659-053-0	02	1	9804-9812					●	●	●
57	04.592 BUSHING; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.439	5-33659-053-0	02	1	9901-9909	●	●	●	●
57	04.592 BUSHING; RELAY LEVER GRADE S(RBA) 04.439	5-33659-053-0	02	1	9901-9909					●	●	●
57	04.592 BUSHING; RELAY LEVER 04.439	5-33659-053-0	02	1	9910-	●	●			●
57	04.592 BUSHING; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.439	5-33659-053-0	02	1	9910-			●	●		●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9804-9812	●	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK GRADE S(RBA) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9804-9812					●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9901-9909	●	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK GRADE S(RBA) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9901-9909					●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9910-	●	●			●
58	04.765 BOLT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9910-			●	●		●	●
59	04.765 BRACKET; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-094-0	01	1	9804-9812	●	●	●	●
59	04.765 BRACKET; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94479-094-0	01	1	9901-9909	●	●	●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	9910-0012	●	●
59	04.765 BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94479-094-0	01	1	9910-0012			●	●
59	04.765 BRACKET; RELAY LEVER EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94479-094-0	01	1	0101-	●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	0101-		●
59	04.765 BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC)	8-94479-094-0	01	1	0101-			●	●
59	04.765 BRACKET; RELAY LEVER GRADE S(RBA)	8-94479-098-1	01	1	9804-9909					●	●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-098-1	01	1	9910-0012					●
59	04.765 BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94479-098-1	01	1	9910-0012						●	●
59	04.765 BRACKET; RELAY LEVER 4X2 HIGH RIDE SUSPENSION(7YC)	8-94479-098-1	01	1	0101-	●
59	04.765 BRACKET; RELAY LEVER 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW>	8-94479-098-1	01	1	0101-			●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-098-1	01	1	0101-					●
59	04.765 BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94479-098-1	01	1	0101-						●	●
63	04.792 LEVER; RELAY,HAND BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94324-632-0	01	1	9804-9812	●	●	●	●
63	04.792 LEVER; RELAY,HAND BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94324-632-0	01	1	9901-9909	●	●	●	●

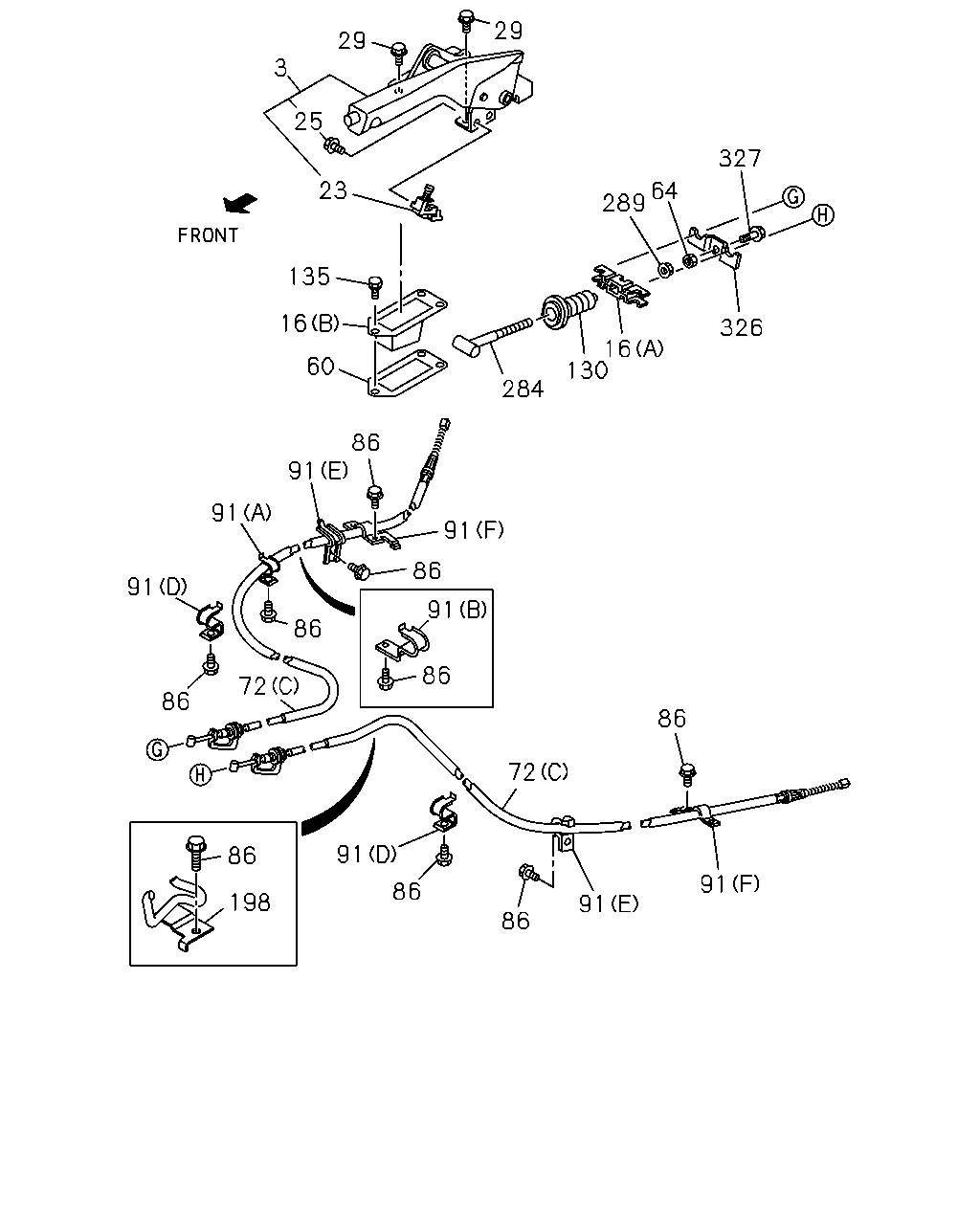

63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	9910-0012	●	●
63	04.792 LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94324-632-0	01	1	9910-0012			●	●
63	04.792 LEVER; RELAY,HAND BRK EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94324-632-0	01	1	0101-	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	0101-		●
63	04.792 LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC)	8-94324-632-0	01	1	0101-			●	●
63	04.792 LEVER; RELAY,HAND BRK GRADE S(RBA)	8-94324-633-1	01	1	9804-9909					●	●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-633-1	01	1	9910-0012					●
63	04.792 LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94324-633-1	01	1	9910-0012						●	●
63	04.792 LEVER; RELAY,HAND BRK 4X2 HIGH RIDE SUSPENSION(7YC)	8-94324-633-1	01	1	0101-	●
63	04.792 LEVER; RELAY,HAND BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW>	8-94324-633-1	01	1	0101-			●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-633-1	01	1	0101-					●
63	04.792 LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94324-633-1	01	1	0101-						●	●
65	04.594 NUT; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10	9-09110-410-0	01	1	9804-9812	●	●	●	●
65	04.594 NUT; RELAY LEVER GRADE S(RBA) 09.011 M10	9-09110-410-0	01	1	9804-9812					●	●	●
65	04.594 NUT; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.011 M10	9-09110-410-0	01	1	9901-9909	●	●	●	●
65	04.594 NUT; RELAY LEVER GRADE S(RBA) 09.011 M10	9-09110-410-0	01	1	9901-9909					●	●	●
65	04.594 NUT; RELAY LEVER 09.011 M10	9-09110-410-0	01	1	9910-	●	●			●
65	04.594 NUT; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 09.011 M10	9-09110-410-0	01	1	9910-			●	●		●	●
66	04.592 WASHER; LK,RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 ID=10.2	9-09150-510-0	01	1	9804-9812	●	●	●	●
66	04.592 WASHER; LK,RELAY LEVER GRADE S(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9804-9812					●	●	●
66	04.592 WASHER; LK,RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-510-0	01	1	9901-9909	●	●	●	●
66	04.592 WASHER; LK,RELAY LEVER GRADE S(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9901-9909					●	●	●
66	04.592 WASHER; LK,RELAY LEVER 00.002 ID=10.2	9-09150-510-0	01	1	9910-	●	●			●
66	04.592 WASHER; LK,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 00.002 ID=10.2	9-09150-510-0	01	1	9910-			●	●		●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94404-908-1	01	1	9804-9812	●	●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR GRADE S(RBA)	8-94404-908-1	01	1	9804-9812					●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94404-908-1	01	1	9901-9909	●	●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR GRADE S(RBA)	8-94404-908-1	01	1	9901-9909					●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR	8-94404-908-1	01	1	9910-	●	●			●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR EXC. PARKING BRAKE FLOOR<7XW>	8-94404-908-1	01	1	9910-			●	●		●	●
69	04.589 ROD; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94314-430-0	01	1	9804-9812	●	●	●	●
69	04.589 ROD; RELAY LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94314-430-0	01	1	9901-9909	●	●	●	●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	9910-0012	●	●
69	04.589 ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94314-430-0	01	1	9910-0012			●	●
69	04.589 ROD; RELAY LEVER EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94314-430-0	01	1	0101-	●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	0101-		●
69	04.589 ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC)	8-94314-430-0	01	1	0101-			●	●
69	04.589 ROD; RELAY LEVER GRADE S(RBA) 04.765	8-94479-248-0	01	1	9804-9909					●	●	●
69	04.589 ROD; RELAY LEVER 04.765	8-94479-248-0	01	1	9910-0012					●
69	04.589 ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.765	8-94479-248-0	01	1	9910-0012						●	●
69	04.589 ROD; RELAY LEVER 4X2 HIGH RIDE SUSPENSION(7YC) 04.765	8-94479-248-0	01	1	0101-	●
69	04.589 ROD; RELAY LEVER 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> 04.765	8-94479-248-0	01	1	0101-			●	●
69	04.589 ROD; RELAY LEVER 04.765	8-94479-248-0	01	1	0101-					●
69	04.589 ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.765	8-94479-248-0	01	1	0101-						●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.787 M8	9-09111-408-0	02	1	9804-9812	●	●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE GRADE S(RBA) 00.787 M8	9-09111-408-0	02	1	9804-9812					●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 00.787 M8	9-09111-408-0	02	1	9901-9909	●	●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE GRADE S(RBA) 00.787 M8	9-09111-408-0	02	1	9901-9909					●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 00.787 M8	9-09111-408-0	02	1	9910-	●	●			●
70	04.606 NUT; EQUALIZER TO FRT CABLE EXC. PARKING BRAKE FLOOR<7XW> 00.787 M8	9-09111-408-0	02	1	9910-			●	●		●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.302	8-94479-600-2	01	1	9804-9812	●	●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO GRADE S(RBA) 03.302	8-94479-600-2	01	1	9804-9812					●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 03.302	8-94479-600-2	01	1	9901-9909	●	●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO GRADE S(RBA) 03.302	8-94479-600-2	01	1	9901-9909					●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 03.302	8-94479-600-2	01	1	9910-	●	●			●
71	04.606 SPRING; RETURN,PARKING BRK TO BO EXC. PARKING BRAKE FLOOR<7XW> 03.302	8-94479-600-2	01	1	9910-			●	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9910-0012	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1604	8-94366-770-2	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1604	8-94366-770-2	01	1	0101-	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1604	8-94366-770-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9910-0012	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1684	8-94366-769-2	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1684	8-94366-769-2	01	1	0101-	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1684	8-94366-769-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9804-9812	●		●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) L=1850 WHITE	8-94367-286-0	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) L=1850 WHITE	8-94367-286-0	01	1	9901-9909	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9910-0012	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1850 WHITE	8-94367-286-0	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) L=1850 WHITE	8-94367-286-0	01	1	0101-	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (B) L=1850 WHITE	8-94367-286-0	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9804-9812	●		●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1604	8-94366-770-2	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) L=1604	8-94366-770-2	01	1	9901-9909	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9804-9812	●		●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1684	8-94366-769-2	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) L=1684	8-94366-769-2	01	1	9901-9909	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1300	8-94367-285-0	01	1	9804-		●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-772-2	01	1	9804-		●
72	04.779 CABLE; PARKING BRK (A) L=1464	8-94366-771-2	01	1	9804-		●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97217-149-1	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97174-665-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97191-104-0	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97191-104-0	01	1	9901-9909			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> (C)	8-97191-104-0	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97191-104-0	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97111-565-3	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD) (C)	8-97111-565-3	01	1	9804-9812						●	●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97111-565-3	01	1	9901-9909			●	●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD) (C)	8-97111-565-3	01	1	9901-9909						●	●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> (C)	8-97111-565-3	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	9910-0012								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-565-3	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97111-565-3	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	0101-								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-565-3	01	1	0101-						●	●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD) (C)	8-97111-566-2	01	1	9804-9909						●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	9910-0012								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-566-2	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97111-566-2	01	1	0101-0108			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	0101-0108								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-566-2	01	1	0101-0108						●	●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97111-566-2	01	1	0109-			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	0109-								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-566-2	01	1	0109-						●	●
72	04.779 CABLE; PARKING BRK (A)	8-97138-841-1	01	1	9804-					●
72	04.779 CABLE; PARKING BRK (A)	8-97138-840-2	01	1	9804-					●
72	04.779 CABLE; PARKING BRK GRADE S(RBA) (B) L=1380	8-94367-287-0	01	1	9804-9909					●	●	●
72	04.779 CABLE; PARKING BRK (B) L=1380	8-94367-287-0	01	1	9910-0012					●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1380	8-94367-287-0	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) (B) L=1380	8-94367-287-0	01	1	0101-	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> (B) L=1380	8-94367-287-0	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (B) L=1380	8-94367-287-0	01	1	0101-					●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1380	8-94367-287-0	01	1	0101-						●	●
72	04.779 CABLE; PARKING BRK GRADE S(RBA) (A)	8-97138-839-1	01	1	9804-9909						●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-839-1	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97138-839-1	01	1	0101-	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-839-1	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-839-1	01	1	0101-						●	●
72	04.779 CABLE; PARKING BRK GRADE S(RBA) (A)	8-97138-838-2	01	1	9804-9909						●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-838-2	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97138-838-2	01	1	0101-	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-838-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-838-2	01	1	0101-						●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.601	8-11042-301-3	01	1	9804-9812	●	●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK GRADE S(RBA) 05.601	8-11042-301-3	01	1	9804-9812					●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 05.601	8-11042-301-3	01	1	9901-9909	●	●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK GRADE S(RBA) 05.601	8-11042-301-3	01	1	9901-9909					●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 05.601	8-11042-301-3	01	1	9910-	●	●			●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> 05.601	8-11042-301-3	01	1	9910-			●	●		●	●
85	04.785 CLIP; BRKT ID=14	9-09916-883-0	01	1	9804-		●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	9804-	●	●	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9804-	●		●	●		●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9812		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9812		●
86	04.785 BOLT 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9812				●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-		●
86	04.785 BOLT 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-			●	●
86	04.785 BOLT 6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-9812				●
86	04.785 BOLT 6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9901-9909			●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9910-0012			●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0101-0105			●	●
86	04.785 BOLT 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0101-0105			●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0108			●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0109-			●	●
86	04.785 BOLT GRADE LS(RBD) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9804-9909						●	●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9910-0108			●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9910-0108								●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9910-0108						●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0109-			●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0109-								●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0109-						●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-640-1	01	1	9804-9812	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (C)	8-94126-640-1	01	1	9901-0012	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-94126-640-1	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	0101-		●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-639-1	01	1	9804-9812	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (C)	8-94126-639-1	01	1	9901-0012	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-94126-639-1	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	0101-		●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9804-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9804-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	01	1	9804-		●			●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (E) ID=14	9-09916-883-0	01	1	9804-9812				●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (E) ID=14	9-09916-883-0	01	1	9901-9909			●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9910-0108			●	●		●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9910-0108			●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9910-0108								●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9910-0108								●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9910-0108						●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0109-			●	●		●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0109-			●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0109-								●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0109-								●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0109-						●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-002-0	01	1	9804-9812				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9804-9812					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-002-0	01	1	9901-0012			●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9901-0012					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4X2 HIGH RIDE SUSPENSION(7YC) (F)	8-97087-002-0	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	0101-					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-001-0	01	1	9804-9812				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9804-9812					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-001-0	01	1	9901-0012			●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9901-0012					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4X2 HIGH RIDE SUSPENSION(7YC) (F)	8-97087-001-0	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	0101-					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE GRADE LS(RBD) (E) ID=14	9-09916-883-0	02	1	9804-9909						●	●	●
169	04.589 BOLT; SWITCH 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9804-9812	●	●	●	●
169	04.589 BOLT; SWITCH GRADE S(RBA) 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9804-9812					●	●	●
169	04.589 BOLT; SWITCH 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9901-9909	●	●	●	●
169	04.589 BOLT; SWITCH GRADE S(RBA) 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9901-9909					●	●	●
169	04.589 BOLT; SWITCH 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9910-	●	●			●
169	04.589 BOLT; SWITCH EXC. PARKING BRAKE FLOOR<7XW> 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9910-			●	●		●	●
187	04.606 BRACKET; HAND BRK GRADE S(RBA)	8-94327-452-0	01	1	9804-9909					●	●	●
187	04.606 BRACKET; HAND BRK	8-94327-452-0	01	1	9910-0012					●
187	04.606 BRACKET; HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94327-452-0	01	1	9910-0012						●	●
187	04.606 BRACKET; HAND BRK 4X2 HIGH RIDE SUSPENSION(7YC)	8-94327-452-0	01	1	0101-	●
187	04.606 BRACKET; HAND BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW>	8-94327-452-0	01	1	0101-			●	●
187	04.606 BRACKET; HAND BRK	8-94327-452-0	01	1	0101-					●
187	04.606 BRACKET; HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94327-452-0	01	1	0101-						●	●
188	04.606 BOLT; BRKT SET GRADE S(RBA) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-9909					●	●	●
188	04.606 BOLT; BRKT SET 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9910-0012					●
188	04.606 BOLT; BRKT SET EXC. PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9910-0012						●	●
188	04.606 BOLT; BRKT SET 4X2 HIGH RIDE SUSPENSION(7YC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-	●
188	04.606 BOLT; BRKT SET 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-			●	●
188	04.606 BOLT; BRKT SET 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-					●
188	04.606 BOLT; BRKT SET EXC. PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-						●	●
205	04.785 CLIP; 3RD C/MBR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.681	5-09709-039-0	02	1	9804-9812	●	●	●	●
205	04.785 CLIP; 3RD C/MBR GRADE S(RBA) 04.681	5-09709-039-0	02	1	9804-9812					●	●	●
205	04.785 CLIP; 3RD C/MBR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.681	5-09709-039-0	02	1	9901-9909	●	●	●	●
205	04.785 CLIP; 3RD C/MBR GRADE S(RBA) 04.681	5-09709-039-0	02	1	9901-9909					●	●	●
205	04.785 CLIP; 3RD C/MBR 04.681	5-09709-039-0	02	1	9910-	●	●			●
205	04.785 CLIP; 3RD C/MBR EXC. PARKING BRAKE FLOOR<7XW> 04.681	5-09709-039-0	02	1	9910-			●	●		●	●
344	04.595 GASKET; DASH LWR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94371-873-0	01	1	9804-9812	●	●	●	●
344	04.595 GASKET; DASH LWR GRADE S(RBA)	8-94371-873-0	01	1	9804-9812					●	●	●
344	04.595 GASKET; DASH LWR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94371-873-0	01	1	9901-9909	●	●	●	●
344	04.595 GASKET; DASH LWR GRADE S(RBA)	8-94371-873-0	01	1	9901-9909					●	●	●
344	04.595 GASKET; DASH LWR	8-94371-873-0	01	1	9910-	●	●			●
344	04.595 GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW>	8-94371-873-0	01	1	9910-			●	●		●	●

29 29 3 25 327 23 64 289 135 16 326 16 130 60 284 86 91 91 91 86 91 91 86 86 72 86 86 72 91 86 198 91 86 91 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	04.591 LEVER; PARKING BRK 6VD1 ENG(RLV)	8-97177-396-1	01	1	9804-9812				●
3	04.591 LEVER; PARKING BRK GRADE LS(RBD)	8-97177-396-1	01	1	9804-9812						●	●	●
3	04.591 LEVER; PARKING BRK 6VD1 ENG(RLV)	8-97177-396-1	01	1	9901-9909			●	●
3	04.591 LEVER; PARKING BRK GRADE LS(RBD)	8-97177-396-1	01	1	9901-9909						●	●	●
3	04.591 LEVER; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97207-662-0	01	1	9910-			●	●		●	●
3	04.591 LEVER; PARKING BRK	8-97207-662-0	01	1	9910-								●
16	04.591 BRACKET; PARKING BRK 6VD1 ENG(RLV) (A)	8-97142-956-2	01	1	9804-9812				●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (A)	8-97142-956-2	01	1	9804-9812						●	●	●
16	04.591 BRACKET; PARKING BRK 6VD1 ENG(RLV) (A)	8-97142-956-2	01	1	9901-9909			●	●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (A)	8-97142-956-2	01	1	9901-9909						●	●	●
16	04.591 BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW> (A)	8-97142-956-2	01	1	9910-			●	●		●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9910-								●
16	04.591 BRACKET; PARKING BRK 6VD1 ENG(RLV) (B)	8-97177-857-0	01	1	9804-9812				●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (B)	8-97177-857-0	01	1	9804-9812						●	●	●
16	04.591 BRACKET; PARKING BRK 6VD1 ENG(RLV) (B)	8-97177-857-0	01	1	9901-9909			●	●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (B)	8-97177-857-0	01	1	9901-9909						●	●	●
16	04.591 BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-97177-857-0	01	1	9910-			●	●		●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	9910-								●
23	04.589 SWITCH; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94328-267-0	01	1	9804-9812	●	●	●	●
23	04.589 SWITCH; PARKING BRK GRADE S(RBA)	8-94328-267-0	01	1	9804-9812					●	●	●
23	04.589 SWITCH; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94328-267-0	01	1	9901-9909	●	●	●	●
23	04.589 SWITCH; PARKING BRK GRADE S(RBA)	8-94328-267-0	01	1	9901-9909					●	●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9910-	●	●			●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	9910-			●	●		●	●
23	04.589 SWITCH; PARKING BRK 6VD1 ENG(RLV)	8-97032-276-0	01	1	9804-9812				●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9804-9812						●	●	●
23	04.589 SWITCH; PARKING BRK 6VD1 ENG(RLV)	8-97032-276-0	01	1	9901-9909			●	●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9901-9909						●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97032-276-0	01	1	9910-			●	●		●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9910-								●
25	04.589 SCREW; SW,PARKING BRK 6VD1 ENG(RLV)	8-97103-556-0	01	1	9804-9812				●
25	04.589 SCREW; SW,PARKING BRK GRADE LS(RBD)	8-97103-556-0	01	1	9804-9812						●	●	●
25	04.589 SCREW; SW,PARKING BRK 6VD1 ENG(RLV)	8-97103-556-0	01	1	9901-9909			●	●
25	04.589 SCREW; SW,PARKING BRK GRADE LS(RBD)	8-97103-556-0	01	1	9901-9909						●	●	●
25	04.589 SCREW; SW,PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97103-556-0	01	1	9910-			●	●		●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9910-								●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 6VD1 ENG(RLV) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9804-9812				●
29	04.595 BOLT; PARKING BRK LEVER TO BODY GRADE LS(RBD) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9804-9812						●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 6VD1 ENG(RLV) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9901-9909			●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY GRADE LS(RBD) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9901-9909						●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9910-			●	●		●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9910-								●
60	04.595 GASKET; PARKING BRK 6VD1 ENG(RLV)	8-97046-789-1	01	1	9804-9812				●
60	04.595 GASKET; PARKING BRK GRADE LS(RBD)	8-97046-789-1	01	1	9804-9812						●	●	●
60	04.595 GASKET; PARKING BRK 6VD1 ENG(RLV)	8-97046-789-1	01	1	9901-9909			●	●
60	04.595 GASKET; PARKING BRK GRADE LS(RBD)	8-97046-789-1	01	1	9901-9909						●	●	●
60	04.595 GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97046-789-1	01	1	9910-			●	●		●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9910-								●
64	04.595 NUT; PARKING BRK 6VD1 ENG(RLV) 02.559 M8	9-09110-408-0	01	1	9804-9812				●
64	04.595 NUT; PARKING BRK GRADE LS(RBD) 02.559 M8	9-09110-408-0	01	1	9804-9812						●	●	●
64	04.595 NUT; PARKING BRK 6VD1 ENG(RLV) 02.559 M8	9-09110-408-0	01	1	9901-9909			●	●
64	04.595 NUT; PARKING BRK GRADE LS(RBD) 02.559 M8	9-09110-408-0	01	1	9901-9909						●	●	●
64	04.595 NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> 02.559 M8	9-09110-408-0	01	1	9910-			●	●		●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9910-								●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9910-0012	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1604	8-94366-770-2	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1604	8-94366-770-2	01	1	0101-	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1604	8-94366-770-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9910-0012	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1684	8-94366-769-2	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1684	8-94366-769-2	01	1	0101-	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (A) L=1684	8-94366-769-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9804-9812	●		●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) L=1850 WHITE	8-94367-286-0	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (B) L=1850 WHITE	8-94367-286-0	01	1	9901-9909	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9910-0012	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1850 WHITE	8-94367-286-0	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) L=1850 WHITE	8-94367-286-0	01	1	0101-	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>,4X2 HIGH RIDE SUSPENSION(7YC) (B) L=1850 WHITE	8-94367-286-0	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9804-9812	●		●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1604	8-94366-770-2	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) L=1604	8-94366-770-2	01	1	9901-9909	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9804-9812	●		●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1684	8-94366-769-2	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) L=1684	8-94366-769-2	01	1	9901-9909	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1300	8-94367-285-0	01	1	9804-		●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-772-2	01	1	9804-		●
72	04.779 CABLE; PARKING BRK (A) L=1464	8-94366-771-2	01	1	9804-		●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97217-149-1	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97174-665-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97191-104-0	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97191-104-0	01	1	9901-9909			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> (C)	8-97191-104-0	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97191-104-0	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97111-565-3	01	1	9804-9812				●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD) (C)	8-97111-565-3	01	1	9804-9812						●	●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) (C)	8-97111-565-3	01	1	9901-9909			●	●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD) (C)	8-97111-565-3	01	1	9901-9909						●	●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> (C)	8-97111-565-3	01	1	9910-0012			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	9910-0012								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-565-3	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97111-565-3	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	0101-								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-565-3	01	1	0101-						●	●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD) (C)	8-97111-566-2	01	1	9804-9909						●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	9910-0012								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-566-2	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97111-566-2	01	1	0101-0108			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	0101-0108								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-566-2	01	1	0101-0108						●	●
72	04.779 CABLE; PARKING BRK 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-97111-566-2	01	1	0109-			●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	0109-								●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97111-566-2	01	1	0109-						●	●
72	04.779 CABLE; PARKING BRK (A)	8-97138-841-1	01	1	9804-					●
72	04.779 CABLE; PARKING BRK (A)	8-97138-840-2	01	1	9804-					●
72	04.779 CABLE; PARKING BRK GRADE S(RBA) (B) L=1380	8-94367-287-0	01	1	9804-9909					●	●	●
72	04.779 CABLE; PARKING BRK (B) L=1380	8-94367-287-0	01	1	9910-0012					●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1380	8-94367-287-0	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) (B) L=1380	8-94367-287-0	01	1	0101-	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> (B) L=1380	8-94367-287-0	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK (B) L=1380	8-94367-287-0	01	1	0101-					●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1380	8-94367-287-0	01	1	0101-						●	●
72	04.779 CABLE; PARKING BRK GRADE S(RBA) (A)	8-97138-839-1	01	1	9804-9909						●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-839-1	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97138-839-1	01	1	0101-	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-839-1	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-839-1	01	1	0101-						●	●
72	04.779 CABLE; PARKING BRK GRADE S(RBA) (A)	8-97138-838-2	01	1	9804-9909						●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-838-2	01	1	9910-0012						●	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) (A)	8-97138-838-2	01	1	0101-	●
72	04.779 CABLE; PARKING BRK 4X2 HIGH RIDE SUSPENSION(7YC) EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-838-2	01	1	0101-			●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97138-838-2	01	1	0101-						●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	9804-	●	●	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9804-	●		●	●		●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9812		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9812		●
86	04.785 BOLT 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9812				●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-		●
86	04.785 BOLT 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-			●	●
86	04.785 BOLT 6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-9812				●
86	04.785 BOLT 6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9901-9909			●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9910-0012			●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0101-0105			●	●
86	04.785 BOLT 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0101-0105			●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0108			●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0109-			●	●
86	04.785 BOLT GRADE LS(RBD) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9804-9909						●	●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9910-0108			●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9910-0108								●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9910-0108						●	●
86	04.785 BOLT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0109-			●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0109-								●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0109-						●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-640-1	01	1	9804-9812	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (C)	8-94126-640-1	01	1	9901-0012	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-94126-640-1	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	0101-		●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-639-1	01	1	9804-9812	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (C)	8-94126-639-1	01	1	9901-0012	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (C)	8-94126-639-1	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	0101-		●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9804-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9804-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	01	1	9804-		●			●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (E) ID=14	9-09916-883-0	01	1	9804-9812				●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (E) ID=14	9-09916-883-0	01	1	9901-9909			●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9910-0108			●	●		●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9910-0108			●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9910-0108								●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9910-0108								●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9910-0108						●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0109-			●	●		●	●
91	04.785 CLIP; PARKING BRK CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),20SE ENG(RND) PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0109-			●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0109-								●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0109-								●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0109-						●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-002-0	01	1	9804-9812				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9804-9812					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-002-0	01	1	9901-0012			●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9901-0012					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4X2 HIGH RIDE SUSPENSION(7YC) (F)	8-97087-002-0	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	0101-					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-001-0	01	1	9804-9812				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9804-9812					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-001-0	01	1	9901-0012			●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9901-0012					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4X2 HIGH RIDE SUSPENSION(7YC) (F)	8-97087-001-0	01	1	0101-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	0101-					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE GRADE LS(RBD) (E) ID=14	9-09916-883-0	02	1	9804-9909						●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER 6VD1 ENG(RLV)	8-97142-954-0	01	1	9804-9812				●
130	04.591 COVER; DUST,PARK BRK LEVER GRADE LS(RBD)	8-97142-954-0	01	1	9804-9812						●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER 6VD1 ENG(RLV)	8-97142-954-0	01	1	9901-9909			●	●
130	04.591 COVER; DUST,PARK BRK LEVER GRADE LS(RBD)	8-97142-954-0	01	1	9901-9909						●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER PARKING BRAKE FLOOR<7XW>	8-97142-954-0	01	1	9910-			●	●		●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9910-								●
135	04.591 BOLT; PARKING BRK BRKT 6VD1 ENG(RLV) 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9804-9812				●
135	04.591 BOLT; PARKING BRK BRKT GRADE LS(RBD) 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9804-9812						●	●	●
135	04.591 BOLT; PARKING BRK BRKT 6VD1 ENG(RLV) 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9901-9909			●	●
135	04.591 BOLT; PARKING BRK BRKT GRADE LS(RBD) 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9901-9909						●	●	●
135	04.591 BOLT; PARKING BRK BRKT PARKING BRAKE FLOOR<7XW> 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9910-			●	●		●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9910-								●
198	04.785 BRACKET; CABLE 6VD1 ENG(RLV)	8-97189-469-0	01	1	9804-9812				●
198	04.785 BRACKET; CABLE 6VD1 ENG(RLV)	8-97189-469-0	01	1	9901-9909			●	●
198	04.785 BRACKET; CABLE PARKING BRAKE FLOOR<7XW>	8-97217-152-0	01	1	9910-0012			●	●
198	04.785 BRACKET; CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) PARKING BRAKE FLOOR<7XW> EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-97217-152-0	01	1	0101-0105			●	●
198	04.785 BRACKET; CABLE 6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW>	8-97217-152-0	01	1	0101-0105			●	●
198	04.785 BRACKET; CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) PARKING BRAKE FLOOR<7XW>	8-97217-152-0	01	1	0106-0108			●	●
198	04.785 BRACKET; CABLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV),20SE ENG(RND) PARKING BRAKE FLOOR<7XW>	8-97217-152-0	01	1	0109-			●	●
284	04.595 ROD; HAND BRK 6VD1 ENG(RLV)	8-97161-636-1	01	1	9804-9812				●
284	04.595 ROD; HAND BRK GRADE LS(RBD)	8-97161-636-1	01	1	9804-9812						●	●	●
284	04.595 ROD; HAND BRK 6VD1 ENG(RLV)	8-97161-636-1	01	1	9901-9909			●	●
284	04.595 ROD; HAND BRK GRADE LS(RBD)	8-97161-636-1	01	1	9901-9909						●	●	●
284	04.595 ROD; HAND BRK PARKING BRAKE FLOOR<7XW>	8-97161-636-1	01	1	9910-			●	●		●	●
284	04.595 ROD; HAND BRK	8-97161-636-1	01	1	9910-								●
289	04.594 NUT; PARKING BRK 6VD1 ENG(RLV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9804-9812				●
289	04.594 NUT; PARKING BRK GRADE LS(RBD) 07.633 M8 FLANGE	0-91150-108-0	01	1	9804-9812						●	●	●
289	04.594 NUT; PARKING BRK 6VD1 ENG(RLV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9901-9909			●	●
289	04.594 NUT; PARKING BRK GRADE LS(RBD) 07.633 M8 FLANGE	0-91150-108-0	01	1	9901-9909						●	●	●
289	04.594 NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> 07.633 M8 FLANGE	0-91150-108-0	01	1	9910-			●	●		●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9910-								●
326	04.785 RETAINER; PARK CABLE 6VD1 ENG(RLV)	8-97024-708-0	01	1	9804-9812				●
326	04.785 RETAINER; PARK CABLE GRADE LS(RBD)	8-97024-708-0	01	1	9804-9812						●	●	●
326	04.785 RETAINER; PARK CABLE 6VD1 ENG(RLV)	8-97024-708-0	01	1	9901-9909			●	●
326	04.785 RETAINER; PARK CABLE GRADE LS(RBD)	8-97024-708-0	01	1	9901-9909						●	●	●
326	04.785 RETAINER; PARK CABLE PARKING BRAKE FLOOR<7XW>	8-97024-708-0	01	1	9910-			●	●		●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9910-								●
327	04.785 BOLT; RETAINER 6VD1 ENG(RLV) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-9812				●
327	04.785 BOLT; RETAINER GRADE LS(RBD) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-9812						●	●	●
327	04.785 BOLT; RETAINER 6VD1 ENG(RLV) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9901-9909			●	●
327	04.785 BOLT; RETAINER GRADE LS(RBD) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9901-9909						●	●	●
327	04.785 BOLT; RETAINER PARKING BRAKE FLOOR<7XW> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9910-			●	●		●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9910-								●

328 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9804-9812	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER GRADE S(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9804-9812					●	●	●
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9901-9909	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER GRADE S(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9901-9909					●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9910-	●	●			●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9910-			●	●		●	●
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-9812	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-9812					●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9901-9909	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9901-9909					●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9910-	●	●	●	●	●	●	●	●
328	04.784 PLATE; SEAL 6VD1 ENG(RLV)	8-97064-242-1	01	1	9804-9812				●
328	04.784 PLATE; SEAL GRADE LS(RBD)	8-97064-242-1	01	1	9804-9812						●	●	●
328	04.784 PLATE; SEAL 6VD1 ENG(RLV)	8-97064-242-1	01	1	9901-9909			●	●
328	04.784 PLATE; SEAL GRADE LS(RBD)	8-97064-242-1	01	1	9901-9909						●	●	●
328	04.784 PLATE; SEAL PARKING BRAKE FLOOR<7XW>	8-97064-242-1	01	1	9910-			●	●		●	●
328	04.784 PLATE; SEAL	8-97064-242-1	01	1	9910-								●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
