◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14A - CAMSHAFT AND VALVE ▶
0-14A — CAMSHAFT AND VALVE (#4221) — 178 parça

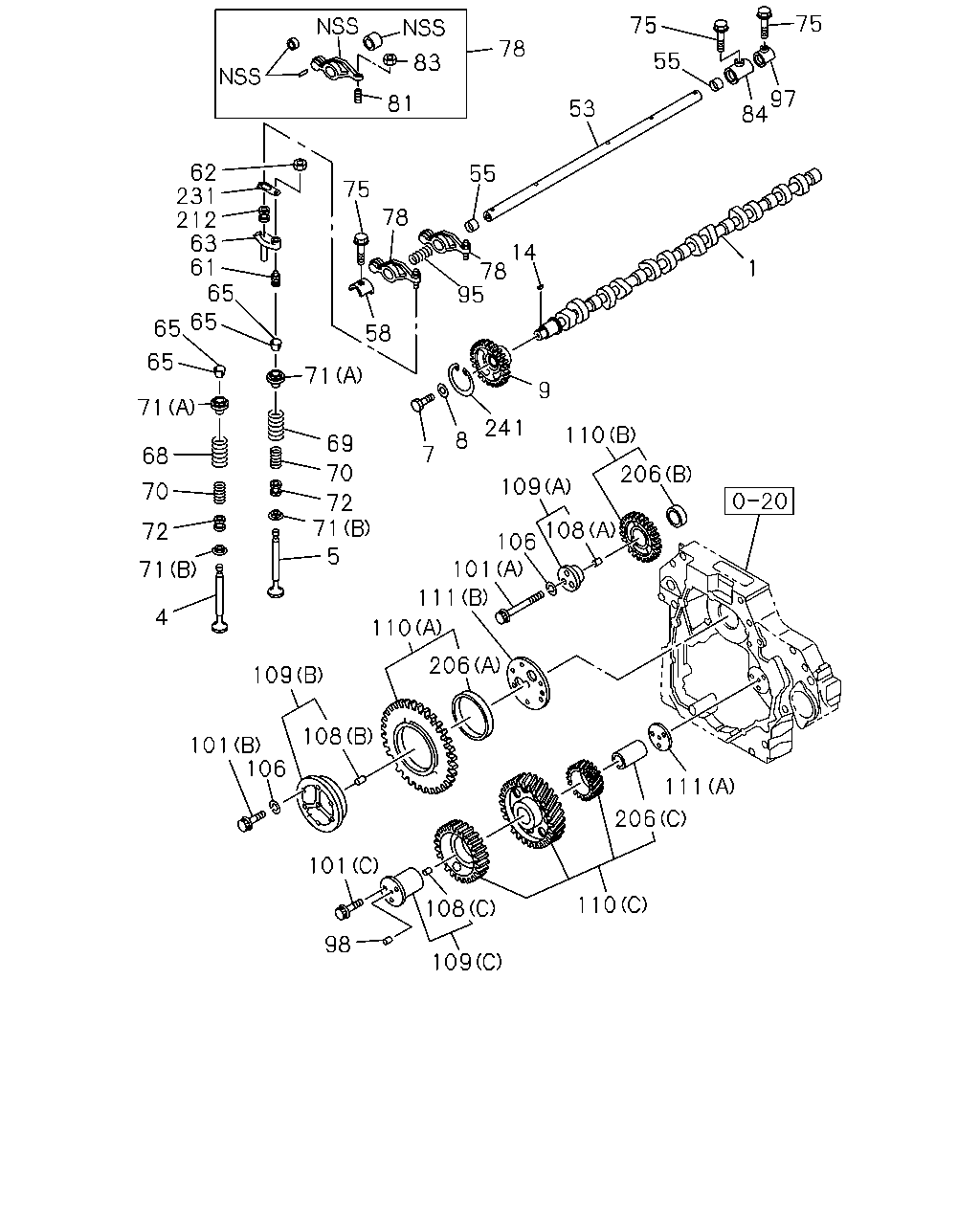

çizim 6201
75 75 78 55 83 97 84 81 53 62 231 212 63 61 65 55 75 78 14 78 95 1 65 65 58 65 71 9 71 241 110 8 69 7 68 70 206 109 70 72 71 5 108 72 106 101 71 111 4 110 206 109 108 101 106 111 206 101 110 108 98 109
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CAMSHAFT 1-12511-255-0 01 1 9603-9706 ●
1 CAMSHAFT 1-12511-255-1 01 1 9707-9904 ● ●
1 CAMSHAFT 1-12511-255-2 01 1 9905- ● ● ● ●
4 VALVE; INL 1-12551-145-2 12 1 9603-9904 ●
4 VALVE; INL 1-12551-145-3 12 1 9905- ● ● ●
4 VALVE; INL 1-12551-151-0 12 1 9707-9904 ●
4 VALVE; INL 1-12551-151-1 12 1 9905- ●
5 VALVE; EXH 1-12552-095-0 12 1 9603-9710 ●
5 VALVE; EXH 1-12552-102-0 12 1 9711-9904 ●
5 VALVE; EXH 1-12552-102-1 12 1 9905- ● ● ●
5 VALVE; EXH 1-12552-098-0 12 1 9707-9902 ●
5 VALVE; EXH 1-12552-109-0 12 1 9903-9904 ●
5 VALVE; EXH 1-12552-109-1 12 1 9905- ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9603-9706 ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9707-9904 ● ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9905- ● ● ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9603-9706 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9707-9904 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9905- ● ● ● ●
9 GEAR; CM/SHF
Z=54 		1-12522-035-3 01 1 9603-9604 ●
9 GEAR; CM/SHF
Z=54 		1-12522-043-1 01 1 9605-9706 ●
9 GEAR; CM/SHF
Z=54 		1-12522-043-1 01 1 9707-9904 ● ●
9 GEAR; CM/SHF
Z=54 		1-12522-043-1 01 1 9905-9910 ● ● ● ●
9 GEAR; CM/SHF
Z=54 		1-12522-055-2 01 1 9911- ● ● ● ●
14 KEY; CM/SHF 9-08055-516-0 01 1 9603-9706 ●
14 KEY; CM/SHF 9-08055-516-0 01 1 9707-9904 ● ●
14 KEY; CM/SHF 9-08055-516-0 01 1 9905- ● ● ● ●
53 SHAFT; ROCKER ARM 1-12621-074-2 01 1 9603-9610 ●
53 SHAFT; ROCKER ARM 1-12621-085-1 01 1 9611-9706 ●
53 SHAFT; ROCKER ARM 1-12621-085-1 01 1 9707-9806 ● ●
53 SHAFT; ROCKER ARM 1-12621-090-0 01 1 9807-9904 ● ●
53 SHAFT; ROCKER ARM 1-12621-090-0 01 1 9905- ● ● ● ●
55 PLUG; ROCKER SHAFT END
OD=18 		9-11129-082-0 02 1 9603-9706 ●
55 PLUG; ROCKER SHAFT END
OD=18 		9-11129-082-0 02 1 9707-9904 ● ●
55 PLUG; ROCKER SHAFT END
OD=18 		9-11129-082-0 02 1 9905- ● ● ● ●
58 BRACKET; ROCKER SHAFT,FRT 1-12628-058-2 01 1 9603-9711 ●
58 BRACKET; ROCKER SHAFT,FRT 1-12628-071-0 01 1 9712-9904 ●
58 BRACKET; ROCKER SHAFT,FRT 1-12628-071-0 01 1 9905- ● ● ●
58 BRACKET; ROCKER SHAFT,FRT 1-12628-070-1 01 1 9707-9904 ●
58 BRACKET; ROCKER SHAFT,FRT 1-12628-070-1 01 1 9905- ●
61 SCREW; ADJ,BRIDGE 1-12616-042-0 12 1 0101- ●
61 SCREW; ADJ,BRIDGE 9-12616-053-0 12 1 9603-9706 ●
61 SCREW; ADJ,BRIDGE 9-12616-053-0 12 1 9707-9904 ● ●
61 SCREW; ADJ,BRIDGE 9-12616-053-0 12 1 9905-0012 ● ● ● ●
61 SCREW; ADJ,BRIDGE 9-12616-053-0 12 1 0101- ● ● ●
62 NUT; ADJ SCREW LK BRIDGE
M10 		9-09840-310-0 12 1 9603-9706 ●
62 NUT; ADJ SCREW LK BRIDGE
M10 		9-09840-310-0 12 1 9707-9904 ● ●
62 NUT; ADJ SCREW LK BRIDGE
M10 		9-09840-310-0 12 1 9905- ● ● ● ●
63 BRIDGE 1-12611-257-0 12 1 9603-9710 ●
63 BRIDGE 1-12611-281-0 12 1 9711-9904 ●
63 BRIDGE 1-12611-281-0 12 1 9905- ● ● ●
63 BRIDGE 1-12611-277-1 12 1 9707-9904 ●
63 BRIDGE 1-12611-277-3 12 1 9905- ●
65 COLLAR; SPLIT 1-12565-007-0 48 1 9603-9706 ●
65 COLLAR; SPLIT 1-12565-007-0 48 1 9707-9904 ● ●
65 COLLAR; SPLIT 1-12565-007-0 48 1 9905- ● ● ● ●
68 SPRING; VLV 1-12561-092-0 12 1 9603-9706 ●
68 SPRING; VLV 1-12561-092-0 12 1 9707-9904 ● ●
68 SPRING; VLV 1-12561-092-0 12 1 9905- ● ● ● ●
69 SPRING; VLV,OUTER 1-12561-093-0 12 1 9603-9706 ●
69 SPRING; VLV,OUTER 1-12561-093-0 12 1 9707-9904 ● ●
69 SPRING; VLV,OUTER 1-12561-093-0 12 1 9905- ● ● ● ●
70 SPRING; VLV,INNER 1-12562-060-0 12 1 9603-9706 ●
70 SPRING; VLV,INNER 1-12562-060-0 12 1 9707-9904 ● ●
70 SPRING; VLV,INNER 1-12562-060-0 12 1 9905- ● ● ● ●
71 SEAT; SPR
(A) UPPER 		1-12563-055-0 24 1 9603-9706 ●
71 SEAT; SPR
(A) UPPER 		1-12563-055-0 24 1 9707-9904 ● ●
71 SEAT; SPR
(A) UPPER 		1-12563-055-0 24 1 9905- ● ● ● ●
71 SEAT; SPR
(B) LOWER 		1-12563-056-2 24 1 9603-9706 ●
71 SEAT; SPR
(B) LOWER 		1-12563-056-2 24 1 9707-9904 ● ●
71 SEAT; SPR
(B) LOWER 		1-12563-056-2 24 1 9905- ● ● ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 24 1 9603-9604 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-019-1 24 1 9605-9706 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-019-1 24 1 9707-9904 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-019-1 24 1 9905-0005 ● ● ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-020-0 24 1 0006- ● ● ● ●
75 BOLT; BRKT
M12X97 FLANGE 		1-09044-087-1 07 1 9603-9706 ●
75 BOLT; BRKT
M12X97 FLANGE 		1-09044-087-1 07 1 9707-9904 ● ●
75 BOLT; BRKT
M12X97 FLANGE 		1-09044-087-1 07 1 9905- ● ● ● ●
78 ARM; ROCKER 1-12610-062-0 12 1 9603-9711 ●
78 ARM; ROCKER 1-12610-061-0 12 1 9707-9711 ●
78 ARM; ROCKER 1-12610-061-1 12 1 9712-9904 ● ●
78 ARM; ROCKER 1-12610-061-1 12 1 9905- ● ● ● ●
81 SCREW; ADJ,ROCKER ARM 1-12616-034-1 12 1 9603-9706 ●
81 SCREW; ADJ,ROCKER ARM 1-12616-034-1 12 1 9707-9904 ● ●
81 SCREW; ADJ,ROCKER ARM 1-12616-034-1 12 1 9905- ● ● ● ●
83 NUT; ADJ SCREW,LK
M12 		9-99110-512-0 12 1 9603-9706 ●
83 NUT; ADJ SCREW,LK
M12 		9-99110-512-0 12 1 9707-9904 ● ●
83 NUT; ADJ SCREW,LK
M12 		9-99110-512-0 12 1 9905- ● ● ● ●
84 BRACKET; ROCKER SHAFT,INTER 1-12628-055-2 05 1 9603-9711 ●
84 BRACKET; ROCKER SHAFT,INTER 1-12628-069-0 05 1 9712-9904 ●
84 BRACKET; ROCKER SHAFT,INTER 1-12628-069-0 05 1 9905- ● ● ●
84 BRACKET; ROCKER SHAFT,INTER 1-12628-068-1 05 1 9707-9904 ●
84 BRACKET; ROCKER SHAFT,INTER 1-12628-068-1 05 1 9905- ●
95 SPRING; ROCKER SHAFT 1-09580-472-1 06 1 9603-9706 ●
95 SPRING; ROCKER SHAFT 1-09580-472-1 06 1 9707-9904 ● ●
95 SPRING; ROCKER SHAFT 1-09580-472-1 06 1 9905- ● ● ● ●
97 BRACKET; ROCKER SHAFT,RR 1-12628-059-2 01 1 9603-9711 ●
97 BRACKET; ROCKER SHAFT,RR 1-12628-073-0 01 1 9712-9903 ●
97 BRACKET; ROCKER SHAFT,RR 1-12628-073-0 01 1 9905- ● ● ●
97 BRACKET; ROCKER SHAFT,RR 1-12628-072-1 01 1 9707-9904 ●
97 BRACKET; ROCKER SHAFT,RR 1-12628-072-1 01 1 9905- ●
98 PIN; SHAFT SET
OD=8 L=16 		9-08150-816-0 01 1 9603-9705 ●
98 PIN; SHAFT SET
OD=8 L=14 		9-08160-814-0 01 1 9706-9706 ●
98 PIN; SHAFT SET
OD=8 L=14 		9-08160-814-0 01 1 9707-9904 ● ●
98 PIN; SHAFT SET
OD=8 L=14 		9-08160-814-0 01 1 9905-0103 ● ● ● ●
101 BOLT; THRUST COLLAR
(A) M10X45 		0-16806-045-0 03 1 9603-9604 ●
101 BOLT; THRUST COLLAR
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9605-9706 ●
101 BOLT; THRUST COLLAR
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9707-9904 ● ●
101 BOLT; THRUST COLLAR
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9905- ● ● ● ●
101 BOLT; THRUST COLLAR
(B) M10X60 		0-16806-060-0 06 1 9603-9604 ●
101 BOLT; THRUST COLLAR
(B) M10X60 FLANGE 		0-28181-060-0 06 1 9605-9706 ●
101 BOLT; THRUST COLLAR
(B) M10X60 FLANGE 		0-28181-060-0 06 1 9707-9904 ● ●
101 BOLT; THRUST COLLAR
(B) M10X60 FLANGE 		0-28181-060-0 06 1 9905- ● ● ● ●
101 BOLT; THRUST COLLAR
(C) M12X114 		1-09070-087-2 03 1 9603-9706 ●
101 BOLT; THRUST COLLAR
(C) M12X114 		1-09070-087-2 03 1 9707-9904 ● ●
101 BOLT; THRUST COLLAR
(C) M12X114 		1-09070-087-2 03 1 9905- ● ● ● ●
106 WASHER; IDLE GEAR SHAFT
ID=10 		1-09503-033-1 09 1 9603-9604 ●
108 DOWEL; SHAFT
(C) 		1-12539-024-0 01 1 9603-9706 ●
108 DOWEL; SHAFT
(C) 		1-12539-024-0 01 1 9707-9904 ● ●
108 DOWEL; SHAFT
(C) 		1-12539-024-0 01 1 9905-0103 ● ● ● ●
108 DOWEL; SHAFT
(A) 		8-94108-075-1 01 1 9603-9706 ●
108 DOWEL; SHAFT
(A) 		8-94108-075-1 01 1 9707-9904 ● ●
108 DOWEL; SHAFT
(A) 		8-94108-075-1 01 1 9905-0103 ● ● ● ●
108 DOWEL; SHAFT
(B) 		9-08161-225-0 01 1 9603-9606 ●
108 DOWEL; SHAFT
(B) OD=12 L=32 		9-08161-232-0 01 1 9607-9706 ●
108 DOWEL; SHAFT
(B) OD=12 L=32 		9-08161-232-0 01 1 9707-9904 ● ●
108 DOWEL; SHAFT
(B) OD=12 L=32 		9-08161-232-0 01 1 9905- ● ● ● ●
109 SHAFT; IDLE GEAR
(C) 		1-12531-048-4 01 1 9603-9706 ●
109 SHAFT; IDLE GEAR
(C) 		1-12531-048-4 01 1 9707-9904 ● ●
109 SHAFT; IDLE GEAR
(C) 		1-12531-048-4 01 1 9905-0103 ● ● ● ●
109 SHAFT; IDLE GEAR
(C) 		1-12531-092-1 01 1 0104- ● ● ● ●
109 SHAFT; IDLE GEAR
(B) 		1-12531-049-4 01 1 9603-9606 ●
109 SHAFT; IDLE GEAR
(B) 		1-12531-076-0 01 1 9607-9706 ●
109 SHAFT; IDLE GEAR
(B) 		1-12531-076-0 01 1 9707-9904 ● ●
109 SHAFT; IDLE GEAR
(B) 		1-12531-076-2 01 1 9905- ● ● ● ●
109 SHAFT; IDLE GEAR
(A) 		1-12531-050-4 01 1 9603-9706 ●
109 SHAFT; IDLE GEAR
(A) 		1-12531-050-4 01 1 9707-9904 ● ●
109 SHAFT; IDLE GEAR
(A) 		1-12531-050-4 01 1 9905-0103 ● ● ● ●
109 SHAFT; IDLE GEAR
(A) 		1-12531-093-1 01 1 0104- ● ● ● ●
110 GEAR ASM; IDLE
(A) 		1-12523-213-3 01 1 9603-9607 ●
110 GEAR ASM; IDLE
(A) 		1-12523-270-0 01 1 9608-9706 ●
110 GEAR ASM; IDLE
(A) 		1-12523-270-0 01 1 9707-9904 ● ●
110 GEAR ASM; IDLE
(A) 		1-12523-270-0 01 1 9905-9910 ● ● ● ●
110 GEAR ASM; IDLE
(A) 		1-12523-313-0 01 1 9911- ● ● ● ●
110 GEAR ASM; IDLE
(B) 		1-12523-215-3 01 1 9603-9706 ●
110 GEAR ASM; IDLE
(B) 		1-12523-215-3 01 1 9707-9904 ● ●
110 GEAR ASM; IDLE
(B) 		1-12523-215-3 01 1 9905- ● ● ● ●
110 GEAR ASM; IDLE
(C) 		1-12523-232-4 01 1 9603-9904 ●
110 GEAR ASM; IDLE
(C) 		1-12523-232-6 01 1 9905- ● ● ●
110 GEAR ASM; IDLE
(C) 		1-12523-231-5 01 1 9707-9904 ●
110 GEAR ASM; IDLE
(C) 		1-12523-231-6 01 1 9905- ●
111 COLLAR; THRUST,IDLE GEAR
(A) 		1-12535-008-1 01 1 9603-9706 ●
111 COLLAR; THRUST,IDLE GEAR
(A) 		1-12535-008-1 01 1 9707-9904 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) 		1-12535-008-1 01 1 9905- ● ● ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) 		1-12535-019-0 01 1 9603-9706 ●
111 COLLAR; THRUST,IDLE GEAR
(B) 		1-12535-019-0 01 1 9707-9904 ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) 		1-12535-019-0 01 1 9905- ● ● ● ●
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-09330-105-0 01 1 9603-9607 ●
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-09330-124-0 01 1 9608-9706 ●
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-09330-124-0 01 1 9707-9904 ● ●
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-09330-124-0 01 1 9905- ● ● ● ●
206 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		1-09330-108-0 01 1 9603-9706 ●
206 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		1-09330-108-0 01 1 9707-9904 ● ●
206 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		1-09330-108-0 01 1 9905- ● ● ● ●
206 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		1-09330-113-0 01 1 9603-9706 ●
206 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		1-09330-113-0 01 1 9707-9904 ● ●
206 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		1-09330-113-0 01 1 9905- ● ● ● ●
212 CAP; ADJ SCREW 1-12616-037-0 12 1 9603-9904 ●
212 CAP; ADJ SCREW 1-12616-037-0 12 1 9905- ● ● ●
212 CAP; ADJ SCREW 1-12616-040-0 12 1 9707-9904 ●
212 CAP; ADJ SCREW 1-12616-040-0 12 1 9905- ●
231 PLATE; CAP 1-12619-004-0 12 1 9603-9904 ●
231 PLATE; CAP 1-12619-004-0 12 1 9905- ● ● ●
231 PLATE; CAP 1-12619-011-2 12 1 9707-9904 ●
231 PLATE; CAP 1-12619-011-2 12 1 9905- ●
241 RING; FRICTION 1-12529-003-0 01 1 9707-9904 ●
241 RING; FRICTION 1-12529-003-0 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
