Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

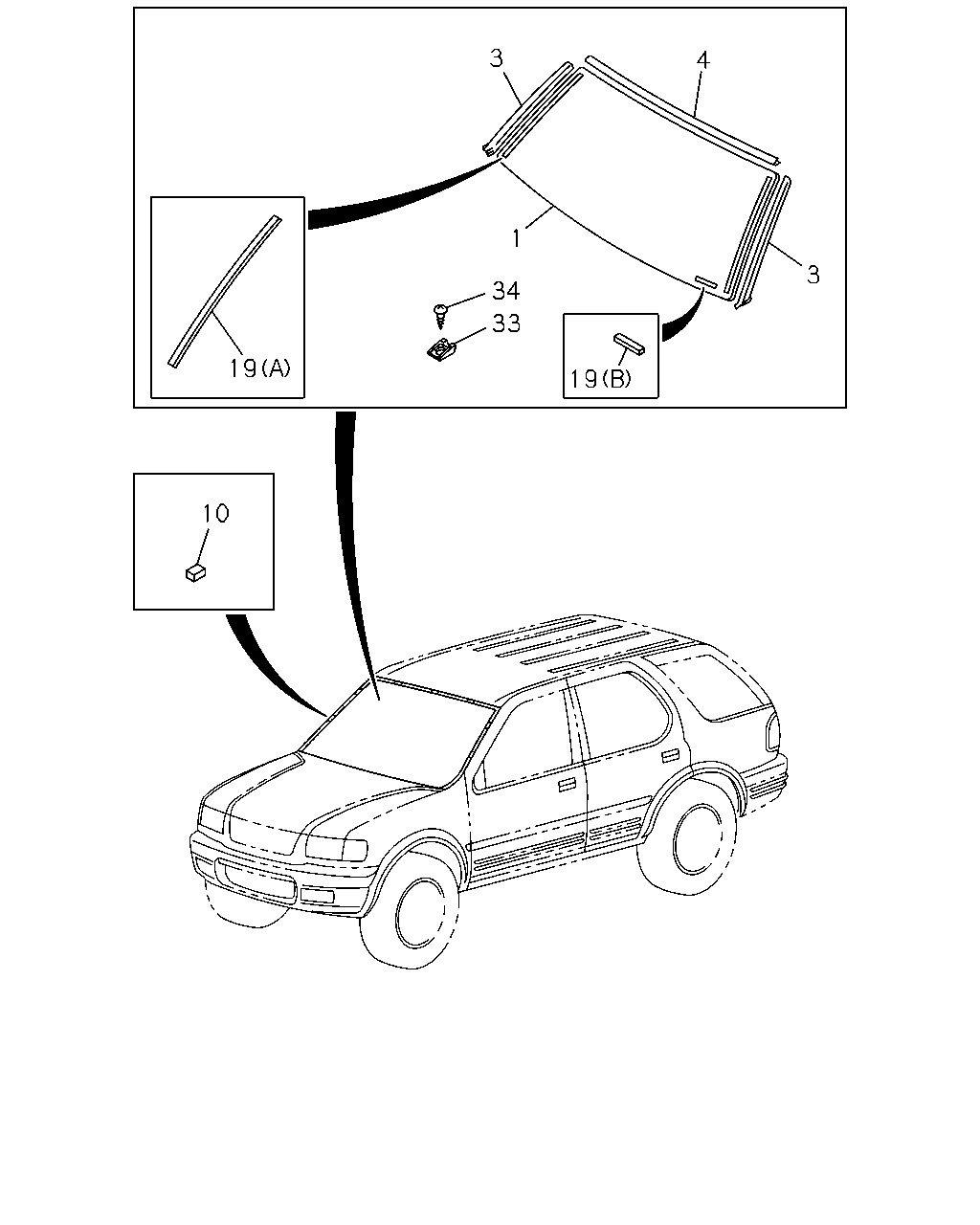

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#42201) — 15 parça
3
4
1
3
34
33
19
19
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; WINDSHIELD
8-97124-421-5
01
1
9707-0206
1
GLASS; WINDSHIELD
8-97317-604-1
01
1
0207-0207
1
GLASS; WINDSHIELD
8-97124-421-5
01
1
0208-
3
MOLDING; WINDSHIELD
8-97124-423-1
01
1
9707-
3
MOLDING; WINDSHIELD
8-97124-422-1
01
1
9707-
4
MOLDING; WINDSHIELD,UPR
8-97124-424-1
01
1
9707-0201
4
MOLDING; WINDSHIELD,UPR
8-97332-390-1
01
1
0202-
10
SPACER; WINDSHIELD GLASS
8-97169-966-0
10
1
9707-9807
10
SPACER; WINDSHIELD GLASS
8-97169-966-0
09
1
9808-9910
10
SPACER; WINDSHIELD GLASS
8-97169-966-0
05
1
9911-
19
SEAL; WINDSHIELD
(A)
8-97165-840-1
02
1
9707-9910
19
SEAL; WINDSHIELD
(A)
8-97241-601-0
02
1
9911-
19
SEAL; WINDSHIELD
(B)
8-97165-841-1
01
1
9707-9708
33
SUPPORT; WINDSHIELD,LWR
8-94434-771-0
02
1
9707-
34
SCREW; SUPPORT TO BRKT
M6X10
9-09829-194-0
02
1
9707-
