◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13B - OIL PAN AND LEVEL GAUGE ▶

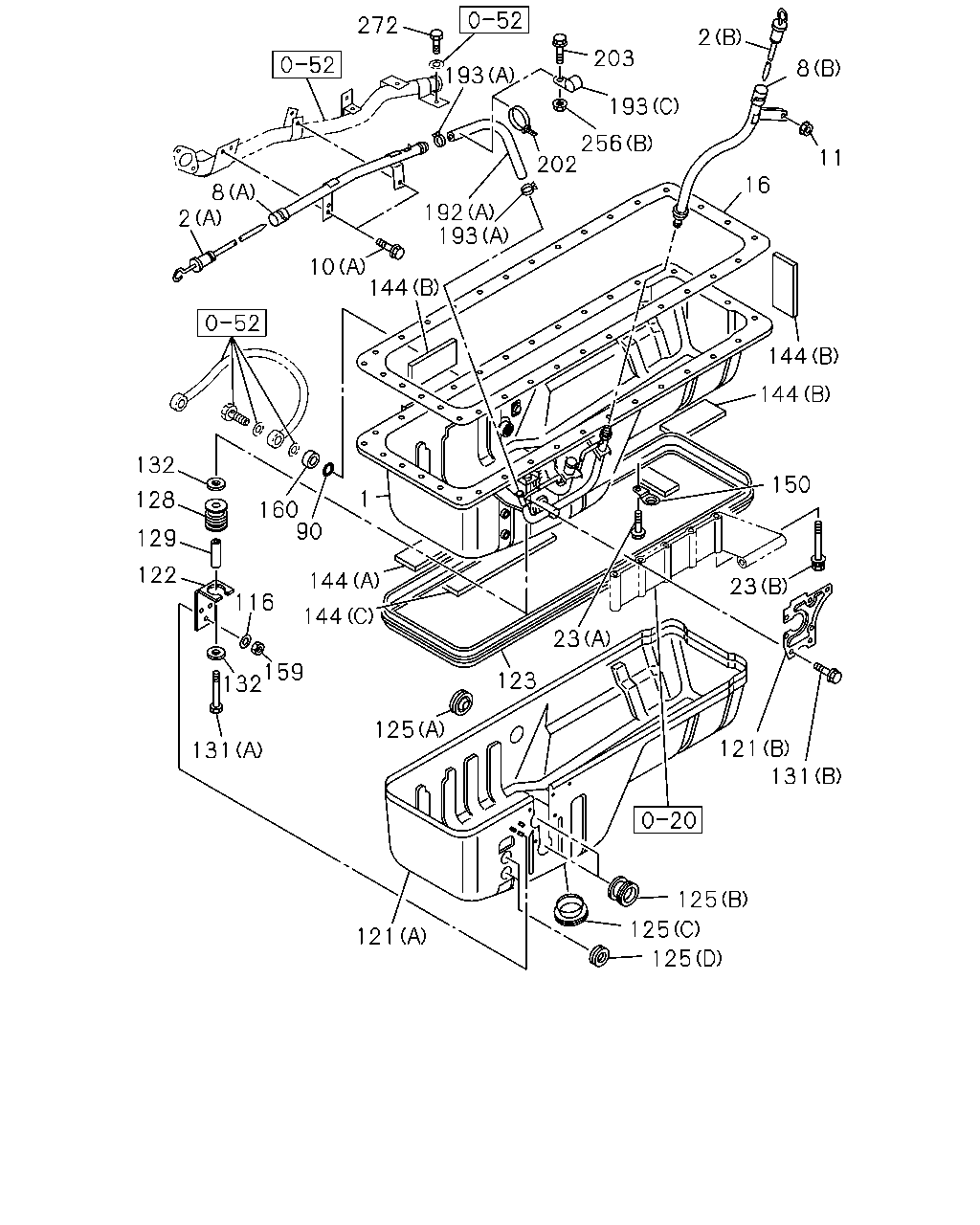

0-13B — OIL PAN AND LEVEL GAUGE (#4220) — 181 parça
çizim 5904
272 2 203 8 193 193 256 202 11 16 8 192 193 2 10 144 144 144 132 150 1 128 160 90 129 122 144 23 116 144 23 159 132 123 125 121 131 131 125 125 121 125
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAN ASM; OIL 1-11360-827-2 01 1 9603-9904 ●
1 PAN ASM; OIL 1-11360-850-1 01 1 9905- ●
1 PAN ASM; OIL
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-11360-848-0 01 1 9706-9904 ●
1 PAN ASM; OIL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-11360-848-0 01 1 9706-9904 ●
1 PAN ASM; OIL
SHORT CHASSIS(CXZ5MC) 		1-11360-848-1 01 1 9905- ● ● ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) EXC. GOVERNOR CONTROL<W69> 		1-11360-848-1 01 1 9905- ● ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-848-1 01 1 9905- ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-828-0 01 1 9603-9705 ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-849-0 01 1 9706-9904 ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> 		1-11360-849-1 01 1 9905- ● ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-849-1 01 1 9905- ●
1 PAN ASM; OIL
EXC. GOVERNOR CONTROL<W69> 		1-11360-826-0 01 1 9603-9705 ●
1 PAN ASM; OIL
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,GOVERNOR CONTROL<W69> 		1-11360-826-1 01 1 9706-0003 ●
1 PAN ASM; OIL
INJ PUMP Q SET 2000M ALTITUDE(T1C) 		1-11360-826-3 01 1 0004- ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-403-0 01 1 9603- ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-394-1 01 1 9603-9904 ● ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-394-1 01 1 9905- ● ● ● ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-398-0 01 1 9603-9904 ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-398-0 01 1 9905- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-419-2 01 1 9603- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-430-2 01 1 9603- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-429-2 01 1 9603-9904 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-429-2 01 1 9905- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-458-1 01 1 9603-9904 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-458-1 01 1 9905- ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9904 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 9603-9904 ● ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-107-0 01 1 9603- ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 9603-9904 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 9905- ● ● ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 18 1 9603- ●
23 BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 9603-9904 ● ●
23 BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 9905- ● ● ● ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 9603-9904 ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 9905- ● ● ●
90 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-588-0 01 1 9603-9904 ● ●
90 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-588-0 01 1 9905- ● ● ● ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 03 1 9905- ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 04 1 9603-9904 ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 04 1 9905- ● ● ●
121 COVER; OIL PAN
(B) 		1-19381-350-0 01 1 9905- ●
121 COVER; OIL PAN
(A) 		1-19381-380-0 01 1 9905- ●
121 COVER; OIL PAN
GOVERNOR CONTROL<W69> (B) 		1-19381-349-0 01 1 9603-9904 ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> (B) 		1-19381-349-0 01 1 9905- ● ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-19381-349-0 01 1 9905- ●
121 COVER; OIL PAN
GOVERNOR CONTROL<W69> (A) 		1-19381-353-0 01 1 9603-9705 ●
121 COVER; OIL PAN
GOVERNOR CONTROL<W69> (A) 		1-19381-379-0 01 1 9706-9904 ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> (A) 		1-19381-379-0 01 1 9905- ● ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-19381-379-0 01 1 9905- ●
121 COVER; OIL PAN
EXC. GOVERNOR CONTROL<W69> (A) 		1-19381-347-0 01 1 9603-9705 ●
121 COVER; OIL PAN
EXC. GOVERNOR CONTROL<W69> (A) 		1-19381-378-0 01 1 9706-9904 ●
121 COVER; OIL PAN
SHORT CHASSIS(CXZ5MC) (A) 		1-19381-378-0 01 1 9905- ● ● ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. GOVERNOR CONTROL<W69> (A) 		1-19381-378-0 01 1 9905- ● ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-19381-378-0 01 1 9905- ●
121 COVER; OIL PAN
EXC. GOVERNOR CONTROL<W69> (B) 		1-19381-357-0 01 1 9603-9904 ●
121 COVER; OIL PAN
SHORT CHASSIS(CXZ5MC) (B) 		1-19381-357-0 01 1 9905- ● ● ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. GOVERNOR CONTROL<W69> (B) 		1-19381-357-0 01 1 9905- ● ●
121 COVER; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-19381-357-0 01 1 9905- ●
122 BRACKET; OIL PAN COVER 1-19389-171-0 01 1 9603-9904 ●
122 BRACKET; OIL PAN COVER 1-19389-171-0 01 1 9905- ● ● ● ●
123 RUBBER; SEAL OIL 1-19387-043-1 01 1 9905- ●
123 RUBBER; SEAL OIL 1-19387-042-1 01 1 9603-9904 ●
123 RUBBER; SEAL OIL 1-19387-042-1 01 1 9905- ● ● ●
125 GROMMET; OIL PAN
(A) ID=34 		1-09333-032-0 01 1 9603-9904 ●
125 GROMMET; OIL PAN
(A) ID=34 		1-09333-032-0 01 1 9905- ● ● ● ●
125 GROMMET; OIL PAN
(B) ID=18 		1-09333-056-0 02 1 9603-9904 ●
125 GROMMET; OIL PAN
(B) ID=18 		1-09333-056-0 03 1 9905- ●
125 GROMMET; OIL PAN
(C) ID=60 		1-09333-090-0 01 1 9603-9904 ●
125 GROMMET; OIL PAN
(C) ID=60 		1-09333-090-0 01 1 9905- ● ● ●
125 GROMMET; OIL PAN
GOVERNOR CONTROL<W69> (D) 		1-09333-067-0 02 1 9603-9904 ●
125 GROMMET; OIL PAN
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> (D) 		1-09333-067-0 02 1 9905- ● ●
125 GROMMET; OIL PAN
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (D) 		1-09333-067-0 02 1 9905- ●
125 GROMMET; OIL PAN
(D) ID=18 		1-09333-056-0 02 1 9905- ● ● ●
128 RUBBER; MTG,OIL PAN 1-09337-004-0 06 1 9603-9904 ●
128 RUBBER; MTG,OIL PAN 1-09337-004-0 06 1 9905- ● ● ● ●
129 TUBE; DIST
M8X10 		1-11369-081-0 03 1 9603-9904 ●
129 TUBE; DIST
M8X10 		1-11369-081-0 03 1 9905- ● ● ● ●
131 BOLT; COVER NOISE SHIELD
(A) M8X50 		0-10805-850-0 03 1 9603-9904 ●
131 BOLT; COVER NOISE SHIELD
(A) M8X50 		0-10805-850-0 03 1 9905- ● ● ● ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 06 1 9603-9904 ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 04 1 9905- ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 06 1 9905- ● ● ●
132 WASHER; PL,OIL PAN COVER
ID=8.4 OD=26 		9-09164-808-0 06 1 9603-9904 ●
132 WASHER; PL,OIL PAN COVER
ID=8.4 OD=26 		9-09164-808-0 06 1 9905- ● ● ● ●
144 INSULATOR; OIL PAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 80X200 		1-19389-157-0 07 1 9603-9705 ●
144 INSULATOR; OIL PAN
GOVERNOR CONTROL<W69> (B) 80X200 		1-19389-157-0 07 1 9603-9705 ●
144 INSULATOR; OIL PAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) 80X200 		1-19389-157-0 07 1 9603-9705 ●
144 INSULATOR; OIL PAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 80X200 		1-19389-192-0 07 1 9706-9904 ●
144 INSULATOR; OIL PAN
GOVERNOR CONTROL<W69> (B) 80X200 		1-19389-192-0 07 1 9706-9904 ●
144 INSULATOR; OIL PAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) 80X200 		1-19389-192-0 07 1 9706-9904 ●
144 INSULATOR; OIL PAN
(B) 80X200 		1-19389-192-0 05 1 9905- ●
144 INSULATOR; OIL PAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (C) 80X300 		1-19389-163-0 01 1 9603-9705 ●
144 INSULATOR; OIL PAN
GOVERNOR CONTROL<W69> (C) 80X300 		1-19389-163-0 01 1 9603-9705 ●
144 INSULATOR; OIL PAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (C) 80X300 		1-19389-163-0 01 1 9603-9705 ●
144 INSULATOR; OIL PAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (C) 80X300 		1-19389-193-0 01 1 9706-9904 ●
144 INSULATOR; OIL PAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (C) 80X300 		1-19389-193-0 01 1 9706-9904 ●
144 INSULATOR; OIL PAN
(B) 80X300 		1-19389-193-0 03 1 9905-0003 ●
144 INSULATOR; OIL PAN
GOVERNOR CONTROL<W69> (B) 80X300 		1-19389-193-0 03 1 9905-0003 ● ●
144 INSULATOR; OIL PAN
(B) 80X300 		1-19389-193-0 03 1 0004- ●
144 INSULATOR; OIL PAN
GOVERNOR CONTROL<W69> (B) 80X300 		1-19389-193-0 03 1 0004- ● ●
144 INSULATOR; OIL PAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) (B) 80X300 		1-19389-193-0 03 1 0004- ●
144 INSULATOR; OIL PAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) 80X400 		1-19389-164-0 02 1 9603-9705 ●
144 INSULATOR; OIL PAN
GOVERNOR CONTROL<W69> (A) 80X400 		1-19389-164-0 02 1 9603-9705 ●
144 INSULATOR; OIL PAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) 80X400 		1-19389-164-0 02 1 9603-9705 ●
144 INSULATOR; OIL PAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) 80X400 		1-19389-194-0 02 1 9706-9904 ●
144 INSULATOR; OIL PAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) 80X400 		1-19389-194-0 02 1 9706-9904 ●
144 INSULATOR; OIL PAN
EXC. GOVERNOR CONTROL<W69> (A) 80X400 		1-19389-194-0 02 1 9905-0001 ● ●
144 INSULATOR; OIL PAN
(A) 80X400 		1-19389-194-0 02 1 9905-0001 ●
144 INSULATOR; OIL PAN
SHORT CHASSIS(CXZ5MC) (A) 80X400 		1-19389-194-0 02 1 0002- ● ● ●
144 INSULATOR; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. GOVERNOR CONTROL<W69> (A) 80X400 		1-19389-194-0 02 1 0002- ● ●
144 INSULATOR; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 80X400 		1-19389-194-0 02 1 0002- ●
144 INSULATOR; OIL PAN
GOVERNOR CONTROL<W69> (C) 80X300 		1-19389-193-0 03 1 9706-9904 ●
144 INSULATOR; OIL PAN
EXC. GOVERNOR CONTROL<W69> (C) 80X300 		1-19389-193-0 01 1 9905-0001 ● ●
144 INSULATOR; OIL PAN
(C) 80X300 		1-19389-193-0 01 1 9905-0001 ●
144 INSULATOR; OIL PAN
SHORT CHASSIS(CXZ5MC) (C) 80X300 		1-19389-193-0 01 1 0002- ● ● ●
144 INSULATOR; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. GOVERNOR CONTROL<W69> (C) 80X300 		1-19389-193-0 01 1 0002- ● ●
144 INSULATOR; OIL PAN
LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 80X300 		1-19389-193-0 01 1 0002- ●
144 INSULATOR; OIL PAN
(C) 80X200 		1-19389-192-0 07 1 9905- ● ● ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 9603-9904 ● ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 9905- ● ● ● ●
159 NUT; PLATE
M6 		9-09110-406-0 03 1 9905- ●
159 NUT; PLATE
M6 		9-09110-406-0 04 1 9603-9904 ●
159 NUT; PLATE
M6 		9-09110-406-0 04 1 9905- ● ● ●
160 ADAPTER 1-11369-126-0 01 1 9603-9904 ● ●
160 ADAPTER 1-11369-126-0 01 1 9905- ● ● ● ●
192 HOSE; GUIDE TUBE
(A) L=620 SERVICED BY L=3000 		0-02365-300-0 01 1 9603- ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9603-9904 ● ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9905- ● ● ● ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9603-9904 ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9905- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9603-9904 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-0 02 1 9603-9904 ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9607- ● ●
202 CLIP; BAND,RUBBER COVER
L=250 		5-09707-030-0 01 1 9603-9606 ● ●
202 CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 01 1 9607- ● ●
203 BOLT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ●
256 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE 		0-91150-108-0 01 1 9607- ● ●
272 BOLT; STAY
M8X30 		1-09009-020-1 01 1 9603-9904 ● ●
272 BOLT; STAY
M8X30 		1-09009-020-1 01 1 9905- ● ● ● ●
çizim 39901
1 193 192 193 192 193 193 5 6 193 192 193 192 193 193 1 53 5 6 208 153
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAN ASM; OIL 1-11360-827-2 01 1 9603-9904 ●
1 PAN ASM; OIL 1-11360-850-1 01 1 9905- ●
1 PAN ASM; OIL
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-11360-848-0 01 1 9706-9904 ●
1 PAN ASM; OIL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-11360-848-0 01 1 9706-9904 ●
1 PAN ASM; OIL
SHORT CHASSIS(CXZ5MC) 		1-11360-848-1 01 1 9905- ● ● ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) EXC. GOVERNOR CONTROL<W69> 		1-11360-848-1 01 1 9905- ● ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-848-1 01 1 9905- ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-828-0 01 1 9603-9705 ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-849-0 01 1 9706-9904 ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> 		1-11360-849-1 01 1 9905- ● ●
1 PAN ASM; OIL
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-849-1 01 1 9905- ●
1 PAN ASM; OIL
EXC. GOVERNOR CONTROL<W69> 		1-11360-826-0 01 1 9603-9705 ●
1 PAN ASM; OIL
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,GOVERNOR CONTROL<W69> 		1-11360-826-1 01 1 9706-0003 ●
1 PAN ASM; OIL
INJ PUMP Q SET 2000M ALTITUDE(T1C) 		1-11360-826-3 01 1 0004- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 9603-9904 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 9905- ● ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9603-9904 ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9905- ● ● ● ●
53 HEATER ASM; OIL PAN
GOVERNOR CONTROL<W69> 		1-81900-141-0 01 1 9603-9904 ●
53 HEATER ASM; OIL PAN
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> 		1-81900-141-0 01 1 9905- ● ●
53 HEATER ASM; OIL PAN
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-81900-141-0 01 1 9905- ●
153 THERMOMETER UNIT; OIL
GOVERNOR CONTROL<W69> 		1-83161-032-0 01 1 9603-9904 ●
153 THERMOMETER UNIT; OIL
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> 		1-83161-032-0 01 1 9905- ● ●
153 THERMOMETER UNIT; OIL
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-83161-032-0 01 1 9905- ●
192 HOSE; GUIDE TUBE
(A) L=620 SERVICED BY L=3000 		0-02365-300-0 01 1 9603- ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9603-9904 ● ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9905- ● ● ● ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9603-9904 ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9905- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9603-9904 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-0 02 1 9603-9904 ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9607- ● ●
208 SWITCH; OIL THERMO,OIL PAN
GOVERNOR CONTROL<W69> 		1-82450-038-2 01 1 9603-9904 ●
208 SWITCH; OIL THERMO,OIL PAN
LONG CHASSIS(CXZ5MF) GOVERNOR CONTROL<W69> 		1-82450-038-2 01 1 9905- ● ●
208 SWITCH; OIL THERMO,OIL PAN
LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-82450-038-2 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
