0-30A — WATER PUMP AND CORROSION RESISTOR (#422) — 75 parça

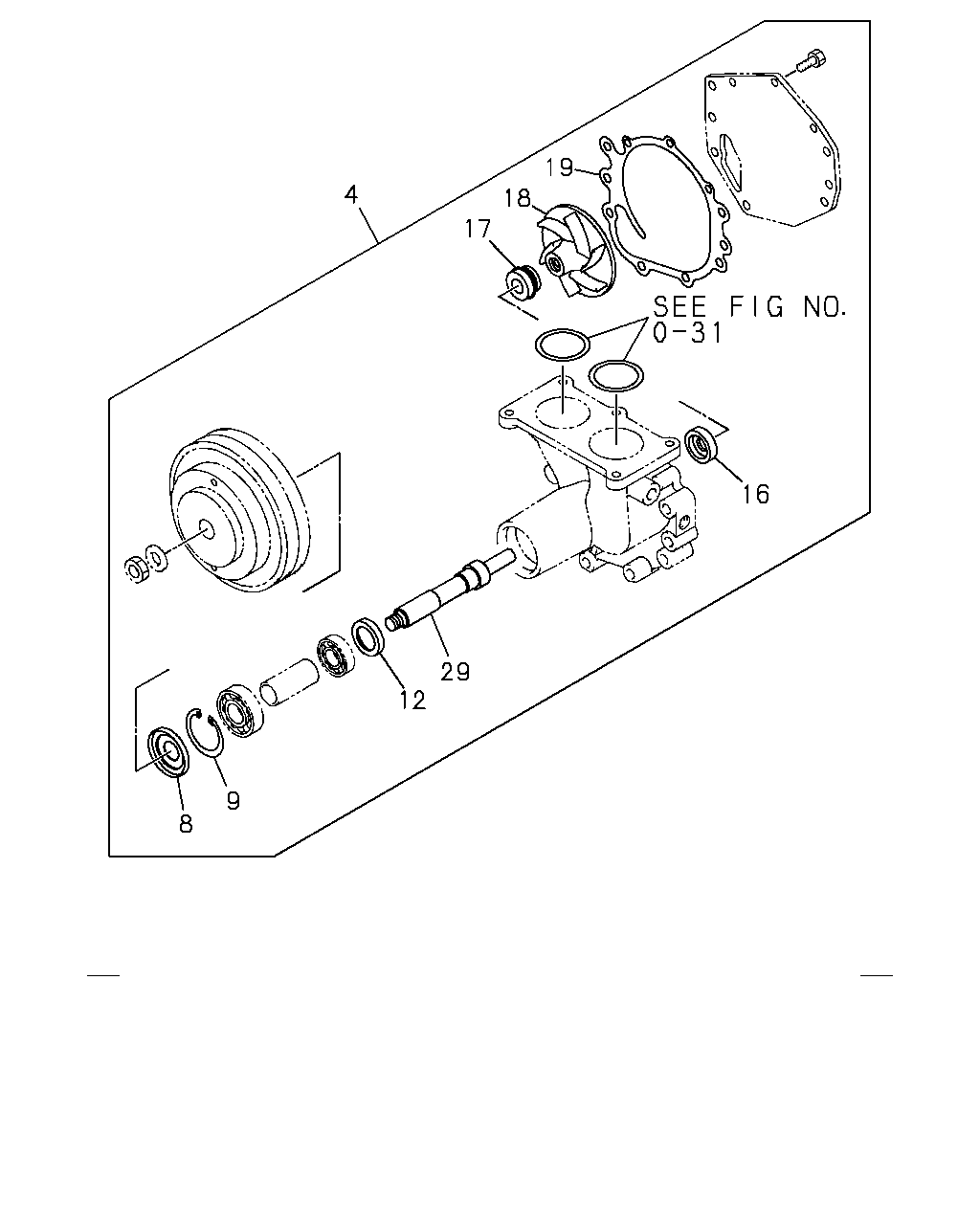

çizim 27609
19 18 17 4 16 29 12 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C
4 REPAIR KIT; WATER PUMP 1-87810-544-0 01 1 8712-9001 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87810-669-1 01 1 9002- ● ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 8712- ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 8712- ● ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 8712- ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 8712- ● ● ●
17 SEAL UNIT; WATER PUMP 1-13620-015-0 01 1 8712- ● ● ●
18 IMPELLER; WATER PUMP 1-13621-032-1 01 1 8712- ● ● ●
19 GASKET; COVER TO BODY 1-13613-040-0 01 1 8712- ● ● ●
29 SHAFT; WATER PUMP 1-13631-062-0 01 1 8712- ● ● ●

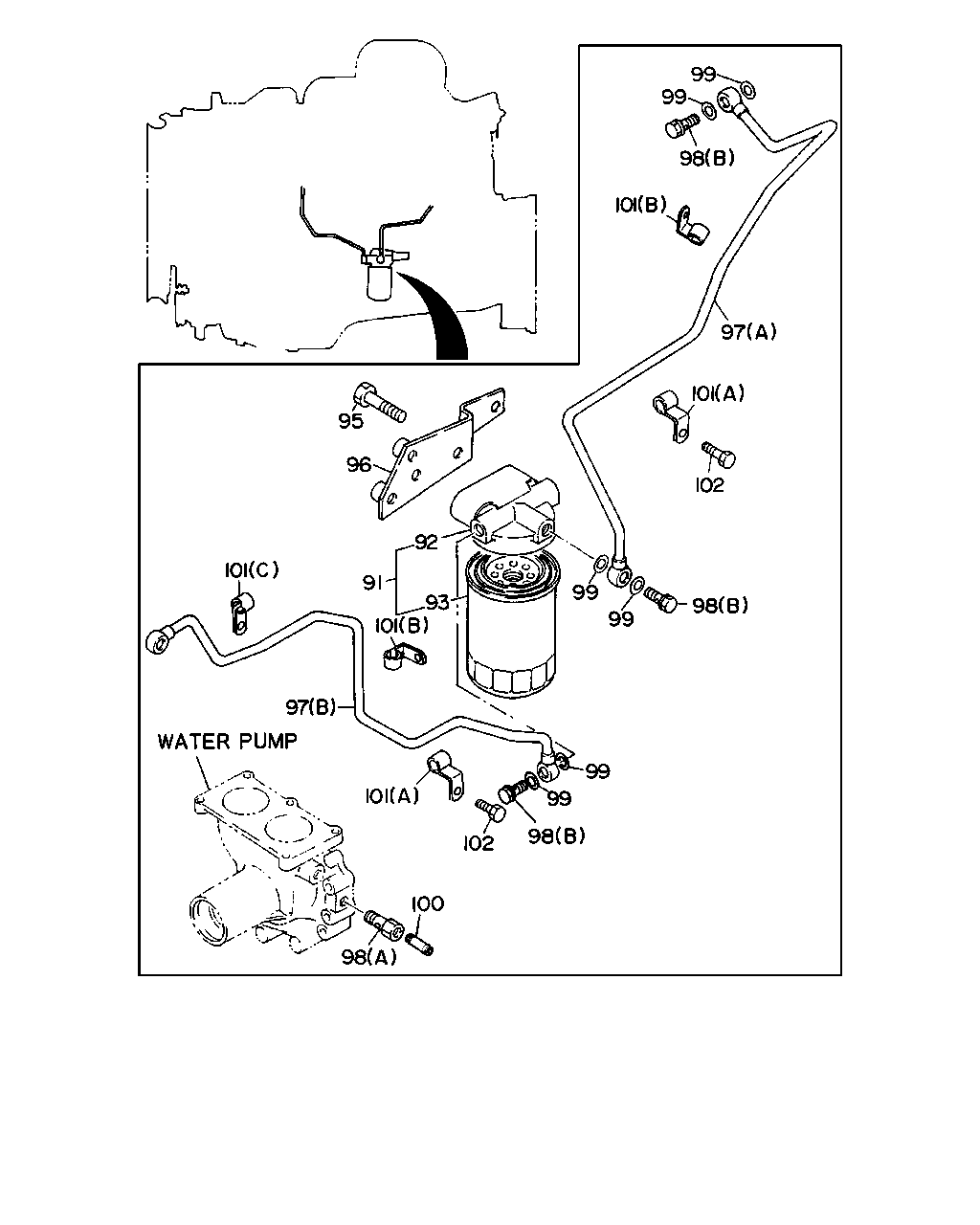

çizim 92360
99 98 99 101 97 102 101 95 99 96 92 99 98 93 91 101 101 97 101 99 99 98 102 100 98
BalonParca AdiParca NoAdetTipApplied Date A B C
91 RESISTOR ASM; CORROSION,WATER 1-13200-474-2 01 1 8712-9001 ● ●
91 RESISTOR ASM; CORROSION,WATER
CORROSION RESISTOR<W49> 		1-13200-474-2 01 1 8712-9001 ●
92 COVER; CORROSION RESISTOR 1-13212-081-0 01 1 8712-9001 ● ●
92 COVER; CORROSION RESISTOR
CORROSION RESISTOR<W49> 		1-13212-081-0 01 1 8712-9001 ●
93 CARTRIDGE ASM; CORROSION RESISTOR 1-13240-034-1 01 1 8712-9001 ● ●
93 CARTRIDGE ASM; CORROSION RESISTOR
CORROSION RESISTOR<W49> 		1-13240-034-1 01 1 8712-9001 ●
95 BOLT; BRKT
M12X25 		9-01911-225-0 02 1 8712-9001 ● ●
95 BOLT; BRKT
CORROSION RESISTOR<W49> M12X25 		9-01911-225-0 02 1 8712-9001 ●
95 BOLT; BRKT
M10X30 		9-01931-030-0 01 1 8712-9001 ● ●
95 BOLT; BRKT
CORROSION RESISTOR<W49> M10X30 		9-01931-030-0 01 1 8712-9001 ●
95 BOLT; BRKT
M10X20 W/LK WASHER 		9-01931-020-0 01 1 8712-9001 ●
96 BRACKET; CORROSION RESISTOR 1-19755-091-0 01 1 8712-9001 ● ●
96 BRACKET; CORROSION RESISTOR
CORROSION RESISTOR<W49> 		1-19755-091-0 01 1 8712-9001 ●
97 PIPE; WATER
(A) 		1-13711-426-1 01 1 8712-9001 ● ●
97 PIPE; WATER
CORROSION RESISTOR<W49> (A) 		1-13711-426-1 01 1 8712-9001 ●
97 PIPE; WATER
(B) 		1-13711-427-0 01 1 8712-9001 ● ●
97 PIPE; WATER
CORROSION RESISTOR<W49> (B) 		1-13711-427-0 01 1 8712-9001 ●
98 BOLT; EYE,PIPE
(B) 		1-09675-086-0 03 1 8712-9001 ● ●
98 BOLT; EYE,PIPE
CORROSION RESISTOR<W49> (B) 		1-09675-086-0 03 1 8712-9001 ●
98 BOLT; EYE,PIPE
(A) 		1-09675-142-0 01 1 8712-9001 ● ●
98 BOLT; EYE,PIPE
CORROSION RESISTOR<W49> (A) 		1-09675-142-0 01 1 8712-9001 ●
99 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-085-0 06 1 8712-9001 ● ●
99 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CORROSION RESISTOR<W49> ID=14.2 OD=19.2 		1-09630-085-0 06 1 8712-9001 ●
100 JOINT; HTR
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 8712-9001 ● ●
100 JOINT; HTR
CORROSION RESISTOR<W49> PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 8712-9001 ●
101 CLIP; WATER PIPE
(A) 		1-09700-001-0 02 1 8712-9001 ● ●
101 CLIP; WATER PIPE
CORROSION RESISTOR<W49> (A) 		1-09700-001-0 02 1 8712-9001 ●
101 CLIP; WATER PIPE
(B) 		1-09700-605-0 02 1 8712-9001 ● ●
101 CLIP; WATER PIPE
CORROSION RESISTOR<W49> (B) 		1-09700-605-0 02 1 8712-9001 ●
101 CLIP; WATER PIPE
(C) 		9-09525-256-0 01 1 8712-9001 ● ●
101 CLIP; WATER PIPE
CORROSION RESISTOR<W49> (C) 		9-09525-256-0 01 1 8712-9001 ●
102 BOLT; CLIP
M10X20 W/LK WASHER 		9-01931-020-0 02 1 8712-9001 ● ●
102 BOLT; CLIP
CORROSION RESISTOR<W49> M10X20 W/LK WASHER 		9-01931-020-0 02 1 8712-9001 ●

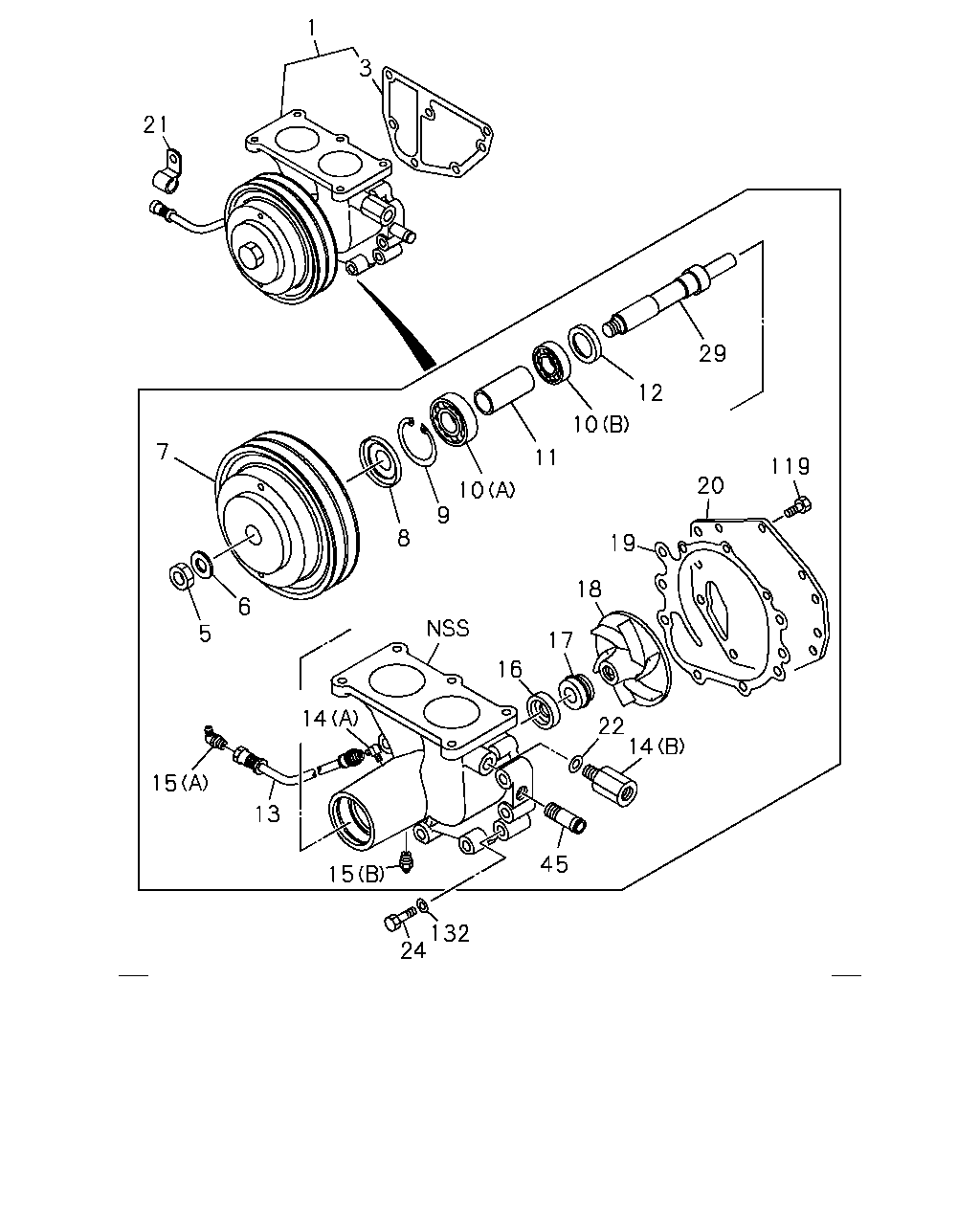

çizim 95703
1 21 3 7 29 10 12 119 11 10 9 8 6 5 15 14 13 16 15 24 132 45 14 22 17 19 20 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 1-13610-866-0 01 1 8712- ● ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-008-0 01 1 8712-8906 ● ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11779-014-0 01 1 8907-9603 ● ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-014-0 01 1 9604- ●
5 NUT; PULLEY 1-09400-028-0 01 1 8712- ● ● ●
6 WASHER; PL,PULLEY 1-09503-076-0 01 1 8712- ● ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-106-1 01 1 8712- ● ● ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 8712- ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 8712- ● ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-011-0 01 1 8712- ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-012-0 01 1 8712- ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-016-0 01 1 8712- ● ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 8712- ● ● ●
13 HOSE; FLEX 9-09911-863-0 01 1 8712- ● ● ●
14 CONNECTOR; JOINT
(A) PT 1/8 		1-09660-143-0 01 1 8712- ● ● ●
14 CONNECTOR; JOINT
(B) M20 & PT3/8 STRAIGHT 		1-09660-173-0 01 1 8712- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 8712- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 8712- ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 8712- ● ● ●
17 SEAL UNIT; WATER PUMP 1-13620-015-0 01 1 8712- ● ● ●
18 IMPELLER; WATER PUMP 1-13621-032-1 01 1 8712- ● ● ●
19 GASKET; COVER TO BODY 1-13613-040-0 01 1 8712- ● ● ●
20 COVER; WATER PUMP 1-13612-030-0 01 1 8712- ● ● ●
21 CLIP; FLEX HOSE,W/PUMP 1-09700-913-0 01 1 8712- ● ● ●
22 GASKET 1-09630-088-0 01 1 8712- ● ● ●
24 BOLT; WATER PUMP
M12X65 		9-01656-265-0 06 1 8712-9005 ● ● ●
24 BOLT; WATER PUMP
M12X65 		0-16806-265-0 06 1 9006- ● ●
29 SHAFT; WATER PUMP 1-13631-062-0 01 1 8712- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 02 1 8712- ● ● ●
119 BOLT; PUMP COVER
M8X18 W/LK WASHER 		9-01910-818-0 03 1 8712-9005 ● ● ●
119 BOLT; PUMP COVER
M8X18 W/LK WASHER 		0-50040-818-0 03 1 9006- ● ●
132 WASHER; PL,WATER PUMP
ID=12.2 		9-09150-512-0 06 1 8712- ● ● ●
