5-30 — SPARE TIRE CARRIER AND COVER (#42196) — 44 parça

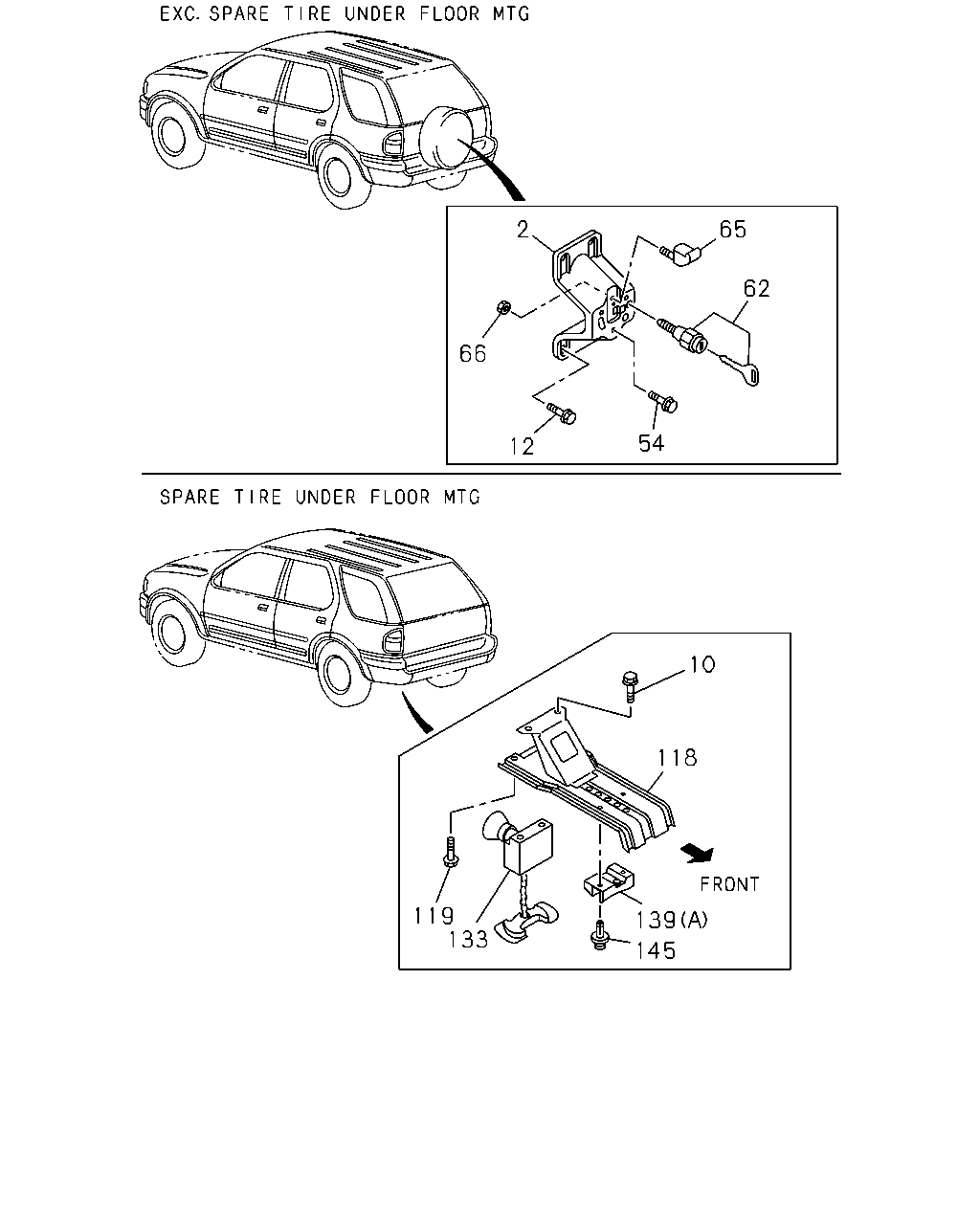

2 65 62 66 54 12 10 118 119 133 139 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CARRIER ASM; SPARE TIRE EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97124-119-2	01	1	9707-
10	BOLT; TIRE HANGER SPARE TIRE UNDER FLOOR MTG<7PF> M8X20 FLANGE	0-28480-820-0	02	1	9707-
12	BOLT; SPARE TIRE CARRIER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> M10X20 W/LK&PL WASHER	8-94489-931-0	04	1	9707-0206
12	BOLT; SPARE TIRE CARRIER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> M10X20 W/LK&PL WASHER	8-97808-826-0	04	1	0207-
54	BOLT; SPARE TIRE MTG,STEEL WHEEL EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97805-242-0	03	1	9707-
62	BOLT; LK,SPARE TIRE EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-94183-694-0	01	1	9707-9709
65	SADDLE; SPARE TIRE EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97170-336-1	01	1	9707-0106
65	SADDLE; SPARE TIRE EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97224-429-0	01	1	0107-
66	NUT; SADDLE,SPARE TIRE EXC. SPARE TIRE UNDER FLOOR MTG<7PF> M8 FLANGE	0-91150-108-0	01	1	9707-
118	SUPPORT ASM; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF>	8-97160-145-5	01	1	9707-
119	BOLT; SUPPORT SPARE TIRE UNDER FLOOR MTG<7PF> M10X20 FLANGE	0-28481-020-0	04	1	9707-
133	HANGER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF>	8-97135-966-3	01	1	9707-
139	STOPPER; SPARE TIRE CHROME PACKAGE<8GX> (A)	8-97328-226-0	01	1	0112-0206
139	STOPPER; SPARE TIRE CHROME PACKAGE<8GX> (B)	8-97247-697-2	01	1	0112-0206
139	STOPPER; SPARE TIRE CHROME PACKAGE<8GX> (B)	8-97247-696-2	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97233-384-0	01	1	9909-0111
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> EXC. CHROME PACKAGE<8GX> (A)	8-97233-384-0	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97233-384-1	01	1	0207-0306
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97362-595-1	01	1	0307-
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-386-0	01	1	9909-0111
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> EXC. CHROME PACKAGE<8GX> (B)	8-97233-386-0	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-386-1	01	1	0207-0306
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97368-453-0	01	1	0307-
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-385-0	01	1	9909-0111
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> EXC. CHROME PACKAGE<8GX> (B)	8-97233-385-0	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-385-1	01	1	0207-0306
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97368-452-0	01	1	0307-
145	CLIP; STOPPER SPARE TIRE UNDER FLOOR MTG<7PF>	1-09470-001-0	04	1	9909-

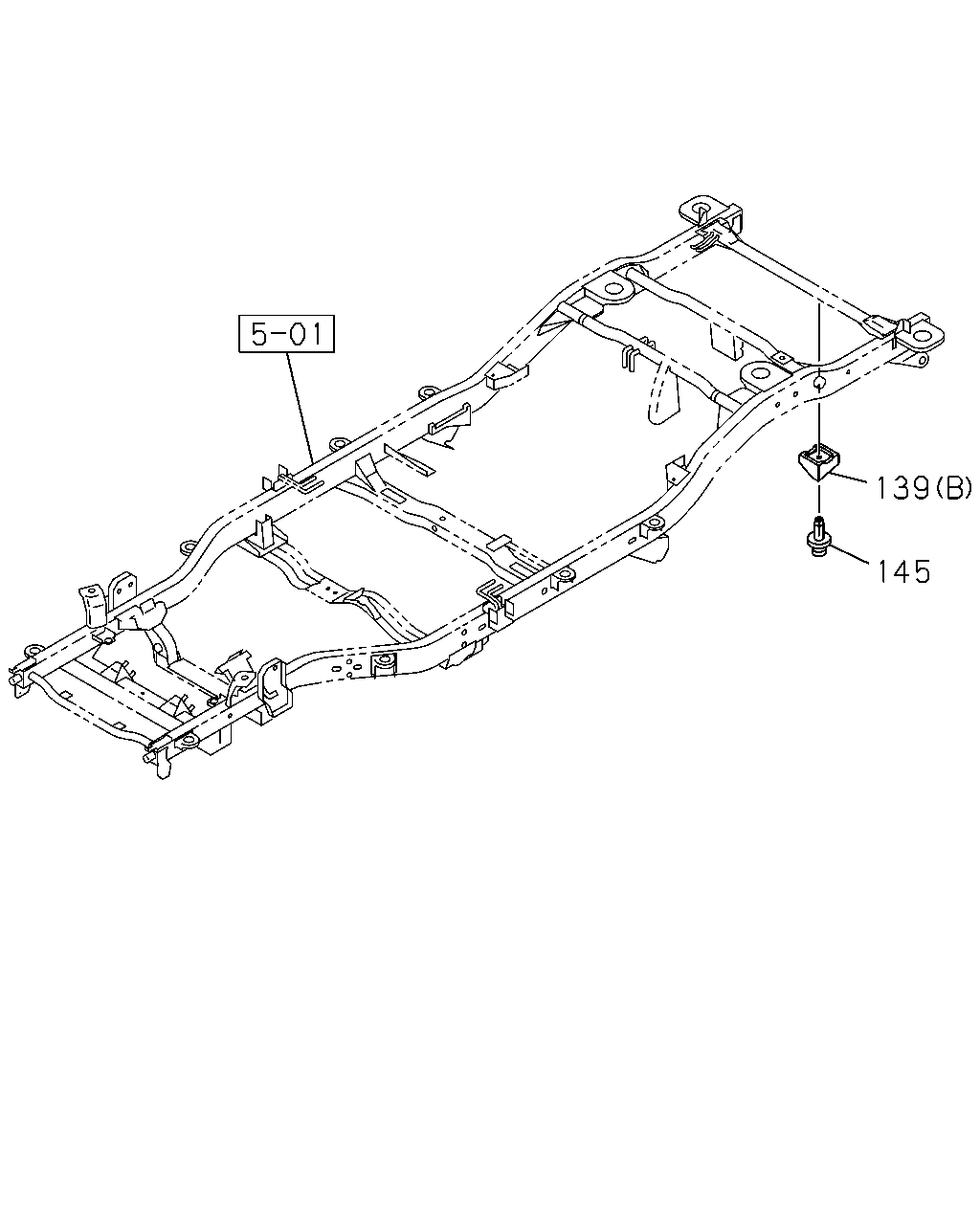

139 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
139	STOPPER; SPARE TIRE CHROME PACKAGE<8GX> (A)	8-97328-226-0	01	1	0112-0206
139	STOPPER; SPARE TIRE CHROME PACKAGE<8GX> (B)	8-97247-697-2	01	1	0112-0206
139	STOPPER; SPARE TIRE CHROME PACKAGE<8GX> (B)	8-97247-696-2	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97233-384-0	01	1	9909-0111
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> EXC. CHROME PACKAGE<8GX> (A)	8-97233-384-0	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97233-384-1	01	1	0207-0306
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97362-595-1	01	1	0307-
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-386-0	01	1	9909-0111
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> EXC. CHROME PACKAGE<8GX> (B)	8-97233-386-0	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-386-1	01	1	0207-0306
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97368-453-0	01	1	0307-
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-385-0	01	1	9909-0111
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> EXC. CHROME PACKAGE<8GX> (B)	8-97233-385-0	01	1	0112-0206
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97233-385-1	01	1	0207-0306
139	STOPPER; SPARE TIRE SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97368-452-0	01	1	0307-
145	CLIP; STOPPER SPARE TIRE UNDER FLOOR MTG<7PF>	1-09470-001-0	04	1	9909-
