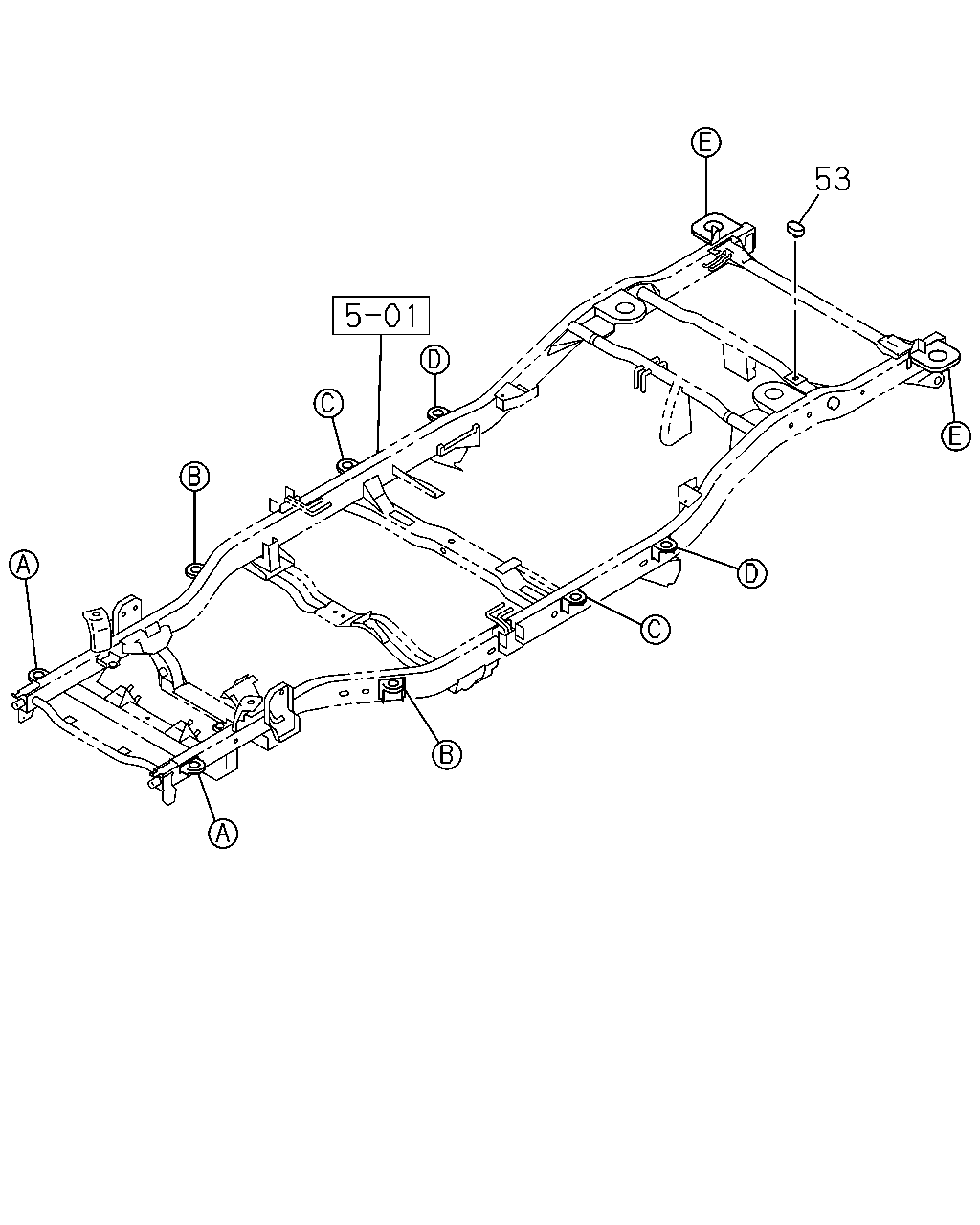

5-10 — CAB MOUNTING; FRAME SIDE (#42194) — 107 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	53	RUBBER; STOPPER	8-97170-247-2	02	1	9707-

164 164 164 166 166 166 159 159 159 163 163 163 171 172 168 168 168 164 159 164 166 164 159 163 24 159 172 164 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	WASHER; PL NO.4 MTG	8-97175-504-0	02	1	9707-
159	RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-97120-492-0	02	1	9707-0106
159	RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-97310-059-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-97125-323-1	02	1	9707-0106
159	RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-97310-055-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (B) NO.2 MTG	8-97148-100-3	02	1	9707-9908
159	RUBBER; CUSHION,CAB MTG (B) NO.2 MTG	8-97215-407-0	02	1	9909-0106
159	RUBBER; CUSHION,CAB MTG (B) NO.2 MTG	8-97310-057-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-97166-158-1	02	1	9707-0106
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-97310-061-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97125-325-4	01	1	9707-9908
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97214-859-0	01	1	9909-0106
159	RUBBER; CUSHION,CAB MTG (F) NO.5 MTG	8-97165-543-1	01	1	0107-0108
159	RUBBER; CUSHION,CAB MTG (G) NO.5 MTG	8-97312-753-0	01	1	0109-
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97145-750-4	01	1	9707-9908
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97214-863-0	01	1	9909-0106
159	RUBBER; CUSHION,CAB MTG (F) NO.5 MTG	8-97165-542-1	01	1	0107-0108
159	RUBBER; CUSHION,CAB MTG (G) NO.5 MTG	8-97312-752-0	01	1	0109-
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-97120-493-0	02	1	9707-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-97310-060-0	02	1	0107-
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-97125-324-0	02	1	9707-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-97310-056-0	02	1	0107-
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-97148-101-2	02	1	9707-9908
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-97215-409-1	02	1	9909-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-97310-058-0	02	1	0107-
163	RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-97166-159-1	02	1	9707-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-97310-062-0	02	1	0107-
164	BOLT; CUSHION RUBBER,CAB MTG (D) NO.5 MTG M10X20 FLANGE	0-28481-020-0	04	1	9707-0106
164	BOLT; CUSHION RUBBER,CAB MTG (D) NO.5 MTG M10X20 FLANGE	0-28481-020-0	08	1	0107-0108
164	BOLT; CUSHION RUBBER,CAB MTG (D) NO.5 MTG M10X20 FLANGE	0-28481-020-0	04	1	0109-
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.4 MTG M10X102	8-97091-599-0	02	1	9707-
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 MTG M10X120	8-97134-968-0	02	1	9707-0307
164	BOLT; CUSHION RUBBER,CAB MTG (E) NO.5 MTG M10X120	8-97134-968-0	01	1	0308-
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.2,NO.3 MTG M10X105	8-97142-724-0	04	1	9707-
164	BOLT; CUSHION RUBBER,CAB MTG (E) NO.5 MTG M10X120	8-97134-968-0	01	1	9707-0307
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 MTG M10X120	8-97134-968-0	02	1	0308-
164	BOLT; CUSHION RUBBER,CAB MTG (E) NO.5 MTG M10X105	8-97164-882-0	01	1	9707-
166	PIECE; DIST,BODY MTG RUBBER (B) NO.2 MTG L=70	8-97148-063-2	02	1	9707-
166	PIECE; DIST,BODY MTG RUBBER (C) NO.3,NO.4 MTG L=70	8-97170-537-0	04	1	9707-0307
166	PIECE; DIST,BODY MTG RUBBER (A) NO.1 MTG L=70	8-97170-537-0	02	1	0308-
166	PIECE; DIST,BODY MTG RUBBER (A) NO.1 MTG L=72	8-97175-336-0	02	1	9707-0106
166	PIECE; DIST,BODY MTG RUBBER (A) NO.1 MTG L=70	8-97170-537-0	02	1	0107-0307
166	PIECE; DIST,BODY MTG RUBBER (C) NO.3 MTG,NO.4 MTG L=70	8-97170-537-0	04	1	0308-
168	NUT; CUSHION RUBBER,BODY MTG (A) NO.5 MTG M10 FLANGE	0-91150-210-0	02	1	9707-
168	NUT; CUSHION RUBBER,BODY MTG (B) NO.1,NO.2,NO.3 MTG M10 FLANGE	0-91150-210-0	06	1	9707-
171	WASHER; BODY MTG RUBBER (A) NO.3 MTG ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9707-
171	WASHER; BODY MTG RUBBER (B) NO.3 MTG ID=11 OD=62 T=2.9	8-97037-993-0	02	1	9707-9910
171	WASHER; BODY MTG RUBBER (B) NO.3 MTG ID=11 OD=62 T=2.9	8-97037-993-0	04	1	9911-0106
172	WASHER; BODY MTG RUBBER (A) NO.5 MTG ID=11 OD=75 T=6.0	8-94338-455-0	02	1	9707-0106
172	WASHER; BODY MTG RUBBER (A) NO.5 MTG	8-97303-964-0	02	1	0107-
172	WASHER; BODY MTG RUBBER (B) NO.2 MTG ID=11 OD=43 T=2.0	8-97148-064-0	02	1	9707-0011
172	WASHER; BODY MTG RUBBER (B) NO.2 MTG ID=11 OD=43 T=1.8	8-97303-854-0	02	1	0012-
172	WASHER; BODY MTG RUBBER (C) NO.2 MTG ID=11 OD=62 T=2.9	8-97037-993-0	04	1	9911-0106

164 164 164 172 171 172 171 166 166 166 159 159 159 163 163 163 168 171 172 168 168 166 164 164 159 159 163 172 24 168 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	WASHER; PL NO.4 MTG	8-97175-504-0	02	1	9707-
159	RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-97120-492-0	02	1	9707-0106
159	RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-97310-059-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-97125-323-1	02	1	9707-0106
159	RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-97310-055-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (B) NO.2 MTG	8-97148-100-3	02	1	9707-9908
159	RUBBER; CUSHION,CAB MTG (B) NO.2 MTG	8-97215-407-0	02	1	9909-0106
159	RUBBER; CUSHION,CAB MTG (B) NO.2 MTG	8-97310-057-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-97166-158-1	02	1	9707-0106
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-97310-061-0	02	1	0107-
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97125-325-4	01	1	9707-9908
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97214-859-0	01	1	9909-0106
159	RUBBER; CUSHION,CAB MTG (F) NO.5 MTG	8-97165-543-1	01	1	0107-0108
159	RUBBER; CUSHION,CAB MTG (G) NO.5 MTG	8-97312-753-0	01	1	0109-
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97145-750-4	01	1	9707-9908
159	RUBBER; CUSHION,CAB MTG (E) NO.5 MTG	8-97214-863-0	01	1	9909-0106
159	RUBBER; CUSHION,CAB MTG (F) NO.5 MTG	8-97165-542-1	01	1	0107-0108
159	RUBBER; CUSHION,CAB MTG (G) NO.5 MTG	8-97312-752-0	01	1	0109-
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-97120-493-0	02	1	9707-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-97310-060-0	02	1	0107-
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-97125-324-0	02	1	9707-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-97310-056-0	02	1	0107-
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-97148-101-2	02	1	9707-9908
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-97215-409-1	02	1	9909-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-97310-058-0	02	1	0107-
163	RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-97166-159-1	02	1	9707-0106
163	RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-97310-062-0	02	1	0107-
164	BOLT; CUSHION RUBBER,CAB MTG (D) NO.5 MTG M10X20 FLANGE	0-28481-020-0	04	1	9707-0106
164	BOLT; CUSHION RUBBER,CAB MTG (D) NO.5 MTG M10X20 FLANGE	0-28481-020-0	08	1	0107-0108
164	BOLT; CUSHION RUBBER,CAB MTG (D) NO.5 MTG M10X20 FLANGE	0-28481-020-0	04	1	0109-
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.4 MTG M10X102	8-97091-599-0	02	1	9707-
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 MTG M10X120	8-97134-968-0	02	1	9707-0307
164	BOLT; CUSHION RUBBER,CAB MTG (E) NO.5 MTG M10X120	8-97134-968-0	01	1	0308-
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.2,NO.3 MTG M10X105	8-97142-724-0	04	1	9707-
164	BOLT; CUSHION RUBBER,CAB MTG (E) NO.5 MTG M10X120	8-97134-968-0	01	1	9707-0307
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 MTG M10X120	8-97134-968-0	02	1	0308-
164	BOLT; CUSHION RUBBER,CAB MTG (E) NO.5 MTG M10X105	8-97164-882-0	01	1	9707-
166	PIECE; DIST,BODY MTG RUBBER (B) NO.2 MTG L=70	8-97148-063-2	02	1	9707-
166	PIECE; DIST,BODY MTG RUBBER (C) NO.3,NO.4 MTG L=70	8-97170-537-0	04	1	9707-0307
166	PIECE; DIST,BODY MTG RUBBER (A) NO.1 MTG L=70	8-97170-537-0	02	1	0308-
166	PIECE; DIST,BODY MTG RUBBER (A) NO.1 MTG L=72	8-97175-336-0	02	1	9707-0106
166	PIECE; DIST,BODY MTG RUBBER (A) NO.1 MTG L=70	8-97170-537-0	02	1	0107-0307
166	PIECE; DIST,BODY MTG RUBBER (C) NO.3 MTG,NO.4 MTG L=70	8-97170-537-0	04	1	0308-
168	NUT; CUSHION RUBBER,BODY MTG (A) NO.5 MTG M10 FLANGE	0-91150-210-0	02	1	9707-
168	NUT; CUSHION RUBBER,BODY MTG (B) NO.1,NO.2,NO.3 MTG M10 FLANGE	0-91150-210-0	06	1	9707-
171	WASHER; BODY MTG RUBBER (A) NO.3 MTG ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9707-
171	WASHER; BODY MTG RUBBER (B) NO.3 MTG ID=11 OD=62 T=2.9	8-97037-993-0	02	1	9707-9910
171	WASHER; BODY MTG RUBBER (B) NO.3 MTG ID=11 OD=62 T=2.9	8-97037-993-0	04	1	9911-0106
172	WASHER; BODY MTG RUBBER (A) NO.5 MTG ID=11 OD=75 T=6.0	8-94338-455-0	02	1	9707-0106
172	WASHER; BODY MTG RUBBER (A) NO.5 MTG	8-97303-964-0	02	1	0107-
172	WASHER; BODY MTG RUBBER (B) NO.2 MTG ID=11 OD=43 T=2.0	8-97148-064-0	02	1	9707-0011
172	WASHER; BODY MTG RUBBER (B) NO.2 MTG ID=11 OD=43 T=1.8	8-97303-854-0	02	1	0012-
172	WASHER; BODY MTG RUBBER (C) NO.2 MTG ID=11 OD=62 T=2.9	8-97037-993-0	04	1	9911-0106
