◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#42191) — 14 parça

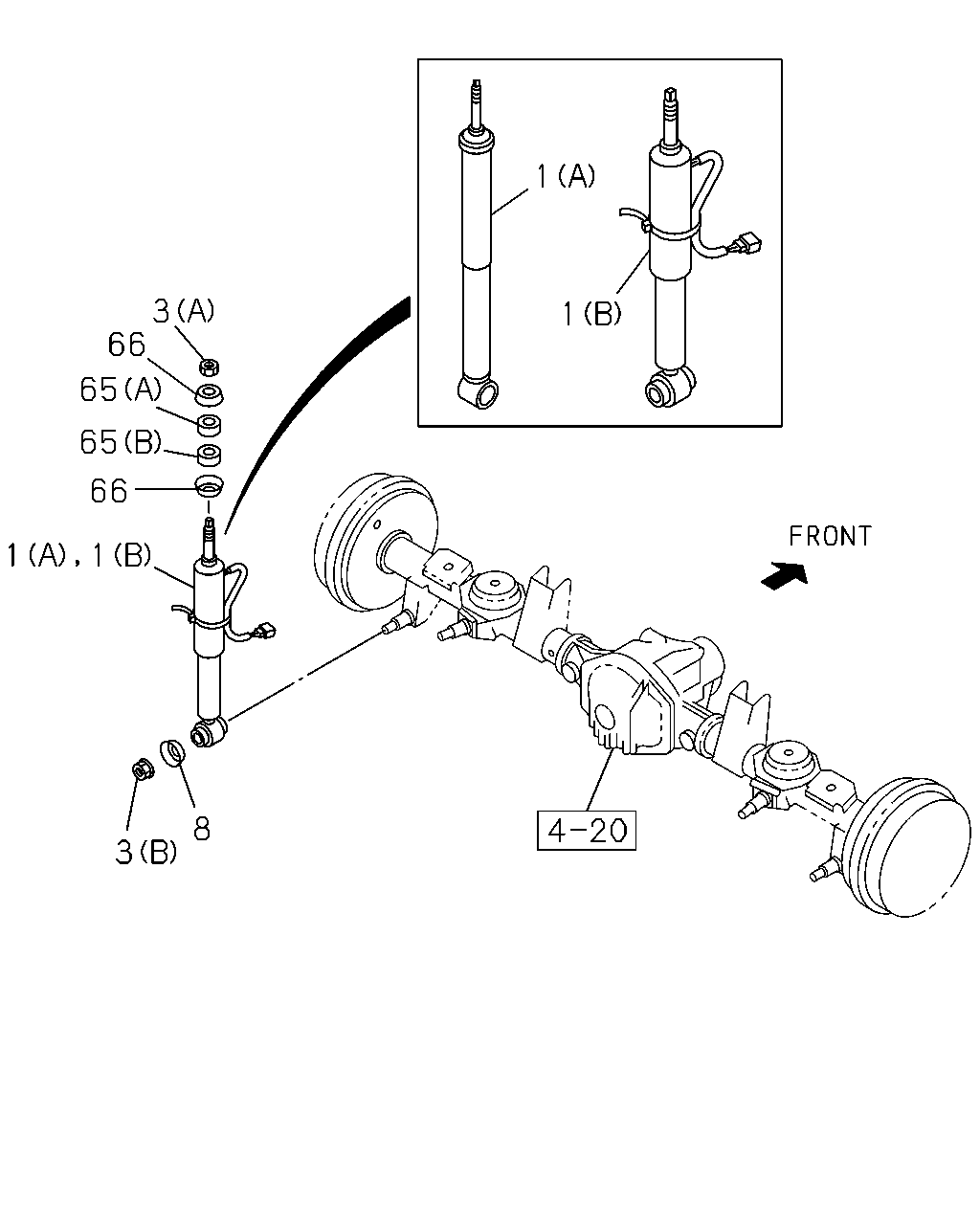

çizim 68912
1 3 66 1 65 65 66 1 1 8 3
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR
(A) 		8-97124-909-3 02 1 9707-9908
1 ABSORBER ASM; SHOCK,RR
EXC. ACTIVE RIDE CONTROL(7WD) (A) 		8-97225-863-1 02 1 9909-0106
1 ABSORBER ASM; SHOCK,RR
EXC. ACTIVE RIDE CONTROL(7WD) (A) 		8-97301-082-0 02 1 0107-
1 ABSORBER ASM; SHOCK,RR
ACTIVE RIDE CONTROL(7WD) (B) 		8-97208-857-1 02 1 9909-0007
1 ABSORBER ASM; SHOCK,RR
ACTIVE RIDE CONTROL(7WD) (B) 		8-97253-843-1 02 1 0008-0106
1 ABSORBER ASM; SHOCK,RR
ACTIVE RIDE CONTROL(7WD) (B) 		8-97262-837-1 02 1 0107-
3 NUT; S/ABS
(A) M10 FLANGE 		0-91150-110-0 02 1 9707-
3 NUT; S/ABS
(B) M14 FLANGE 		8-97167-635-0 02 1 9707-0002
3 NUT; S/ABS
(B) M14 FLANGE 		8-97254-121-0 02 1 0003-
8 WASHER; S/ABS 8-97040-376-1 02 1 9707-0104
8 WASHER; S/ABS 8-97312-396-0 02 1 0105-
65 RUBBER; CUSHION
(A) 		8-97135-978-0 02 1 9707-
65 RUBBER; CUSHION
(B) 		8-97139-099-0 02 1 9707-
66 RETAINER; S/ABS 8-97135-980-0 04 1 9707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
