Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#42190) — 59 parça
◀
[460A] '01/7- STABILIZER (9 parça)

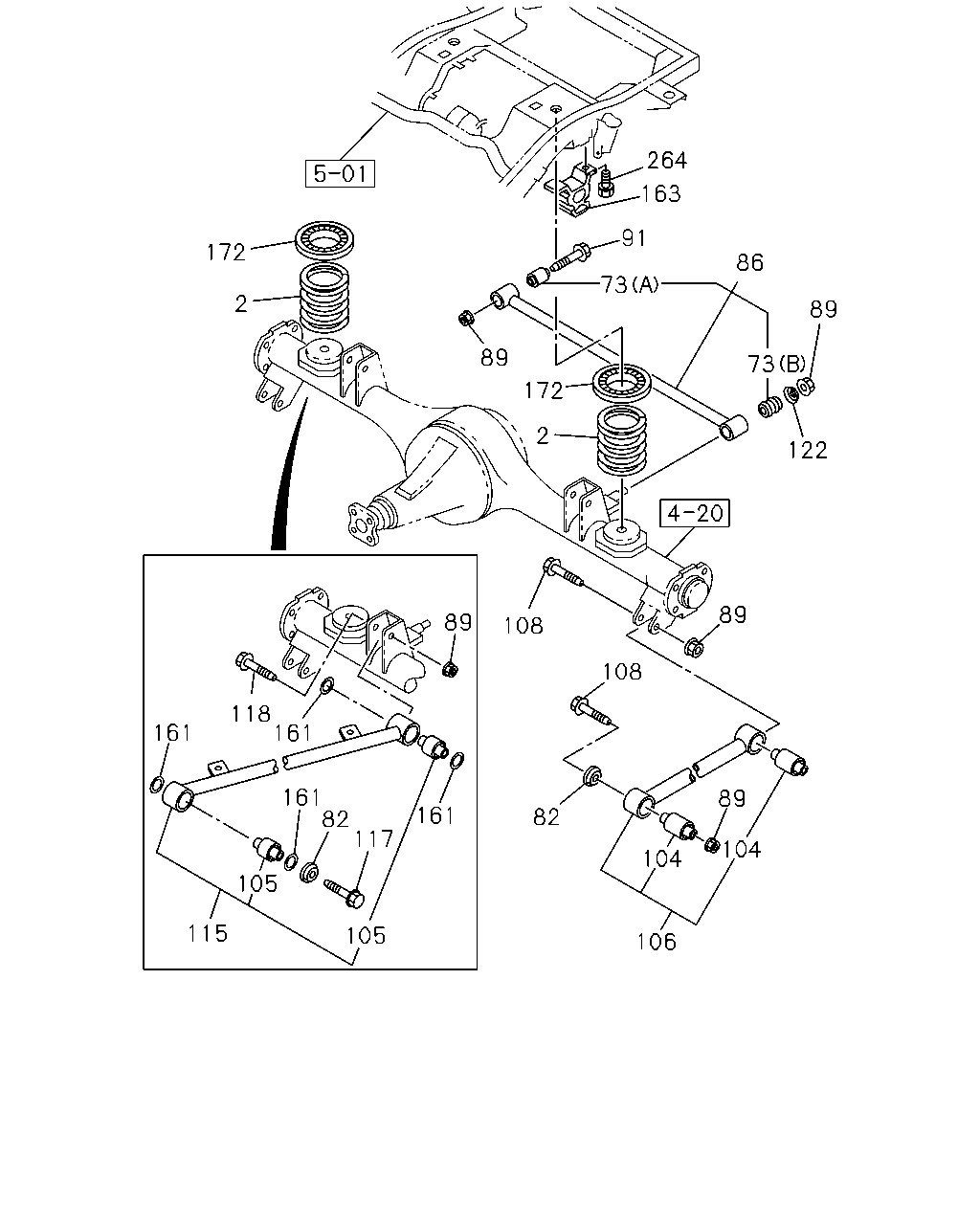

[460A] LINK AND SPRING (32 parça)
[460A] -'01/6 STABILIZER (18 parça)
▶
294
297
428
280
28
25
28
25
274
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
8-97124-913-2
01
1
9707-0106
25
BAR ASM; STAB,RR SUSP
8-97253-706-0
01
1
0107-
28
NUT; STAB BAR
8-97035-383-0
04
1
0107-
274
BUSHING; RR STAB BAR TO LINK
(A)
8-97140-089-1
02
1
9707-0106
274
BUSHING; RR STAB BAR TO LINK
(B)
8-97148-528-0
02
1
9707-
280
WASHER; PL,STAB BAR
8-97049-475-0
02
1
0107-
294
BOLT; STAB BAR TO RR AXLE
M8X20 FLANGE
0-28480-820-0
04
1
9707-
297
CAP; STAB BAR
ID=36
8-97032-869-0
02
1
9707-
428
LINK; RR STABILIZER
8-97253-956-1
02
1
0107-
264
163
91
172
86
73
2
89
89
73
172
2
122
89
89
108
108
118
161
161
161
82
117
89
161
82
104
104
105
115
105
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING; COIL,RR SUSP
8-97125-154-1
02
1
9707-0106
2
SPRING; COIL,RR SUSP
8-97303-566-2
02
1
0107-
73
BUSHING; LATERAL ROD,RR SUSP
(A)
8-97134-706-0
01
1
9707-0304
73
BUSHING; LATERAL ROD,RR SUSP
(A)
8-97366-494-0
01
1
0305-
73
BUSHING; LATERAL ROD,RR SUSP
(B)
8-97147-547-0
01
1
9707-0304
73
BUSHING; LATERAL ROD,RR SUSP
(B)
8-97366-495-0
01
1
0305-
82
PROTECTOR; LINK
8-97125-081-0
02
1
9707-0205
86
ROD; LATERAL,RR SUSP
8-97124-898-0
01
1
9707-0304
86
ROD; LATERAL,RR SUSP
8-97366-493-0
01
1
0305-
89
NUT; LATERAL ROD TO RR AXLE
M14 FLANGE
8-97167-635-0
08
1
9707-0002
89
NUT; LATERAL ROD TO RR AXLE
M14 FLANGE
8-97254-121-0
08
1
0003-
91
BOLT; LATERAL ROD TO BODY
M14X85 FLANGE
8-97022-802-3
01
1
9707-
104
BUSHING; LWR LINK,RR
8-97134-705-0
04
1
9707-0304
104
BUSHING; LWR LINK,RR
8-97366-504-0
04
1
0305-
105
BUSHING; UPR LINK
8-97125-086-1
04
1
9707-0304
105
BUSHING; UPR LINK
8-97366-502-0
04
1
0305-
106
LINK; LWR,W/BUSHING
8-97124-881-0
02
1
9707-0304
106
LINK; LWR,W/BUSHING
8-97366-503-0
02
1
0305-
108
BOLT; LWR LINK TO BODY
M14X100 FLANGE
0-29291-400-0
04
1
9707-
115
LINK; UPR,W/BUSHING
8-97124-885-1
01
1
9707-0304
115
LINK; UPR,W/BUSHING
8-97366-500-0
01
1
0305-
115
LINK; UPR,W/BUSHING
8-97129-632-1
01
1
9707-0304
115
LINK; UPR,W/BUSHING
8-97366-501-0
01
1
0305-
117
BOLT; UPR LINK TO BODY
8-97136-934-0
02
1
9707-
118
BOLT; UPR LINK TO AXLE
M14X90 FLANGE
0-29291-490-0
02
1
9707-
122
WASHER; LK,LATERAL ROD TO RR AXLE
8-94379-596-1
01
1
9707-
161
PLATE; CUSHION RUBBER,UPR
8-97166-503-2
08
1
9707-
163
RUBBER; HELPER,RR SPR
8-97175-850-0
02
1
9707-9802
163
RUBBER; HELPER,RR SPR
8-94374-448-1
02
1
9803-0106
163
RUBBER; HELPER,RR SPR
8-97254-246-1
02
1
0107-
172
INSULATOR; RR SPR UPR
8-97140-088-1
02
1
9707-
264
BOLT; CUSHION RUBBER TO BRKT
M10X25 FLANGE
0-28481-025-0
04
1
9707-
345
324
283
283
16
293
27
372
244
283
294
297
283
229
372
25
27
25
26
274
274
274
26
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
BUSHING; SHACKLE,RR SPR
8-97140-089-1
02
1
9707-0106
25
BAR ASM; STAB,RR SUSP
8-97124-913-2
01
1
9707-0106
25
BAR ASM; STAB,RR SUSP
8-97253-706-0
01
1
0107-
26
TUBE; DIST RR STAB
8-97167-166-0
02
1
9707-0106
27
BOLT; STAB
M8X50 FLANGE
0-29290-850-0
02
1
9707-0106
229
BOLT; BRKT
M8X50 FLANGE
0-29290-850-0
02
1
9707-0106
244
NUT; BRKT
M8 FLANGE
0-91150-208-0
02
1
9707-0001
244
NUT; BRKT
M8 FLANGE
8-97254-437-0
02
1
0002-0106
274
BUSHING; RR STAB BAR TO LINK
(A)
8-97140-089-1
02
1
9707-0106
274
BUSHING; RR STAB BAR TO LINK
(B)
8-97148-528-0
02
1
9707-
283
SHACKLE; STAB BAR TO RR AXLE
8-97124-914-0
04
1
9707-0106
293
COLLAR; STAB BAR TO RR AXLE
8-97167-166-0
02
1
9707-0106
294
BOLT; STAB BAR TO RR AXLE
M8X20 FLANGE
0-28480-820-0
04
1
9707-
297
CAP; STAB BAR
ID=36
8-97032-869-0
02
1
9707-
324
BRACKET; STAB BAR TO FRAME
8-97124-918-0
02
1
9707-0106
345
BOLT; BRKT
M8X20 FLANGE
0-28480-820-0
04
1
9707-0106
372
NUT; SHACKLE
M8 FLANGE
0-91150-208-0
02
1
9707-0001
372
NUT; SHACKLE
M8 FLANGE
8-97254-437-0
02
1
0002-0106
