◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13A - OIL PAN AND LEVEL GAUGE ▶
0-13A — OIL PAN AND LEVEL GAUGE (#4219) — 86 parça

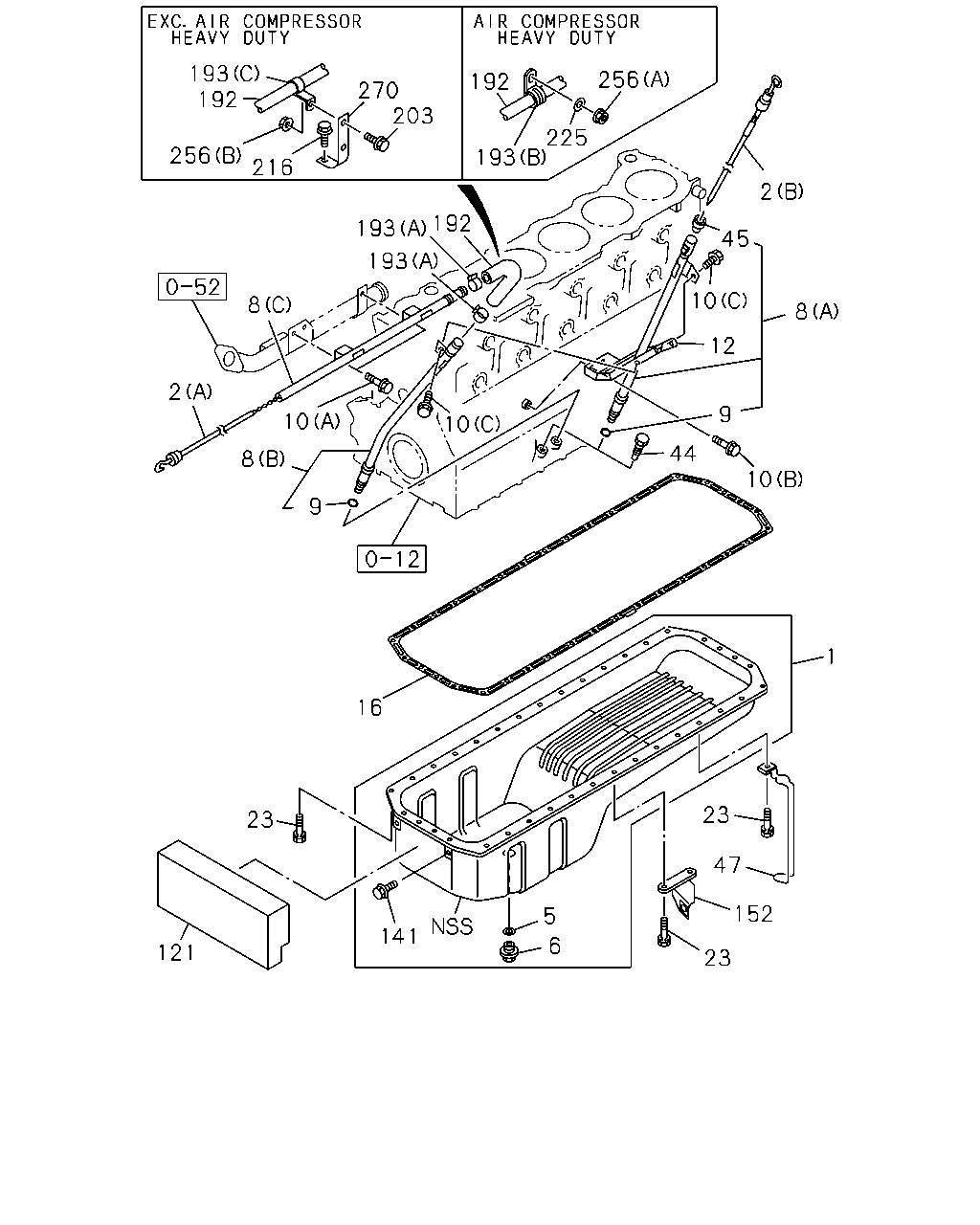

çizim 6003
193 192 256 192 270 203 225 193 256 216 2 192 193 45 193 10 8 8 12 2 9 10 10 44 8 10 9 1 16 23 23 47 152 5 141 6 121 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PAN ASM; OIL 1-11360-774-0 01 1 9603-9603 ●
1 PAN ASM; OIL 1-11360-860-0 01 1 9604-9608 ●
1 PAN ASM; OIL 1-11360-862-0 01 1 9609-9706 ●
1 PAN ASM; OIL 1-11360-862-0 01 1 9707-9904 ● ●
1 PAN ASM; OIL 1-11360-862-0 01 1 9905- ● ● ● ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-362-0 01 1 9603-9706 ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-362-0 01 1 9707-9904 ● ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-405-0 01 1 9603-9606 ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-405-0 01 1 9707-9904 ● ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-405-0 01 1 9905- ● ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 9603-9706 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 9707-9904 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 9905- ● ● ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9603-9706 ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9707-9904 ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9905- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-421-2 01 1 9603-9706 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-421-2 01 1 9707-9904 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-470-0 01 1 9603-9706 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-470-0 01 1 9707-9904 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-470-0 01 1 9905- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-477-0 01 1 9603-9606 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-477-0 01 1 9607-9904 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-477-0 01 1 9905- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. CAB UP +110MM<TGG> (C) 		1-11766-477-0 01 1 9905- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-450-0 01 1 9707-9708 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-488-0 01 1 9709-9904 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
CAB UP +110MM<TGG> (C) 		1-11766-488-0 01 1 9905- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-488-0 01 1 9905- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-496-0 02 1 9603-9706 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-496-0 02 1 9707-9904 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-496-0 01 1 9905- ● ● ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28081-020-0 02 1 9603-9706 ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28081-020-0 02 1 9707-9904 ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9905- ● ● ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28181-020-0 02 1 9603-9706 ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28181-020-0 02 1 9707-9904 ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28181-020-0 02 1 9905- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9904 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-162-1 01 1 9603-9904 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-170-0 01 1 9707-9904 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-170-0 01 1 9905- ● ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-111-0 01 1 9603-9706 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-111-0 01 1 9707-9904 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-111-0 01 1 9905-0011 ● ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0012- ● ● ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 9603-9706 ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 9707-9904 ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 9905- ● ● ● ●
44 PLUG 1-09604-098-0 01 1 9905- ● ● ● ●
45 GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11769-142-0 01 1 9603-9706 ●
45 GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11769-142-0 01 1 9707-9904 ● ●
45 GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11769-142-0 01 1 9905-9905 ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 9603-9706 ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 9707-9904 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 9905- ● ● ● ●
121 COVER; OIL PAN 1-19389-209-0 01 1 9707-9904 ●
121 COVER; OIL PAN 1-19389-209-0 01 1 9905- ●
141 BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE 		0-28081-020-0 02 1 9603-9706 ●
141 BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE 		0-28081-020-0 02 1 9707-9904 ● ●
141 BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE 		0-28081-020-0 02 1 9905- ● ● ● ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 9603-9706 ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 9707-9904 ● ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 9905- ● ● ● ●
192 HOSE; GUIDE TUBE
L=600 SERVICED BY L=3000 		0-02361-300-0 01 1 9603-9606 ●
192 HOSE; GUIDE TUBE
L=600 SERVICED BY L=3000 		0-02361-300-0 01 1 9607-9904 ● ●
192 HOSE; GUIDE TUBE
L=600 SERVICED BY L=3000 		0-02361-300-0 01 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 9603-9606 ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 9607-9904 ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=20 L=24 		1-09700-730-1 01 1 9603- ●
193 CLIP; HOSE,GUIDE TUBE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 9603- ● ● ● ● ●
203 BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 		0-28090-820-0 01 1 9603-9606 ● ● ● ● ●
203 BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE 		0-28690-820-0 01 1 9607- ● ● ● ● ●
216 BOLT; BRKT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30 FLANGE 		0-28090-830-0 01 1 9603-9606 ● ● ● ● ●
216 BOLT; BRKT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30 FLANGE 		0-28690-830-0 01 1 9607- ● ● ● ● ●
225 WASHER; PL
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26 		9-09160-710-0 01 1 9603- ●
256 NUT; CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8 		9-09110-408-0 01 1 9603-9605 ● ● ● ● ●
256 NUT; CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 		9-09110-510-0 01 1 9606-9606 ● ● ● ● ●
256 NUT; CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE 		0-91150-210-0 01 1 9607- ● ● ● ● ●
256 NUT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10 		9-09110-510-0 01 1 9603-9605 ● ● ● ● ●
256 NUT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8 		9-09110-408-0 01 1 9606-9606 ● ● ● ● ●
256 NUT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8 FLANGE 		0-91150-108-0 01 1 9607- ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-47477-156-2 01 1 9603- ● ● ● ● ●
