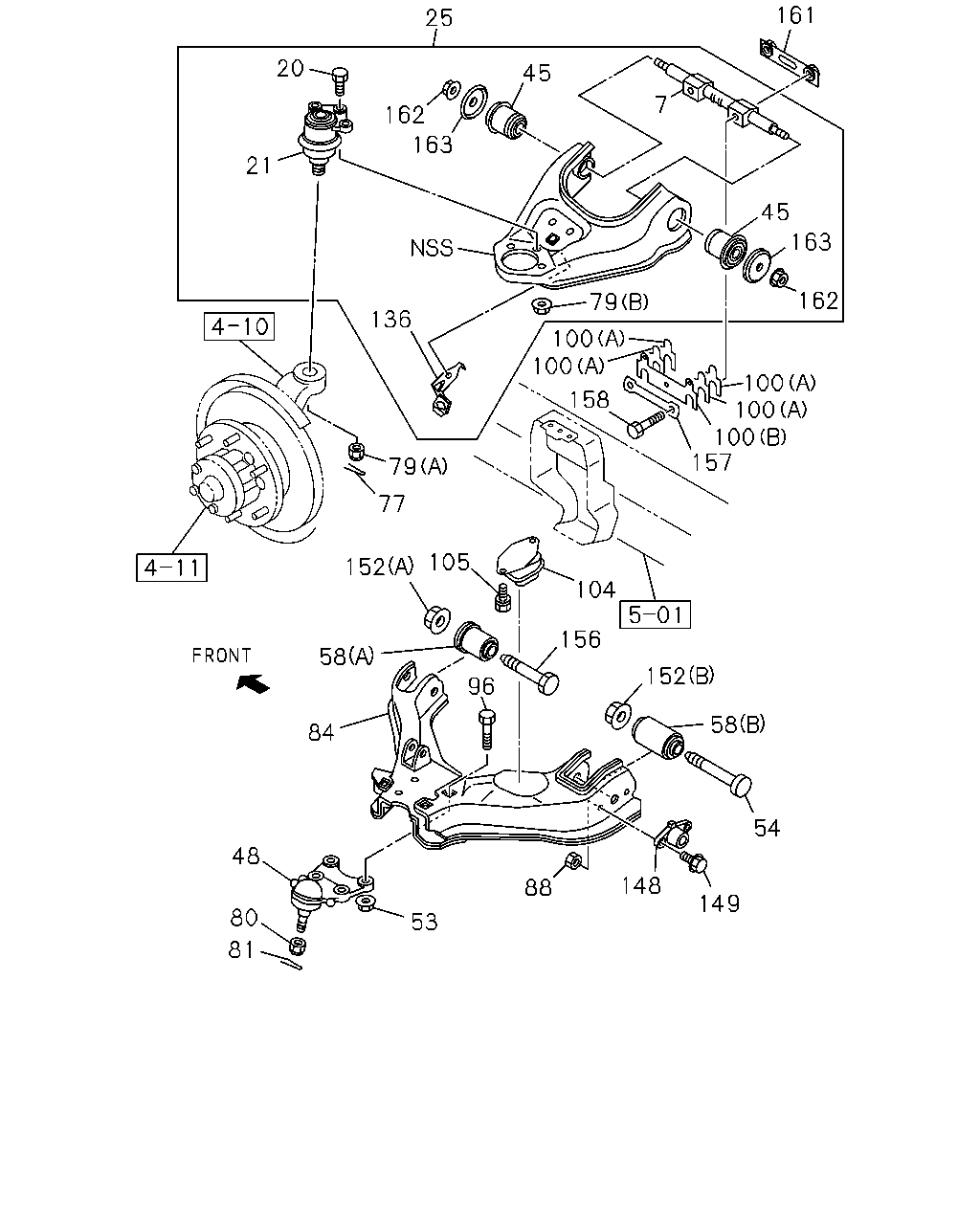

4-50 — FRONT SUSPENSION (#42189) — 90 parça

161 25 20 45 7 162 163 21 45 163 162 79 136 100 100 100 100 100 157 158 79 77 105 152 104 156 58 152 96 58 84 54 48 148 88 149 80 53 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PIN; FULCRUM,UPR LINK	8-94381-234-3	02	1	9707-0402
7	PIN; FULCRUM,UPR LINK	8-94381-234-3	02	1	0403-
20	BOLT; UPR LINK END TO UPR LINK M10X30	8-97010-129-0	06	1	9707-
21	JOINT ASM; BALL,UPR CONT ARM	8-94374-424-0	02	1	9707-
25	ARM; UPR CONT	8-97125-005-1	01	1	9707-0106
25	ARM; UPR CONT	8-97232-621-2	01	1	0107-
25	ARM; UPR CONT	8-97125-004-1	01	1	9707-0106
25	ARM; UPR CONT	8-97232-620-2	01	1	0107-
45	BUSHING; UPR LINK,FRT	8-97138-388-1	04	1	9707-0210
45	BUSHING; UPR LINK,FRT	8-97356-051-0	04	1	0211-0303
45	BUSHING; UPR LINK,FRT	8-97366-488-0	04	1	0304-
48	JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9707-
53	NUT; LWR LINK M12 FLANGE	0-91150-212-0	08	1	9707-
54	PIN; FULCRUM,LWR LINK	8-97140-724-0	02	1	9707-
58	BUSHING; LWR LINK (A)	8-97138-389-1	02	1	9707-0210
58	BUSHING; LWR LINK (A)	8-97356-052-0	02	1	0211-0303
58	BUSHING; LWR LINK (A)	8-97366-491-0	02	1	0304-
58	BUSHING; LWR LINK (B)	8-97138-390-1	02	1	9707-9712
58	BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9801-
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	9-08113-028-0	02	1	9707-
79	NUT; UPR LINK END TO KNUCKLE (A) M14 SLOTTED	8-94124-556-0	02	1	9707-
79	NUT; UPR LINK END TO KNUCKLE (B) M10 FLANGE	8-94383-595-0	06	1	9707-
80	NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	9707-
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=3.7 L=30	9-08114-030-0	02	1	9707-
84	ARM; LWR CONT	8-97125-020-1	01	1	9707-0303
84	ARM; LWR CONT	8-97366-490-0	01	1	0304-
84	ARM; LWR CONT	8-97125-019-1	01	1	9707-0303
84	ARM; LWR CONT	8-97366-489-0	01	1	0304-
88	NUT; LWR LINK M12 FLANGE	0-91150-212-0	04	1	9707-
96	BOLT; LWR LINK M12X45 FLANGE	0-29291-245-0	08	1	9707-
100	SHIM; UPR LINK TO FRAME (A) T=0.40	8-94227-053-1	AR	1	9707-
100	SHIM; UPR LINK TO FRAME (A) T=1.60	8-94227-054-2	AR	1	9707-
100	SHIM; UPR LINK TO FRAME (A) T=3.20	8-94241-885-3	AR	1	9707-
100	SHIM; UPR LINK TO FRAME (B) T=3.20	8-94381-376-1	AR	1	9707-
100	SHIM; UPR LINK TO FRAME (B) T=1.60	8-94381-377-1	AR	1	9707-
104	RUBBER; BUMPER,STRUT	8-97125-102-0	01	1	9707-0206
104	RUBBER; BUMPER,STRUT ACTIVE RIDE CONTROL(7WD)	8-97125-102-0	01	1	0207-
104	RUBBER; BUMPER,STRUT	8-97125-099-0	01	1	9707-0206
104	RUBBER; BUMPER,STRUT ACTIVE RIDE CONTROL(7WD)	8-97125-099-0	01	1	0207-
104	RUBBER; BUMPER,STRUT EXC. ACTIVE RIDE CONTROL(7WD)	8-97254-245-2	01	1	0207-
104	RUBBER; BUMPER,STRUT EXC. ACTIVE RIDE CONTROL(7WD)	8-97254-244-2	01	1	0207-
105	BOLT; STRUT BAR TO LWR LINK M10X25 FLANGE	0-28481-025-0	04	1	9707-
136	BRACKET; FLEX HOSE,FRT BRAKE	8-97125-436-1	02	1	9707-
148	ARM; LWR LINK	8-97139-638-0	02	1	9707-
149	BOLT; ARM TO LWR CONT ARM M12X30 FLANGE	0-28691-230-0	04	1	9707-
152	NUT; LWR LINK TO FRT C/MBR (A) M16	8-97141-153-0	02	1	9707-
152	NUT; LWR LINK TO FRT C/MBR (B) M18	8-97141-154-0	02	1	9707-
156	PIN; FULCRUM,FRT SUSPENSION M16X90 FLANGE	0-29291-690-0	02	1	9707-
157	PLATE; UPR LINK TO FRAME	8-94382-920-1	02	1	9707-
158	BOLT; UPR LINK TO FRAME M14X70	8-97072-665-1	04	1	9707-
161	NUT ASM; UPR LINK TO FRAME	8-94381-235-0	02	1	9707-0210
161	NUT ASM; UPR LINK TO FRAME	8-97327-725-0	02	1	0211-
162	NUT; FULCRUM PIN TO UPR ARM M14 FLANGE	8-94137-483-0	04	1	9707-
163	PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	9707-

173 401 400 400 401 62 60 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	BOLT; S/ABS TO LWR LINK M12X60 FLANGE	0-29291-260-0	02	1	9707-
62	ABSORBER ASM; SHOCK,FRT (A)	8-97125-010-3	02	1	9707-9908
62	ABSORBER ASM; SHOCK,FRT EXC. ACTIVE RIDE CONTROL(7WD) (A)	8-97225-862-1	02	1	9909-0106
62	ABSORBER ASM; SHOCK,FRT EXC. ACTIVE RIDE CONTROL(7WD) (A)	8-97301-081-0	02	1	0107-
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97208-856-1	02	1	9909-0007
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97254-997-1	02	1	0008-0106
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97301-078-1	02	1	0107-0110
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) EXC. CHROME PACKAGE<8GX> (B)	8-97301-078-1	02	1	0111-0206
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97301-078-1	02	1	0207-
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) CHROME PACKAGE<8GX> (B)	8-97301-079-1	02	1	0111-0206
103	NUT; S/ABS TO LWR LINK M12 FLANGE	0-91150-212-0	02	1	9707-
173	NUT; S/ABS M10 FLANGE	0-91150-110-0	02	1	9707-9908
173	NUT; S/ABS EXC. ACTIVE RIDE CONTROL(7WD) M10 FLANGE	0-91150-110-0	02	1	9909-
400	RUBBER; CUSHION,S/ABS (A)	8-97135-978-0	02	1	9707-9908
400	RUBBER; CUSHION,S/ABS EXC. ACTIVE RIDE CONTROL(7WD) (A)	8-97135-978-0	02	1	9909-
400	RUBBER; CUSHION,S/ABS (B)	8-97139-099-0	02	1	9707-9908
400	RUBBER; CUSHION,S/ABS EXC. ACTIVE RIDE CONTROL(7WD) (B)	8-97139-099-0	02	1	9909-
401	RETAINER; S/ABS	8-97135-980-0	04	1	9707-9908
401	RETAINER; S/ABS EXC. ACTIVE RIDE CONTROL(7WD)	8-97135-980-0	04	1	9909-

62 14 65 17 18 18 17 65 60 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	NUT; S/ABS,UPR ACTIVE RIDE CONTROL(7WD)	8-97223-689-0	02	1	9909-
17	BUSHING; RUBBER,S/ABS ACTIVE RIDE CONTROL(7WD)	8-97223-688-0	04	1	9909-0106
17	BUSHING; RUBBER,S/ABS ACTIVE RIDE CONTROL(7WD)	8-97306-585-0	04	1	0107-
18	WASHER; CENTERING,S/ABS ACTIVE RIDE CONTROL(7WD)	8-97223-690-0	04	1	9909-
60	BOLT; S/ABS TO LWR LINK M12X60 FLANGE	0-29291-260-0	02	1	9707-
62	ABSORBER ASM; SHOCK,FRT (A)	8-97125-010-3	02	1	9707-9908
62	ABSORBER ASM; SHOCK,FRT EXC. ACTIVE RIDE CONTROL(7WD) (A)	8-97225-862-1	02	1	9909-0106
62	ABSORBER ASM; SHOCK,FRT EXC. ACTIVE RIDE CONTROL(7WD) (A)	8-97301-081-0	02	1	0107-
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97208-856-1	02	1	9909-0007
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97254-997-1	02	1	0008-0106
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97301-078-1	02	1	0107-0110
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) EXC. CHROME PACKAGE<8GX> (B)	8-97301-078-1	02	1	0111-0206
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) (B)	8-97301-078-1	02	1	0207-
62	ABSORBER ASM; SHOCK,FRT ACTIVE RIDE CONTROL(7WD) CHROME PACKAGE<8GX> (B)	8-97301-079-1	02	1	0111-0206
65	WASHER; S/ABS ACTIVE RIDE CONTROL(7WD) (A)	8-97219-822-1	02	1	9909-
65	WASHER; S/ABS ACTIVE RIDE CONTROL(7WD) (B)	8-97223-687-0	02	1	9909-
103	NUT; S/ABS TO LWR LINK M12 FLANGE	0-91150-212-0	02	1	9707-
