4-42 — POWER STEERING OIL PUMP (#42188) — 59 parça

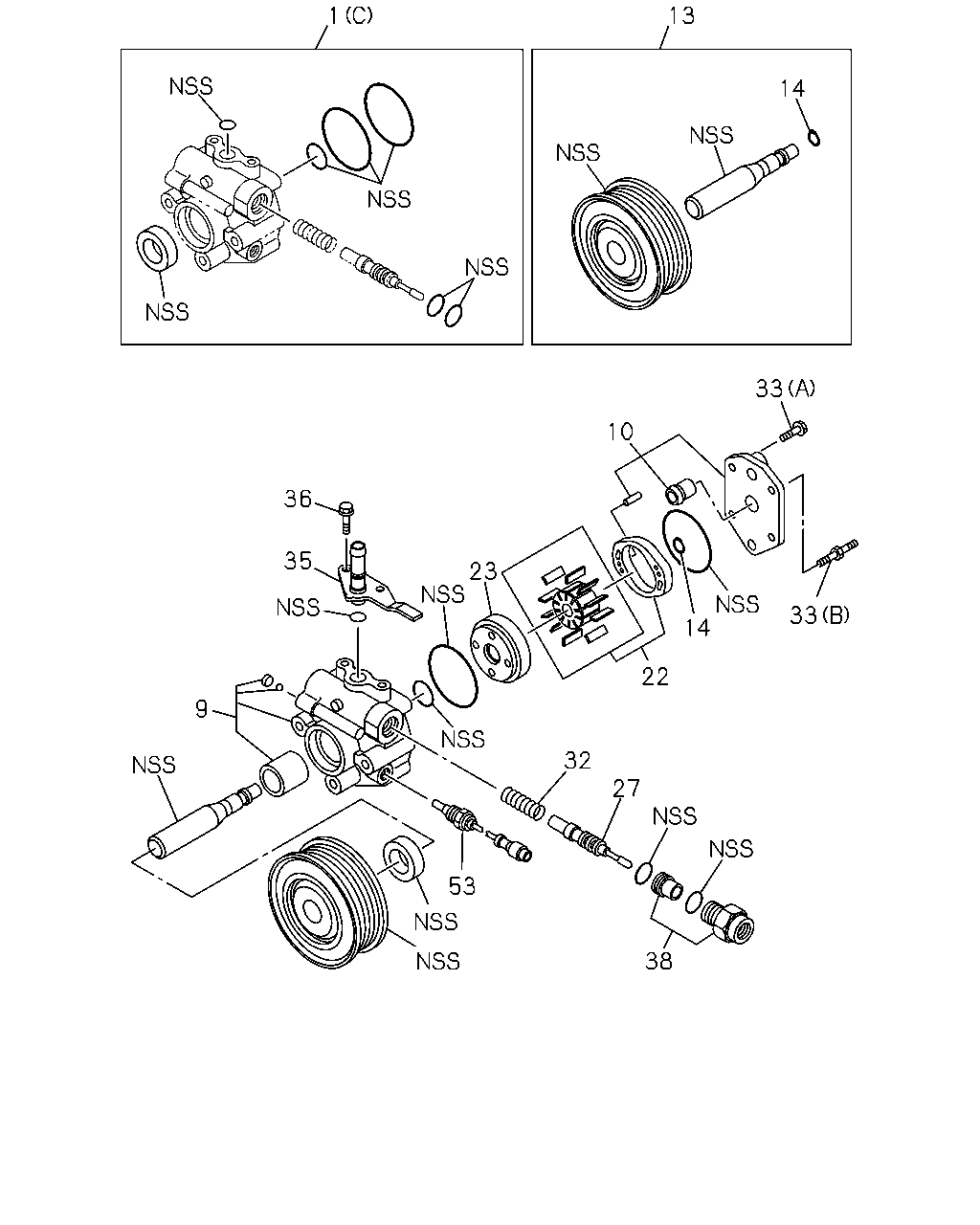

1 13 14 33 10 36 35 23 14 33 22 9 32 27 53 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97135-948-2	8-97081-867-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97135-948-2	8-97169-070-0	01	1	-
1	REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-626-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97135-948-2	8-97100-391-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-607-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97135-948-2	8-97102-303-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-620-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97135-948-2	8-97102-304-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97207-744-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-94411-358-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97135-948-2	8-97168-843-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-611-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97135-948-2	8-97168-842-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-728-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97135-948-2	8-97081-857-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-621-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97135-948-2	8-97064-987-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-766-0	01	1	-
33	BOLT; COVER (C) ASM PART: A = 8-97135-948-2	8-97081-847-0	04	1	-
33	BOLT; COVER (A) ASM PART: C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-761-0	04	1	-
33	BOLT; COVER (A) ASM PART: B = 8-97201-545-1	8-97184-761-0	03	1	-
33	BOLT; COVER (B) ASM PART: B = 8-97201-545-1	8-97211-406-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0	8-97205-622-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-97325-733-0, E = 8-97325-734-0	8-97326-135-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97135-948-2	8-97081-861-0	02	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-763-0	02	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97135-948-2	8-97081-865-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97188-391-0	01	1	-
53	SWITCH KIT; PRESSURE ASM PART: A = 8-97135-948-2	8-97181-590-0	01	1	-
53	SWITCH KIT; PRESSURE ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-627-0	01	1	-

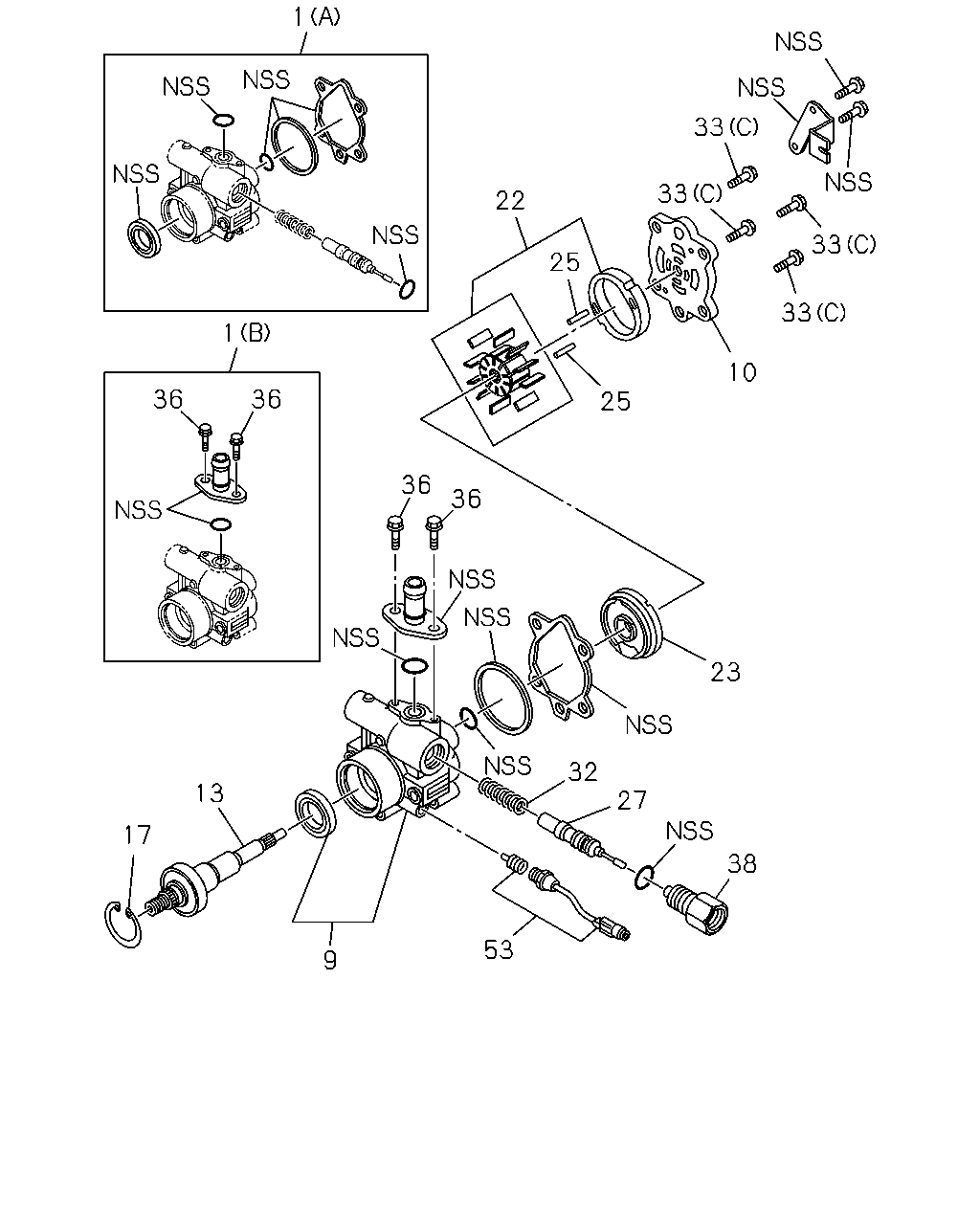

1 33 33 22 33 25 33 1 10 36 36 25 36 36 23 32 13 27 17 38 53 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97135-948-2	8-97081-867-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97135-948-2	8-97169-070-0	01	1	-
1	REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-626-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97135-948-2	8-97100-391-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-607-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97135-948-2	8-97102-303-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-620-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97135-948-2	8-97102-304-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97207-744-0	01	1	-
17	RING; RET ASM PART: A = 8-97135-948-2	8-97081-855-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97135-948-2	8-97168-843-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-611-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97135-948-2	8-97168-842-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-728-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97135-948-2	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97135-948-2	8-97081-857-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-621-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97135-948-2	8-97064-987-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-766-0	01	1	-
33	BOLT; COVER (C) ASM PART: A = 8-97135-948-2	8-97081-847-0	04	1	-
33	BOLT; COVER (A) ASM PART: C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-761-0	04	1	-
33	BOLT; COVER (A) ASM PART: B = 8-97201-545-1	8-97184-761-0	03	1	-
33	BOLT; COVER (B) ASM PART: B = 8-97201-545-1	8-97211-406-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97135-948-2	8-97081-861-0	02	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97184-763-0	02	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97135-948-2	8-97081-865-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97188-391-0	01	1	-
53	SWITCH KIT; PRESSURE ASM PART: A = 8-97135-948-2	8-97181-590-0	01	1	-
53	SWITCH KIT; PRESSURE ASM PART: B = 8-97201-545-1, C = 8-97249-873-0, D = 8-97325-733-0, E = 8-97325-734-0	8-97205-627-0	01	1	-
