◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#42186) — 11 parça

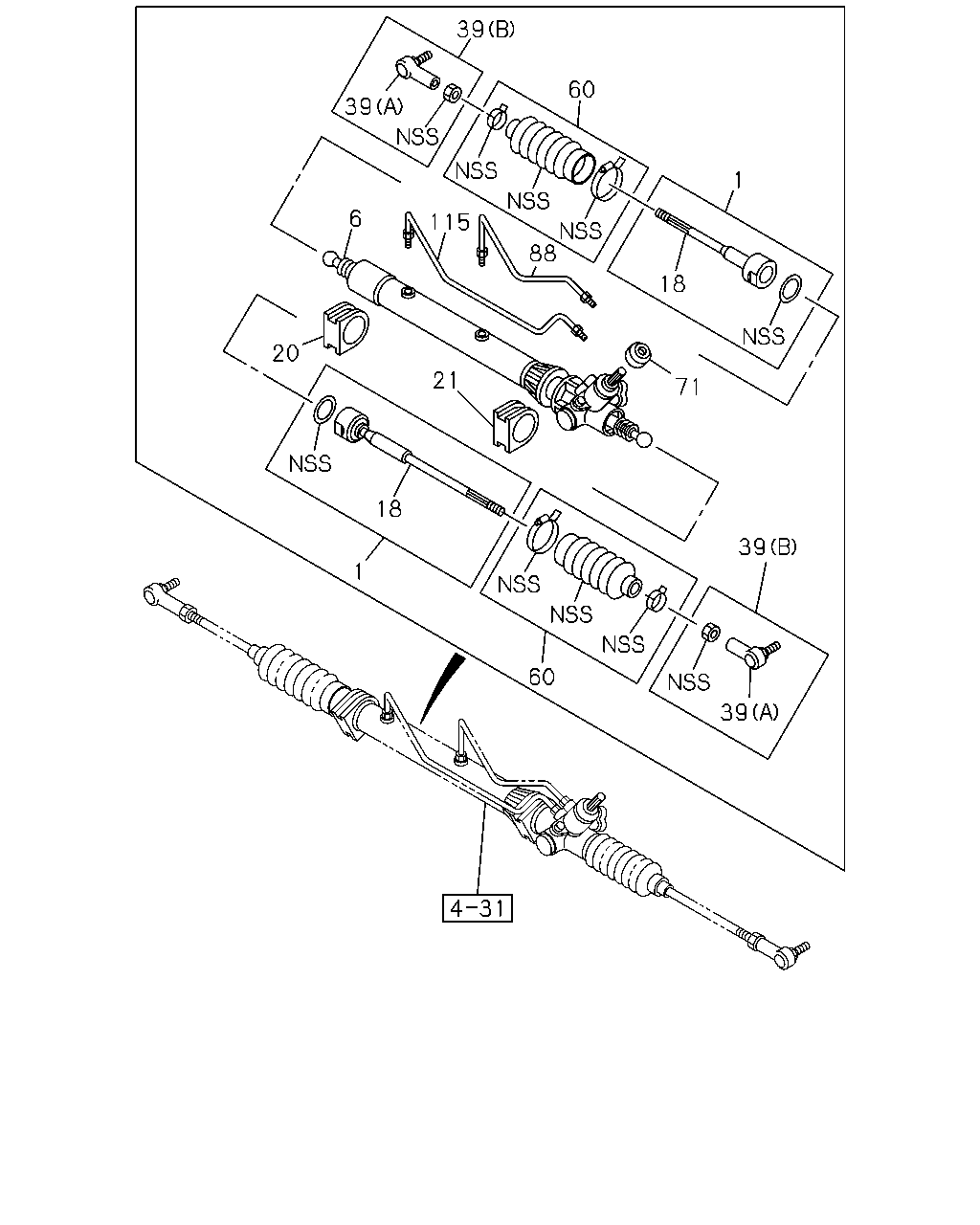

çizim 69629
39 60 39 1 6 115 88 18 20 21 71 18 39 1 60 39
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-435-0 02 1 -
6 HOUSING ASM; STRG
ASM PART: A = 8-97124-929-0 		8-97170-430-0 01 1 -
18 ROD ASM; INNER
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97126-168-0 02 1 -
20 RUBBER; MTG
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-437-0 01 1 -
21 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-436-0 01 1 -
39 ROD END ASM; OUTER
(A) ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97160-395-0 02 1 -
39 ROD END ASM; OUTER
(B) REPAIR KIT ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-450-0 02 1 -
60 BOOT KIT; STRG HSG
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-432-0 02 1 -
71 COVER; DUST,STRG UNIT
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-438-0 01 1 -
88 PIPE; HSG TO VLV
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-440-0 01 1 -
115 PIPE; HSG TO VLV
ASM PART: A = 8-97124-929-0, B = 8-97224-541-0, C = 8-97252-956-2 		8-97170-439-0 01 1 -
