4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#42184) — 29 parça

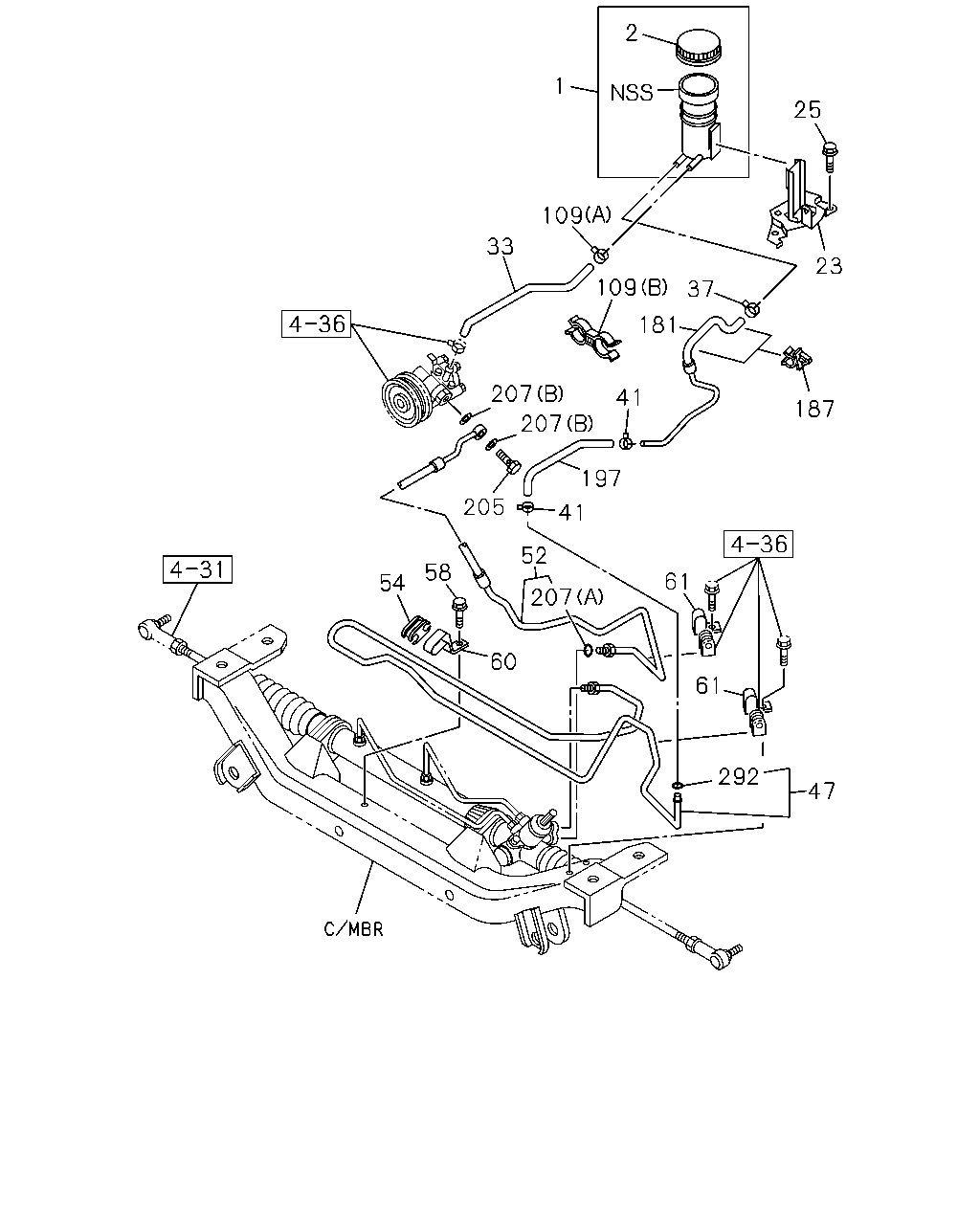

çizim 69647
2 1 25 33 23 109 37 181 207 41 187 207 197 205 41 52 58 61 54 207 60 61 292 47
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-97125-158-2 01 1 9707-
2 CAP; OIL TANK,P/S 8-97177-825-1 01 1 9707-
23 BRACKET; OIL TANK,P/S 8-97124-931-1 01 1 9707-9904
23 BRACKET; OIL TANK,P/S 8-97222-453-0 01 1 9905-9908
23 BRACKET; OIL TANK,P/S 8-97230-006-1 01 1 9909-
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28480-616-0 02 1 9707-
33 HOSE; RUBBER,POWER STRG 8-97130-352-4 01 1 9707-
37 CLIP; HOSE,P/S
ID=16 		8-94238-568-0 01 1 9707-
41 CLIP; HOSE,P/S
ID=16 		8-94238-568-0 02 1 9707-
47 PIPE; RETURN 8-97124-933-3 01 1 9707-
52 HOSE; FLEX,P/S CONT VLV 8-97125-156-4 01 1 9707-0101
52 HOSE; FLEX,P/S CONT VLV 8-97308-613-0 01 1 0102-0112
52 HOSE; FLEX,P/S CONT VLV 8-97325-541-0 01 1 0201-
54 CLIP; OIL PIPE 8-97164-013-2 01 1 9707-
58 BOLT; CLIP
M6X16 FLANGE 		0-28480-616-0 01 1 9707-
60 CLAMP; PIPE,RETURN
ID=10X2 H=22 		8-94252-455-2 01 1 9707-
61 CLIP; OIL PIPE 8-97176-281-0 02 1 9707-
109 CLIP; RUBBER HOSE
(A) ID=21 		8-94242-034-0 01 1 9707-
109 CLIP; RUBBER HOSE
(B) ID=17.5 & 21 		8-97177-580-0 01 1 9707-9908
181 PIPE ASM; P/S RETURN 8-97171-106-1 01 1 9707-9802
181 PIPE ASM; P/S RETURN 8-97189-296-0 01 1 9803-9908
181 PIPE ASM; P/S RETURN 8-97230-274-0 01 1 9909-
187 CLIP; P/S OIL PIPE 8-94253-984-0 02 1 9707-
197 HOSE; FLEX,P/S,RETURN 8-97130-354-1 01 1 9707-
205 BOLT; EYE,FLEX HOSE,P/S
M16X28 		8-94383-489-0 01 1 9707-
207 GASKET; FLEX HOSE,P/S PUMP
(A) 		8-97307-253-0 01 1 9707-0101
207 GASKET; FLEX HOSE,P/S PUMP
(B) ID=16.2 OD=24 		9-09571-416-0 02 1 9707-
207 GASKET; FLEX HOSE,P/S PUMP
(A) 		8-97307-253-0 01 1 0102-
292 GASKET; P/S OIL PIPE 8-97307-253-0 01 1 9707-
