4-30 — STEERING WHEEL AND COWL (#42181) — 93 parça

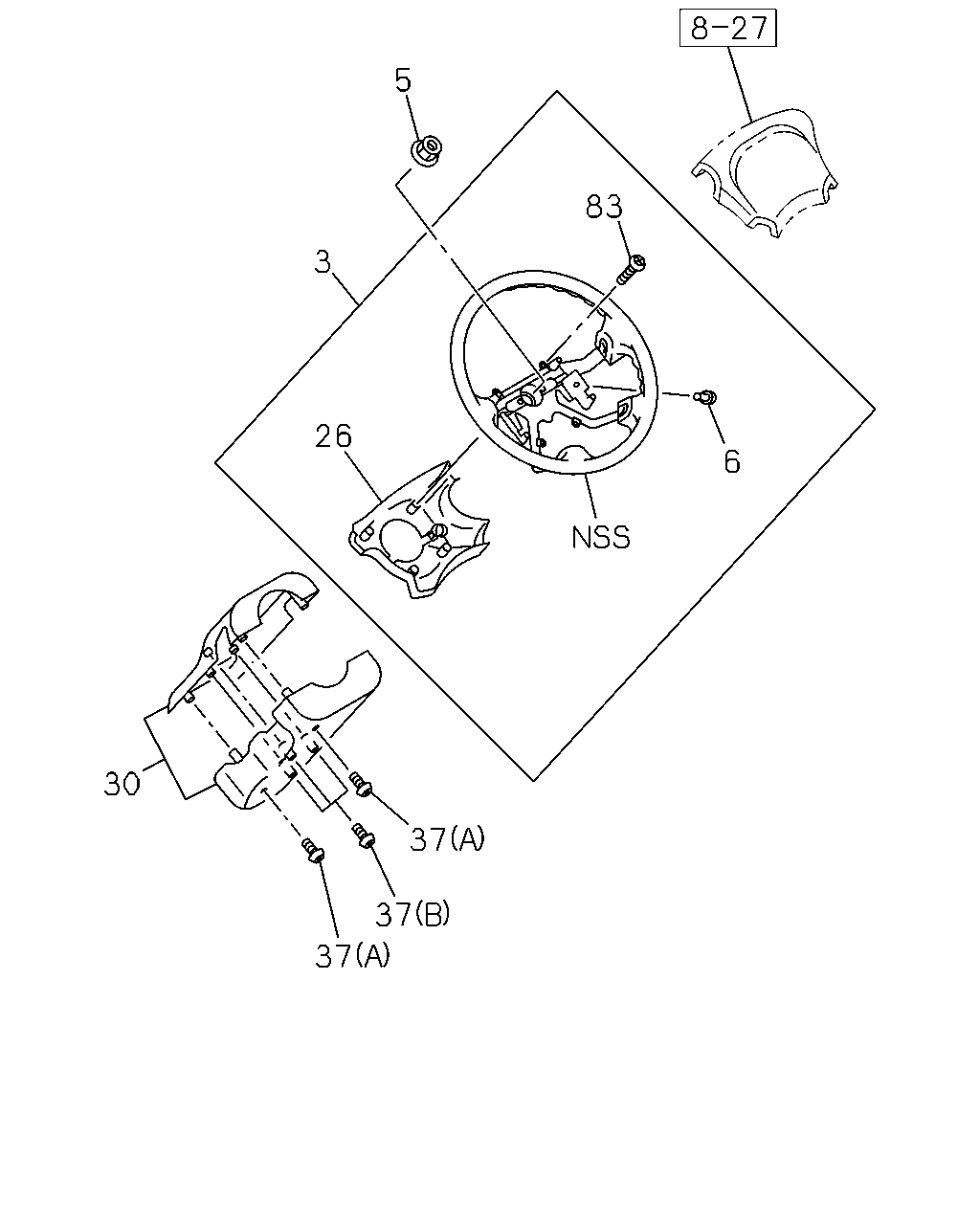

5 83 3 26 6 30 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL LEATHER<NK3> DARK BEIGE	8-97394-793-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) BEIGE	8-97394-411-3	01	1	0207-0209
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) EXC. ISRAEL EQUIPMENT(7LX) BEIGE	8-97394-411-3	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL LEATHER<NK3> ISRAEL EQUIPMENT(7LX) BEIGE	8-97391-849-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL LEATHER<NK3> BEIGE	8-97391-849-7	01	1	0308-
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL URETHANE<NK4> DARK BEIGE	8-97292-245-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) BEIGE	8-97391-852-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL URETHANE<NK4> BEIGE	8-97391-852-7	01	1	0308-
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97391-848-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> BLACK	8-97395-487-7	01	1	0308-
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97391-851-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> BLACK	8-97391-850-7	01	1	0308-
3	WHEEL; STRG STRG WHEEL LEATHER<NK3> BLACK	8-97395-549-0	01	1	9707-9908
3	WHEEL; STRG INTERIOR COLOR GRAY(180) STRG WHEEL LEATHER<NK3> GRAY	8-97394-792-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> DARK GRAY	8-97394-410-3	01	1	0207-0209
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97394-410-3	01	1	0210-0307
3	WHEEL; STRG STRG WHEEL URETHANE<NK4> BLACK	8-97157-409-1	01	1	9707-9908
3	WHEEL; STRG INTERIOR COLOR GRAY(180) STRG WHEEL URETHANE<NK4> GRAY	8-97292-244-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> DARK GRAY	8-97391-846-7	01	1	0207-0209
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97391-846-7	01	1	0210-0307
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	9707-
6	SCREW; HORN SPR CONTACT	8-97134-780-0	02	1	9707-0206
26	COVER; STRG WHEEL,LWR BLACK	8-97159-437-1	01	1	9707-9908
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(180) GRAY	8-97292-869-1	01	1	9909-0206
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) BEIGE	8-97394-760-2	01	1	0207-0209
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) EXC. ISRAEL EQUIPMENT(7LX) BEIGE	8-97394-760-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) DARK BEIGE	8-97292-870-1	01	1	9909-0206
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97394-756-2	01	1	0207-0209
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97394-756-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) ISRAEL EQUIPMENT(7LX) BEIGE	8-97394-754-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) BEIGE	8-97394-754-2	01	1	0308-
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97394-753-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) BLACK	8-97394-755-2	01	1	0308-
30	COWL; STEERING BLACK	8-97157-935-0	01	1	9707-9908
30	COWL; STEERING INTERIOR COLOR GRAY(180) DARK GRAY	8-97292-242-1	01	1	9909-0206
30	COWL; STEERING INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-840-0	01	1	0207-0307
30	COWL; STEERING INTERIOR COLOR TAUPE GRAY(182) BLACK	8-97391-839-0	01	1	0308-
30	COWL; STEERING INTERIOR COLOR BEIGE(181) DARK BEIGE	8-97292-243-1	01	1	9909-0206
30	COWL; STEERING INTERIOR COLOR BEIGE(181) BEIGE	8-97391-841-0	01	1	0207-
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9707-
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9707-
83	SCREW; LWR COVER TO WHEEL	8-97122-619-0	04	1	9707-0206

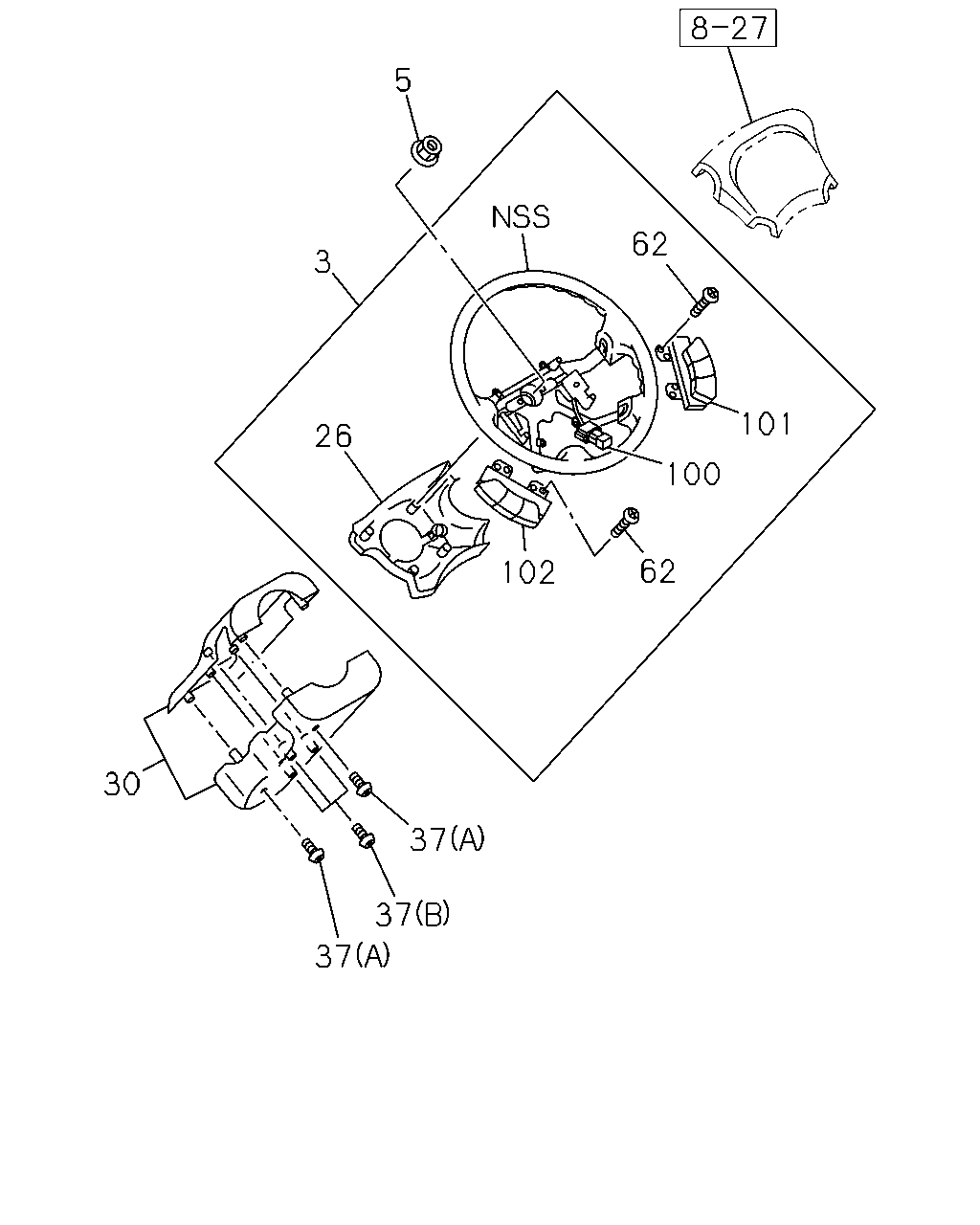

5 62 3 101 26 100 62 102 30 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL LEATHER<NK3> DARK BEIGE	8-97394-793-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) BEIGE	8-97394-411-3	01	1	0207-0209
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) EXC. ISRAEL EQUIPMENT(7LX) BEIGE	8-97394-411-3	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL LEATHER<NK3> ISRAEL EQUIPMENT(7LX) BEIGE	8-97391-849-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL LEATHER<NK3> BEIGE	8-97391-849-7	01	1	0308-
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL URETHANE<NK4> DARK BEIGE	8-97292-245-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) BEIGE	8-97391-852-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR BEIGE(181) STRG WHEEL URETHANE<NK4> BEIGE	8-97391-852-7	01	1	0308-
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97391-848-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> BLACK	8-97395-487-7	01	1	0308-
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97391-851-7	01	1	0210-0307
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> BLACK	8-97391-850-7	01	1	0308-
3	WHEEL; STRG STRG WHEEL LEATHER<NK3> BLACK	8-97395-549-0	01	1	9707-9908
3	WHEEL; STRG INTERIOR COLOR GRAY(180) STRG WHEEL LEATHER<NK3> GRAY	8-97394-792-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> DARK GRAY	8-97394-410-3	01	1	0207-0209
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL LEATHER<NK3> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97394-410-3	01	1	0210-0307
3	WHEEL; STRG STRG WHEEL URETHANE<NK4> BLACK	8-97157-409-1	01	1	9707-9908
3	WHEEL; STRG INTERIOR COLOR GRAY(180) STRG WHEEL URETHANE<NK4> GRAY	8-97292-244-0	01	1	9909-0206
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> DARK GRAY	8-97391-846-7	01	1	0207-0209
3	WHEEL; STRG INTERIOR COLOR TAUPE GRAY(182) STRG WHEEL URETHANE<NK4> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97391-846-7	01	1	0210-0307
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	9707-
26	COVER; STRG WHEEL,LWR BLACK	8-97159-437-1	01	1	9707-9908
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(180) GRAY	8-97292-869-1	01	1	9909-0206
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) BEIGE	8-97394-760-2	01	1	0207-0209
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) EXC. ISRAEL EQUIPMENT(7LX) BEIGE	8-97394-760-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) DARK BEIGE	8-97292-870-1	01	1	9909-0206
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97394-756-2	01	1	0207-0209
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97394-756-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) ISRAEL EQUIPMENT(7LX) BEIGE	8-97394-754-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BEIGE(181) BEIGE	8-97394-754-2	01	1	0308-
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97394-753-2	01	1	0210-0307
26	COVER; STRG WHEEL,LWR INTERIOR COLOR TAUPE GRAY(182) BLACK	8-97394-755-2	01	1	0308-
30	COWL; STEERING BLACK	8-97157-935-0	01	1	9707-9908
30	COWL; STEERING INTERIOR COLOR GRAY(180) DARK GRAY	8-97292-242-1	01	1	9909-0206
30	COWL; STEERING INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-840-0	01	1	0207-0307
30	COWL; STEERING INTERIOR COLOR TAUPE GRAY(182) BLACK	8-97391-839-0	01	1	0308-
30	COWL; STEERING INTERIOR COLOR BEIGE(181) DARK BEIGE	8-97292-243-1	01	1	9909-0206
30	COWL; STEERING INTERIOR COLOR BEIGE(181) BEIGE	8-97391-841-0	01	1	0207-
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9707-
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9707-
62	SCREW; SW,STRG WHEEL	8-97332-925-1	06	1	0207-0209
62	SCREW; SW,STRG WHEEL EXC. ISRAEL EQUIPMENT(7LX)	8-97332-925-1	06	1	0210-0307
62	SCREW; SW,STRG WHEEL ISRAEL EQUIPMENT(7LX)	8-97332-925-1	08	1	0210-0307
62	SCREW; SW,STRG WHEEL	8-97332-925-1	08	1	0308-
100	HARNESS; STRG WHEEL	8-97332-920-1	01	1	0207-0209
100	HARNESS; STRG WHEEL EXC. ISRAEL EQUIPMENT(7LX)	8-97332-920-1	01	1	0210-0307
100	HARNESS; STRG WHEEL ISRAEL EQUIPMENT(7LX)	8-97332-921-1	01	1	0210-0307
100	HARNESS; STRG WHEEL	8-97332-921-1	01	1	0308-
101	SWITCH ASM; CRUISE CONT,STRG WHEEL BLACK	8-97394-761-2	01	1	0207-
102	SWITCH ASM; AUDIO CONT,STRG WHEEL ISRAEL EQUIPMENT(7LX) BLACK	8-97394-762-1	01	1	0210-0307
102	SWITCH ASM; AUDIO CONT,STRG WHEEL BLACK	8-97394-762-2	01	1	0308-
