4-25 — REAR FINAL DRIVE (#42180) — 35 parça

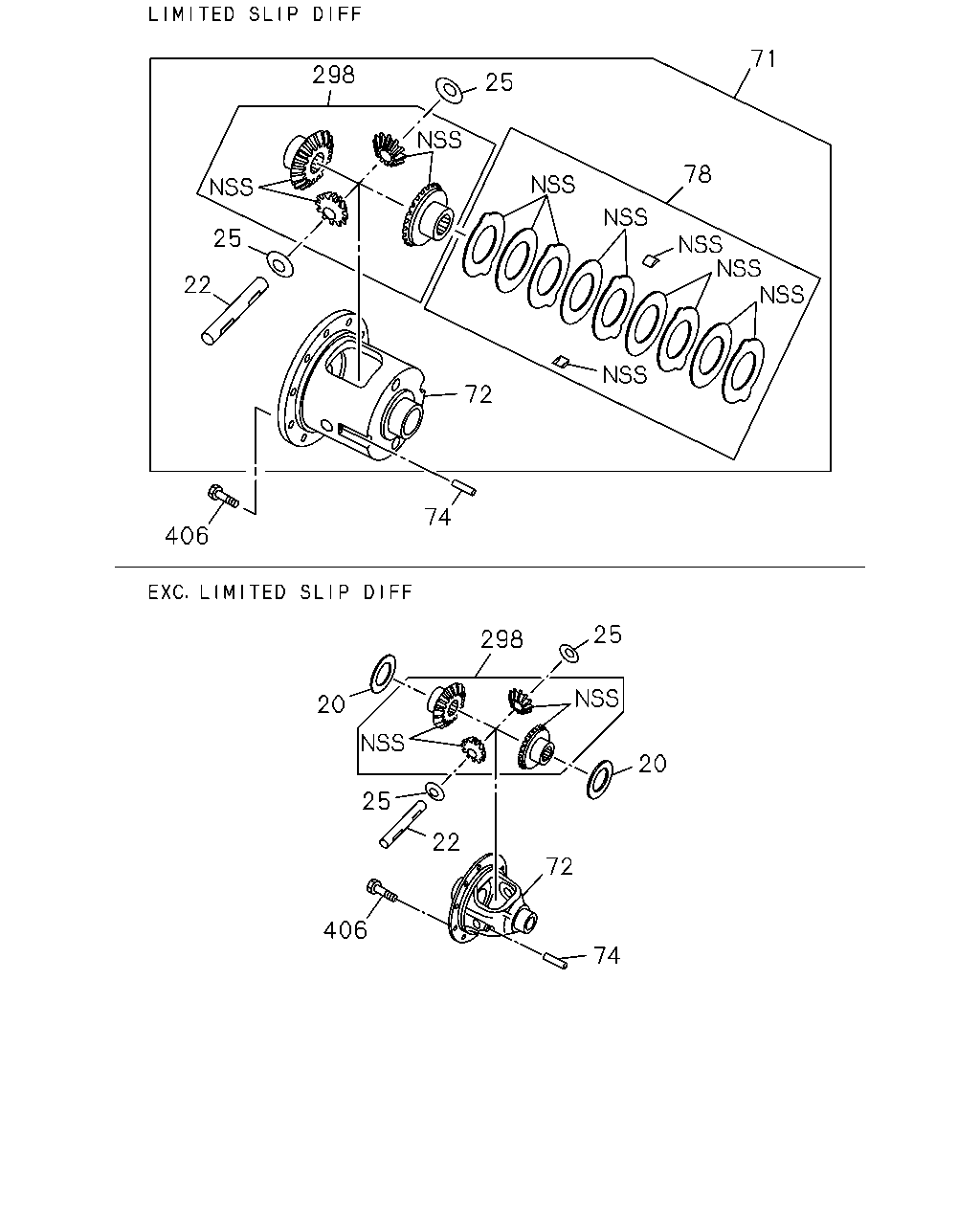

71 298 25 78 25 22 72 74 406 25 298 20 20 25 22 72 406 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80)	8-97084-418-0	02	1	9707-
22	SPIDER; DIFF PINION	8-97179-926-0	01	1	9707-
25	WASHER; THRUST,PINION LIMITED SLIP DIFF(G80)	8-97211-297-0	02	1	9707-
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G80)	8-97179-925-0	02	1	9707-
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97214-525-0	01	1	9707-0106
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97354-081-0	01	1	0107-
72	CAGE; DIFF LIMITED SLIP DIFF(G80)	8-97179-965-0	01	1	9707-0106
72	CAGE; DIFF LIMITED SLIP DIFF(G80)	8-97354-080-0	01	1	0107-
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97179-923-0	01	1	9707-
74	PIN; LK,CROSS PIN	8-97084-421-0	01	1	9707-
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-97084-434-0	01	1	9707-
298	GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80)	8-97179-958-0	01	1	9707-0106
298	GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80)	8-97354-079-0	01	1	0107-
298	GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80)	8-97179-924-0	01	1	9707-0106
298	GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80)	8-97354-078-0	01	1	0107-
406	BOLT SET; FINAL DRIVE GEAR	8-97084-422-0	01	1	9707-

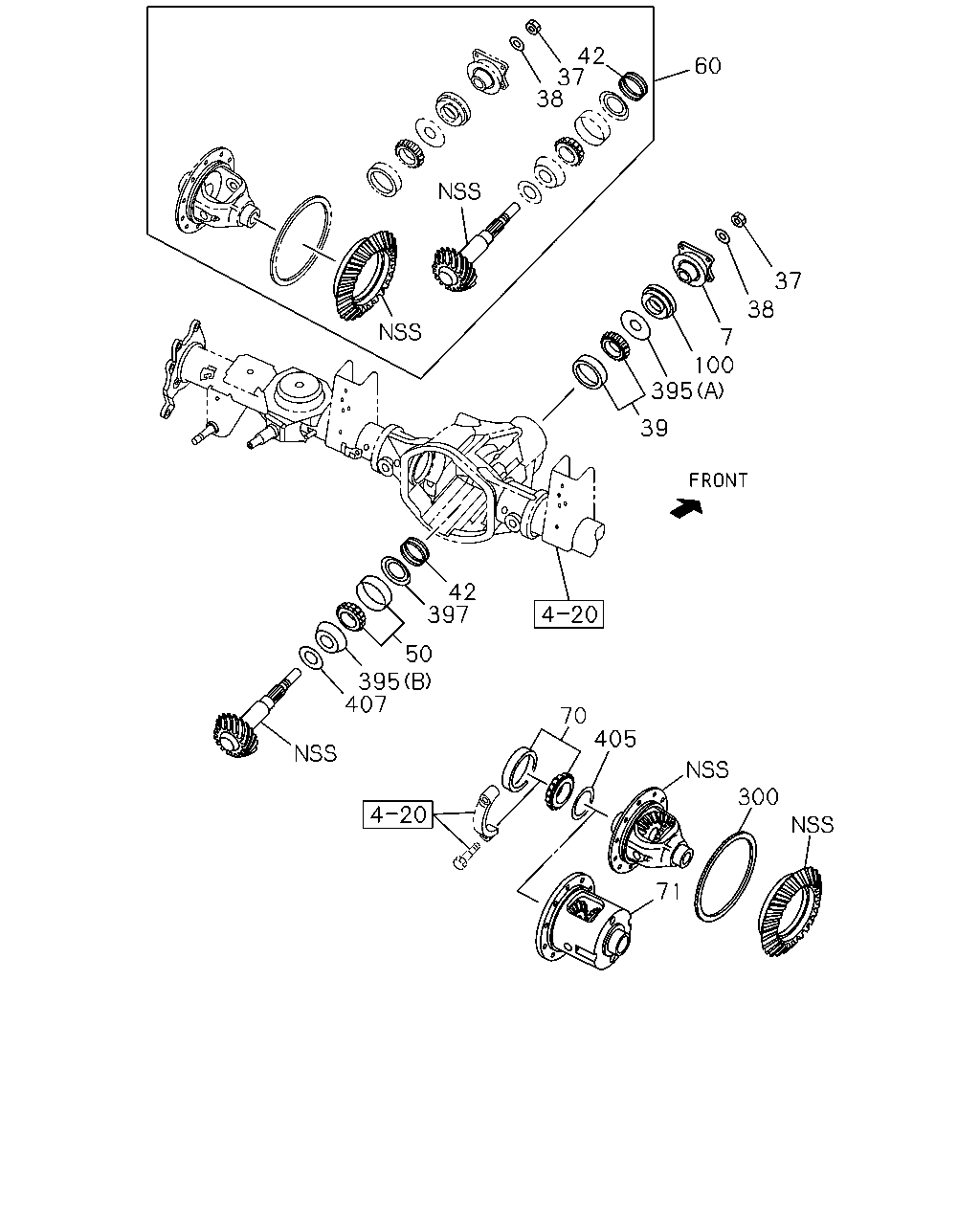

42 37 38 60 37 38 7 100 395 39 42 397 50 395 407 70 405 300 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	FLANGE; FINAL	8-97179-950-0	01	1	9707-
37	NUT; DRIVING PINION	8-97179-932-0	01	1	9707-
38	WASHER; PL,DRIVING PINION	8-97179-933-0	01	1	9707-
39	BEARING; FINAL PINION	8-97179-939-0	01	1	9707-
42	COLLAR; DIST,COLLAPSIBLE	8-97179-934-0	01	1	9707-
50	BEARING; FINAL PINION	8-97179-938-0	01	1	9707-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97179-928-0	01	1	9707-0206
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97179-929-0	01	1	9707-0206
60	GEAR SET; FINAL DRIVE,RR 43/10	8-97179-929-0	01	1	0207-
70	BEARING; DIFF CAGE	8-97084-429-0	01	1	9707-
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97214-525-0	01	1	9707-0106
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97354-081-0	01	1	0107-
100	SEAL; OIL,FINAL PINION	8-97179-937-0	01	1	9707-
300	RING; EXCITER,SPD SENSOR	8-97084-474-0	01	1	9707-
395	SLINGER; OIL SEAL (A)	8-97179-936-0	01	1	9707-
395	SLINGER; OIL SEAL (B)	8-97179-957-0	01	1	9707-
397	BAFFLE; OIL	8-97179-956-0	01	1	9707-
405	SHIM SET; DIFF SIDE BRG	8-97084-424-0	01	1	9707-
407	SHIM SET; PINION,FINAL DRIVE	8-97179-935-0	01	1	9707-
