Sayfa 0-12B - Isuzu EPC

0-12B — CYLINDER BLOCK (#4218) — 280 parça

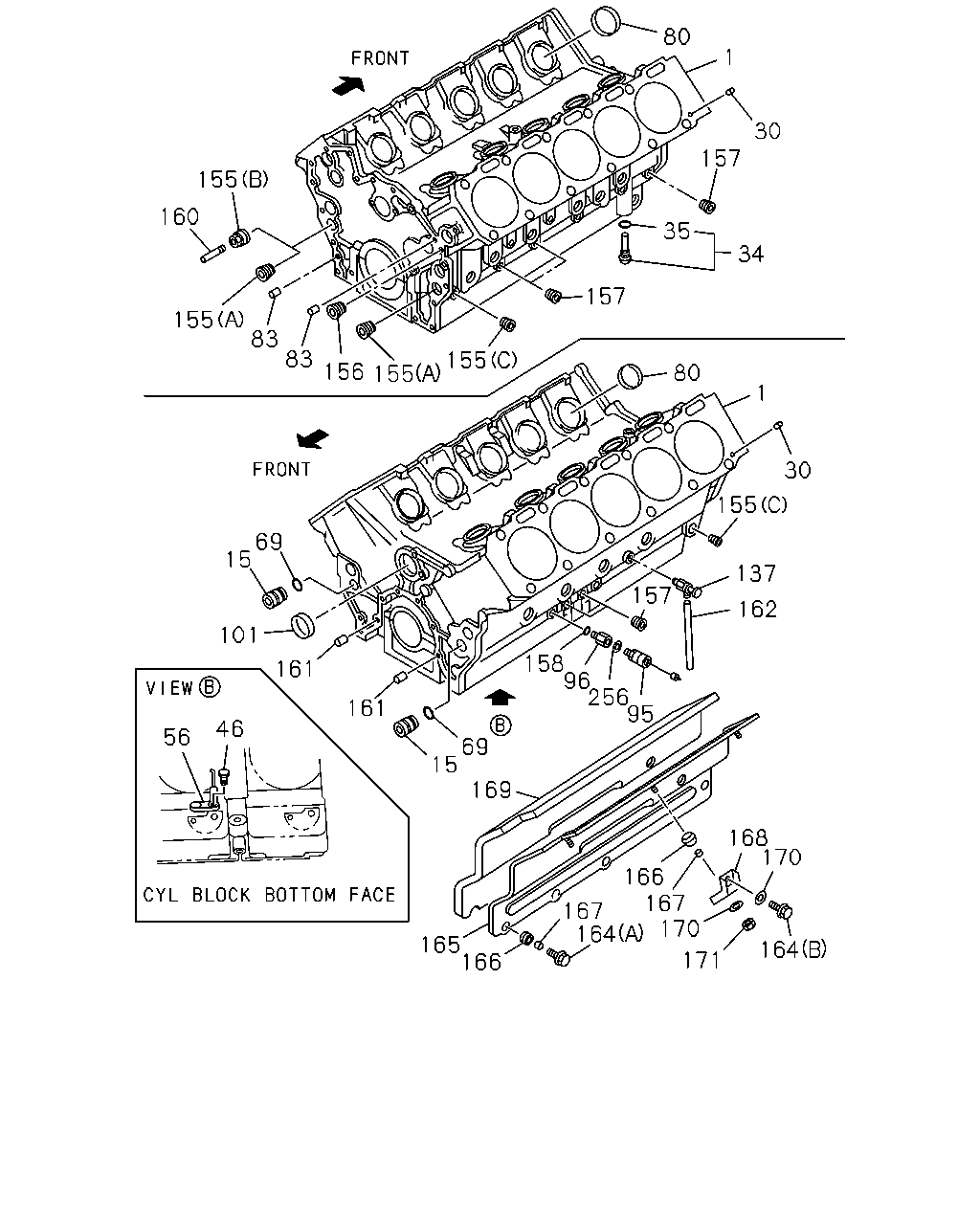

80 1 30 157 155 160 35 34 157 155 83 83 155 156 80 155 1 30 155 69 15 137 157 162 101 158 96 256 95 161 161 69 15 46 56 169 168 170 166 167 170 167 164 165 166 164 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-617-7	01	1	9603-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-586-7	01	1	9603-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9603-9904		●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9905-		●	●	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9603-9904		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9905-		●	●	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9603-9904	●	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9905-	●	●	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9603-9904	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9905-	●	●	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9603-9904	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9905-	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9603-9904	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9905-	●	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9603-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9603-9904		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9905-		●	●	●
56	JET; OIL,PISTON COOLING	1-13342-135-1	08	1	9603-	●
56	JET; OIL,PISTON COOLING	1-13342-135-0	10	1	9603-9904		●
56	JET; OIL,PISTON COOLING	1-13342-135-1	10	1	9905-		●	●	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	06	1	9603-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9708-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9603-9904		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9905-		●	●	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9603-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9603-9904		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9905-		●	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9603-9904	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9905-	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9603-9706	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9707-9904	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-	●	●	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9603-9904	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9905-	●	●	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9603-9904	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9905-	●	●	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9603-9904	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END (A) M30X20	1-09609-019-0	02	1	9603-	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9603-9904	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9603-9904	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-0	01	1	9603-9904	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-1	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9603-9904	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9905-	●	●	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9603-9904	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9905-	●	●	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9603-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9603-9904		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9905-		●	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9603-9904	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-	●	●	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9603-9904	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9905-	●	●	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9603-9904	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9905-	●	●	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9904	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●	●	●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) M10X28 FLANGE	0-28181-028-0	03	1	9603-9904		●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	9905-		●	●	●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9603-9904		●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9905-		●	●	●
165	COVER; C/BL SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-320-1	01	1	9603-9904		●
165	COVER; C/BL SKIRT	1-19381-320-1	01	1	9905-		●	●	●
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-020-0	06	1	9603-9904		●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	06	1	9905-		●	●	●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-23332-003-0	06	1	9603-9904		●
167	TUBE; DIST,SIDE COVER	5-23332-003-0	06	1	9905-		●	●	●
168	BRACKET; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19386-012-3	03	1	9603-9904		●
168	BRACKET; SIDE COVER	1-19386-012-3	03	1	9905-		●	●	●
169	INSULATOR; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-148-0	01	1	9603-9705		●
169	INSULATOR; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-197-0	01	1	9706-9904		●
169	INSULATOR; SIDE COVER	1-19389-197-0	01	1	9905-		●	●	●
170	WASHER; COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.5 OD=26	9-09160-710-0	06	1	9603-9904		●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	06	1	9905-		●	●	●
171	NUT; COVER & BRKT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10	9-09110-410-0	03	1	9603-9904		●
171	NUT; COVER & BRKT M10	9-09110-410-0	03	1	9905-		●	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9904	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●	●	●	●

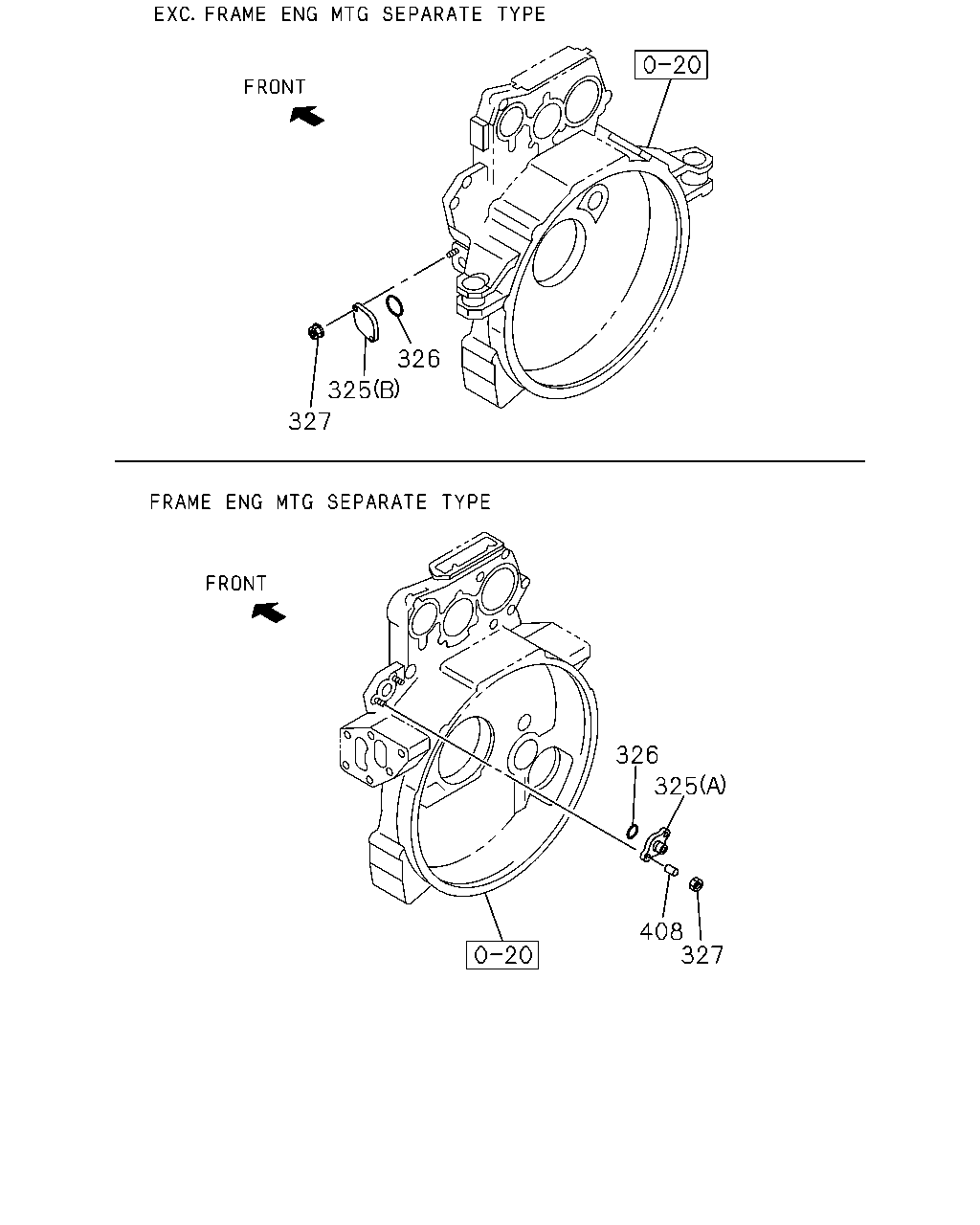

326 325 327 326 325 408 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
325	COVER; OIL FILTER HOLE FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-11749-113-0	01	1	9603-9904	●	●
325	COVER; OIL FILTER HOLE FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-11749-113-0	01	1	9905-	●
325	COVER; OIL FILTER HOLE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-11749-074-0	01	1	9603-9904	●	●
325	COVER; OIL FILTER HOLE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-11749-074-0	01	1	9905-9905	●
325	COVER; OIL FILTER HOLE (B)	1-11749-074-0	01	1	9905-9905		●
325	COVER; OIL FILTER HOLE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-11749-074-0	01	1	9906-	●
325	COVER; OIL FILTER HOLE (B)	1-11749-074-0	01	1	9906-		●	●	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9603-9904	●	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9905-	●	●	●	●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9603-9904	●	●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●	●
408	TUBE; DIST,FILLER HOLE FRAME ENG MTG SEPARATE TYPE<SGM>	8-94399-936-0	01	1	9603-9904	●	●
408	TUBE; DIST,FILLER HOLE FRAME ENG MTG SEPARATE TYPE<SGM>	8-94399-936-0	01	1	9905-	●

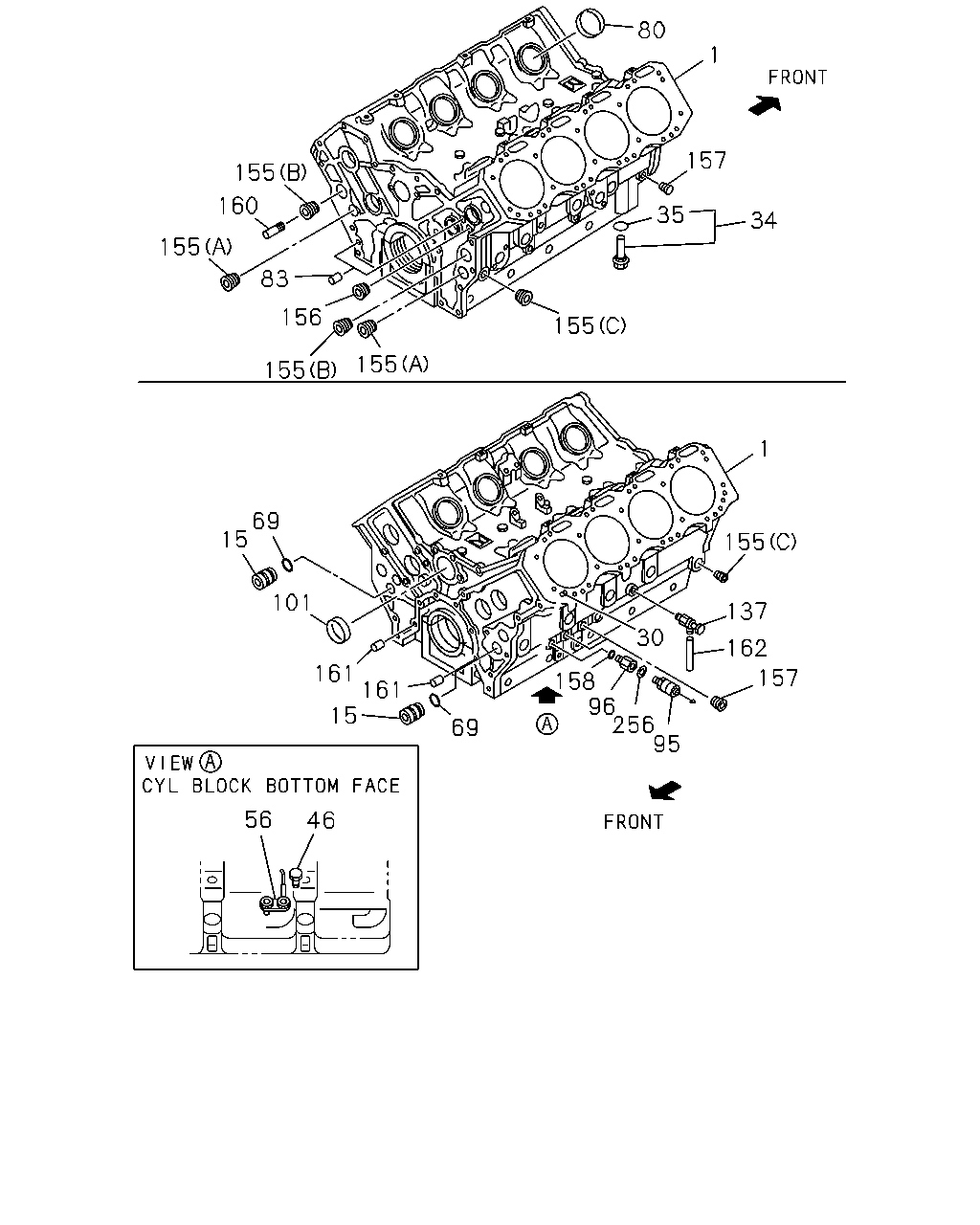

80 1 157 155 160 35 34 155 83 156 155 155 155 1 69 15 155 101 137 30 162 161 157 158 96 256 95 161 15 69 56 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-617-7	01	1	9603-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-586-7	01	1	9603-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9603-9904		●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9905-		●	●	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9603-9904		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9905-		●	●	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9603-9904	●	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9905-	●	●	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9603-9904	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9905-	●	●	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9603-9904	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9905-	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9603-9904	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9905-	●	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9603-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9603-9904		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9905-		●	●	●
56	JET; OIL,PISTON COOLING	1-13342-135-1	08	1	9603-	●
56	JET; OIL,PISTON COOLING	1-13342-135-0	10	1	9603-9904		●
56	JET; OIL,PISTON COOLING	1-13342-135-1	10	1	9905-		●	●	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	06	1	9603-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9708-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9603-9904		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9905-		●	●	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9603-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9603-9904		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9905-		●	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9603-9904	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9905-	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9603-9706	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9707-9904	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-	●	●	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9603-9904	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9905-	●	●	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9603-9904	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9905-	●	●	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9603-9904	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END (A) M30X20	1-09609-019-0	02	1	9603-	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9603-9904	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9603-9904	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-0	01	1	9603-9904	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-1	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9603-9904	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9905-	●	●	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9603-9904	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9905-	●	●	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9603-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9603-9904		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9905-		●	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9603-9904	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-	●	●	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9603-9904	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9905-	●	●	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9603-9904	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9905-	●	●	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9904	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9904	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●	●	●	●

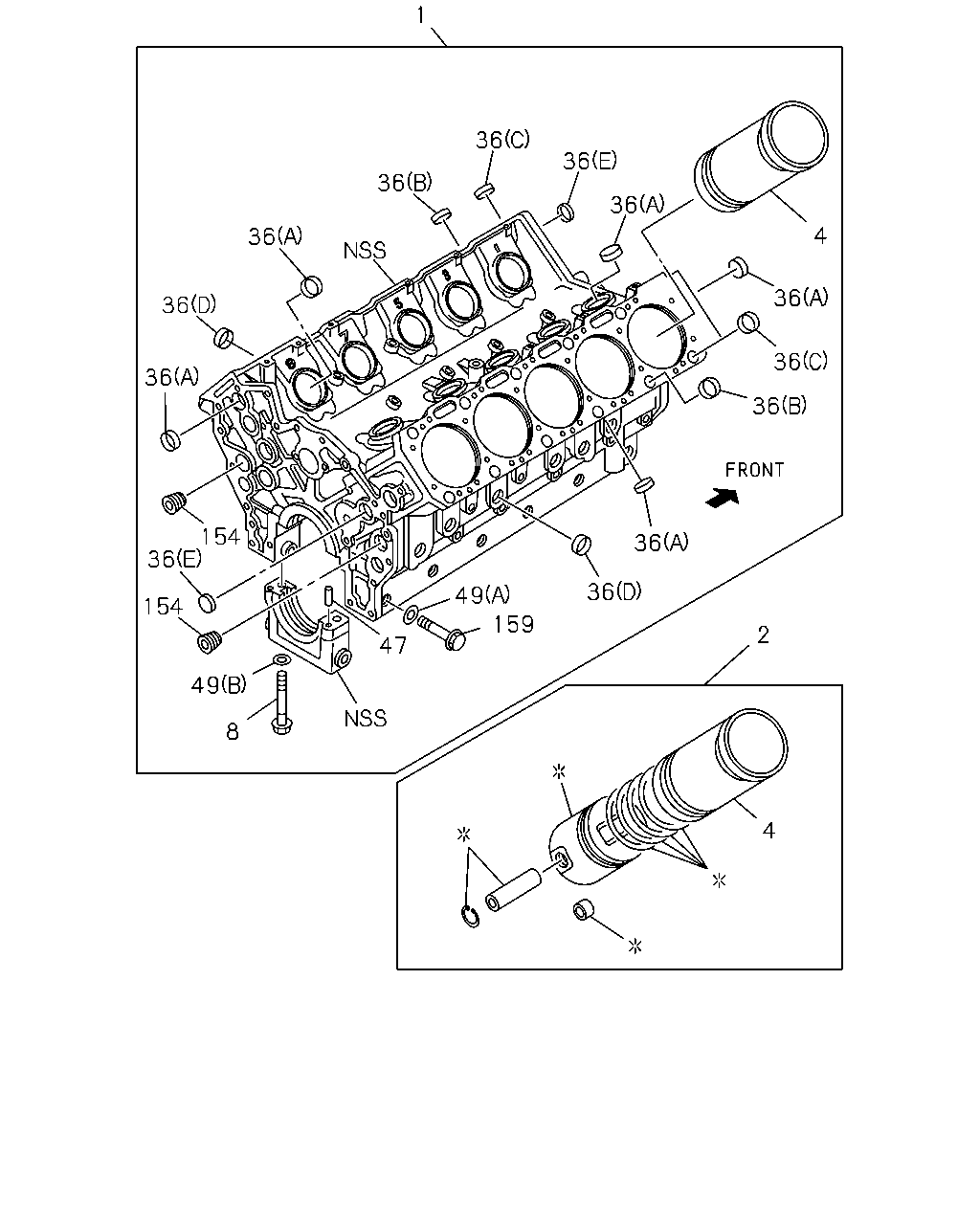

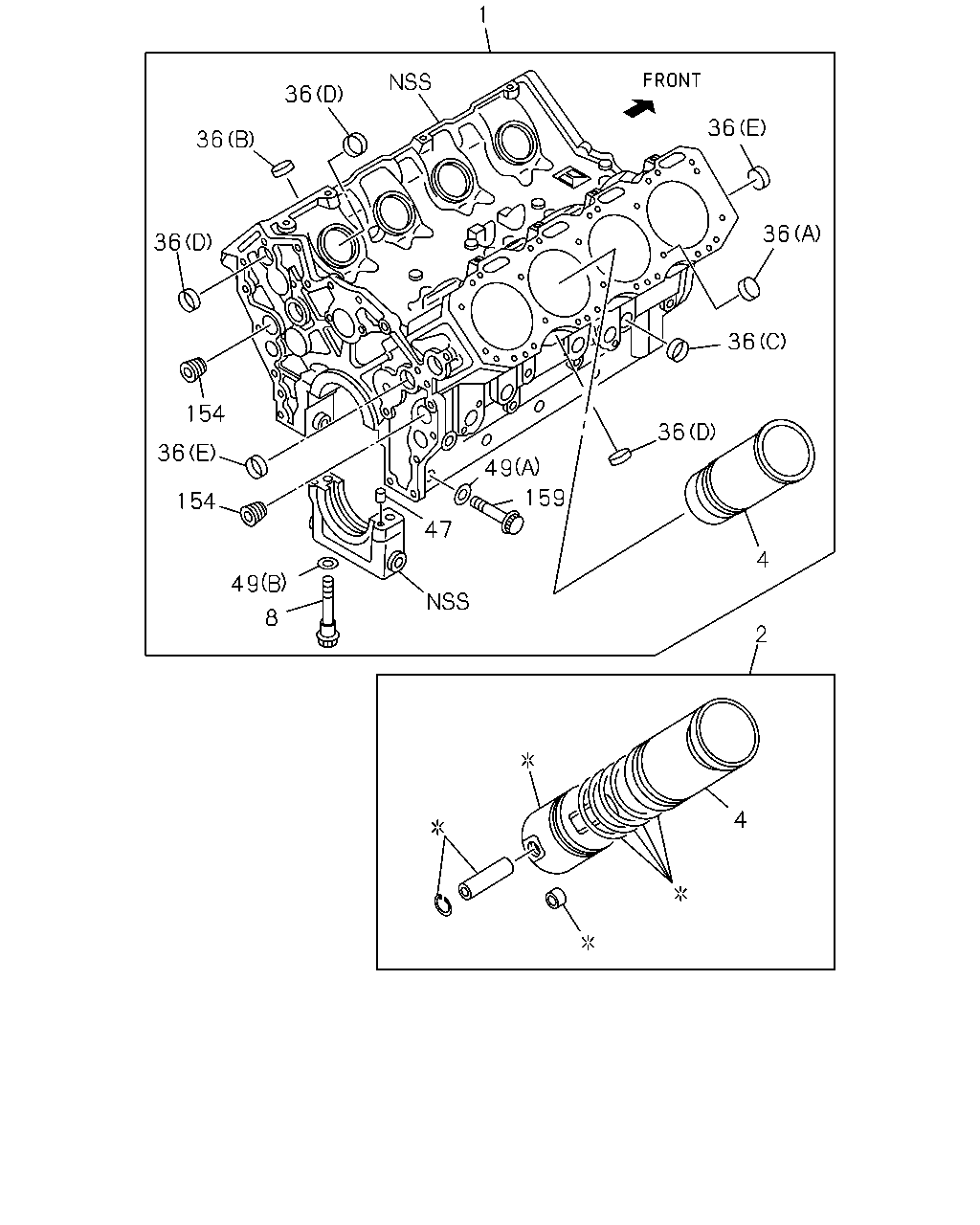

1 36 36 36 36 36 36 154 36 36 49 159 154 47 4 49 8 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-617-7	01	1	9603-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-586-7	01	1	9603-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9603-9904		●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9905-		●	●	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9603-9904		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9905-		●	●	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-445-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	08	1	9706-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-446-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	08	1	9706-	●
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=1X	1-87811-789-1	10	1	9603-9904		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	10	1	9905-		●		●
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=3X	1-87811-790-1	10	1	9603-9904		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	10	1	9905-		●		●
2	LINER SET; ENG CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=1X	1-87811-807-1	10	1	9604-9904		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-807-3	10	1	9905-			●
2	LINER SET; ENG CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=3X	1-87811-808-1	10	1	9604-9904		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-808-3	10	1	9905-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	10	1	9810-9904		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	10	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	10	1	9810-9904		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	10	1	9905-		●	●	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9603-9902	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	10	1	9903-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9603-9902		●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9903-9904		●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	23	1	9603-	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	9603-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9603-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	07	1	9603-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9603-9904	●	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9905-	●	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	27	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	27	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=32	1-09600-012-1	08	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (B) OD=32	1-09600-012-1	08	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=25	1-09600-016-0	14	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (C) OD=25	1-09600-016-0	14	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=40	1-09600-020-0	09	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (D) OD=40	1-09600-020-0	09	1	9905-		●	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9603-9904	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9905-	●	●	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9603-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9603-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9603-9904		●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9905-		●	●	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9603-9904		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9905-		●	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9603-9904	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9905-	●	●	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9603-9810	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9811-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9603-9810		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9811-9904		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9905-		●	●	●

1 36 36 36 36 4 36 36 36 36 36 36 154 36 36 36 49 154 159 2 47 49 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-617-7	01	1	9603-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-586-7	01	1	9603-	●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9603-9904		●
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9905-		●	●	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9603-9904		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9905-		●	●	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-445-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	08	1	9706-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-446-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	08	1	9706-	●
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=1X	1-87811-789-1	10	1	9603-9904		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	10	1	9905-		●		●
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=3X	1-87811-790-1	10	1	9603-9904		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	10	1	9905-		●		●
2	LINER SET; ENG CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=1X	1-87811-807-1	10	1	9604-9904		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-807-3	10	1	9905-			●
2	LINER SET; ENG CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=3X	1-87811-808-1	10	1	9604-9904		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-808-3	10	1	9905-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	10	1	9810-9904		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	10	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	10	1	9810-9904		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	10	1	9905-		●	●	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9603-9902	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	10	1	9903-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9603-9902		●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9903-9904		●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	23	1	9603-	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	9603-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9603-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	07	1	9603-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9603-9904	●	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9905-	●	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	27	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	27	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=32	1-09600-012-1	08	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (B) OD=32	1-09600-012-1	08	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=25	1-09600-016-0	14	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (C) OD=25	1-09600-016-0	14	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=40	1-09600-020-0	09	1	9603-9904		●
36	CUP; SEALING,WATER JACKET (D) OD=40	1-09600-020-0	09	1	9905-		●	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9603-9904	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9905-	●	●	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9603-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9603-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9603-9904		●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9905-		●	●	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9603-9904		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9905-		●	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9603-9904	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9905-	●	●	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9603-9810	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9811-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9603-9810		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9811-9904		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
