◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-12 - FRONT DRIVE SHAFT ▶
4-12 — FRONT DRIVE SHAFT (#42176) — 202 parça

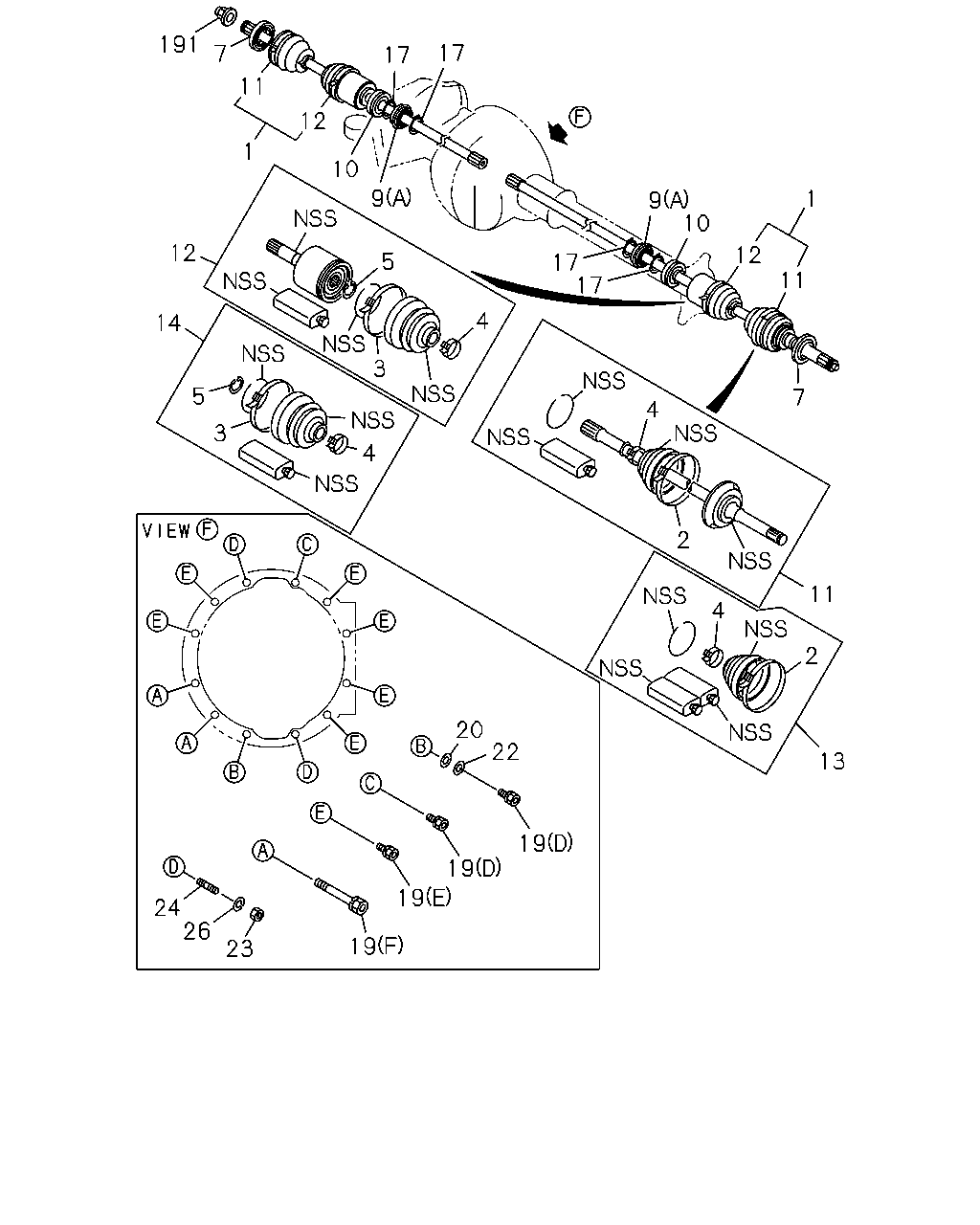

çizim 17759
191 17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 3 5 7 4 3 4 2 11 4 2 20 22 13 19 19 19 24 26 23 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT ASM; FRT DRIVE 8-97125-447-2 02 1 9707-0106
1 SHAFT ASM; FRT DRIVE 8-97209-981-3 02 1 0107-
2 BAND; "A",FRT DRIVE SHAFT 8-97131-401-0 02 1 9707-0106
2 BAND; "A",FRT DRIVE SHAFT 8-97218-530-0 02 1 0107-
3 BAND; "B",FRT DRIVE SHAFT 8-94312-929-0 02 1 9707-0106
3 BAND; "B",FRT DRIVE SHAFT 8-97218-529-0 02 1 0107-
4 BAND; "C",FRT DRIVE SHAFT 8-94312-931-0 02 1 9707-
4 BAND; "C",FRT DRIVE SHAFT 8-94313-094-0 02 1 9707-0106
4 BAND; "C",FRT DRIVE SHAFT 8-97212-746-0 02 1 0107-
5 RING; RET,FRT DRIVE SHAFT 8-97131-402-0 02 1 9707-
7 SEAL; DUST,DRIVE SHAFT 8-97044-609-1 02 1 9707-0010
7 SEAL; DUST,DRIVE SHAFT 8-97123-692-0 02 1 0011-
9 BEARING; AXLE SHAFT,INNER
(B) 		8-97101-878-0 01 1 9707-
9 BEARING; AXLE SHAFT,INNER
(A) 		8-97124-188-0 02 1 9707-
10 SEAL; OIL,AXLE SHAFT,INNER 8-94366-610-0 02 1 9707-0311
10 SEAL; OIL,AXLE SHAFT,INNER 8-97373-555-0 02 1 0312-
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT 8-97148-747-0 02 1 9707-0106
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT 8-97218-523-0 02 1 0107-
12 JOINT ASM 8-97148-748-0 02 1 9707-0106
12 JOINT ASM 8-97218-524-0 02 1 0107-
13 BOOT KIT; OUTSIDE,FRT DRIVE SHAFT 8-97148-749-0 02 1 9707-0106
13 BOOT KIT; OUTSIDE,FRT DRIVE SHAFT 8-97218-526-0 02 1 0107-
14 BOOT KIT; IN SIDE,FRT DRIVE SHAFT 8-97148-750-0 02 1 9707-0106
14 BOOT KIT; IN SIDE,FRT DRIVE SHAFT 8-97218-528-0 02 1 0107-
17 RING; SNAP,DRIVE SHAFT TO TRANS AXLE
ID=27.9 		9-09180-030-0 04 1 9707-
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9707-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9707-
19 BOLT; FRT AXLE
(G) M6X16 FLANGE 		0-28480-616-0 01 1 9707-9908
19 BOLT; FRT AXLE
(C) M8X16 FLANGE 		0-28480-816-0 01 1 9707-9908
19 BOLT; FRT AXLE
(H) M8X20 FLANGE 		0-28480-820-0 02 1 9707-9908
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-1 06 1 9707-
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-1 02 1 9707-
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-1 02 1 9707-
20 GASKET; AXLE CASE
ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 9707-
22 WASHER; PL,AXLE CASE
ID=8.4 		9-09164-508-0 01 1 9707-
23 NUT; FRT AXLE
M8 		9-09110-508-0 02 1 9707-
24 STUD; CASE,FRT AXLE
M8X25 L=37 		9-04110-825-0 02 1 9707-
26 WASHER; LK,CASE,FRT AXLE
ID=8.2 		9-09150-608-0 02 1 9707-
191 NUT; SHAFT,FRT DRIVE
M24 FLANGE 		8-97087-750-0 02 1 0107-

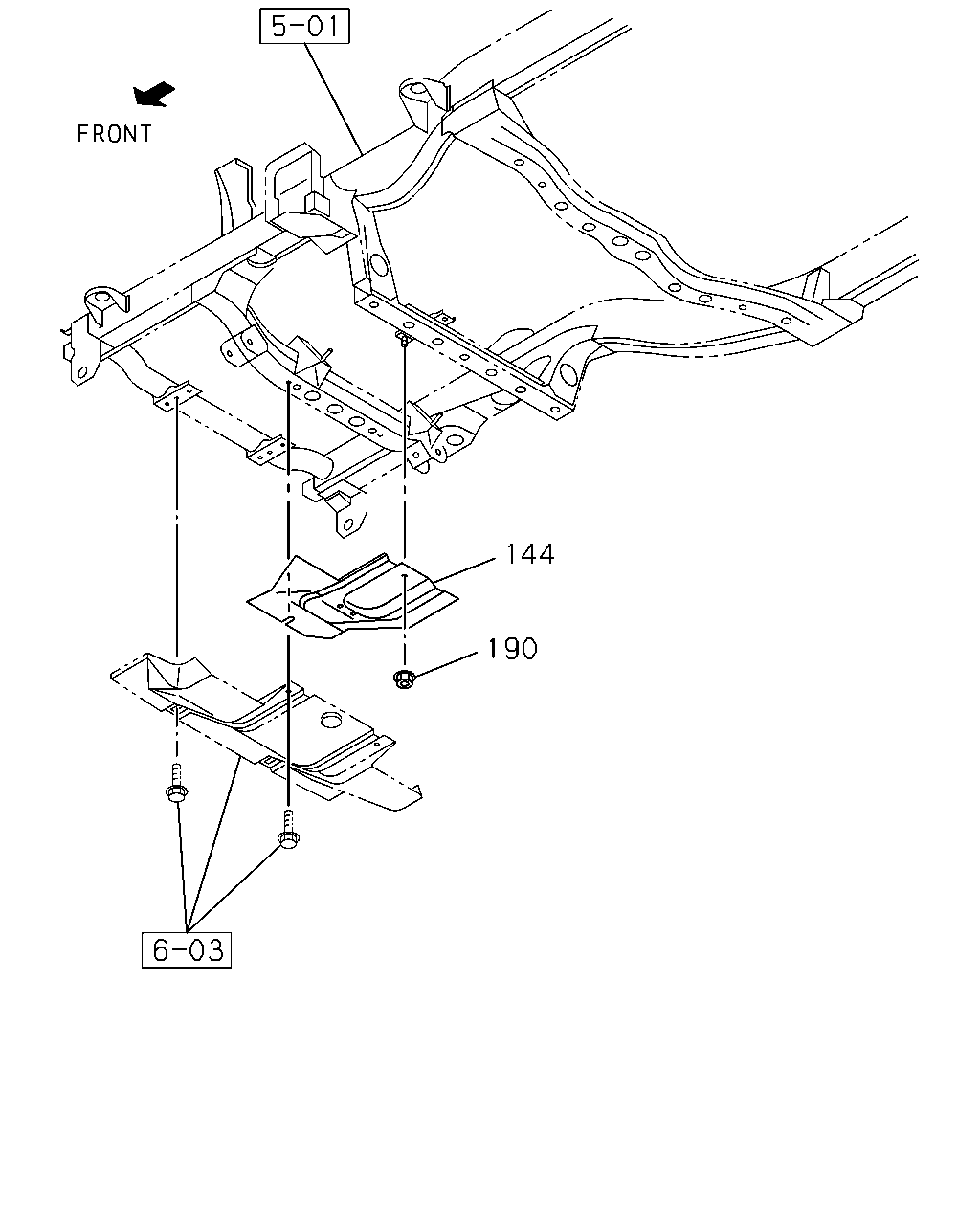

çizim 17808
144 190
BalonParca AdiParca NoAdetTipApplied Date
144 PROTECTOR 8-97223-626-2 01 1 9909-
190 NUT; PROTECTOR
M10 FLANGE 		8-97142-595-0 01 1 9909-

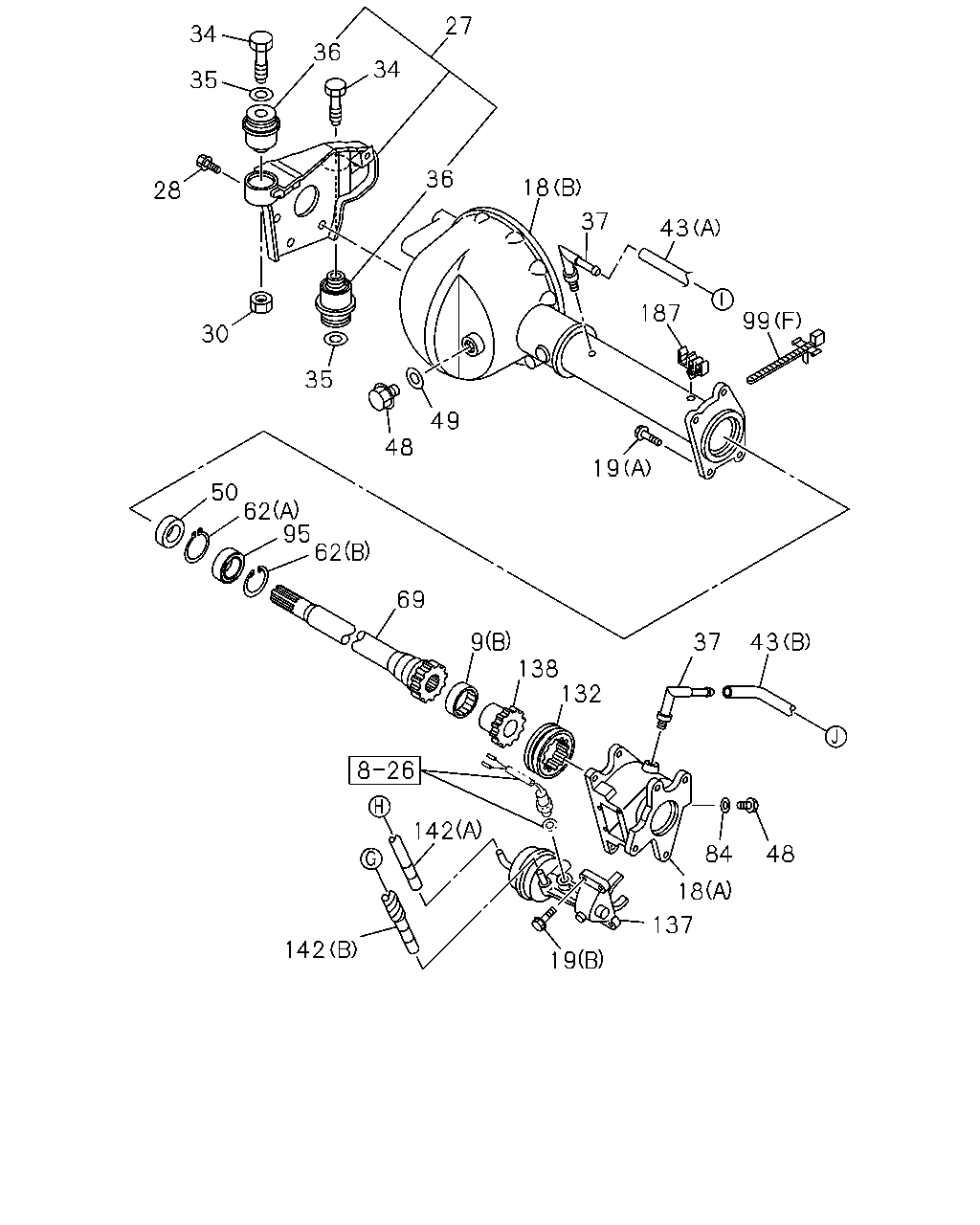

çizim 17809
27 34 36 34 35 36 18 28 37 43 99 187 30 35 49 48 19 50 62 95 62 69 9 37 43 138 132 142 84 48 18 137 142 19
BalonParca AdiParca NoAdetTipApplied Date
9 BEARING; AXLE SHAFT,INNER
(B) 		8-97101-878-0 01 1 9707-
9 BEARING; AXLE SHAFT,INNER
(A) 		8-97124-188-0 02 1 9707-
18 CASE; FRT AXLE
(A) 		8-97081-658-3 01 1 9707-
18 CASE; FRT AXLE
(B) 		8-97125-439-1 01 1 9707-
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9707-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9707-
19 BOLT; FRT AXLE
(G) M6X16 FLANGE 		0-28480-616-0 01 1 9707-9908
19 BOLT; FRT AXLE
(C) M8X16 FLANGE 		0-28480-816-0 01 1 9707-9908
19 BOLT; FRT AXLE
(H) M8X20 FLANGE 		0-28480-820-0 02 1 9707-9908
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-1 06 1 9707-
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-1 02 1 9707-
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-1 02 1 9707-
27 BRACKET; AXLE CASE 8-97125-443-0 01 1 9707-0304
27 BRACKET; AXLE CASE 8-97366-506-0 01 1 0305-
27 BRACKET; AXLE CASE 8-97125-442-0 01 1 9707-0304
27 BRACKET; AXLE CASE 8-97366-505-0 01 1 0305-
28 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE 		0-28081-222-0 08 1 9707-0105
28 BOLT; BRKT TO AXLE CASE
M12X20 FLANGE 		0-28091-220-0 08 1 0106-
30 NUT; FRT AXLE MTG
M14 FLANGE 		0-91150-214-0 02 1 9707-
34 BOLT; FRT AXLE MTG
M14X80 FLANGE 		0-29291-480-0 04 1 9707-
35 WASHER; FRT AXLE MTG
ID=14 OD=50 		8-97093-581-0 04 1 9707-
36 BUSHING; RUBBER,FRT AXLE MTG 8-97139-268-0 02 1 9707-0304
36 BUSHING; RUBBER,FRT AXLE MTG 8-97366-511-0 02 1 0305-
36 BUSHING; RUBBER,FRT AXLE MTG 8-97149-540-0 02 1 9707-0304
36 BUSHING; RUBBER,FRT AXLE MTG 8-97366-510-0 02 1 0305-
37 BREATHER; FRT AXLE CASE 8-94226-943-0 02 1 9707-
43 HOSE; RUBBER,AIR BREATHER
(C) L=150 SERVICED BY L=3000 		0-04740-300-0 02 1 9707-9903
43 HOSE; RUBBER,AIR BREATHER
(C) L=140 SERVICED BY L=3000 		0-04740-300-0 02 1 9904-9908
43 HOSE; RUBBER,AIR BREATHER
(A) L=100 SERVICED BY L=3000 		0-04750-300-0 01 1 9707-
43 HOSE; RUBBER,AIR BREATHER
(B) L=50 SERVICED BY L=3000 		0-04750-300-0 01 1 9707-
48 PLUG; DRAIN,AXLE CASE
M20X10.5 		9-09662-005-0 02 1 9707-
49 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 9707-
50 SEAL; OIL,SHAFT,FRT AXLE 8-97084-507-0 01 1 9707-
62 RING; SNAP,AXLE SHAFT
(A) ID=37.0 		9-09180-040-0 01 1 9707-
62 RING; SNAP,AXLE SHAFT
(B) ID=57.9 		9-09180-162-0 01 1 9707-
69 SHAFT; AXLE,FRT INNER 8-97130-566-1 01 1 9707-9711
69 SHAFT; AXLE,FRT INNER 8-97188-174-1 01 1 9712-
84 GASKET; PLUG,OIL FILLER
ID=20 OD=30 		8-94462-734-0 01 1 9707-
95 BEARING; AXLE SHAFT,FRT 8-97103-392-0 01 1 9707-
99 CLIP; RUBBER HOSE
(F) L=170.3 		1-09987-182-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(A) ID=8 		8-94107-762-0 02 1 9707-9908
99 CLIP; RUBBER HOSE
(D) ID=8.3 & 8.3 		8-94426-175-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(C) ID=8 & 4.8 		8-94430-297-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(E) ID=7 		8-97085-207-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(B) 		8-97180-937-0 01 1 9707-9712
99 CLIP; RUBBER HOSE
(B) 		8-97200-741-0 01 1 9801-9908
132 SLEEVE; RUBBER,HOSE 8-97130-567-1 01 1 9707-
137 ACTUATOR; AXLE 8-97101-856-3 01 1 9707-9908
137 ACTUATOR; AXLE 8-97208-683-8 01 1 9909-
138 GEAR; CLUTCH
Z=17 		8-97134-857-1 01 1 9707-
142 HOSE; VSV
(A) 		8-97101-810-0 01 1 9707-9908
142 HOSE; VSV
(B) 		8-97138-605-0 01 1 9707-9908
187 CLIP; HOSE,BREATHER 8-94442-883-1 01 1 9707-

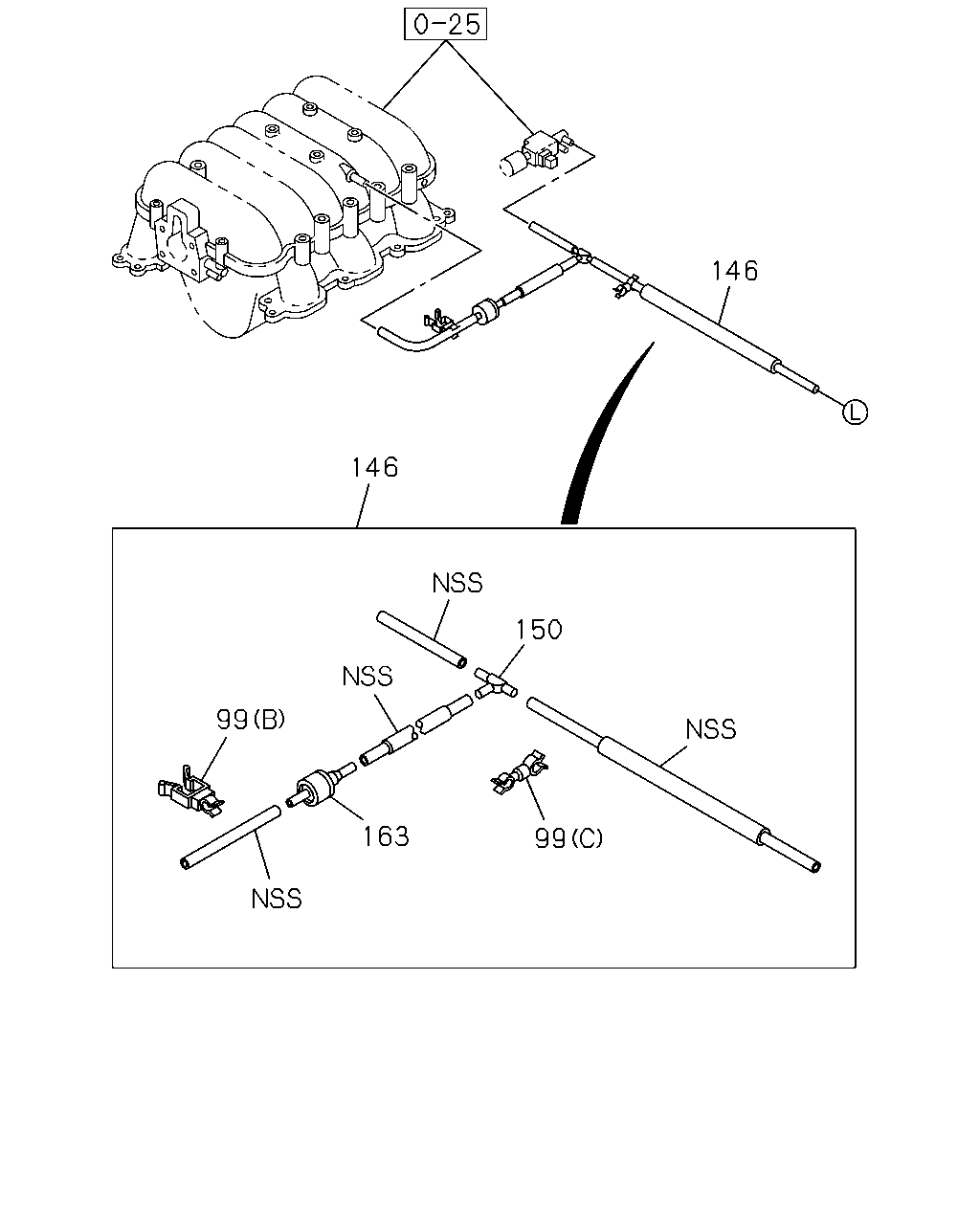

çizim 17849
146 146 150 99 163 99
BalonParca AdiParca NoAdetTipApplied Date
99 CLIP; RUBBER HOSE
(F) L=170.3 		1-09987-182-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(A) ID=8 		8-94107-762-0 02 1 9707-9908
99 CLIP; RUBBER HOSE
(D) ID=8.3 & 8.3 		8-94426-175-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(C) ID=8 & 4.8 		8-94430-297-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(E) ID=7 		8-97085-207-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(B) 		8-97180-937-0 01 1 9707-9712
99 CLIP; RUBBER HOSE
(B) 		8-97200-741-0 01 1 9801-9908
146 HOSE; CHECK VLV 8-97125-118-4 01 1 9707-9906
146 HOSE; CHECK VLV 8-97230-744-0 01 1 9907-9908
150 JOINT
3WAY 		8-94208-695-0 01 1 9707-9908
163 VALVE; CHECK 8-97024-129-2 01 1 9707-9908

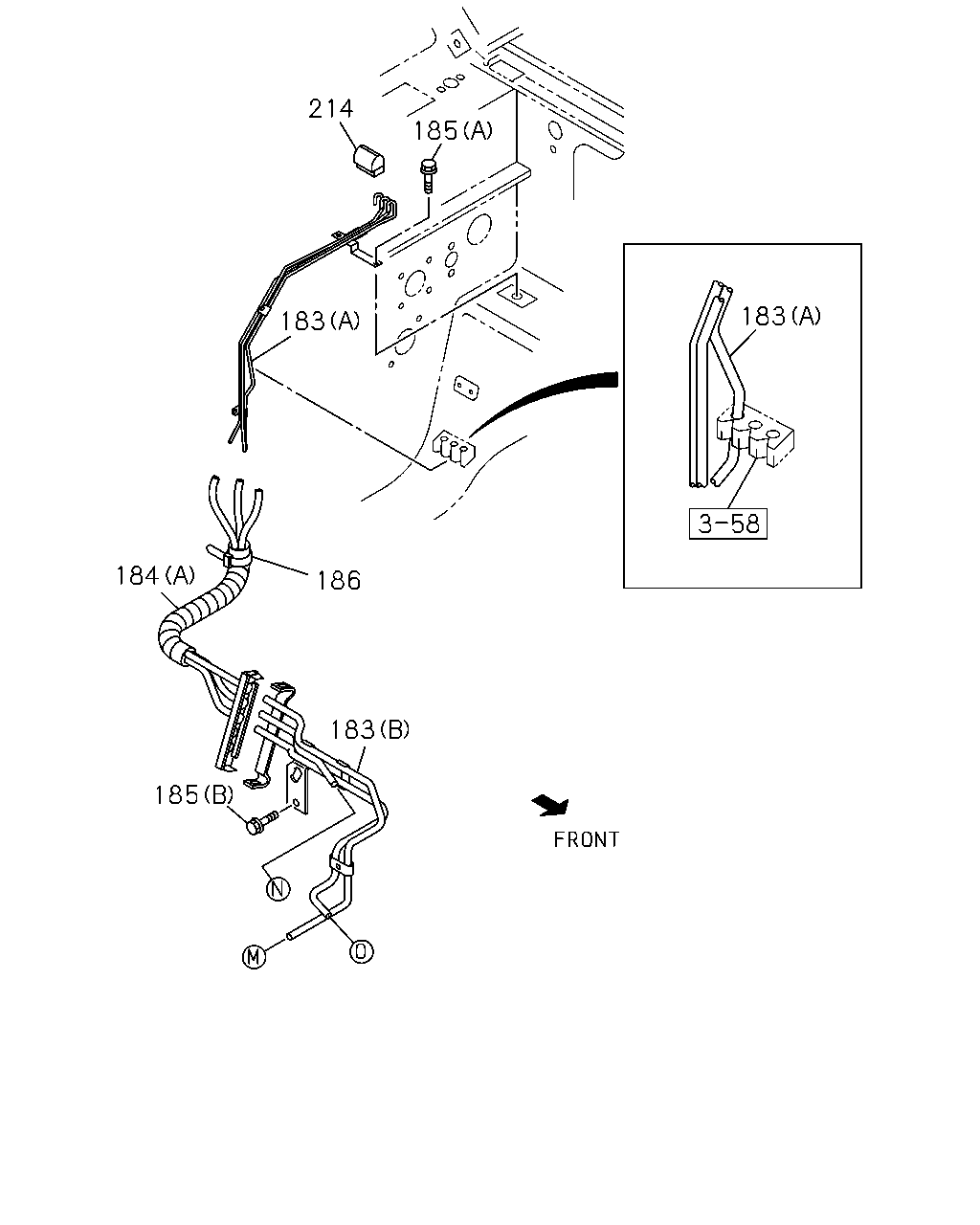

çizim 72128
214 185 183 183 184 186 183 185
BalonParca AdiParca NoAdetTipApplied Date
183 PIPE; BREATHER
(B) 		8-97208-684-2 01 1 9909-
183 PIPE; BREATHER
(A) 		8-97208-685-0 01 1 9909-
184 HOSE; BREATHER
(B) L=180 SERVICED BY L=3000 		0-04745-300-0 01 1 9909-
184 HOSE; BREATHER
(A) 		8-97208-875-1 01 1 9909-0007
184 HOSE; BREATHER
(A) 		8-97260-489-0 01 1 0008-
185 BOLT; PIPE,BREATHER
(A) M6X16 FLANGE 		0-28480-616-0 01 1 9909-
185 BOLT; PIPE,BREATHER
(B) M8X16 FLANGE 		0-28480-816-0 01 1 9909-
186 CLIP; HOSE,BREATHER
L=170.3 		1-09987-182-0 01 1 9909-
214 COVER; BREATHER 8-97261-746-0 01 1 0009-

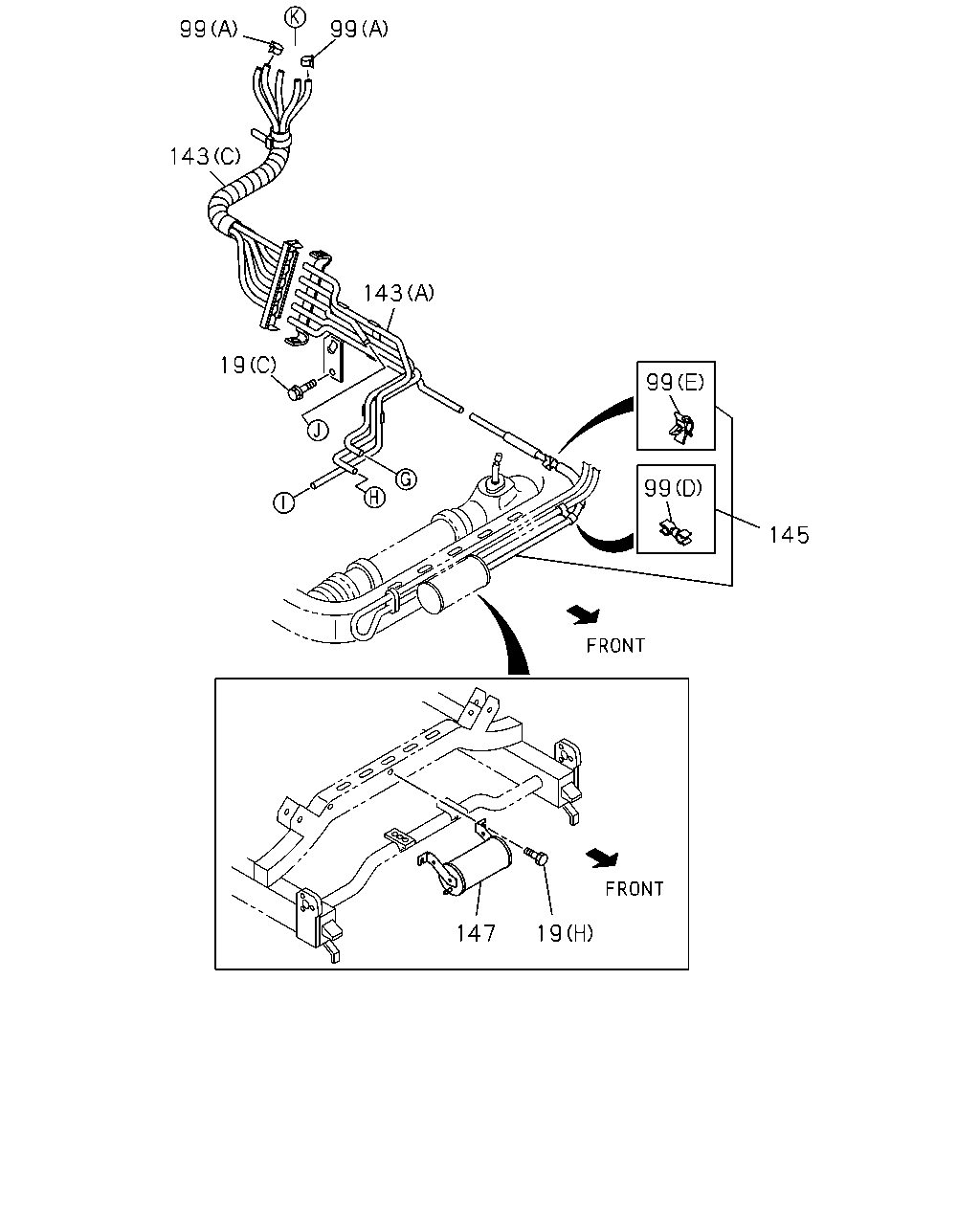

çizim 72223
99 99 143 143 19 99 99 145 147 19
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9707-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9707-
19 BOLT; FRT AXLE
(G) M6X16 FLANGE 		0-28480-616-0 01 1 9707-9908
19 BOLT; FRT AXLE
(C) M8X16 FLANGE 		0-28480-816-0 01 1 9707-9908
19 BOLT; FRT AXLE
(H) M8X20 FLANGE 		0-28480-820-0 02 1 9707-9908
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-1 06 1 9707-
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-1 02 1 9707-
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-1 02 1 9707-
99 CLIP; RUBBER HOSE
(F) L=170.3 		1-09987-182-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(A) ID=8 		8-94107-762-0 02 1 9707-9908
99 CLIP; RUBBER HOSE
(D) ID=8.3 & 8.3 		8-94426-175-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(C) ID=8 & 4.8 		8-94430-297-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(E) ID=7 		8-97085-207-0 01 1 9707-9908
99 CLIP; RUBBER HOSE
(B) 		8-97180-937-0 01 1 9707-9712
99 CLIP; RUBBER HOSE
(B) 		8-97200-741-0 01 1 9801-9908
143 PIPE; VACUUM
(A) 		8-97135-793-2 01 1 9707-9908
143 PIPE; VACUUM
(B) 		8-97135-794-2 01 1 9707-9908
143 PIPE; VACUUM
(C) 		8-97135-799-2 01 1 9707-9908
145 HOSE; VAC TANK 8-97135-798-3 01 1 9707-9908
147 TANK; VACUUM 8-97125-140-0 01 1 9707-9908

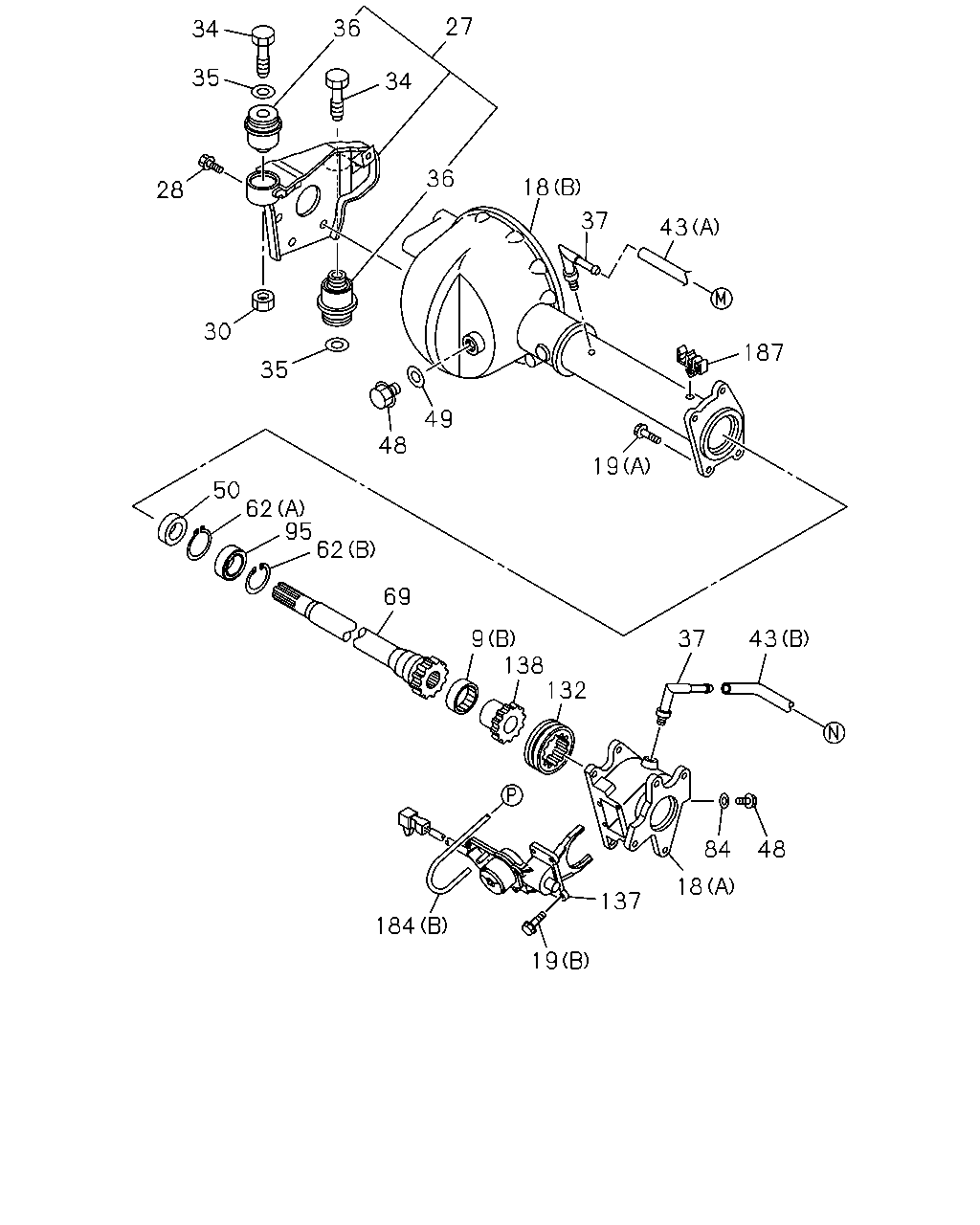

çizim 72350
27 36 34 35 34 36 18 28 37 43 30 187 35 49 48 19 50 62 95 62 69 9 138 132 37 43 84 48 18 137 184 19
BalonParca AdiParca NoAdetTipApplied Date
9 BEARING; AXLE SHAFT,INNER
(B) 		8-97101-878-0 01 1 9707-
9 BEARING; AXLE SHAFT,INNER
(A) 		8-97124-188-0 02 1 9707-
18 CASE; FRT AXLE
(A) 		8-97081-658-3 01 1 9707-
18 CASE; FRT AXLE
(B) 		8-97125-439-1 01 1 9707-
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9707-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9707-
19 BOLT; FRT AXLE
(G) M6X16 FLANGE 		0-28480-616-0 01 1 9707-9908
19 BOLT; FRT AXLE
(C) M8X16 FLANGE 		0-28480-816-0 01 1 9707-9908
19 BOLT; FRT AXLE
(H) M8X20 FLANGE 		0-28480-820-0 02 1 9707-9908
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-1 06 1 9707-
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-1 02 1 9707-
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-1 02 1 9707-
27 BRACKET; AXLE CASE 8-97125-443-0 01 1 9707-0304
27 BRACKET; AXLE CASE 8-97366-506-0 01 1 0305-
27 BRACKET; AXLE CASE 8-97125-442-0 01 1 9707-0304
27 BRACKET; AXLE CASE 8-97366-505-0 01 1 0305-
28 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE 		0-28081-222-0 08 1 9707-0105
28 BOLT; BRKT TO AXLE CASE
M12X20 FLANGE 		0-28091-220-0 08 1 0106-
30 NUT; FRT AXLE MTG
M14 FLANGE 		0-91150-214-0 02 1 9707-
34 BOLT; FRT AXLE MTG
M14X80 FLANGE 		0-29291-480-0 04 1 9707-
35 WASHER; FRT AXLE MTG
ID=14 OD=50 		8-97093-581-0 04 1 9707-
36 BUSHING; RUBBER,FRT AXLE MTG 8-97139-268-0 02 1 9707-0304
36 BUSHING; RUBBER,FRT AXLE MTG 8-97366-511-0 02 1 0305-
36 BUSHING; RUBBER,FRT AXLE MTG 8-97149-540-0 02 1 9707-0304
36 BUSHING; RUBBER,FRT AXLE MTG 8-97366-510-0 02 1 0305-
37 BREATHER; FRT AXLE CASE 8-94226-943-0 02 1 9707-
43 HOSE; RUBBER,AIR BREATHER
(C) L=150 SERVICED BY L=3000 		0-04740-300-0 02 1 9707-9903
43 HOSE; RUBBER,AIR BREATHER
(C) L=140 SERVICED BY L=3000 		0-04740-300-0 02 1 9904-9908
43 HOSE; RUBBER,AIR BREATHER
(A) L=100 SERVICED BY L=3000 		0-04750-300-0 01 1 9707-
43 HOSE; RUBBER,AIR BREATHER
(B) L=50 SERVICED BY L=3000 		0-04750-300-0 01 1 9707-
48 PLUG; DRAIN,AXLE CASE
M20X10.5 		9-09662-005-0 02 1 9707-
49 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 9707-
50 SEAL; OIL,SHAFT,FRT AXLE 8-97084-507-0 01 1 9707-
62 RING; SNAP,AXLE SHAFT
(A) ID=37.0 		9-09180-040-0 01 1 9707-
62 RING; SNAP,AXLE SHAFT
(B) ID=57.9 		9-09180-162-0 01 1 9707-
69 SHAFT; AXLE,FRT INNER 8-97130-566-1 01 1 9707-9711
69 SHAFT; AXLE,FRT INNER 8-97188-174-1 01 1 9712-
84 GASKET; PLUG,OIL FILLER
ID=20 OD=30 		8-94462-734-0 01 1 9707-
95 BEARING; AXLE SHAFT,FRT 8-97103-392-0 01 1 9707-
132 SLEEVE; RUBBER,HOSE 8-97130-567-1 01 1 9707-
137 ACTUATOR; AXLE 8-97101-856-3 01 1 9707-9908
137 ACTUATOR; AXLE 8-97208-683-8 01 1 9909-
138 GEAR; CLUTCH
Z=17 		8-97134-857-1 01 1 9707-
184 HOSE; BREATHER
(B) L=180 SERVICED BY L=3000 		0-04745-300-0 01 1 9909-
184 HOSE; BREATHER
(A) 		8-97208-875-1 01 1 9909-0007
184 HOSE; BREATHER
(A) 		8-97260-489-0 01 1 0008-
187 CLIP; HOSE,BREATHER 8-94442-883-1 01 1 9707-

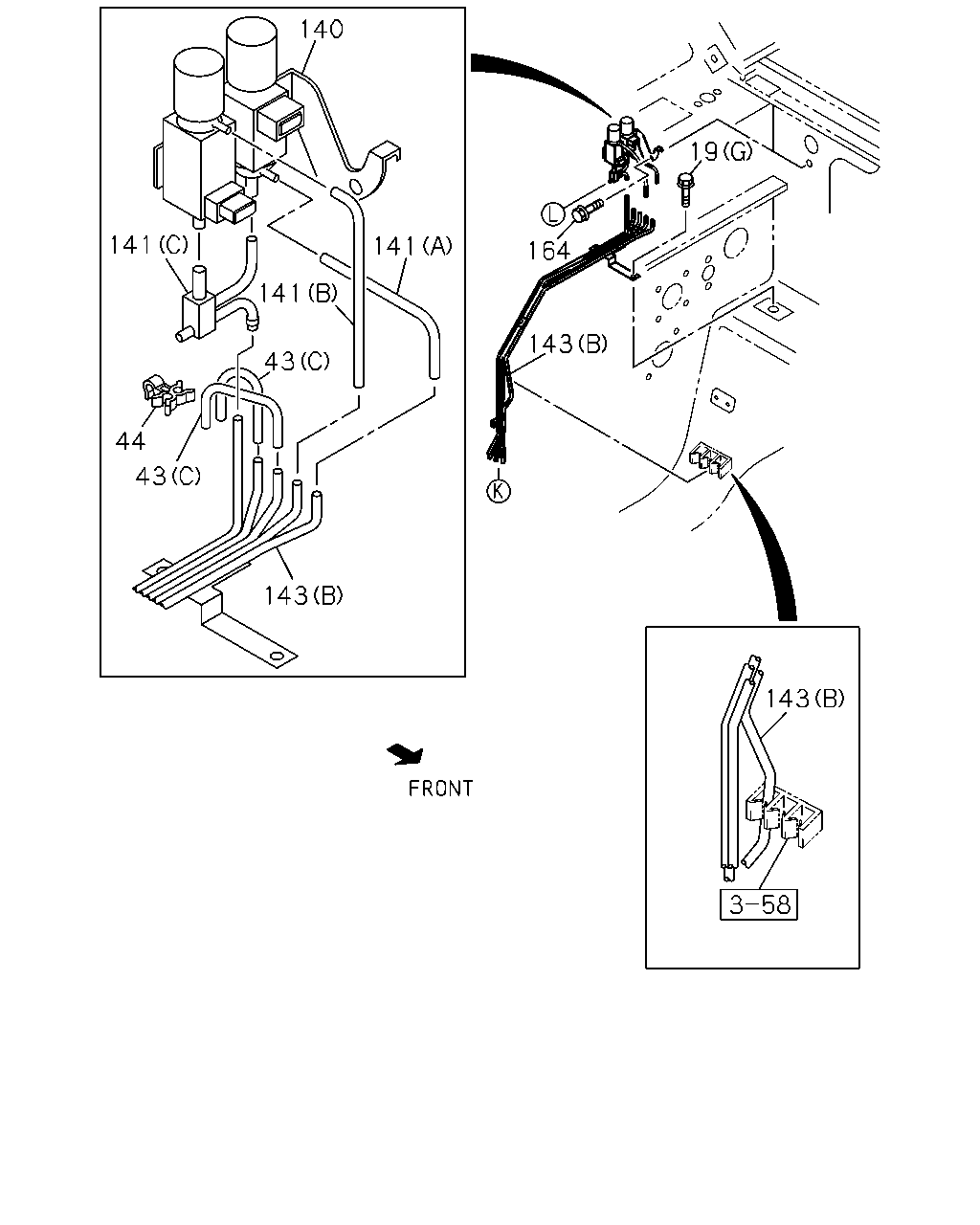

çizim 72400
140 19 141 141 164 141 143 43 44 43 143 143
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; FRT AXLE
(A) M12X22 FLANGE 		0-28081-222-0 04 1 9707-
19 BOLT; FRT AXLE
(B) M8X20 FLANGE 		0-28280-820-0 04 1 9707-
19 BOLT; FRT AXLE
(G) M6X16 FLANGE 		0-28480-616-0 01 1 9707-9908
19 BOLT; FRT AXLE
(C) M8X16 FLANGE 		0-28480-816-0 01 1 9707-9908
19 BOLT; FRT AXLE
(H) M8X20 FLANGE 		0-28480-820-0 02 1 9707-9908
19 BOLT; FRT AXLE
(E) M8X25 W/LK WASHER 		8-97093-664-1 06 1 9707-
19 BOLT; FRT AXLE
(D) M8X30 W/LK WASHER 		8-97093-665-1 02 1 9707-
19 BOLT; FRT AXLE
(F) M8X90 W/LK WASHER 		8-97093-666-1 02 1 9707-
43 HOSE; RUBBER,AIR BREATHER
(C) L=150 SERVICED BY L=3000 		0-04740-300-0 02 1 9707-9903
43 HOSE; RUBBER,AIR BREATHER
(C) L=140 SERVICED BY L=3000 		0-04740-300-0 02 1 9904-9908
43 HOSE; RUBBER,AIR BREATHER
(A) L=100 SERVICED BY L=3000 		0-04750-300-0 01 1 9707-
43 HOSE; RUBBER,AIR BREATHER
(B) L=50 SERVICED BY L=3000 		0-04750-300-0 01 1 9707-
44 CLIP; AIR BREATHER HOSE
ID=7.7 		8-94443-785-0 01 1 9707-9908
140 VALVE UNIT; AXLE 8-97135-769-1 01 1 9707-9908
141 HOSE; VACUUM
(A) L=190 SERVICED BY L=3000 		0-04741-300-0 01 1 9707-9908
141 HOSE; VACUUM
(B) L=180 SERVICED BY L=3000 		0-04745-300-0 01 1 9707-9908
141 HOSE; VACUUM
(C) 		8-97125-169-1 01 1 9707-9908
143 PIPE; VACUUM
(A) 		8-97135-793-2 01 1 9707-9908
143 PIPE; VACUUM
(B) 		8-97135-794-2 01 1 9707-9908
143 PIPE; VACUUM
(C) 		8-97135-799-2 01 1 9707-9908
164 BOLT; VALVE
M6X16 FLANGE 		0-28480-616-0 01 1 9707-9908
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
