4-11 — FRONT HUB AND DRUM OR ROTOR
(#42175) — 40 parça
◀

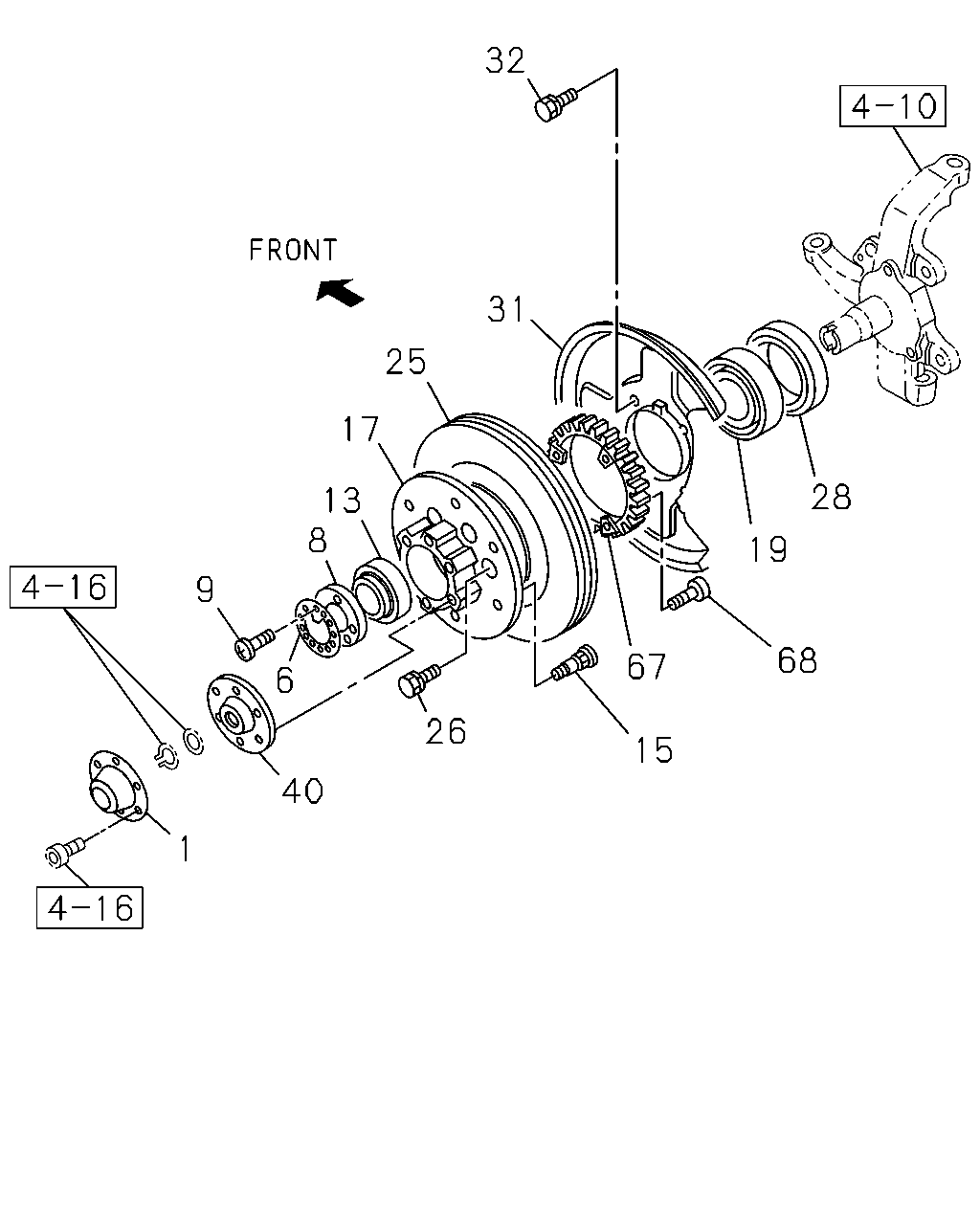

[411A] -'01/6 (24 parça)

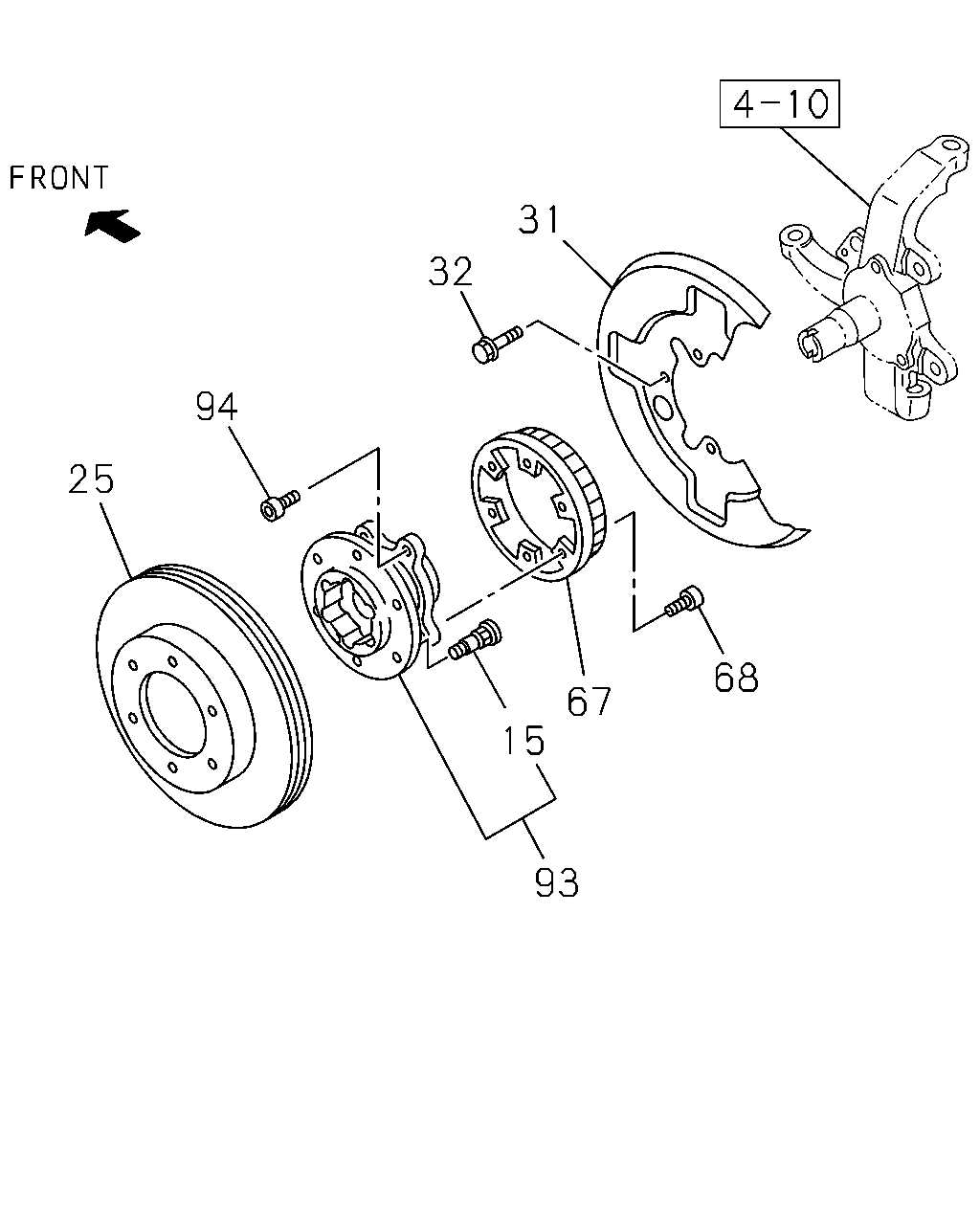

[411A] '01/7- (16 parça)
▶
32
31
25
17
28
13
8
19
9
68
67
6
26
15
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
8-94173-314-2
02
1
9707-0106
6
WASHER; LK,FRT HUB
T=1.8 OD=65
8-94442-398-0
02
1
9707-0106
8
NUT; ADJ,FRT HUB
ID=40 OD=65 T=8
8-94442-399-1
02
1
9707-0106
9
SCREW; ADJ,NUT
M4X8 CK-HEAD
9-93090-408-0
06
1
9707-0106
13
BEARING; HUB OUTER,FRT AXLE
8-97031-887-0
02
1
9707-0106
15
PIN; WHEEL,FRT AXLE
8-97046-682-0
12
1
9707-0106
15
PIN; WHEEL,FRT AXLE
8-97310-701-0
12
1
0107-
17
HUB; FRT AXLE
8-97105-107-1
02
1
9707-0106
19
BEARING; HUB INNER,FRT AXLE
8-97031-888-0
02
1
9707-0106
25
ROTOR; DISC BRK,FRT
8-97096-395-0
02
1
9707-9807
25
ROTOR; DISC BRK,FRT
8-97207-701-0
02
1
9808-0106
25
ROTOR; DISC BRK,FRT
8-97254-295-0
02
1
0107-
26
BOLT; BRK,DISC TO HUB
8-97046-797-0
12
1
9707-0106
28
SEAL; OIL,FRT HUB
8-97044-739-0
02
1
9707-0106
31
COVER; DUST,FRT BRAKE
8-97124-843-0
01
1
9707-0106
31
COVER; DUST,FRT BRAKE
8-97254-339-1
01
1
0107-
31
COVER; DUST,FRT BRAKE
8-97124-842-0
01
1
9707-0106
31
COVER; DUST,FRT BRAKE
8-97254-338-1
01
1
0107-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-97025-916-0
06
1
9707-
40
FLANGE; FRT WHEEL HUB
8-94173-313-0
02
1
9707-0106
67
ROTOR; SENSOR
8-97096-411-0
02
1
9707-0106
67
ROTOR; SENSOR
8-97256-571-1
02
1
0107-
68
BOLT; SENSOR ROTOR
M8X16
9-05820-816-0
06
1
9707-0106
68
BOLT; SENSOR ROTOR
M8X16 HEX SOCKET
0-58310-816-0
12
1
0107-
31
32
94
25
68
67
15
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
PIN; WHEEL,FRT AXLE
8-97046-682-0
12
1
9707-0106
15
PIN; WHEEL,FRT AXLE
8-97310-701-0
12
1
0107-
25
ROTOR; DISC BRK,FRT
8-97096-395-0
02
1
9707-9807
25
ROTOR; DISC BRK,FRT
8-97207-701-0
02
1
9808-0106
25
ROTOR; DISC BRK,FRT
8-97254-295-0
02
1
0107-
31
COVER; DUST,FRT BRAKE
8-97124-843-0
01
1
9707-0106
31
COVER; DUST,FRT BRAKE
8-97254-339-1
01
1
0107-
31
COVER; DUST,FRT BRAKE
8-97124-842-0
01
1
9707-0106
31
COVER; DUST,FRT BRAKE
8-97254-338-1
01
1
0107-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-97025-916-0
06
1
9707-
67
ROTOR; SENSOR
8-97096-411-0
02
1
9707-0106
67
ROTOR; SENSOR
8-97256-571-1
02
1
0107-
68
BOLT; SENSOR ROTOR
M8X16
9-05820-816-0
06
1
9707-0106
68
BOLT; SENSOR ROTOR
M8X16 HEX SOCKET
0-58310-816-0
12
1
0107-
93
HUB UNIT; BEARING
8-97209-964-5
02
1
0107-
94
BOLT; HUB UNIT
M12X41.5
8-94247-495-2
08
1
0107-
